I've just updated the print profiles for this.

The CVH logo is now gone and it just says Y62. I highly recommend using ABS for your support interface. The support for PA Bambu sells is discontinued for a reason. Also after playing around with it you get a much better finish with a 0.6mm nozzle then 0.4 You will need to tap the M4 threads yourself as it's to small a thread to print with the 0.6mm nozzle.

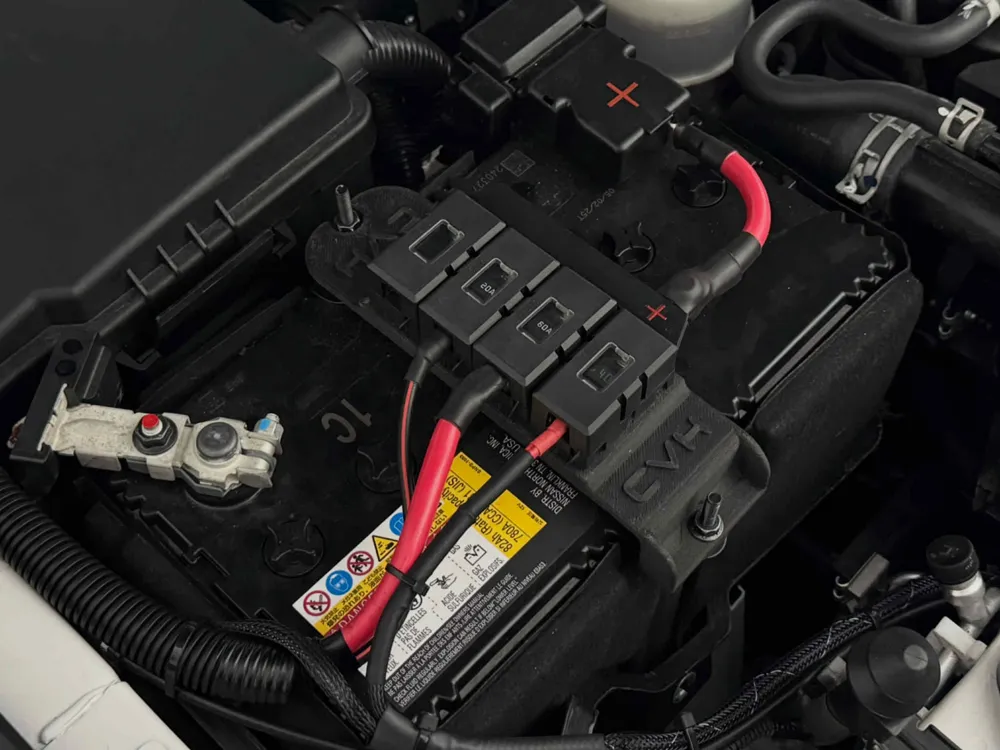

Designed to use ANS-H Midi fuse holders

They attach with M4 x 12mm screws.

It is also designed to work with this bus bar sold by razed products

https://razedproducts.com.au/product/4-fuse-bus-bar/

Comment & Rating (8)

@user_3750273905

hey mate I’ve tryed this a few times and the small end always seems to fail and break away durin printing

The designer has replied

@CVH_

I've printed a few of these without issues, what are you using for supports?

@user_3750273905

I’m using tree support printed the same way it sits on the battery so a heap of support underneath

@CVH_

Replying to @user_3750273905 :

Hey mate sorry for the late reply. I've just tweaked this and uploaded a new file. It's for H2D though, Ill set one up for X1C. I started using ABS for the support interface, makes the support break away nicely. I had brought some of bambus support for PA but it's garbage. I've also changed the writing to Y62, just looked plain with nothing. Also added 1mm of height to it, so it suits M4 x 12mm screws now.

@user_3750273905

hey this looks awesome any chance you could send file without the text and maybe to suit 0.4mm thank you!

The designer has replied

@CVH_

Hey mate, I just put it up there for you now

@COUNTRYDAD

can you add this to be printed in a PS1 please
