Wuzhi Audio ZK502m mini amplifier case

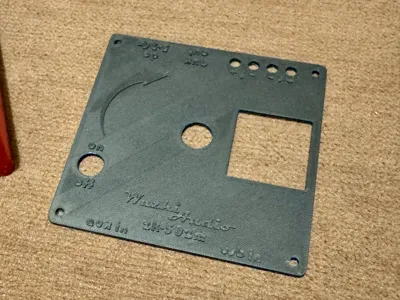

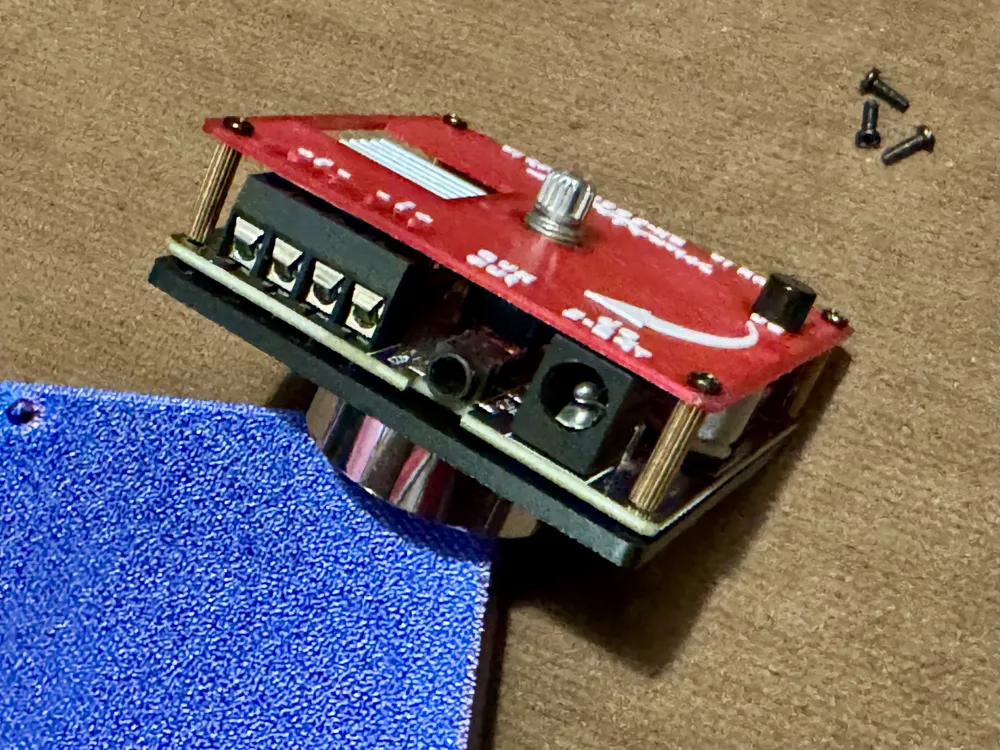

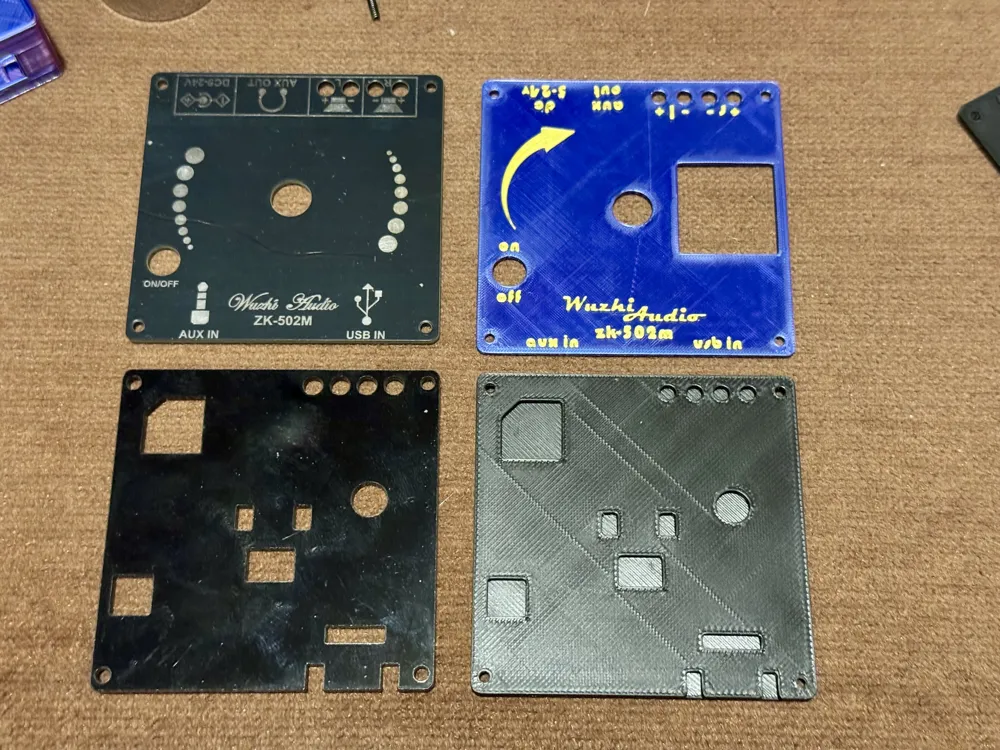

I wanted a translucent case for my Wuzhi Audio ZK-502m teeny-tiny amplifier.  It comes with a set of pre-made panels, but I didn't like that the bottom was exposed, and I wanted something with walls around it, so I modeled the existing panels in Blender and modded them how I wanted.

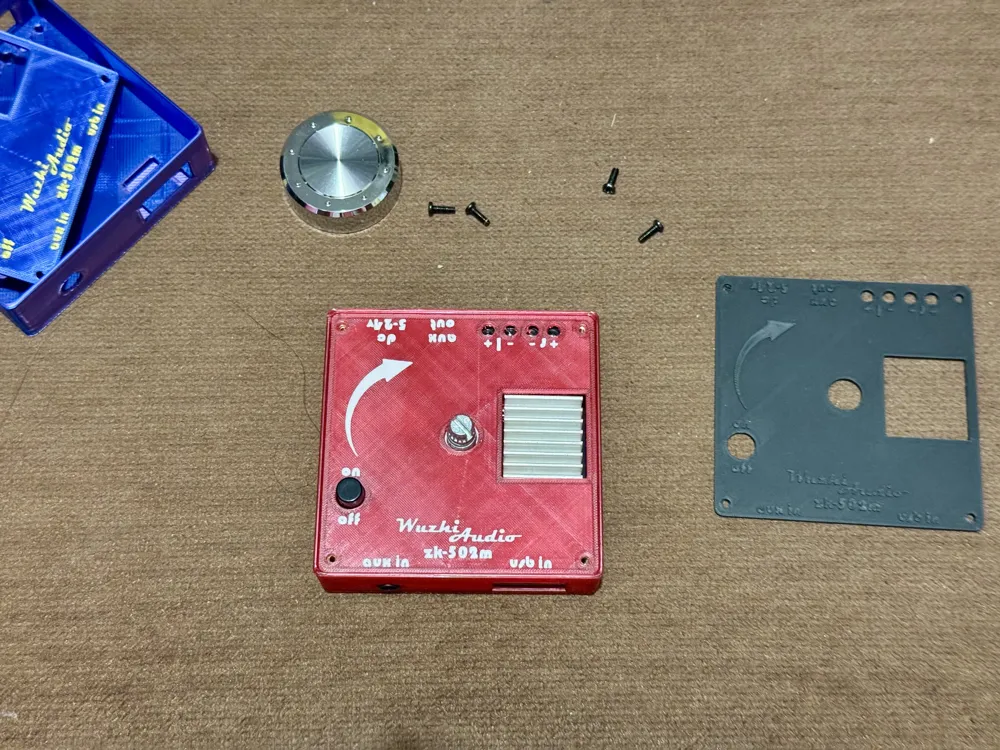

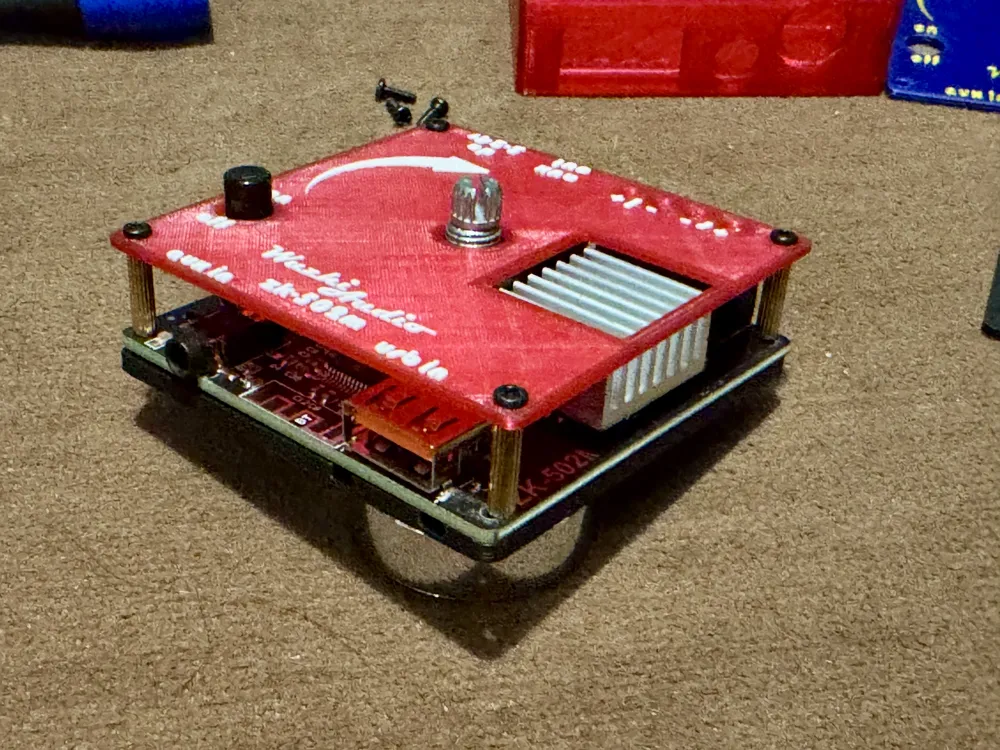

I've included a plain top with no text, and an AMS-compatible top with letters (you can color them yourself using Bambu Studio, or just paint [marker] them).  The letters will MOSTLY print on a .4mm nozzle, but the script “Wuzhi Audio” will only print with a .2mm nozzle.  I printed the top in translucent red Overture PETG with white Bambu Matte PLA lettering, A1 w/AMS.  There was no problem with adhesion.

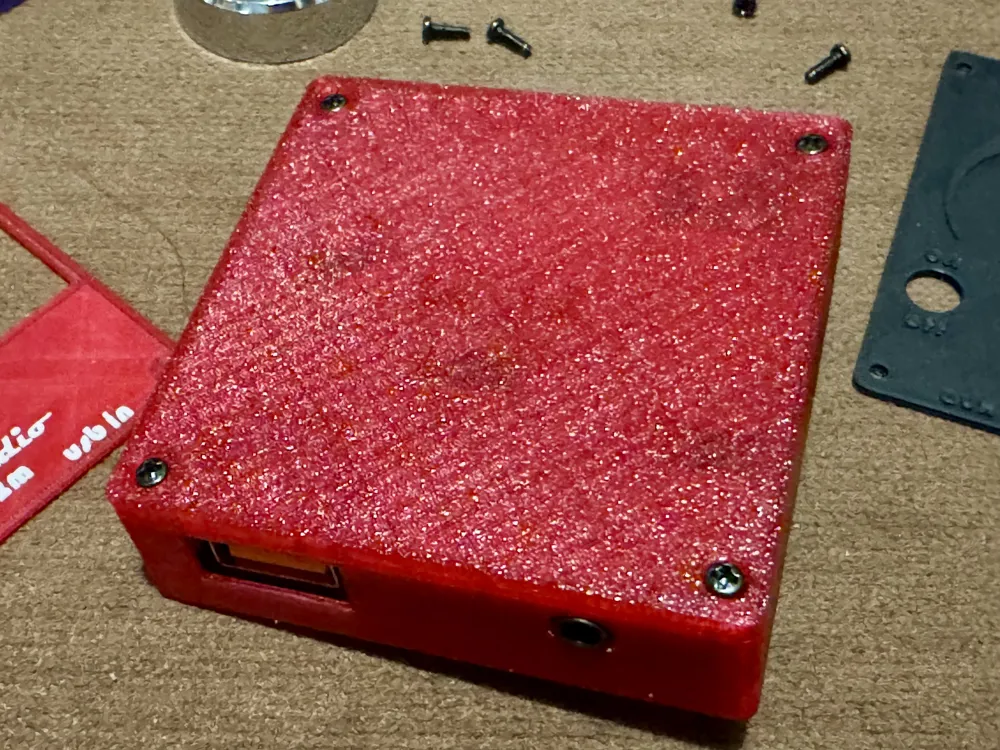

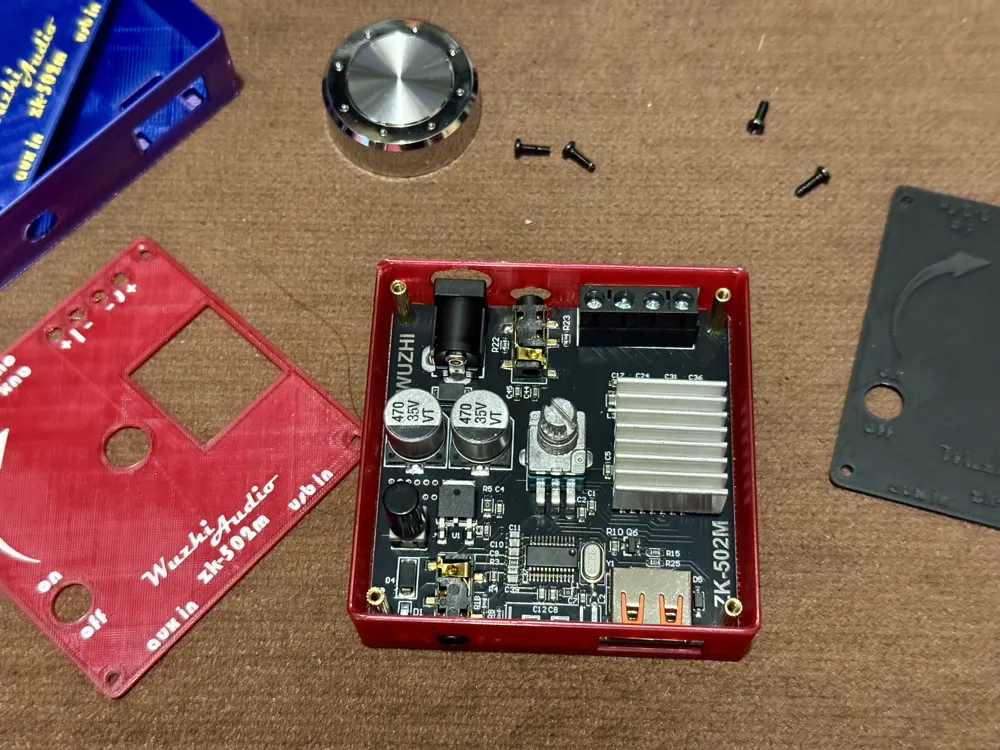

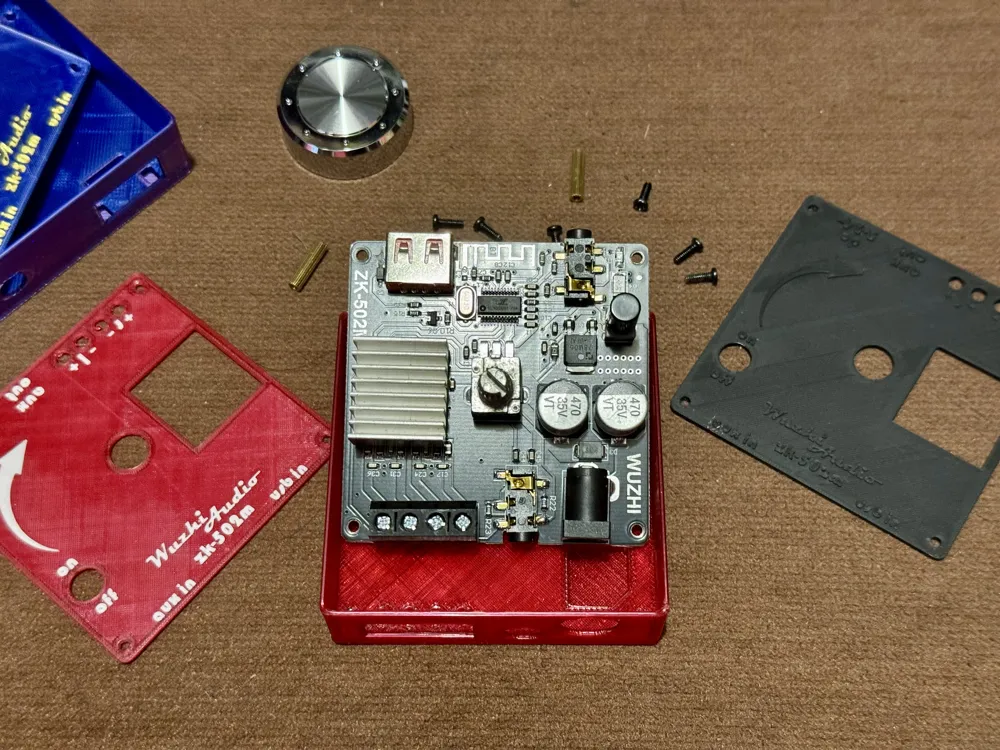

I've also included the bottom with and without walls.  The walls are not perfect, but they're “Good Enough”, because I've done enough prototypes of something that was only supposed to be a quick whim-of-a-project. :P  Feel free to tweak them further, or modify the model.  The bottom was printed in red translucent Overture PETG in .4mm.

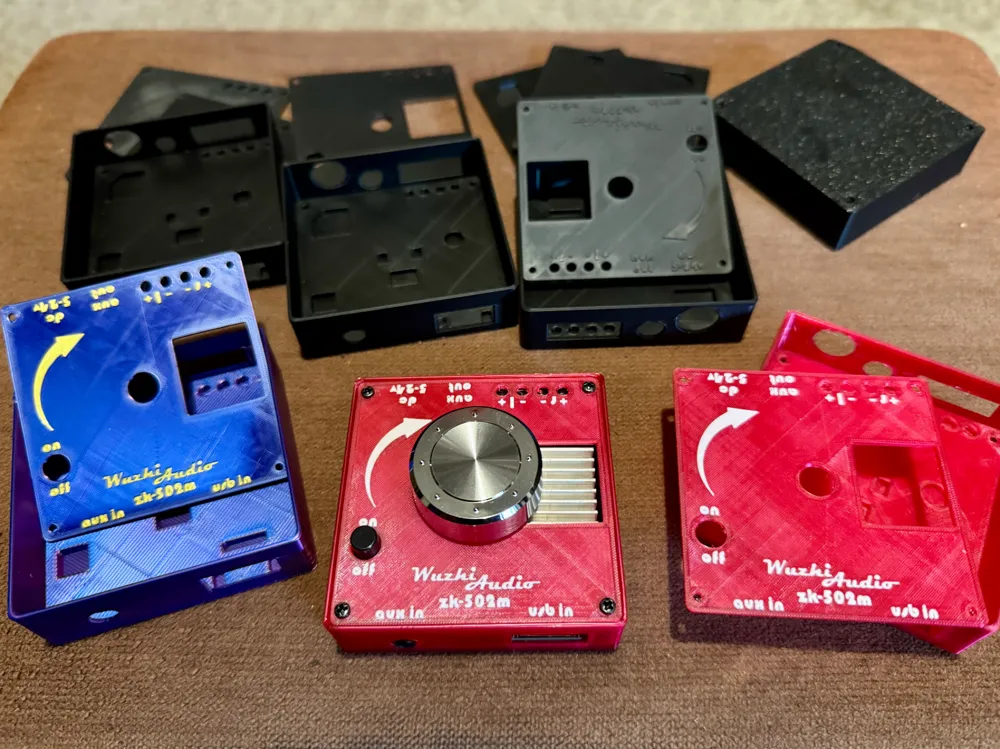

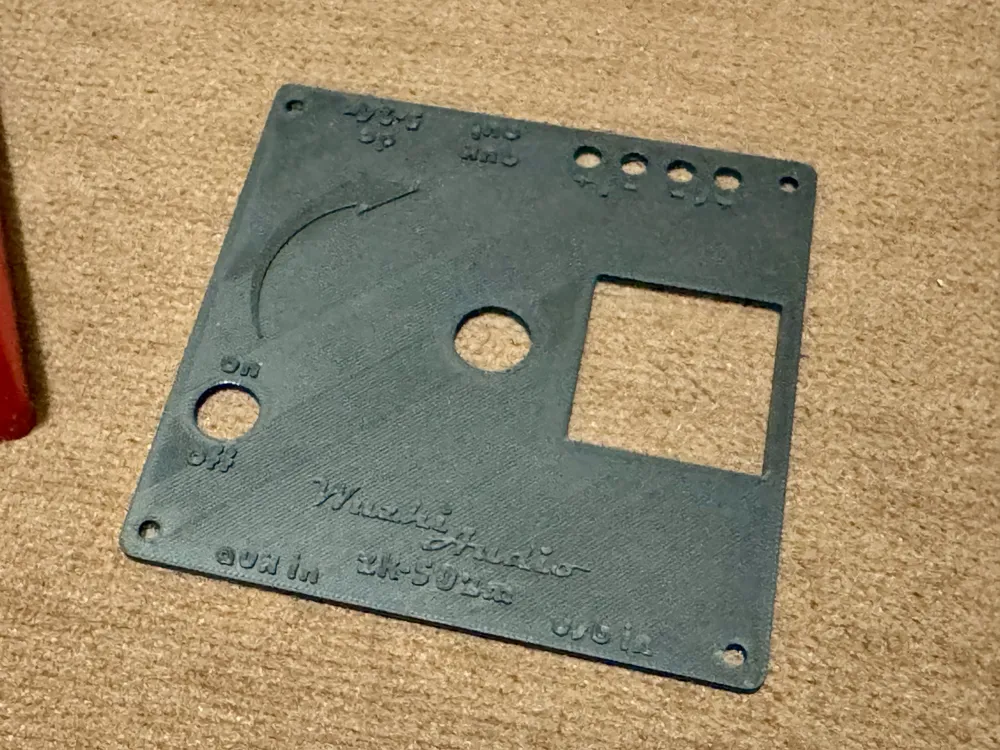

I also printed the full thing in plain black PLA with and without letters, and then in Bambu Neon-City (Dual-color Blue/Magenta) with Bambu Silk Gold letters w/AMS.

And just to say it again, I was only able to get ALL of the letters to print with a .2mm nozzle (the “Wuzhi Audio” prints and “W      A      ” in .4mm).  Maybe you can tweak .4mm to work?  I dunnow. :P
