BambuLab X1C/P1P/P1S/X1 - Electronics Vent Seal - Keep Electronics Cool and Chamber Hot!

Keep your electronics cooler and your print chamber hotter!

For everyone wanting to print more technical materials (or just wanting to extend the longevity of the printer) you will want to have your chamber hot but that comes with the price that you will heat up part of your electronics. Unfortunately these printers don't really separate the electronics from the print chamber air, meaning that when when your chamber is hot, your electronics will be hot.

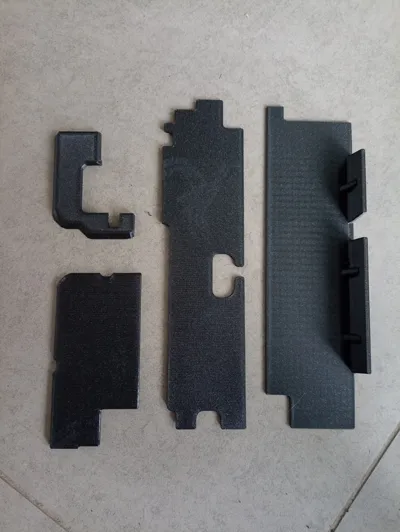

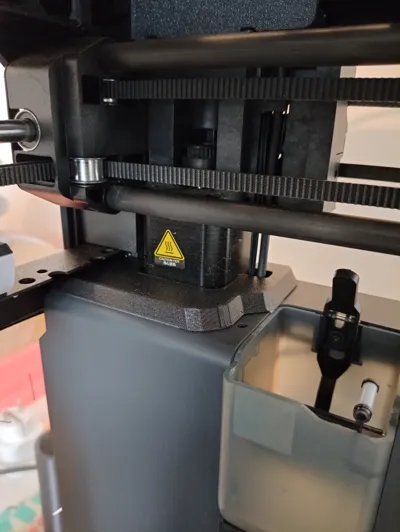

I remixed these designs for better fitment. This will block all the ventilations and/or blank space, between printing volume air and the electronics air.

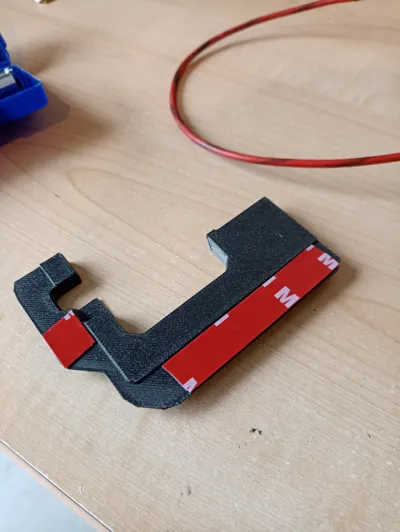

Just print it in PETG, ABS, ASA, and stick it in place using double sided tape.

I advise to use this part in conjunction with my other parts to separate the air and keep the electronics cool:

Interior Poop Chute Cover/Seal - https://makerworld.com/en/models/14051
Top Electronics Ventilation Seal - https://makerworld.com/en/models/165352

Back Electronics Seal (Filter Side) - https://makerworld.com/en/models/165342

Back Electronics Seal (Electronics Side) - https://makerworld.com/en/models/165338

Top Filter Ventilation Seal - https://makerworld.com/en/models/165331

__________________________________________________________________________________________________________________________________

Improvement over the original design: I made the plate a big thinner, I noticed that when the tool head was as far back as possible, there was a little more than 1mm gap between the part. If it came loose it could hit the tool head, so I made it thinner to give some more clearance. Also added an embossed Bambu logo to make it look nicer.

Special thanks to the original designer MandicReally for his really amazing work designing these! Check his Youtube videos, it has a lot of usefull information!
