Description
Content has been automatically translated.
Boost Me (for free)
👉 If you find this part useful, a small boost would be greatly appreciated to make it more visible! 😊

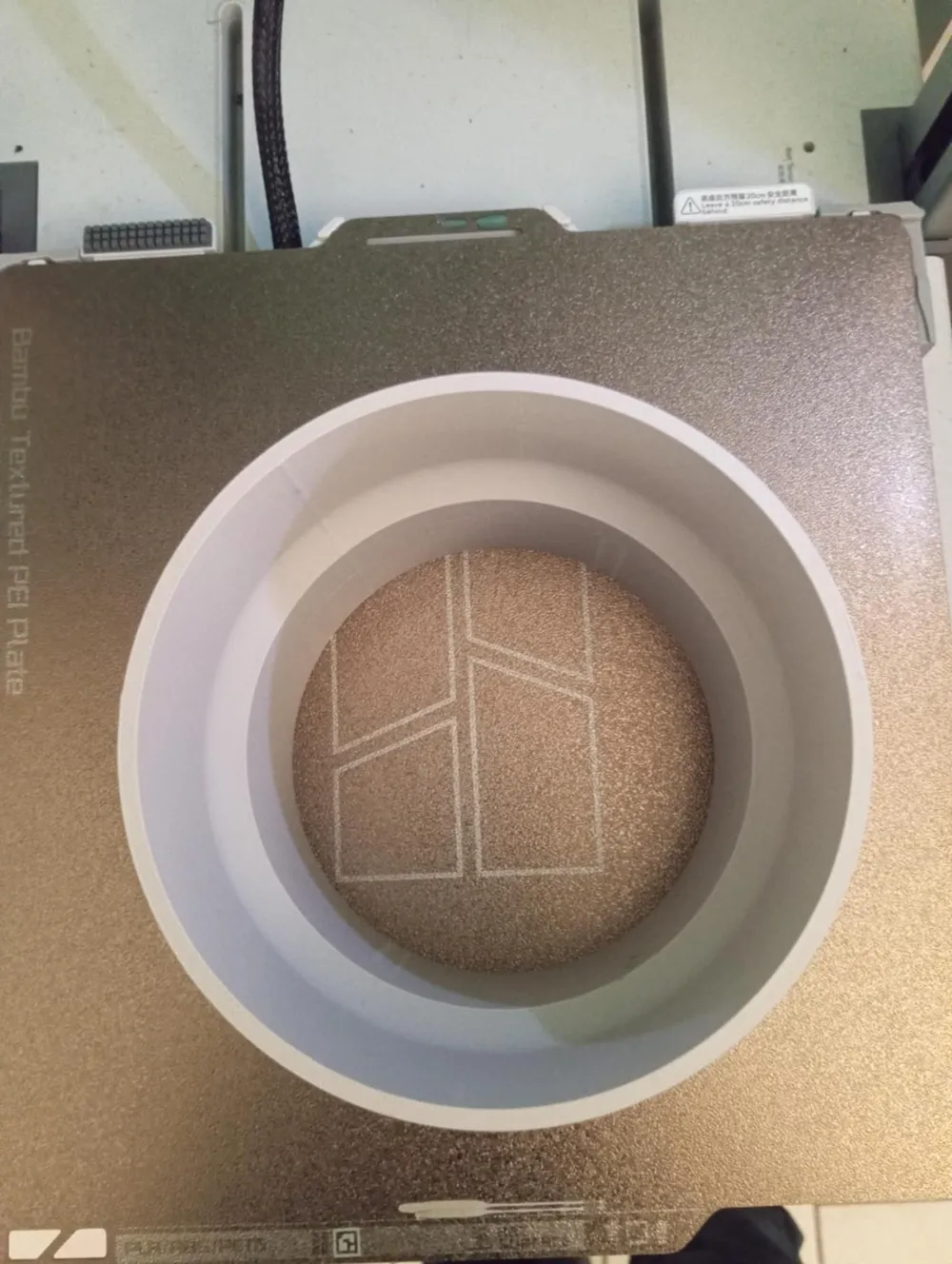

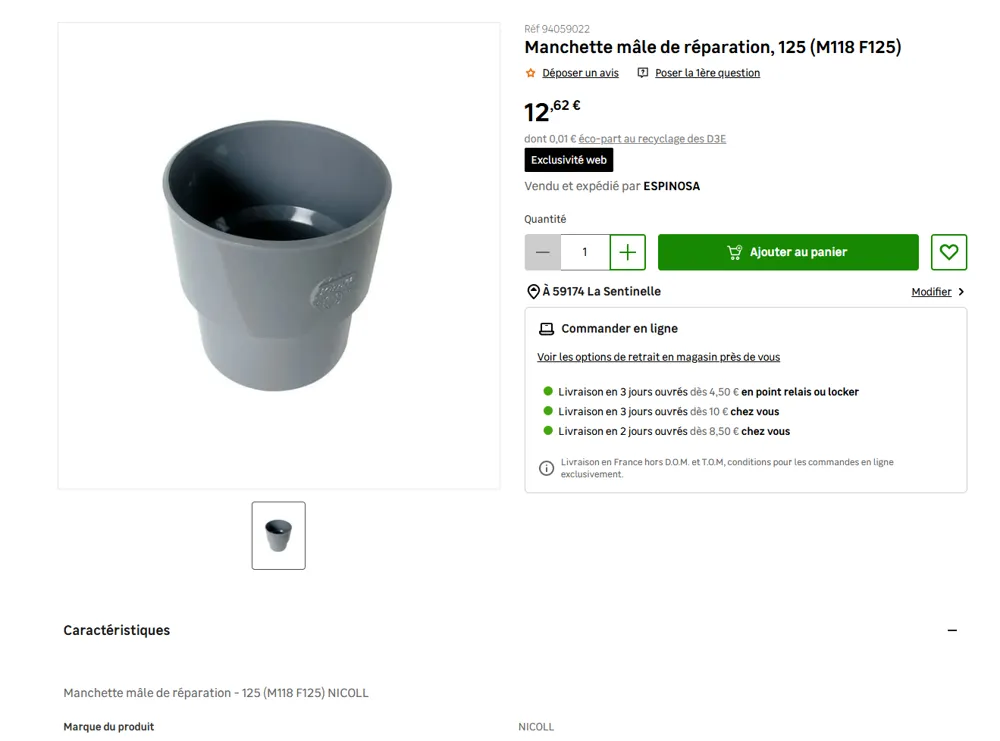

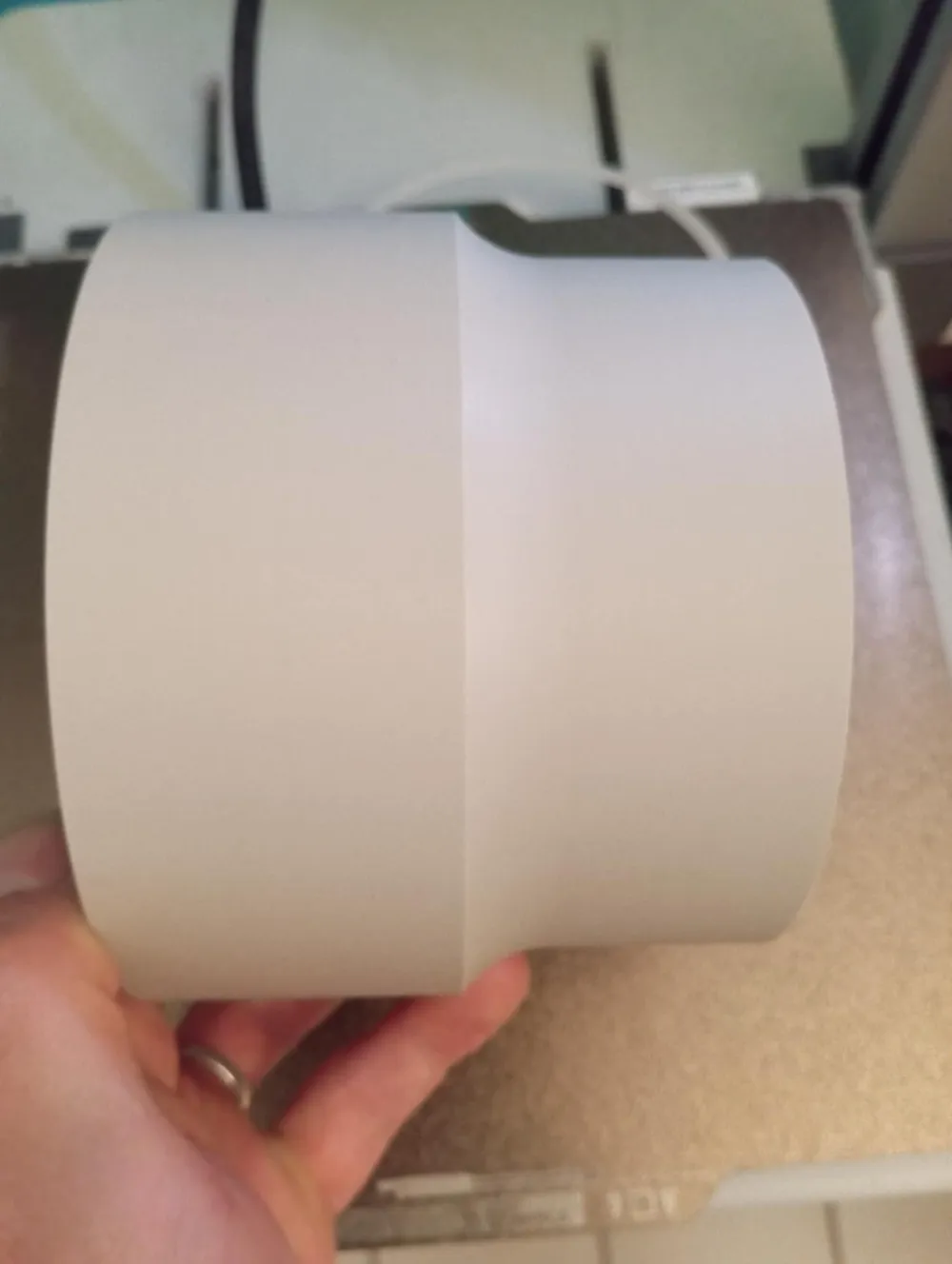

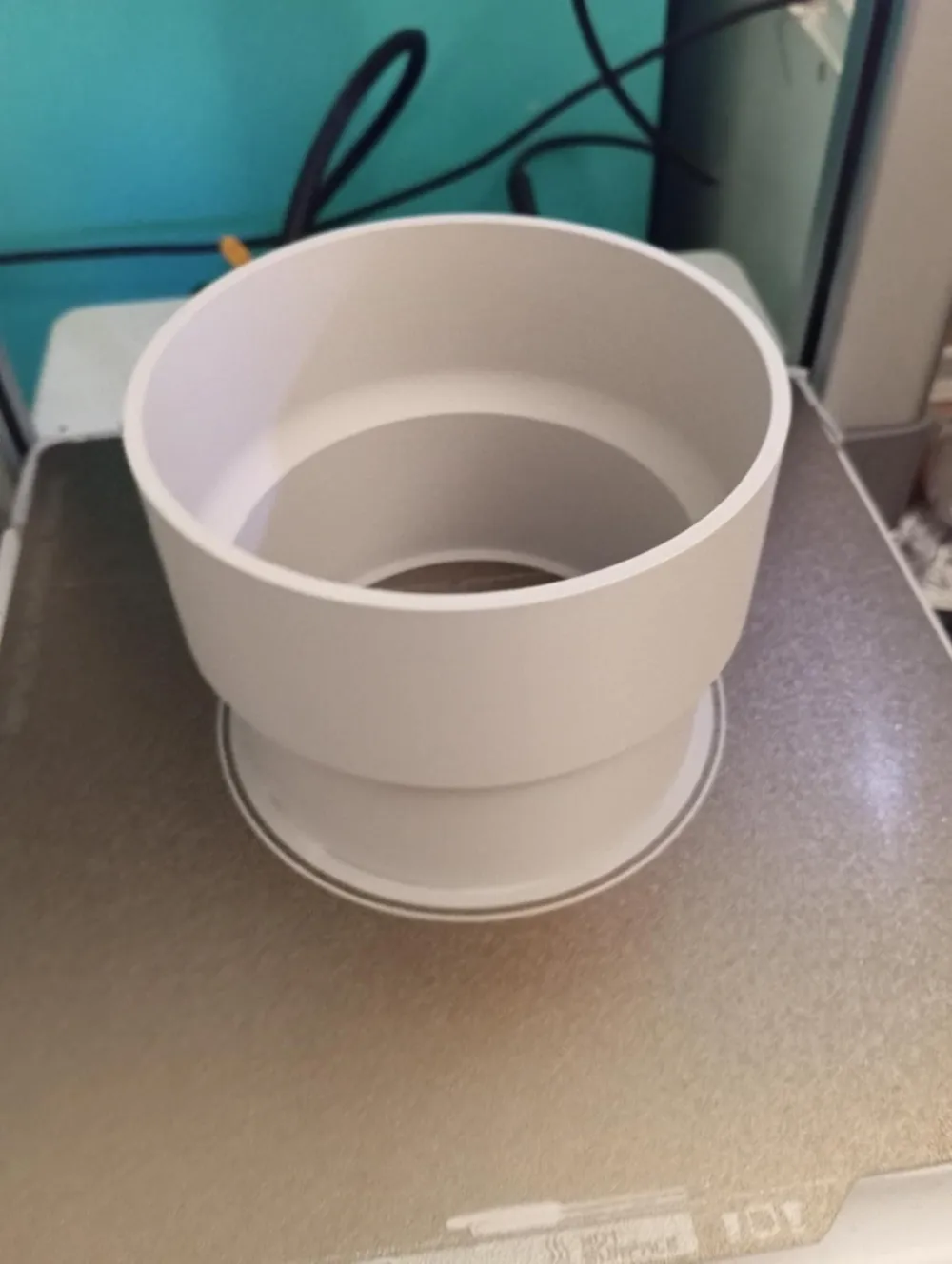

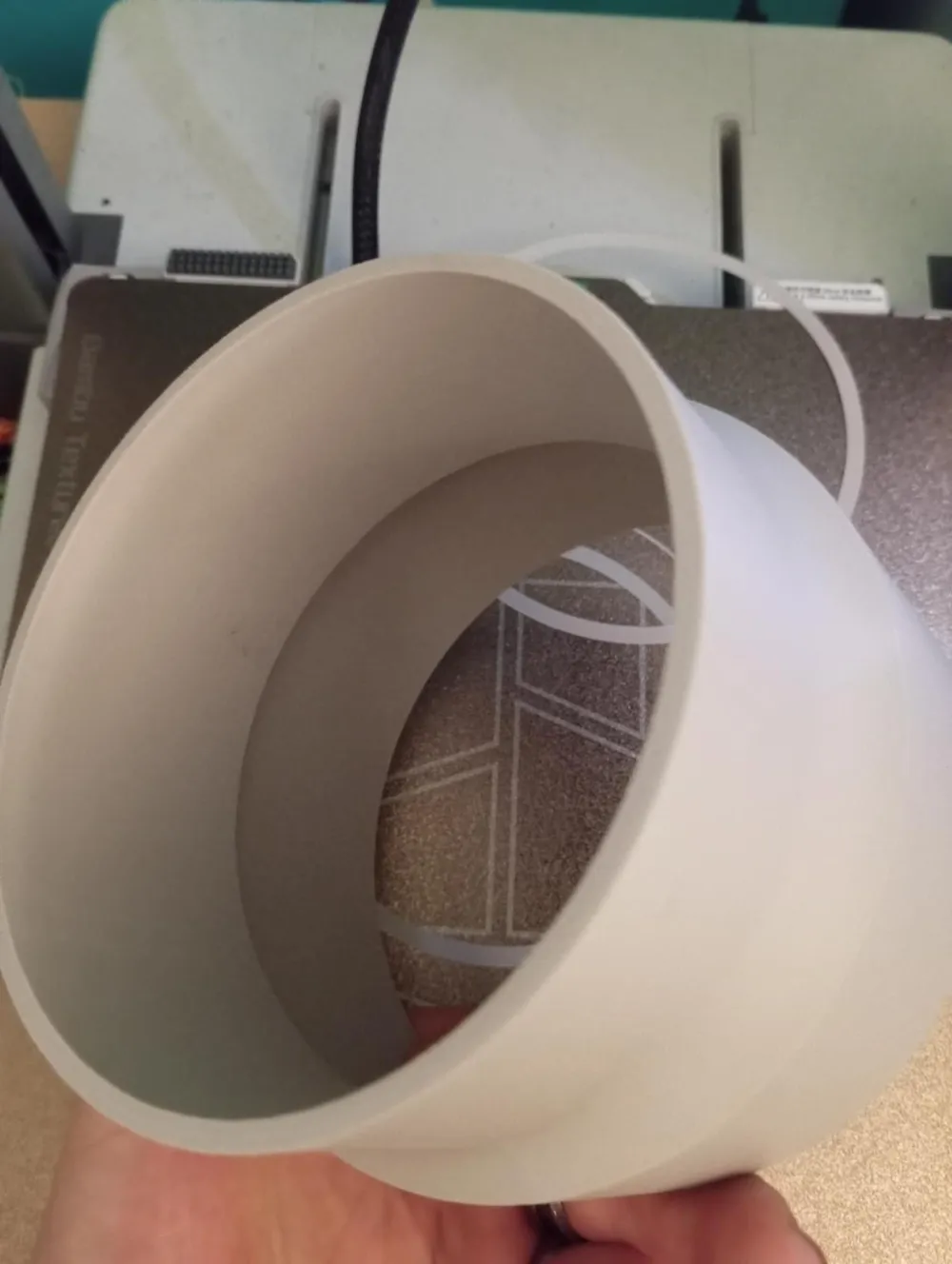

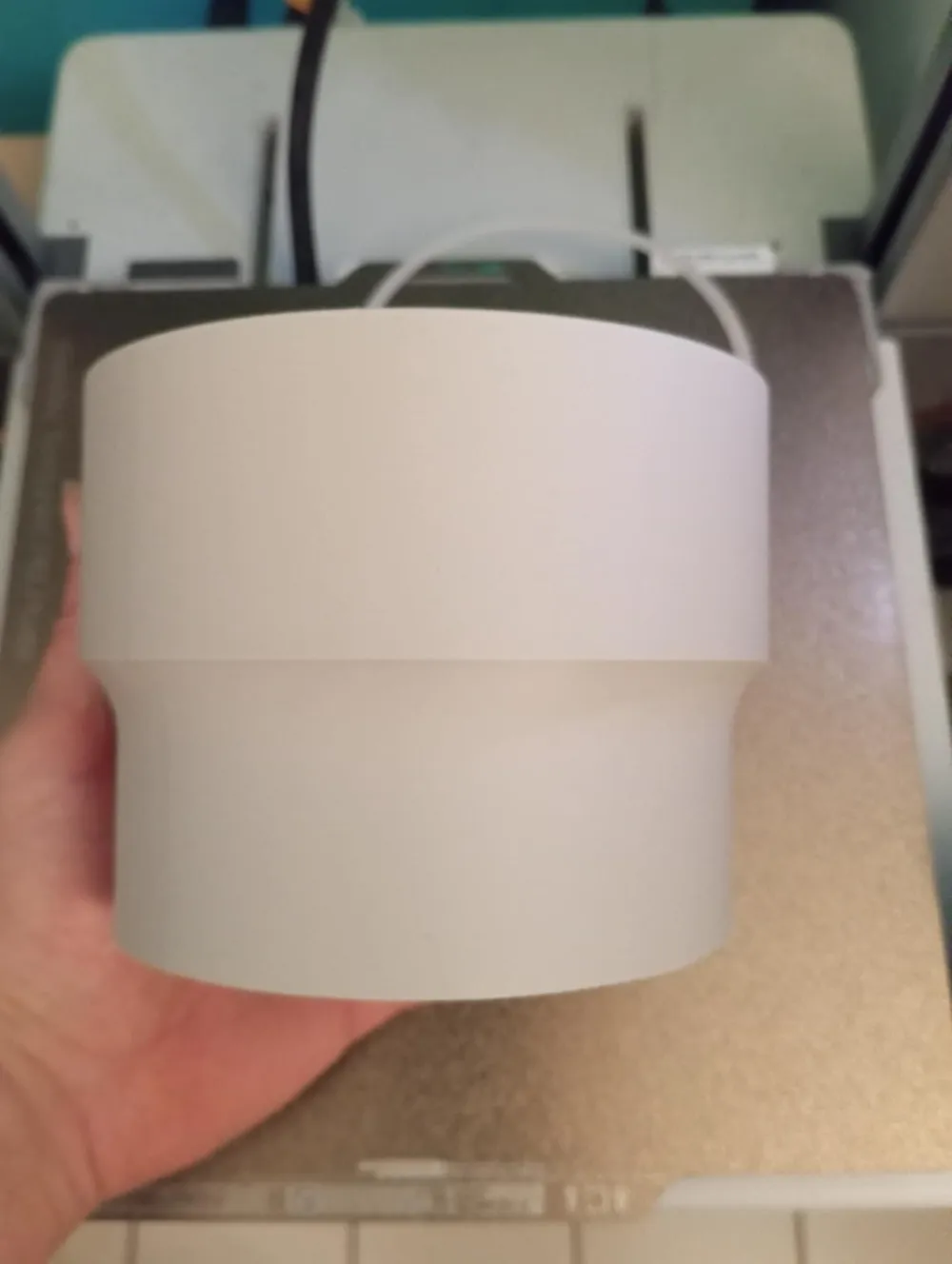

Here is a faithful 3D model of a 125mm diameter repair male coupling, often used for the renovation or connection of rainwater downpipes. This model is inspired by the NICOLL part (ref. 94059022), ideal for PVC installations.
Use:
This part allows you to:
- Connect or repair a 125 mm Ø PVC pipe,
- Insert a section without dismantling the entire installation,
- Carry out fitting tests on your assemblies or home automation projects before actual purchase.
Technical characteristics:
- Inner diameter: 125 mm, 118 mm output
- Shape: cylindrical with male fitting
- Hollow part for printing without support
- Solid walls but modifiable according to your needs (adjustable thickness in Fusion 360)
Printing advice:
- Orientation: vertical (base down)
- Recommended material: PLA or PETG
- Layer thickness: 0.2 mm
- Infill: 20% or more depending on use
Remarks:
This model is provided for prototyping, testing, or temporary replacement purposes. It is not certified for permanent plumbing installations.
