“THIS IS A WORK IN PROGRESS PROYECT”
Boost Me (for free)
Boost me to keep designing more accessories!

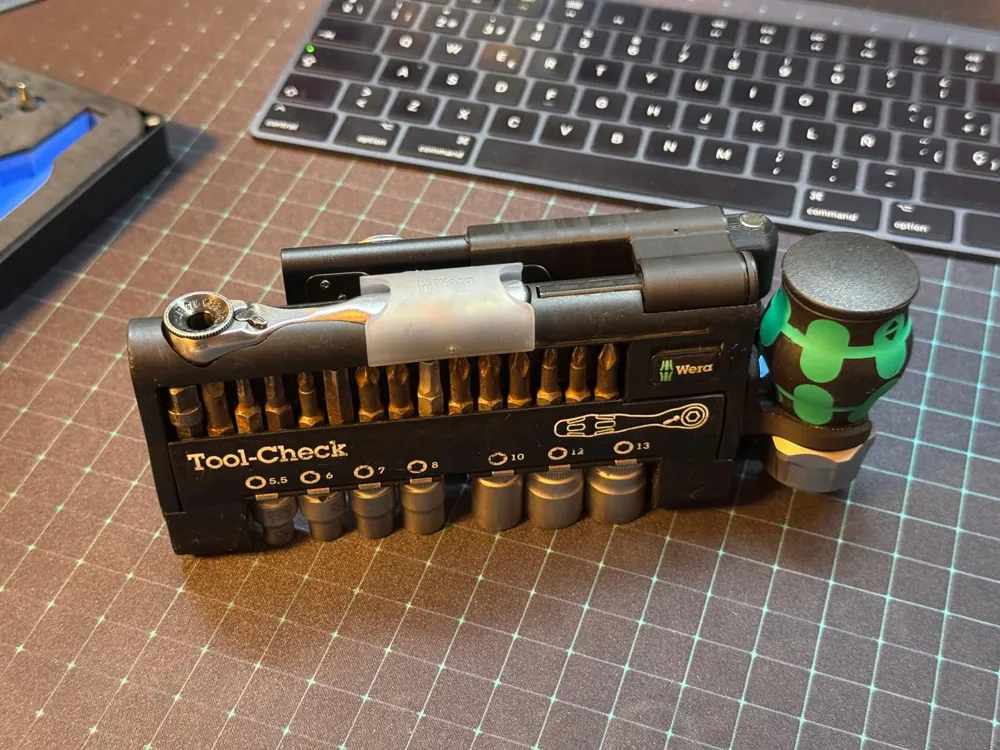

This is my first upgrade to my classic Wera tool check plus kit. I have made a modular system that uses M3 screws in 10mm distance between holes increments.

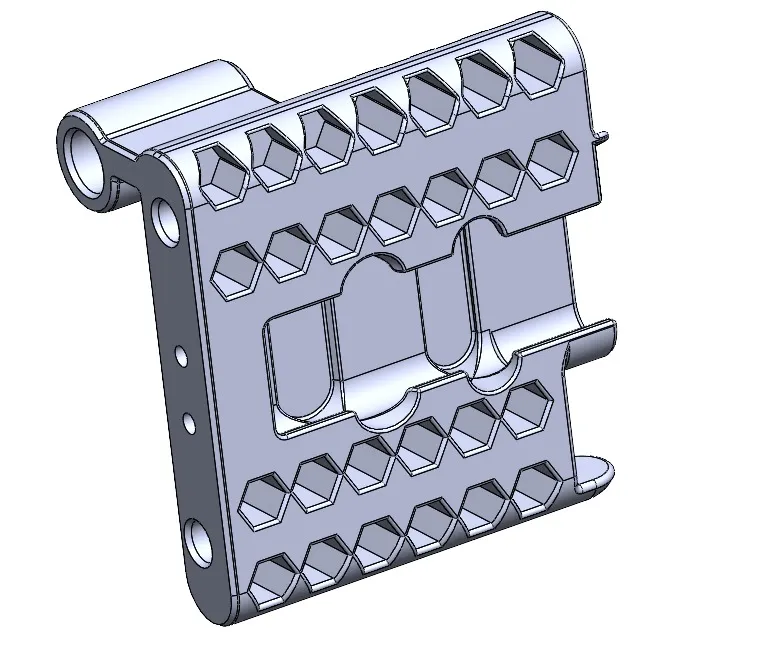

Right now i have created one structural hinge that replaces the wera rapidaptor and have different holes to attach different accessories:

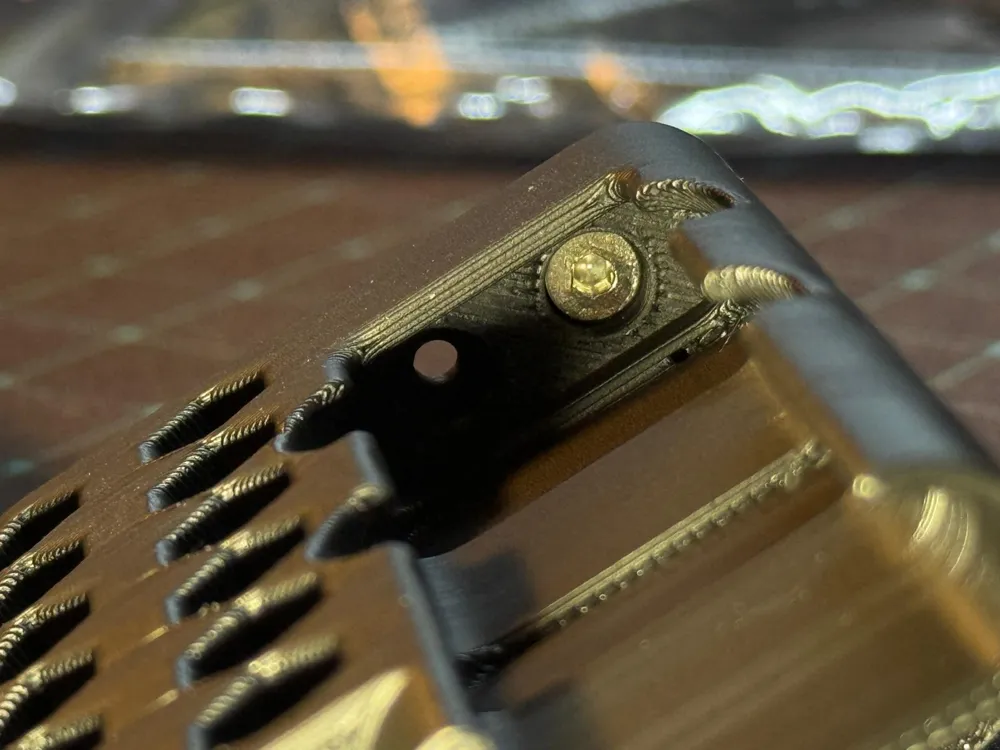

- Note that the blue surface is equipped with chamfered holes for M3 screws and should be glued to the tool check with thin double sided tape.

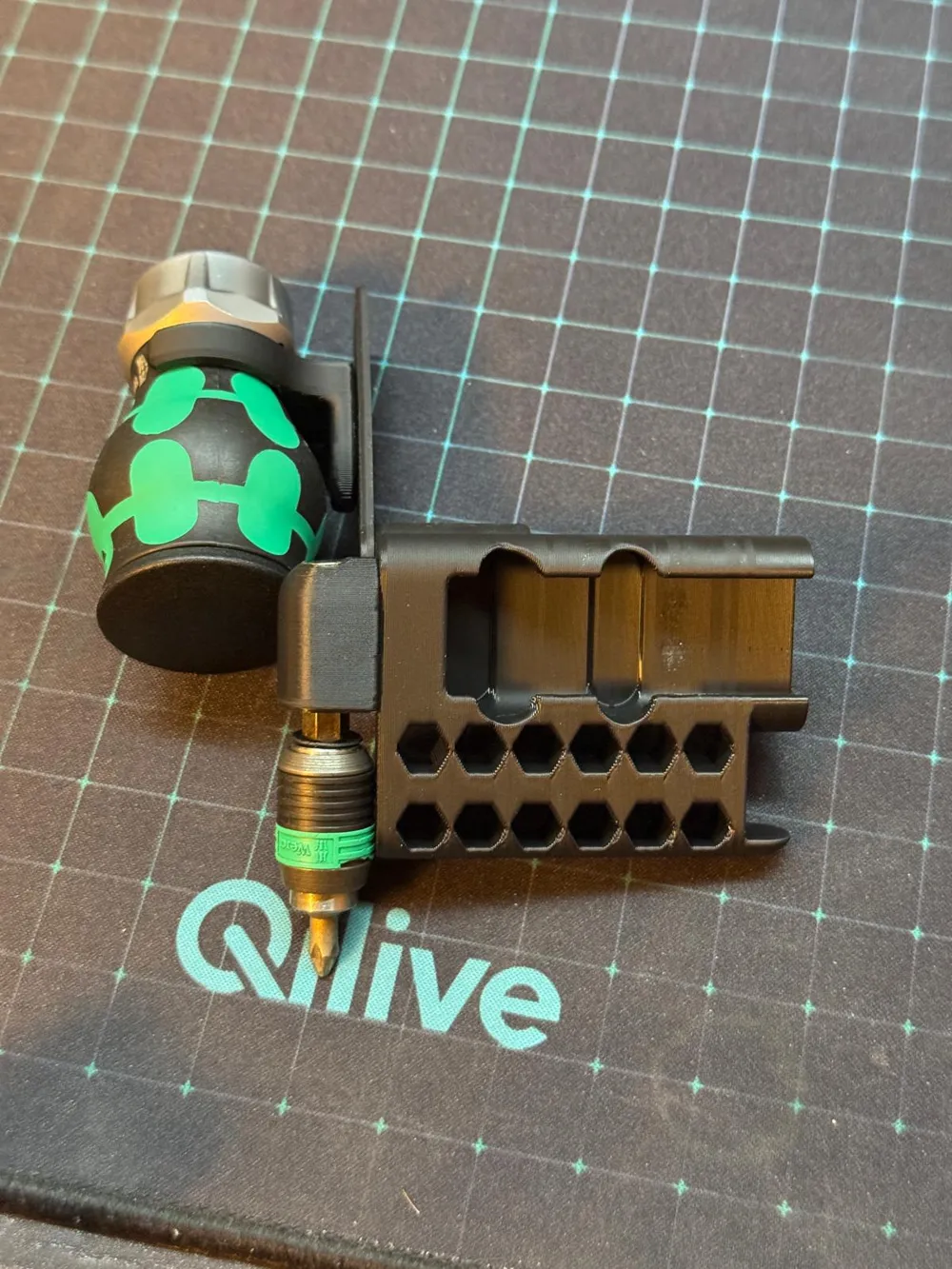

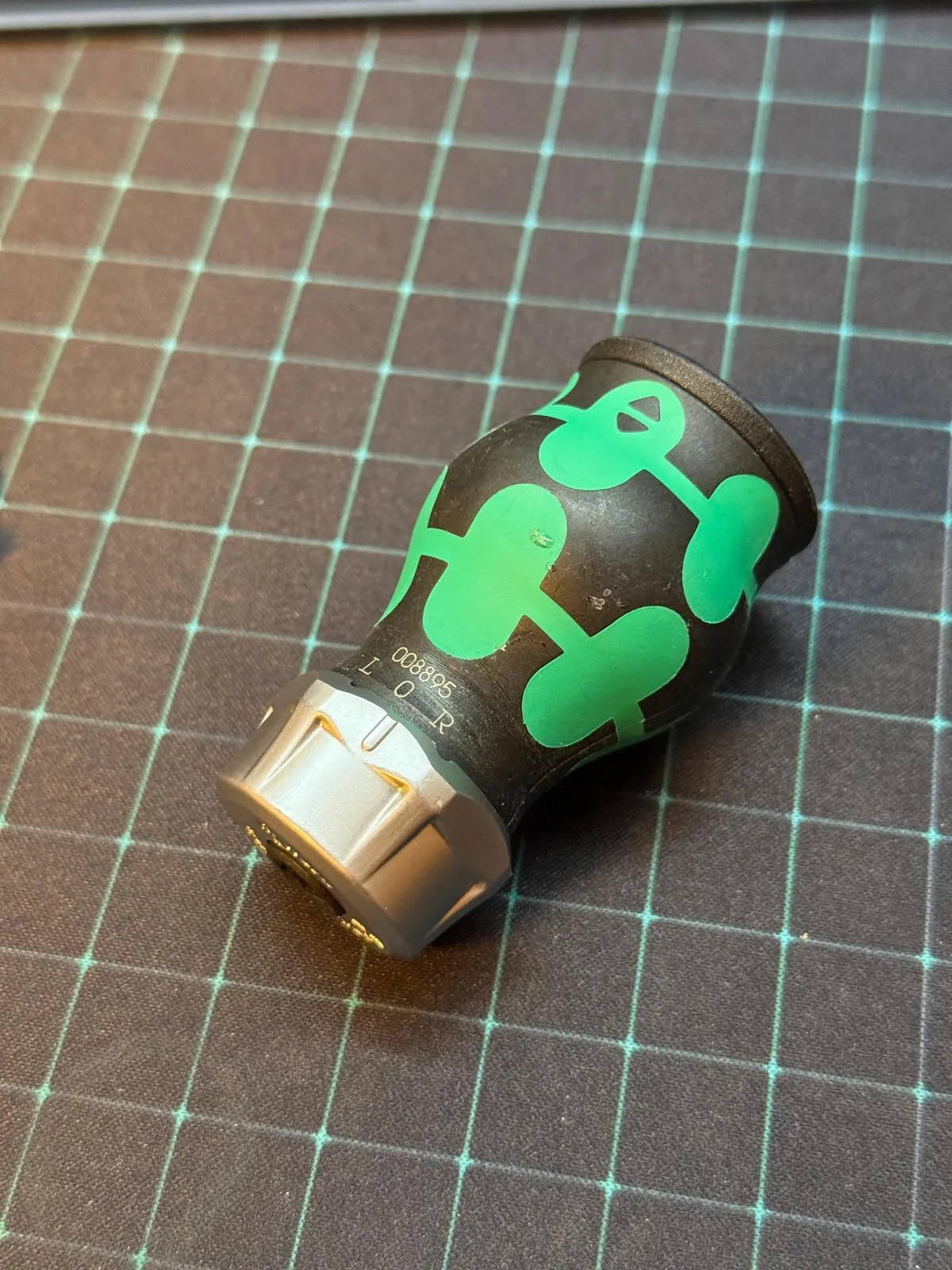

- 008895 Stubby ratchet bit driver holder:

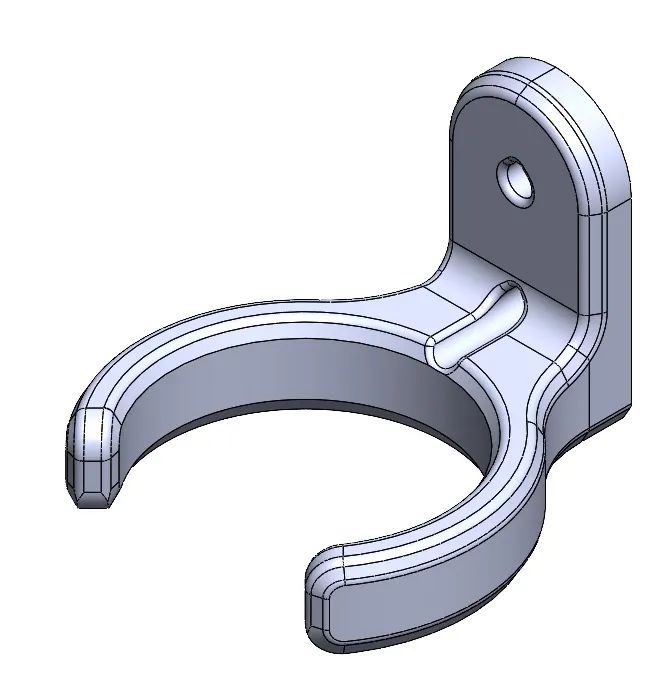

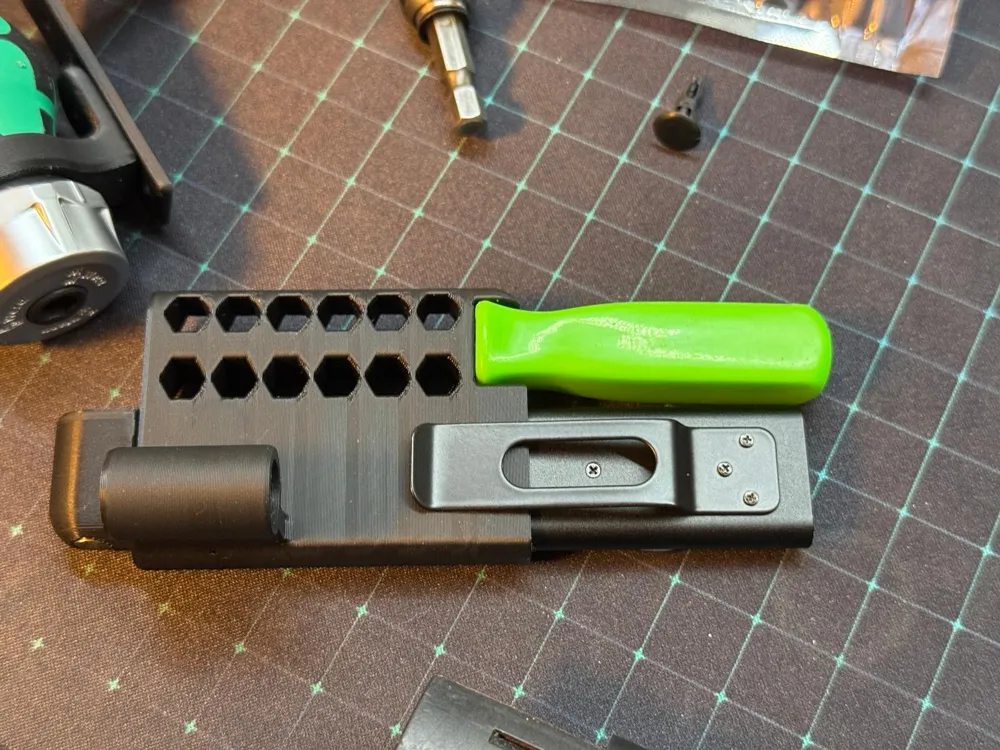

- Small Bit Holder + Klarus E5 Flashlight + Small Prybar:

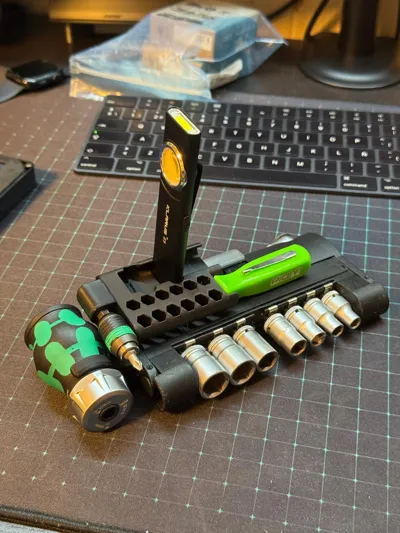

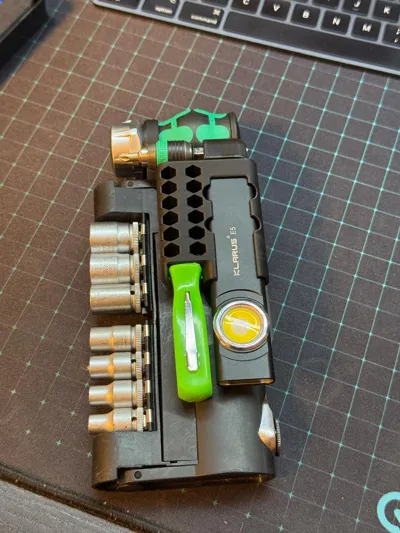

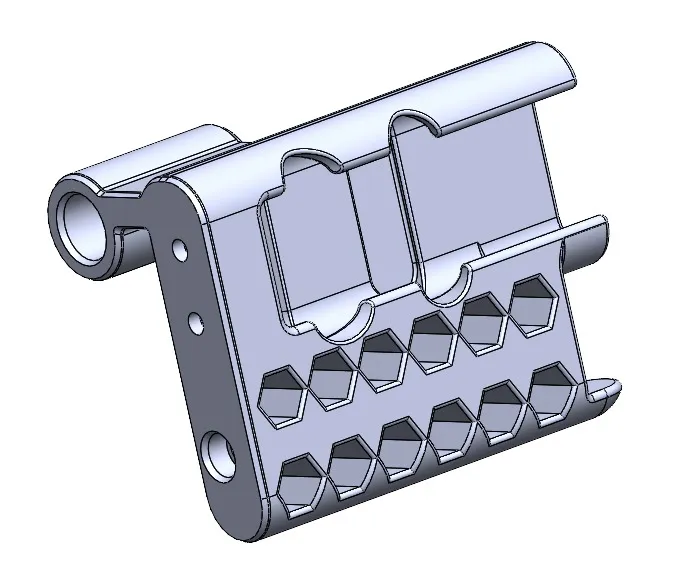

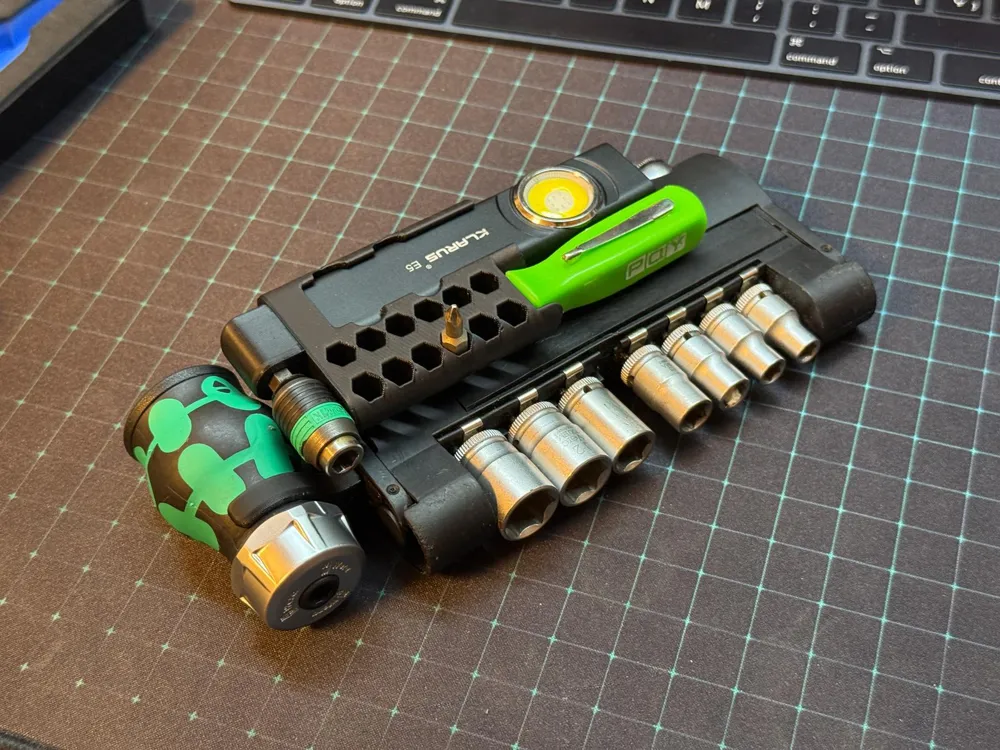

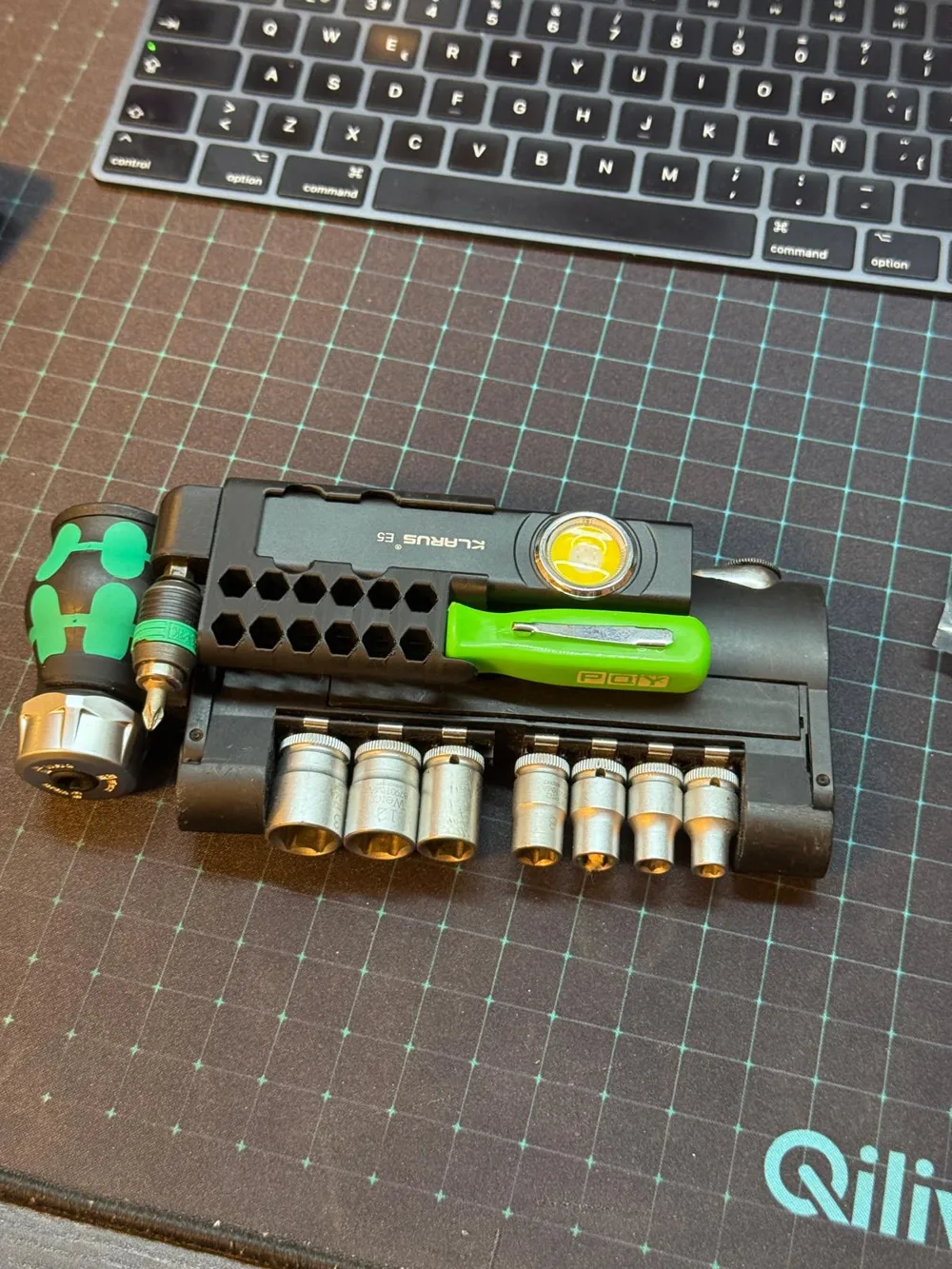

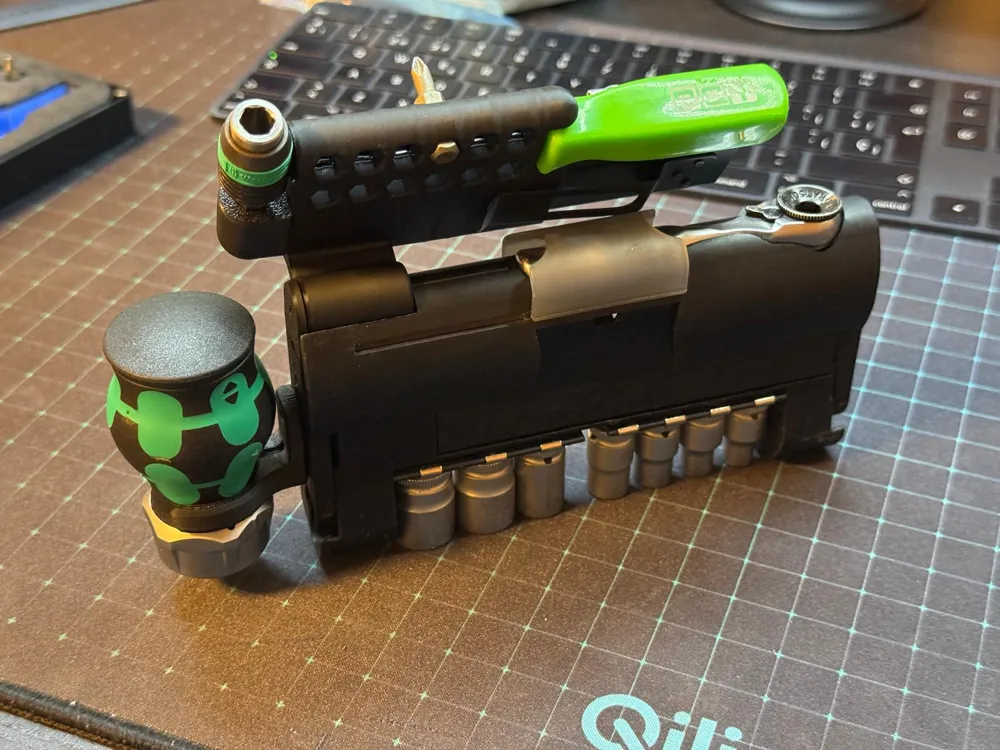

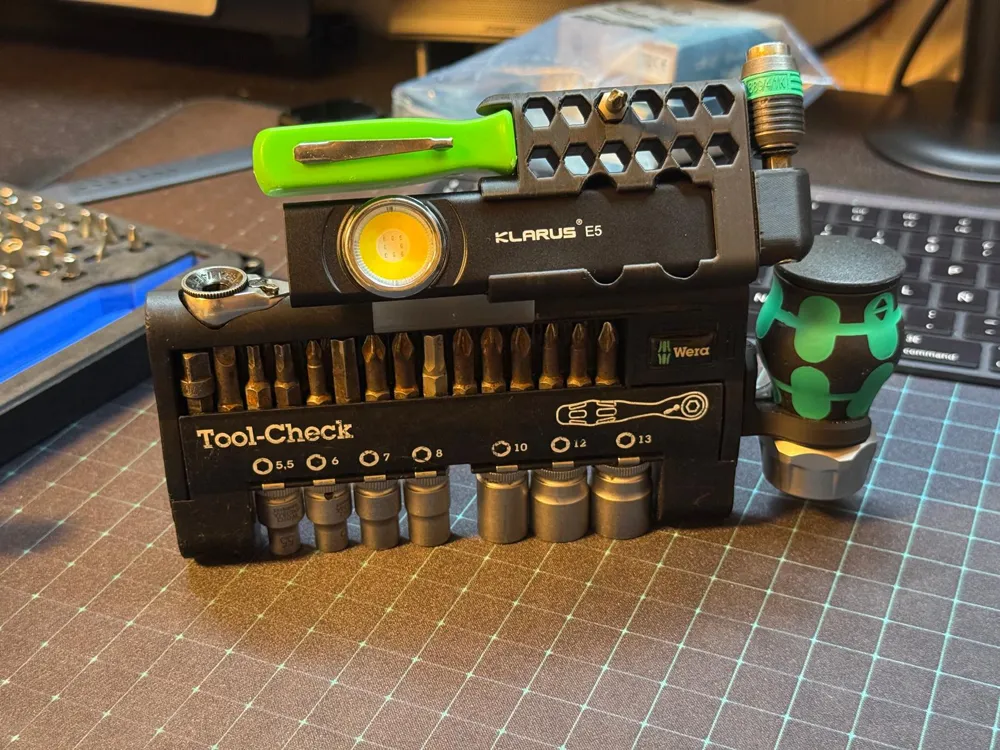

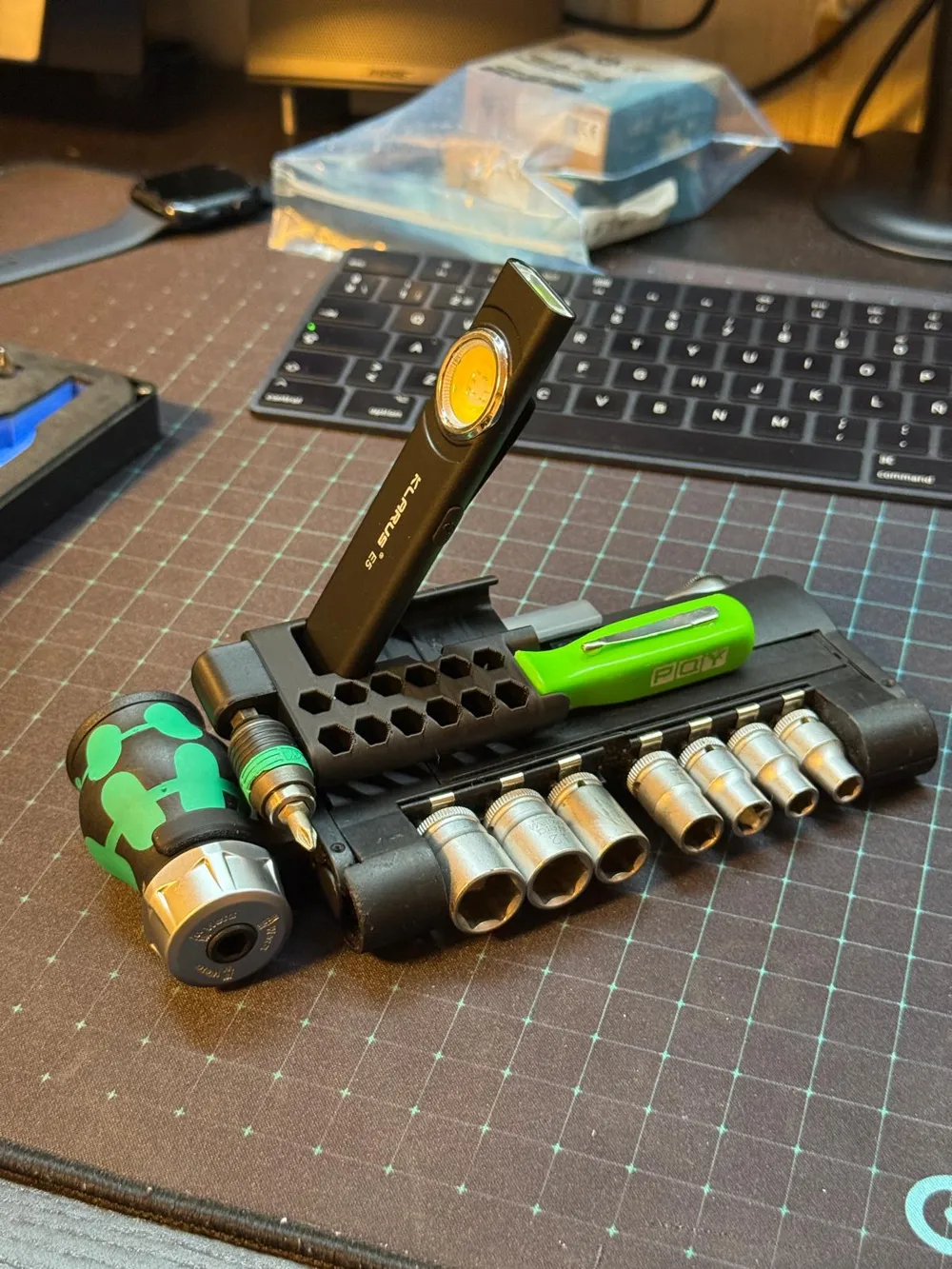

- Big Bit Holder + Klarus E5 Flashlight + Small Prybar + Small Wera 2,5 flat head screwdriver:
- Magnetic bit holder for Wera Rapidaptor:

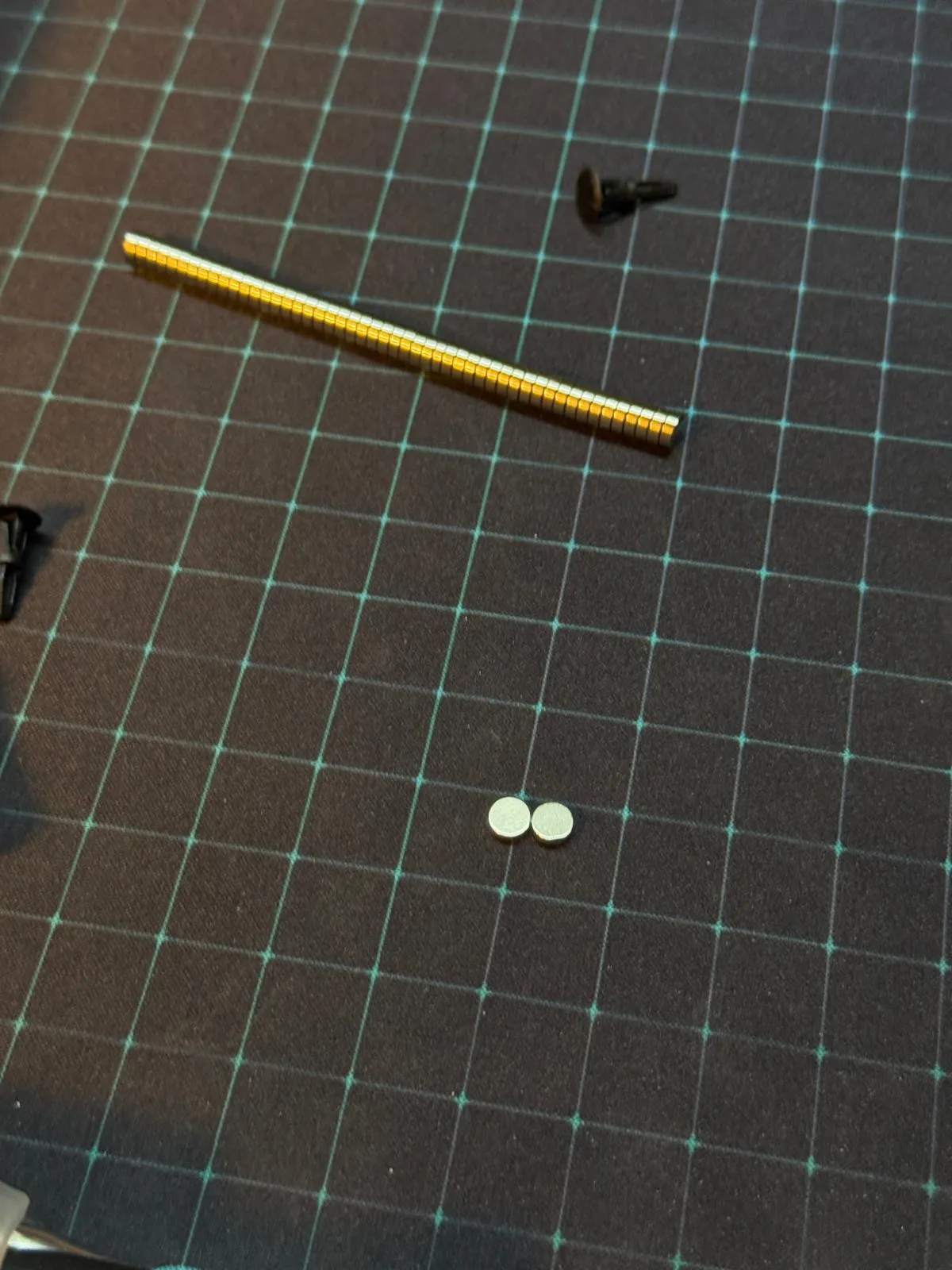

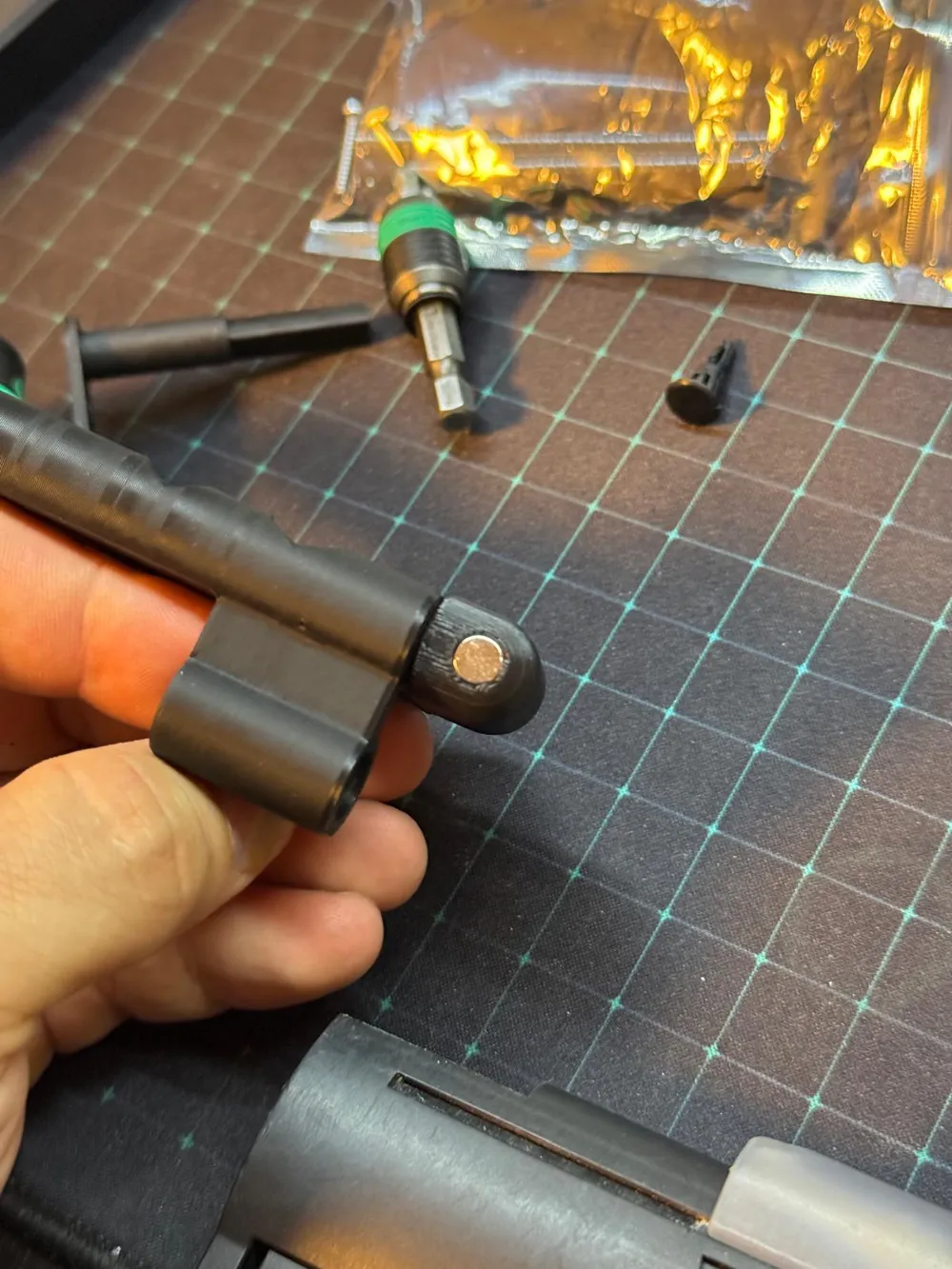

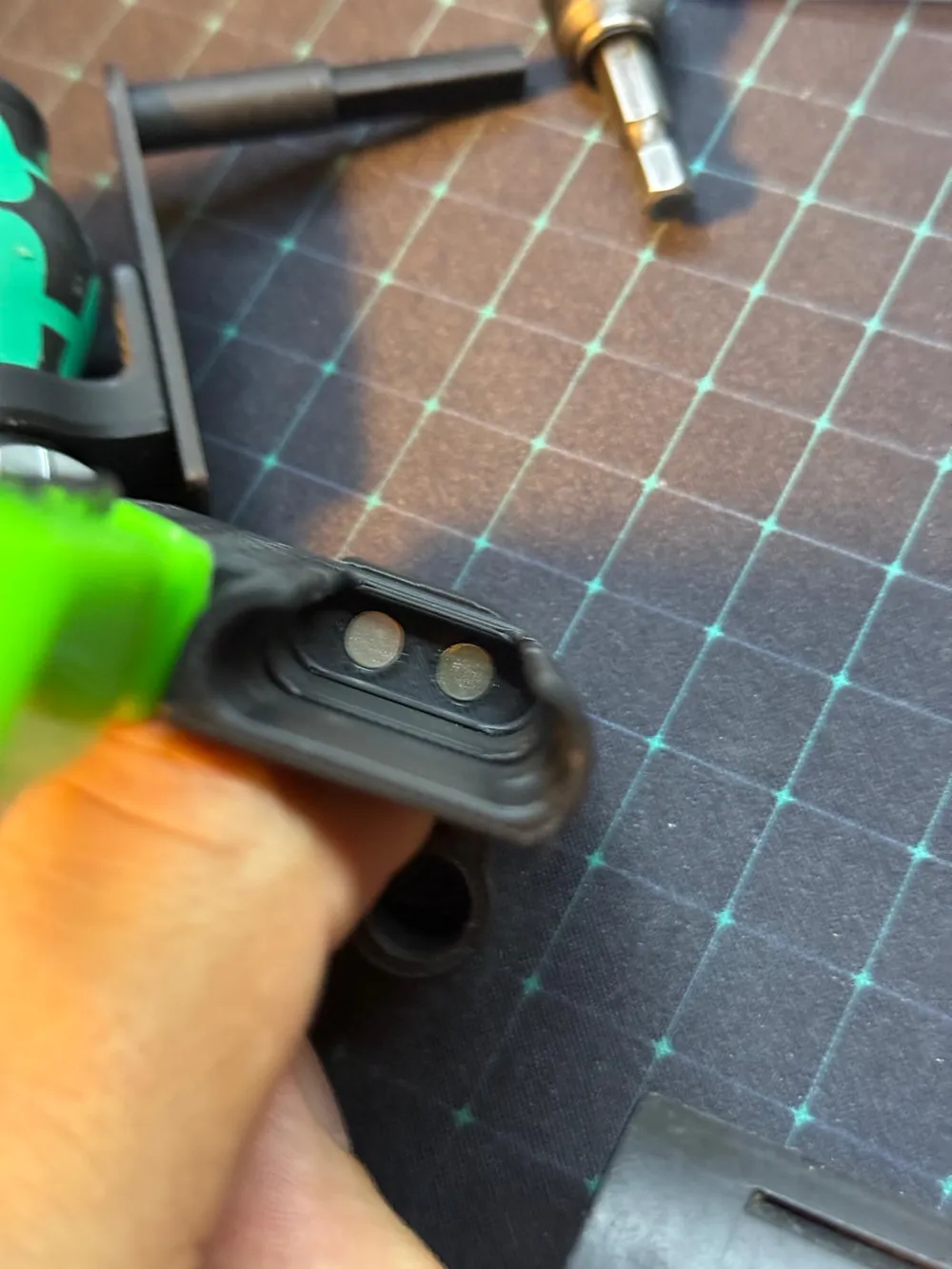

For the magnets I use 6mm diameter and 2mm thickness neodimiun magnets pressed on the bottom of the flashlight (2 units) on top of the M3 screws, 1 for the mini prybar holder, 1 for the rapidaptor holder and one for the small 2,5 flathead screwdriver:

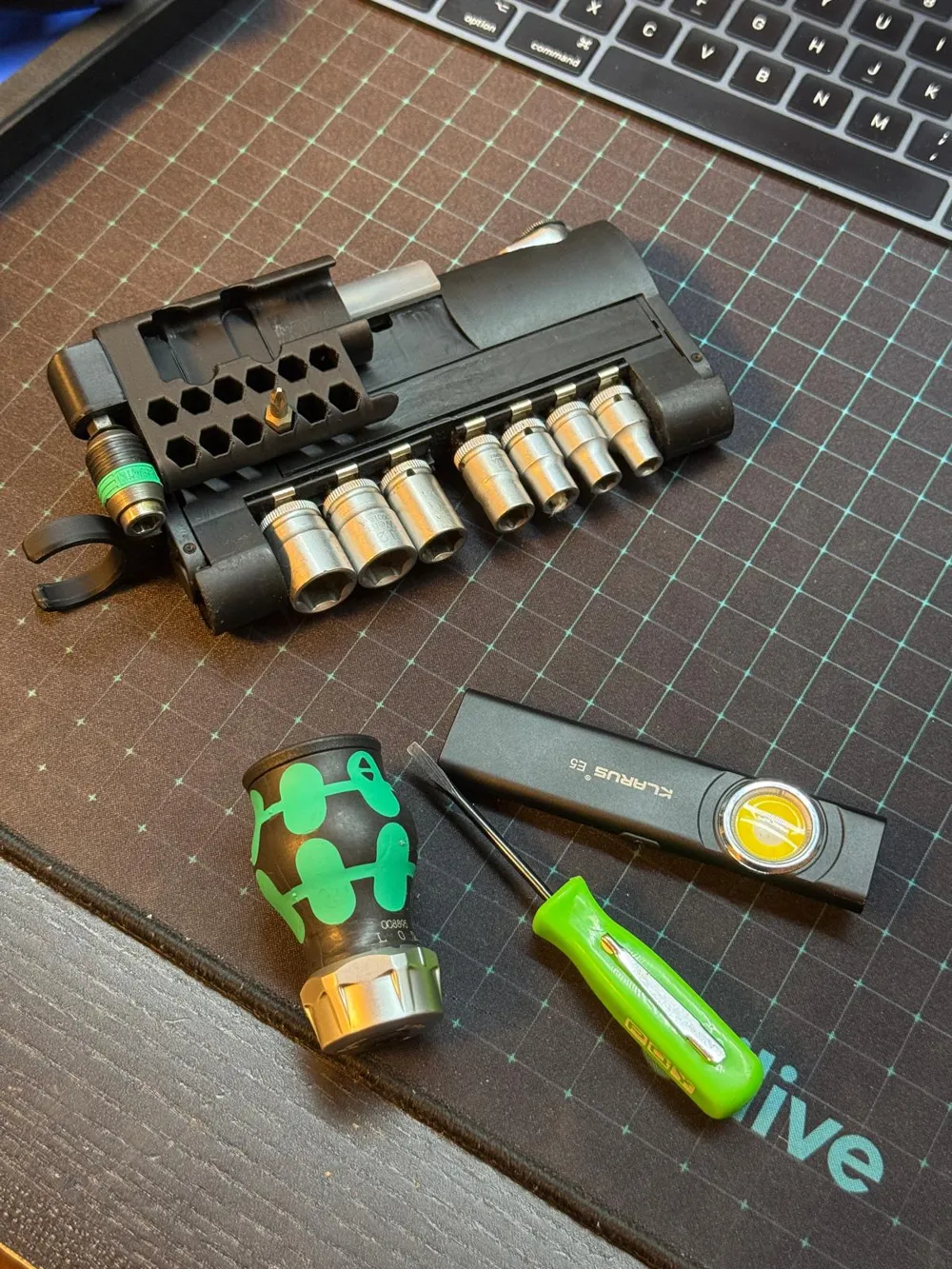

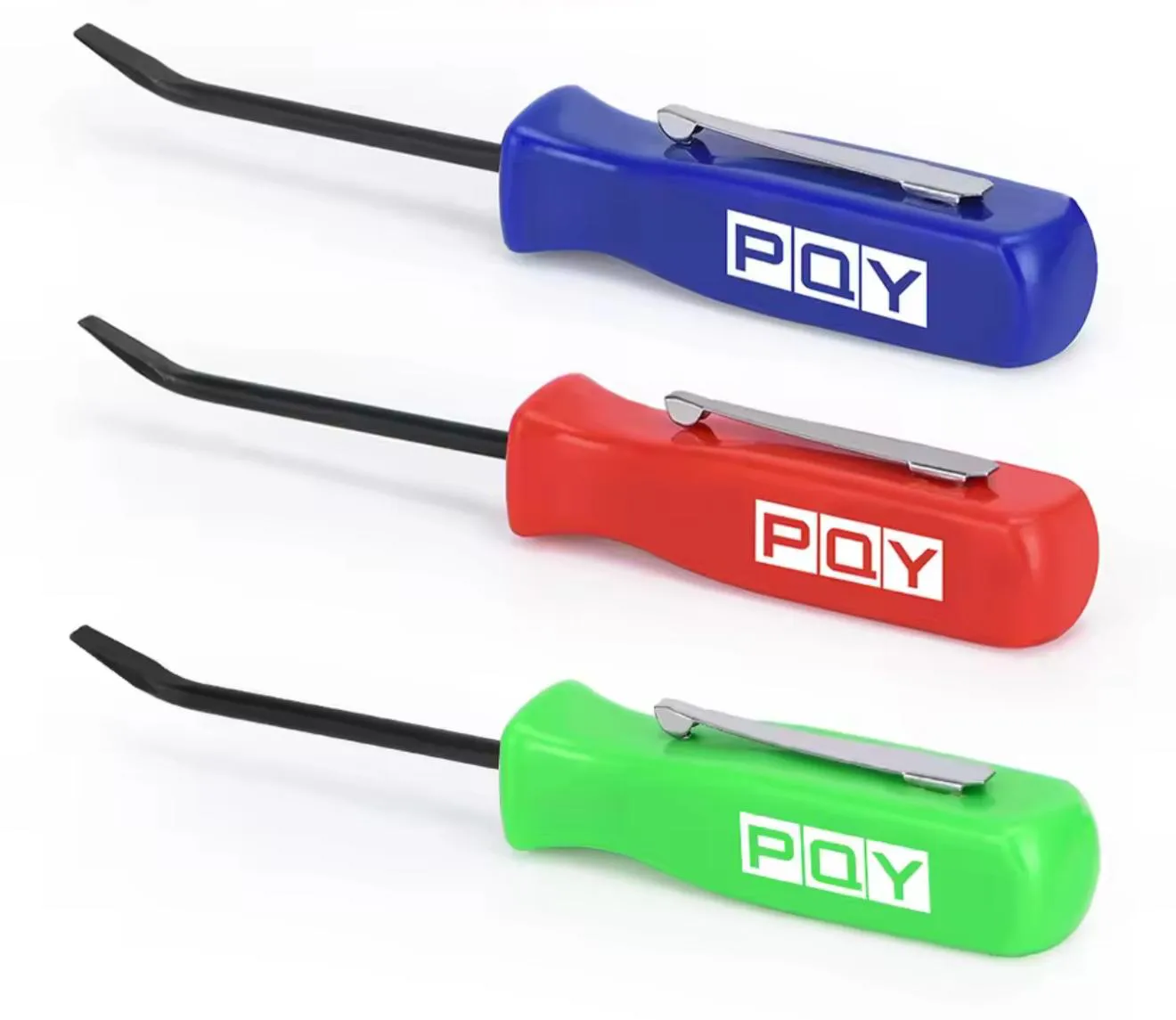

The mini prybar is easy to find on Aliexpress and similar online shops:
- Flashlight is a KLARUS E5, but there are similar ones that would fit also:
I WILL BE UPLOADING THIS PAGE WITH NEW DOCUMENTATION AND NEW PARTS.
