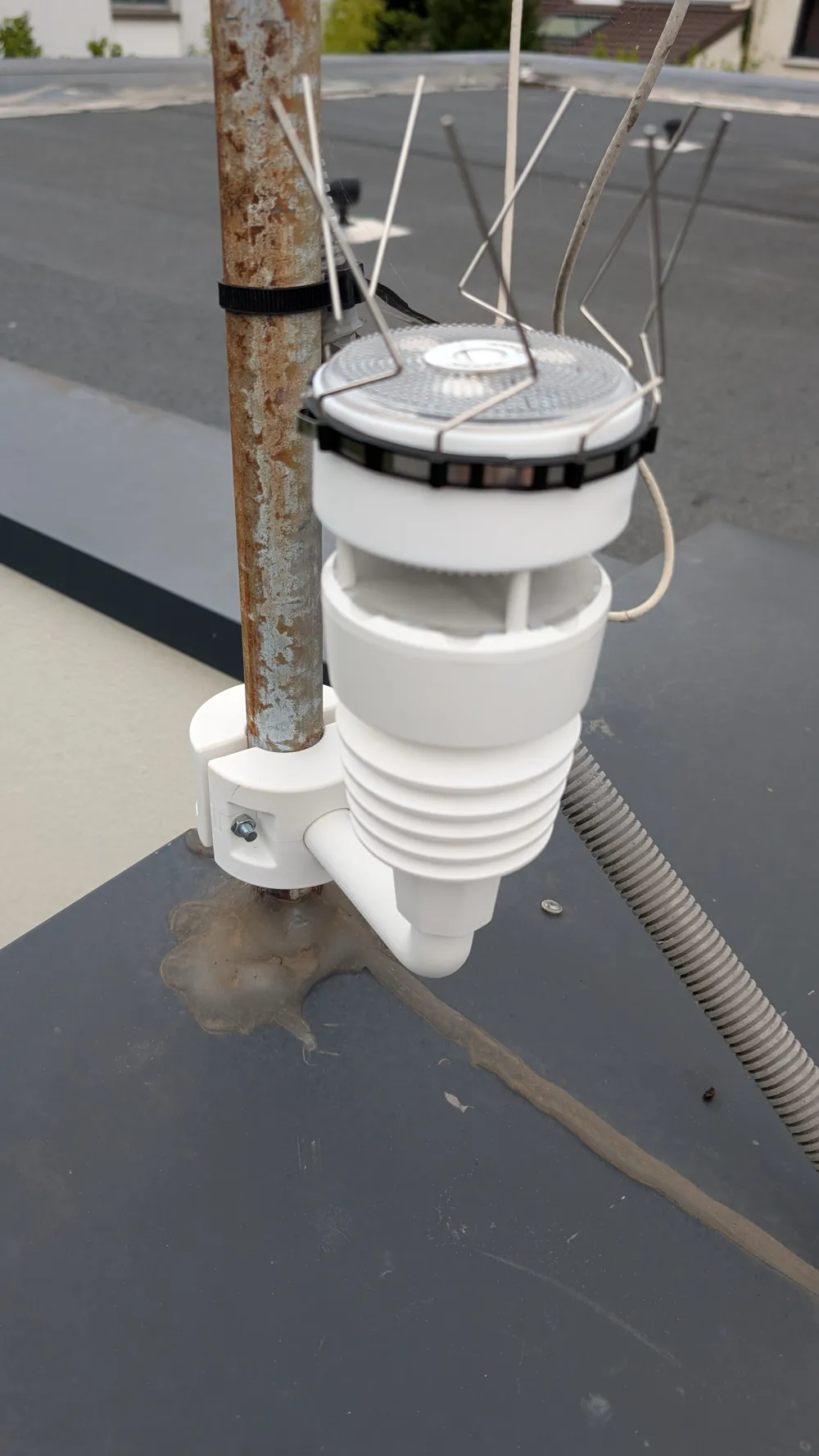

🌦️ Ecowitt Weather Station Pole Mount - 35mm Outdoor Mounting System

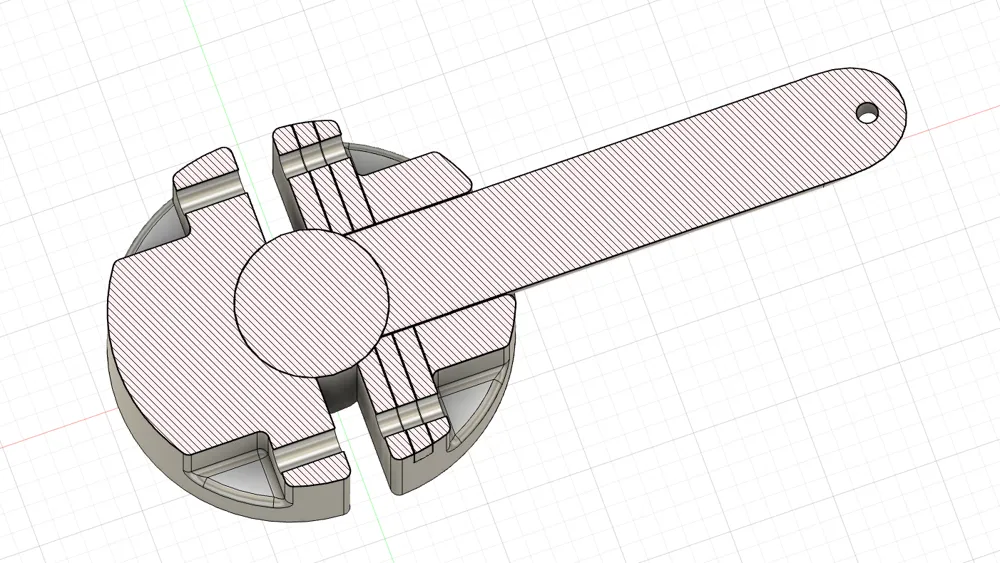

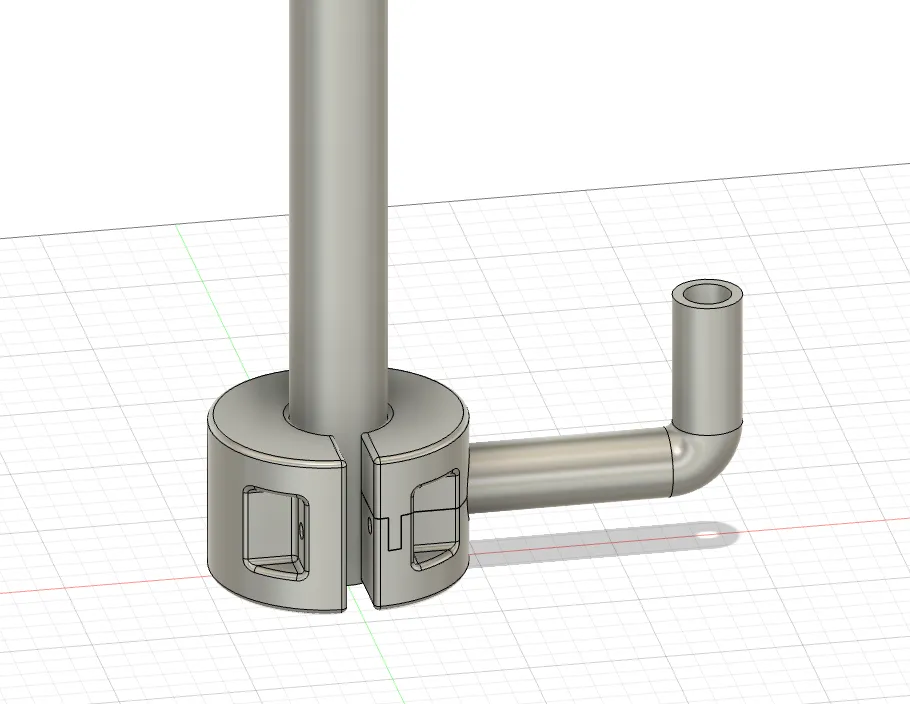

📋 Overview 4-piece clamping mount designed for Ecowitt weather stations. Engineered for secure outdoor installation on 35mm diameter poles.

🔧 Design Features:

💧 Drainage hole prevents water accumulation inside the mount
🔌 Cable routing hole for concealed wire management

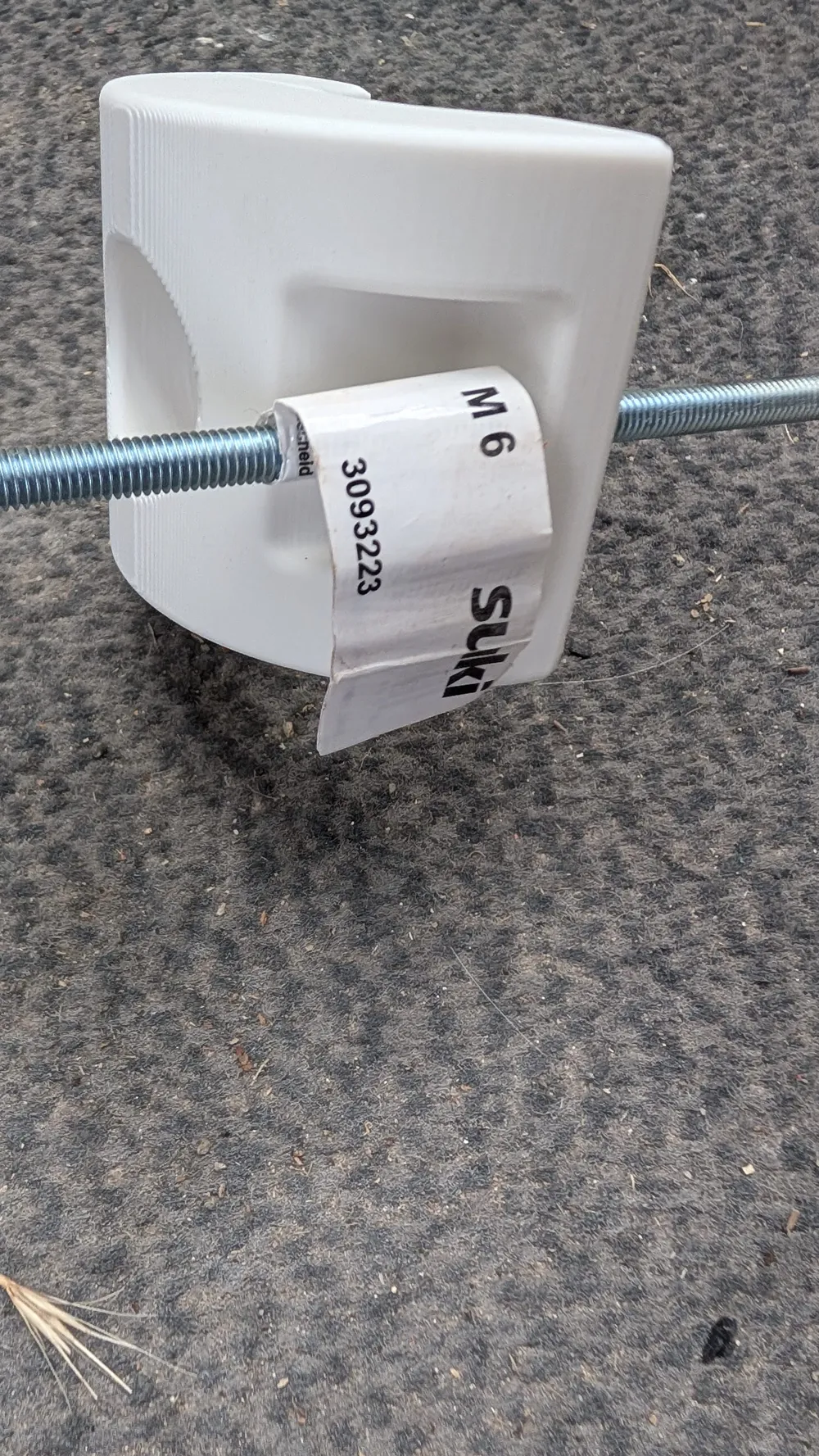

🔩 6mm diameter screw holes for mounting hardware
📏 35mm pipe compatibility (custom sizes available on request)

🖨️ Print Specifications:

Infill: 25% Gyroid
Supports: None required
Brim: Required for angle bracket only (pre-configured)
Part tolerances: 0.2mm clearance between assembly pieces

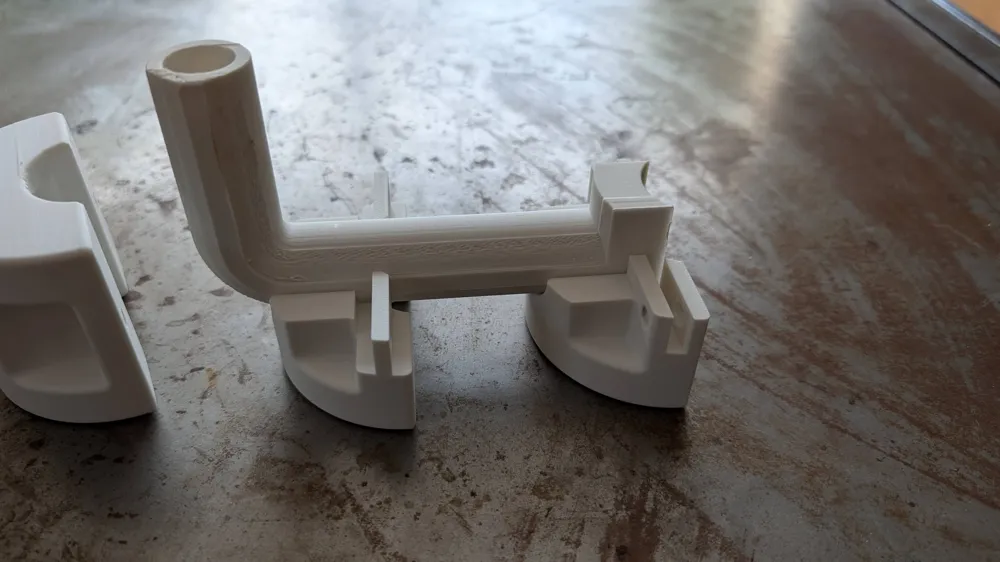

Assembly: 4 interlocking pieces

🌡️ Material Recommendations:

PLA: Suitable for sheltered locations
ASA/ABS: Recommended for full weather exposure

📦 Included Components:

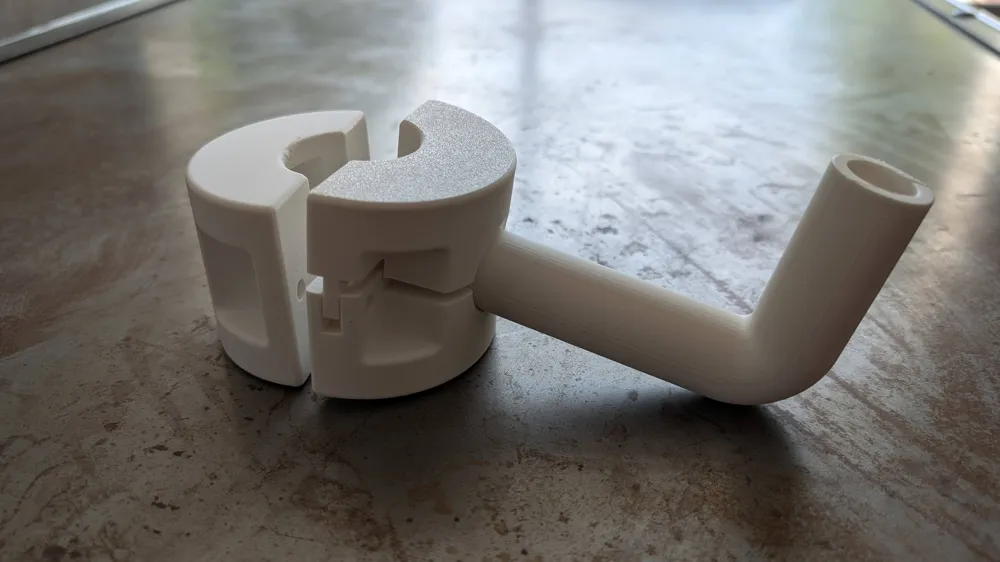

4 mounting pieces that clamp around pole
Pre-configured print file with brim settings for angle bracket

💡 Technical Notes: The 4-piece design creates strong clamping force when assembled on pole. All parts print without supports. Assembly remains straightforward despite multiple components.

Tested for outdoor durability and long-term UV exposure when printed in appropriate materials.

Comment & Rating (13)

@Bernd273

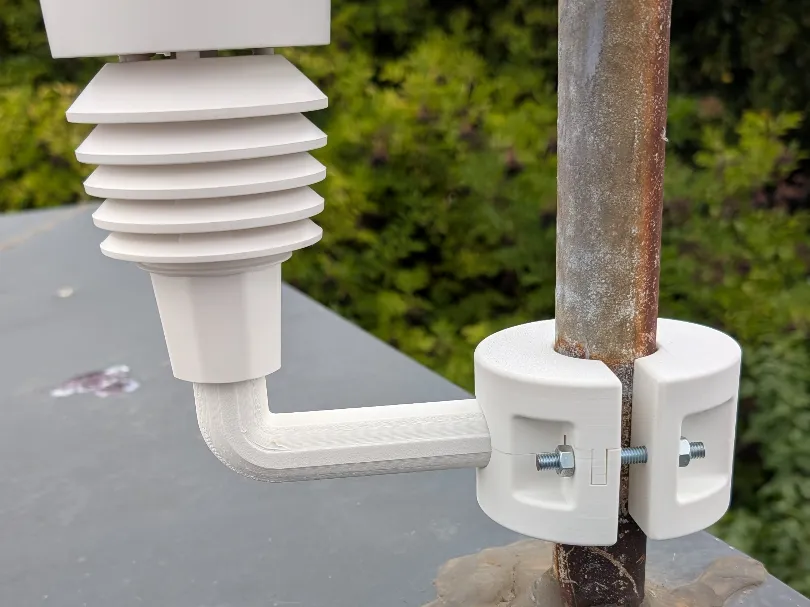

I printed the holder today with Sunlu ASA on the P1S and am very satisfied! Thumbs up from me and thank you very much! For your information: The rod has a diameter of 30mm and I was able to attach the holder perfectly with M6x40 stainless steel screws and nuts.

(Edited)

Show original

@fnord42

Awesome model! Can you consider making a version for 43mm diameter?

The designer has replied

@timoptr

if I find the time in the following weeks yes.

@timoptr

I did made a 43mm version. I didn't print it but it should work.

@fnord42

Replying to @timoptr :

Thank you so much! Where can I find the new version?

@Rueti

Hello Timo, that's unbelievable! I've been looking for something like this for a while!! What you've designed is so brilliant. Unfortunately, I also need a different diameter. For me, it's 42mm. If you've already created the 43mm version, that would also work. Could you send that to me as well? Or how do I get it? I'm not very experienced in this area yet, I've only just started. Thomas

Show original

@ryptixx

the 43mm version exists, it is the 2nd print file, you can see it in the comments

Show original

@Rueti

Sorry, I didn't see it. I still need to find my way around a bit. Great! Thanks!

Show original

@schorse333

Very cool model! A variant for 48mm would be great, or is the variant for 43mm also usable with longer screws/rods? What do those who have already printed and are using the model say?

Show original
