Description

I was getting tired of waiting for a case for the new Redmagic Astra 9 inch Tablet, so I tried to make one myself. I took one 3D modeling class on cinema4d so using Tinkercad was a learning experience hopefully I can get into Fusion. This model has minor imperfections especially in the ends where the two halves meet. Feel free to remix and upload better models. I'm using this case as a temporary solution until more cases are available so I wouldn't recommend this for full time use. I added vents for some extra cooling and only added the larger holes for the camera, flash, fan, and Redmagic logo since those use LED. Let me know how other filament types work, I'm only limited to PLA for now.

(I'm getting use to modeling and this is the first 3D model that I've ever made)

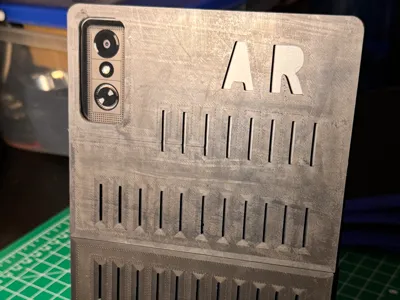

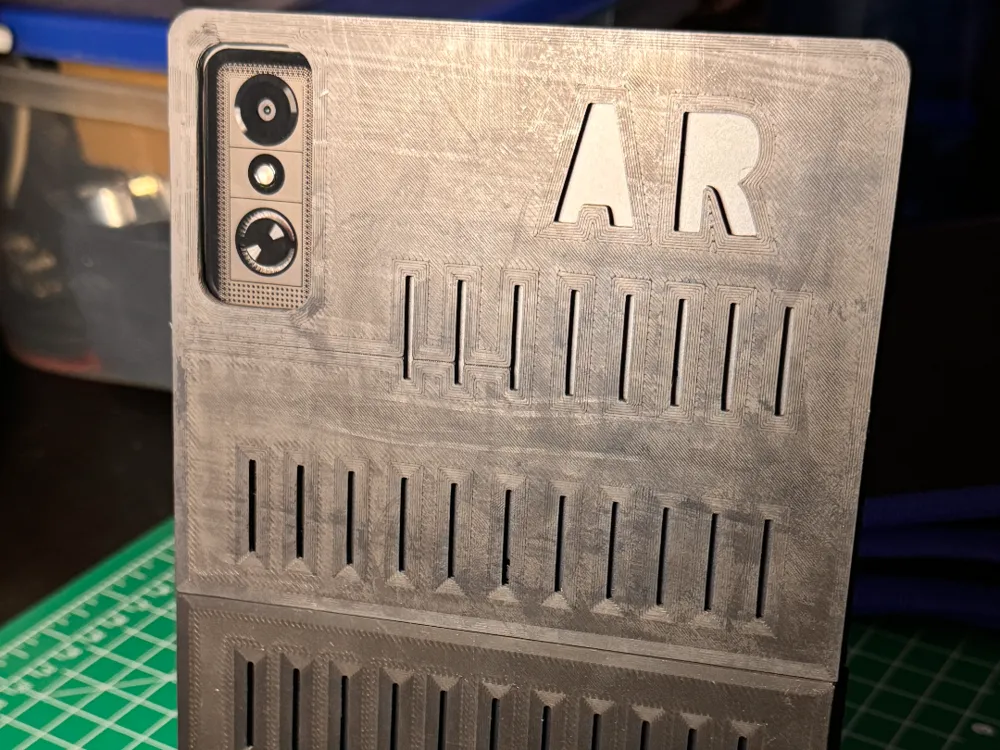

I engraved the letters onto my own print, but the models I added don't have any.

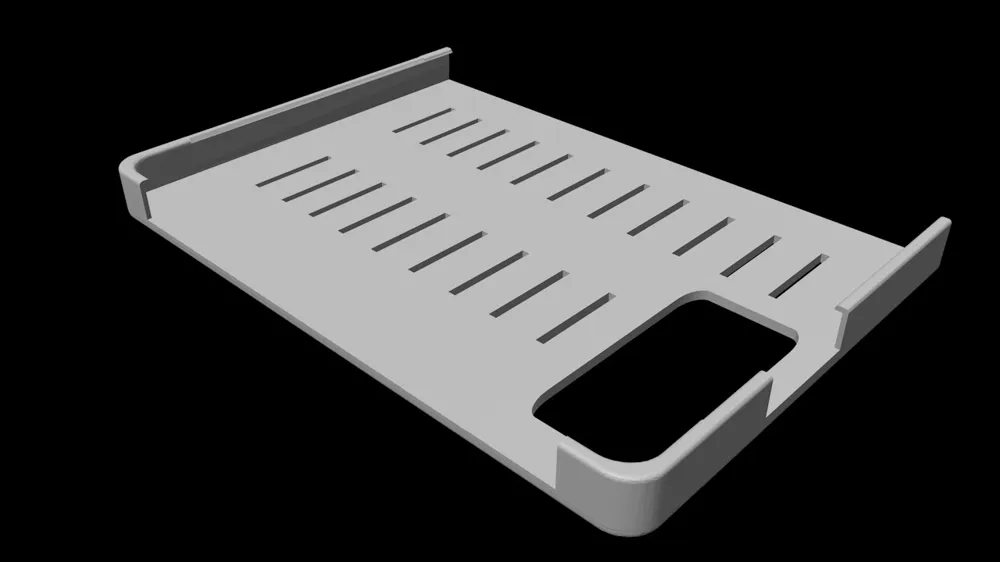

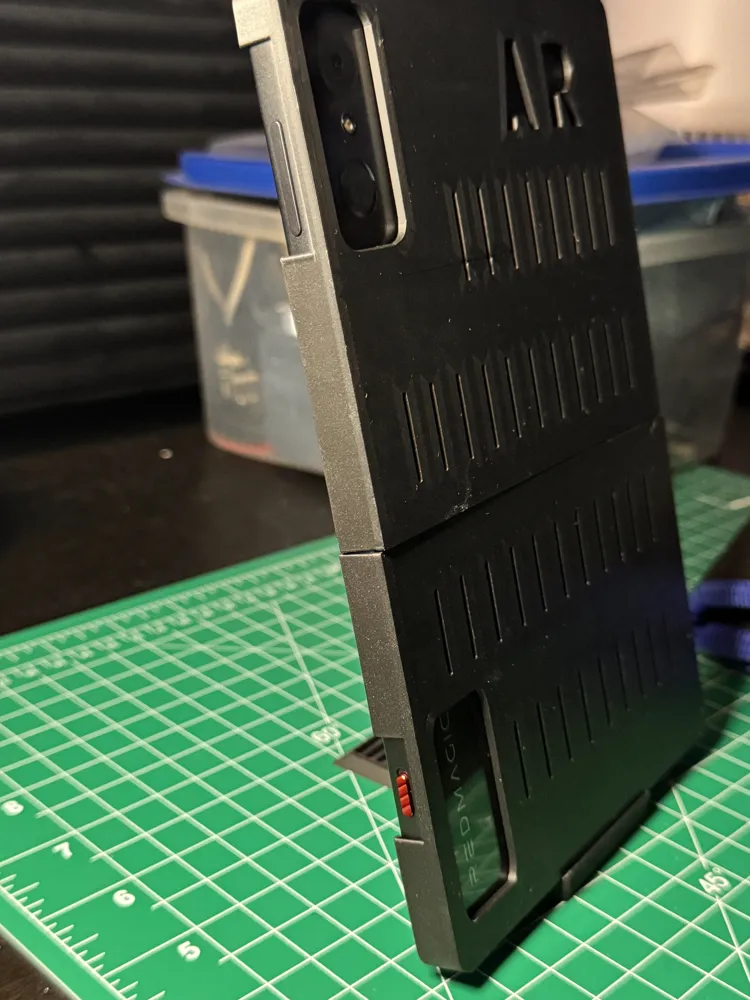

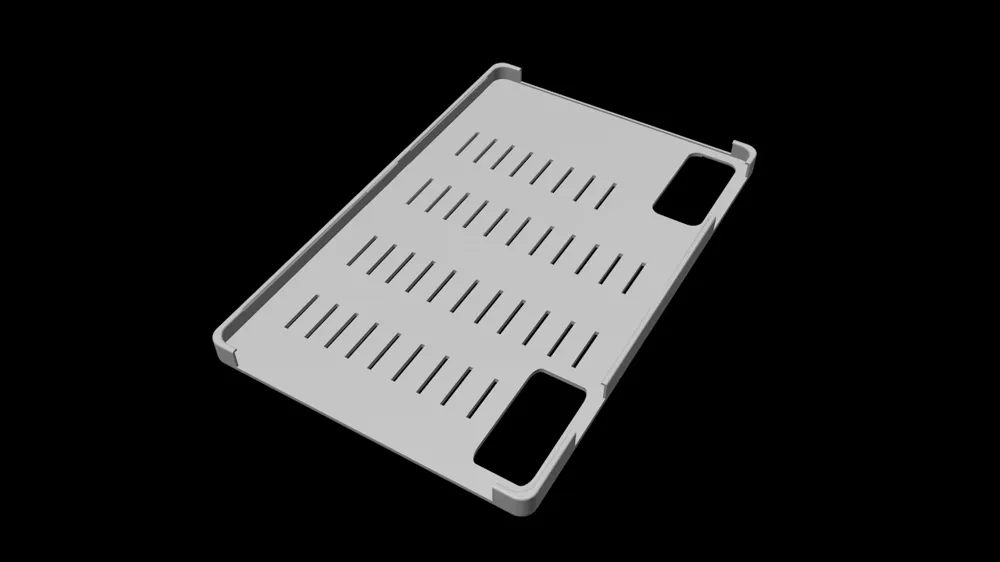

Personally I have an A1 mini so the model is split in two, but I added a full body for those who can use it.



Some issues I've faced

  • Make sure to add enough adhesive glue on the build plate especially in the corners (Few test prints failed cause of this)

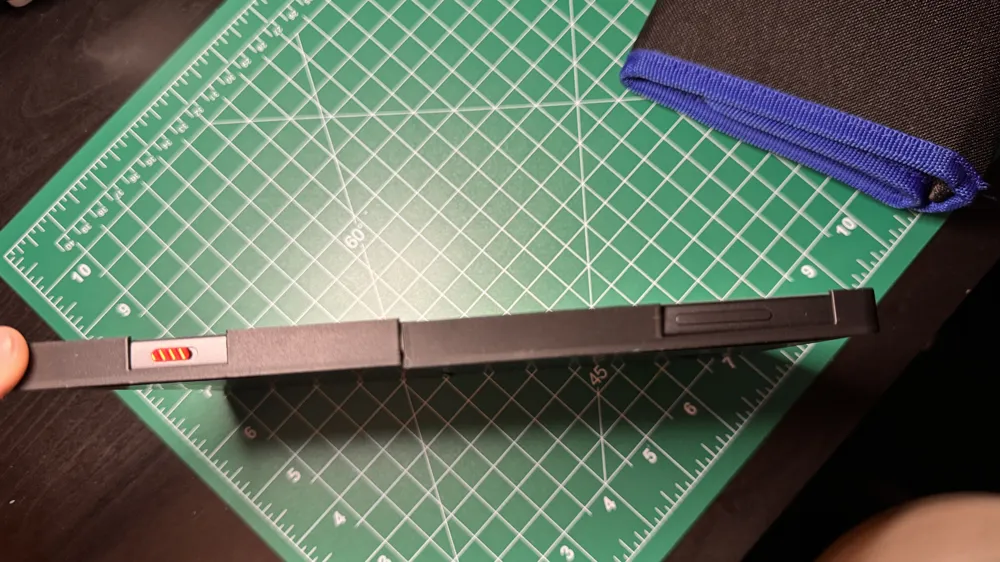

  • If you're using an A1 Mini keep in mind the split models may not fully connect when added onto the tablet.
  • I used PLA and while it does hold its not the strongest
