0.2mm layer, 3 walls, 15% infill

Designer

4.2 h

2 plates

4.8(63)

Open in Bambu Studio

Boost

540

1354

1.6 k

984

Released

Description

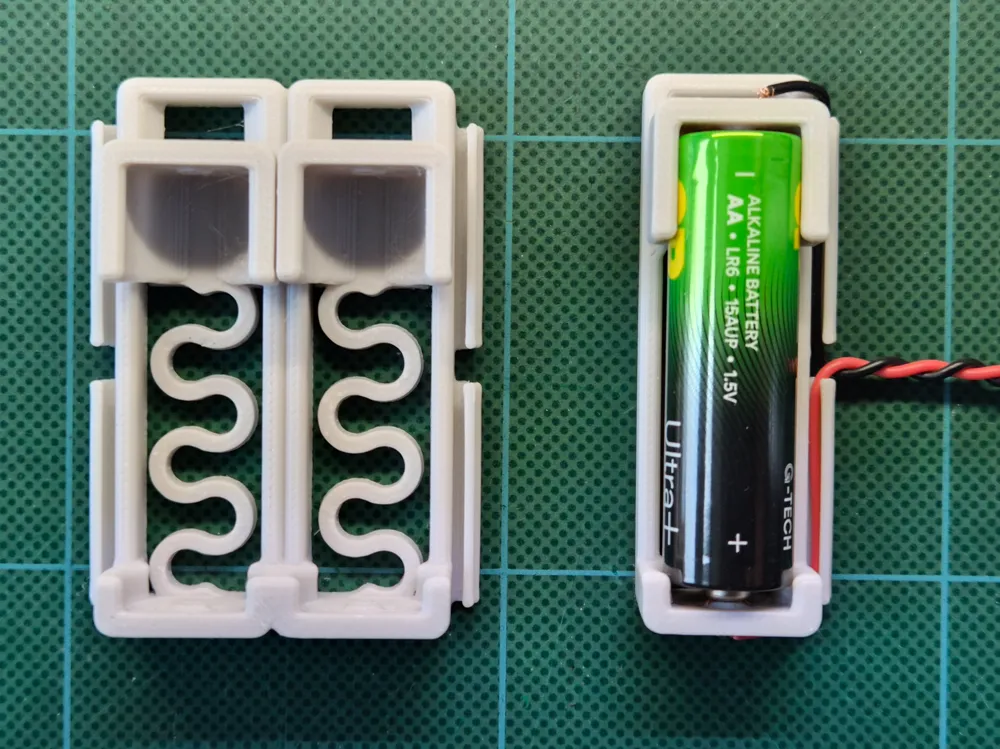

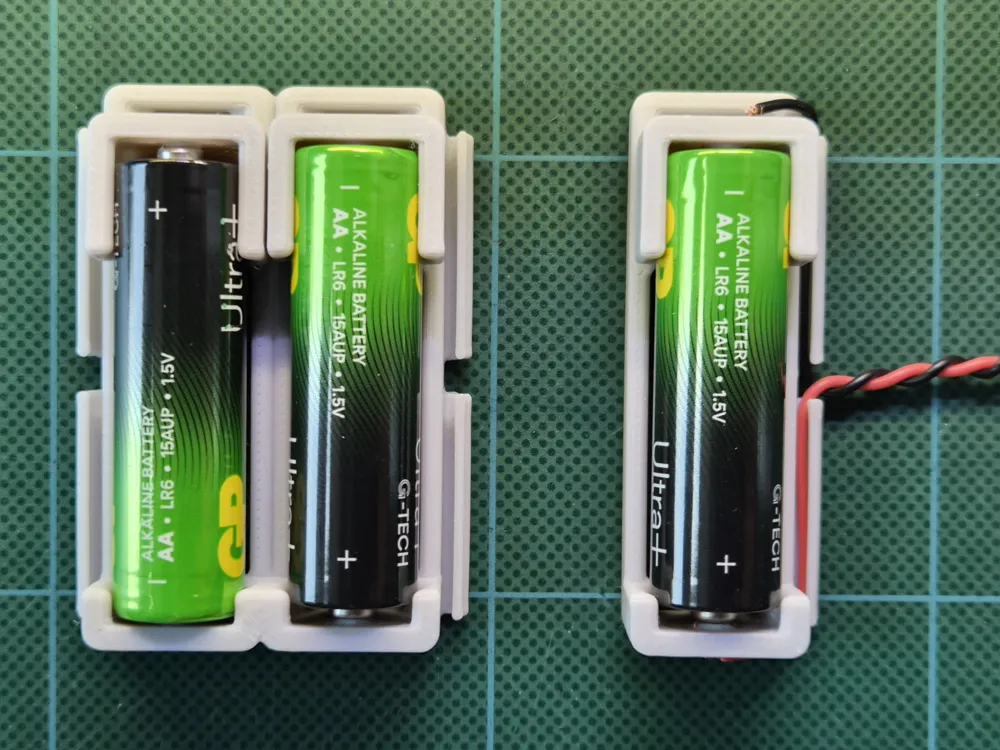

This AA battery holder is a print-in-place design that requires no additional metal planes or springs. Simply insert the wires directly into the holder and you're done. It also perfectly fits standard 14500 battery.

You can also download the holder for other sizes (21700, 18650, 15400, AA, AAA) from below:

https://makerworld.com/en/collections/18942060-battery-holders

Changelog

2026-01-11 *** New Model and Improvement ***

- Without compromising stability, the holder's tightness has been reduced, making it easier to insert the battery.

- Added holders for 3 and 4 batteries. Eight versions are now available, supporting single to four batteries, and cable management is optional.

Comment & Rating (87)

@Shiqi32

Print Profile

0.2mm layer, 3 walls, 15% infill

perfekt

The profile uploader has replied

@hargo

Wow, you may need an eight pack. Thanks for your rating.

(Edited)

@Yair010

Really nice design!! I love it

The designer has replied

@hargo

Very nice. I also plan to release Tri and Quad version soon.

@mousehouse

Boosted

Print Profile

0.2mm layer, 3 walls, 15% infill

This is great! Perfect design for making an AA battery pack!

The profile uploader has replied

@hargo

Thanks for the boost

@lulex

Print Profile

0.2mm layer, 3 walls, 15% infill

Very handy, functional print. Came out perfectly and work really well. Thank you again for sharing. Great work.

@DJL_3Designs

Print Profile

0.2mm layer, 3 walls, 15% infill

👌🏼👌🏼👌🏼

@efonseca

Really useful! Thank you for sharing!

@user_1020776336

Print Profile

0.2mm layer, 3 walls, 15% infill

Great design, perfect fit. Really like the integrated spring. Printed with PETG on H2D with standard Generic profile. Well done OP.

@dimprov

Absolutely beautiful and elegant model. However, seems maybe just a tad tight as given for AA batteries to fit? I'm using an H2D with shrinkage compensation in the PLA print profile, and I do believe my dimensional accuracy is pretty good overall.

(Edited)

The designer has replied

@hargo

It need to be tight as long as you can put in the batteries. Using PETG is recommended for greater flexibility and durability

(Edited)

@Dane724

Print Profile

0.2mm layer, 3 walls, 15% infill

Bed Adhesion Issue:I tried printing it several times and it finally came out great!

@MrMicroplastics

Print Profile

0.2mm layer, 3 walls, 15% infill
