Description

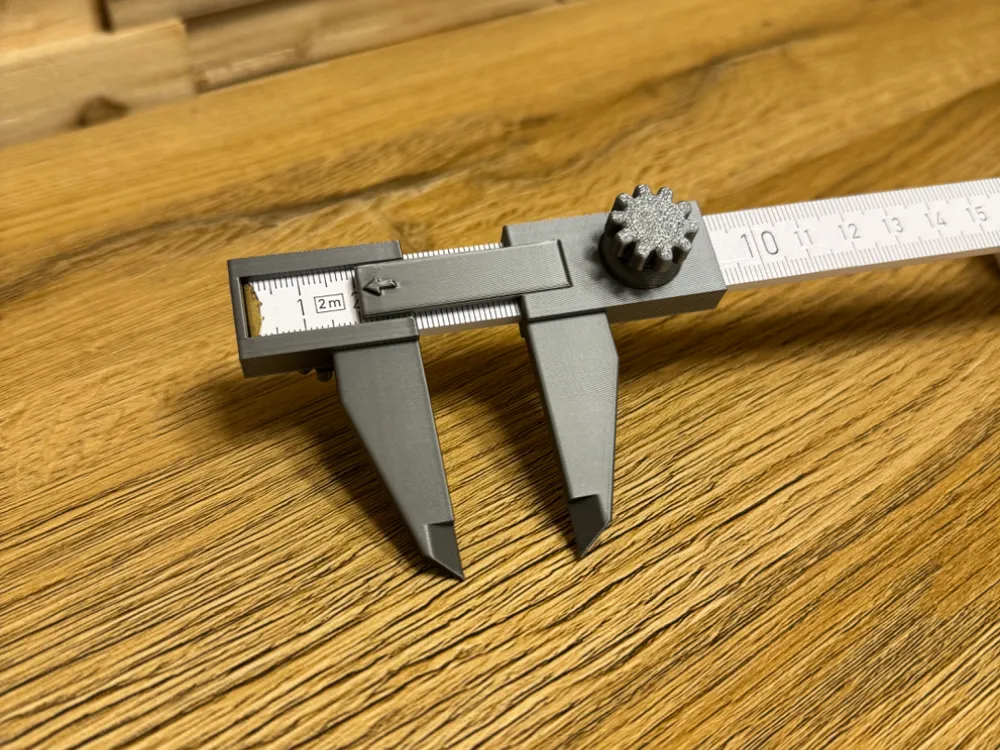

A caliper is used for precise measurements of lengths, distances, and diameters.

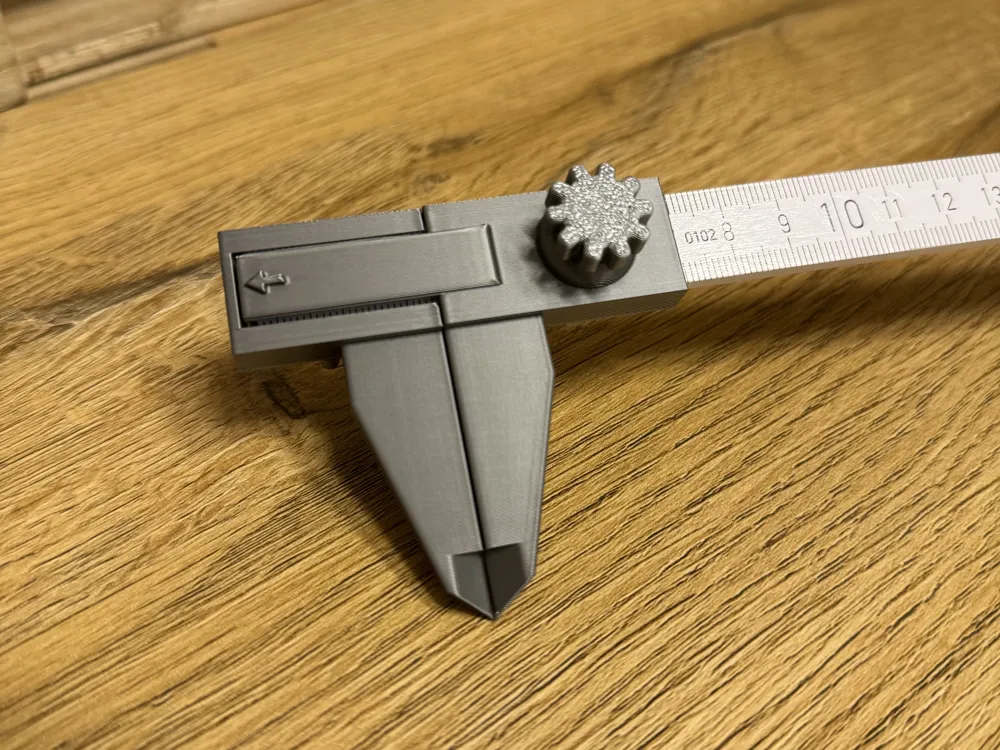

This caliper is easy to print and is suitable for all standard rulers.

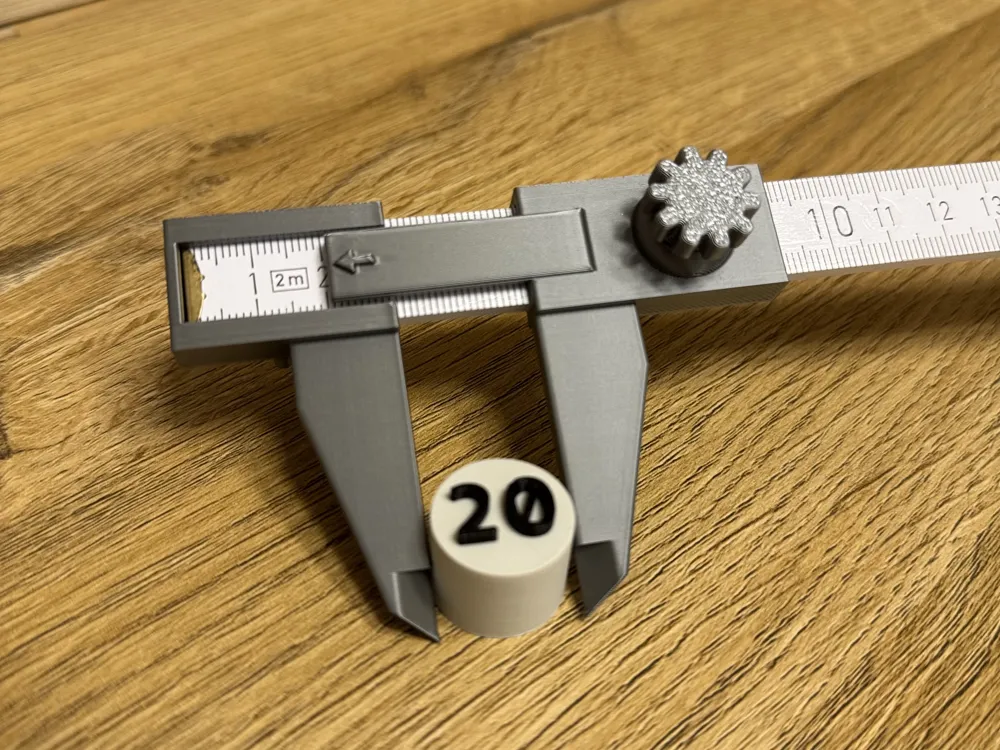

Thanks to its design, this caliper displays the actual measured value, so no conversion is necessary.

The caliper was printed using standard PLA.

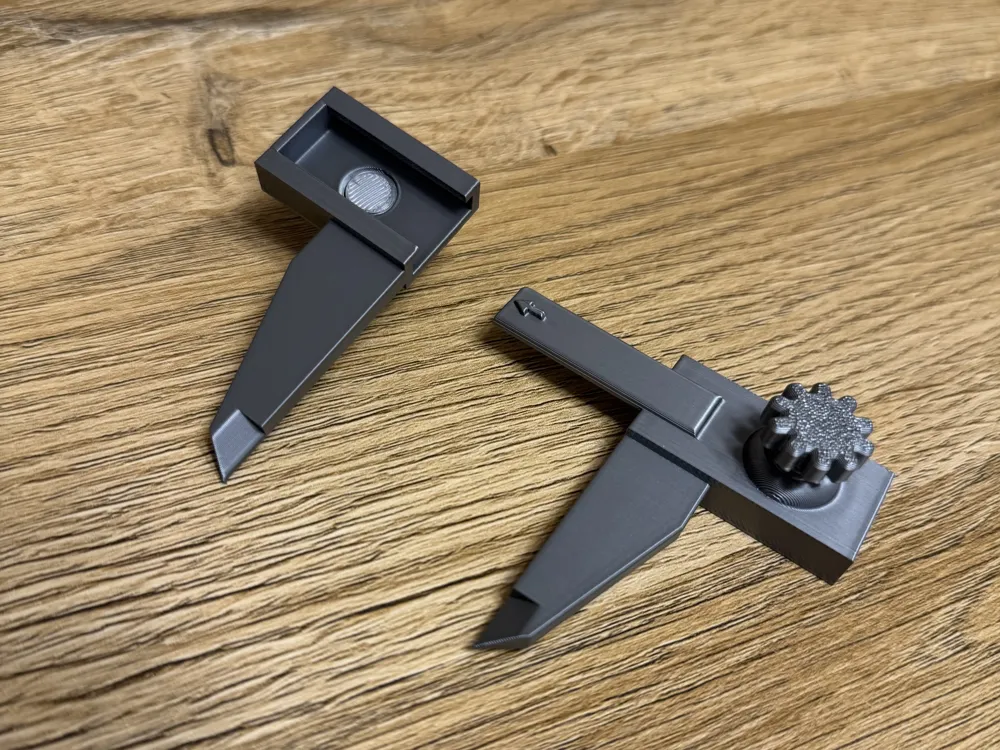

Parts list:

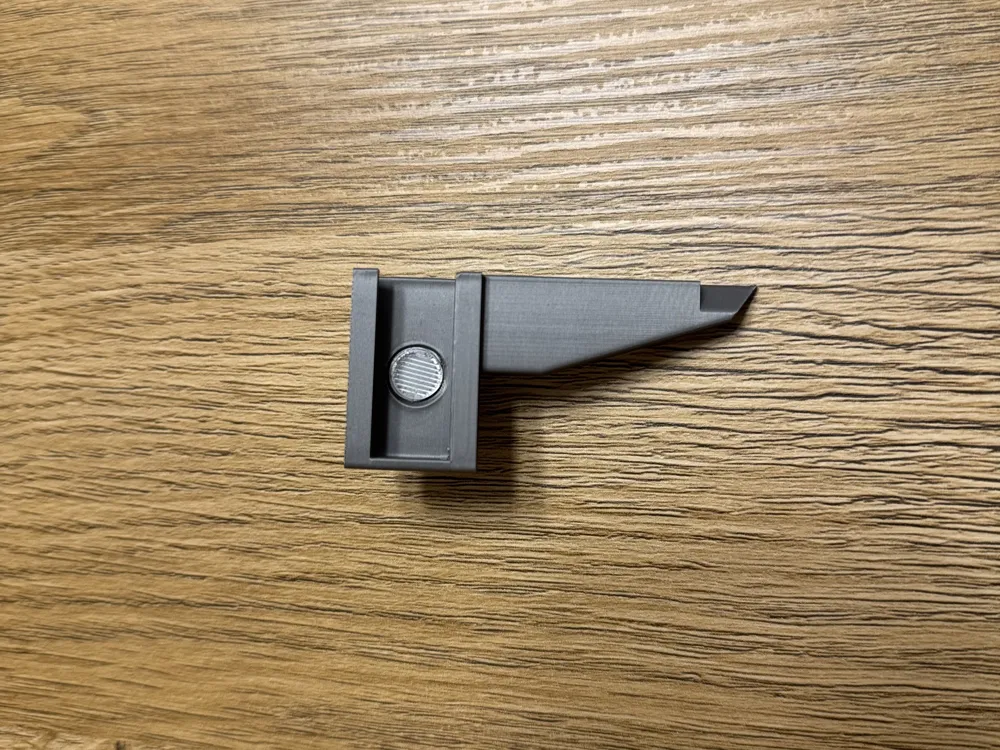

Caliper lower part

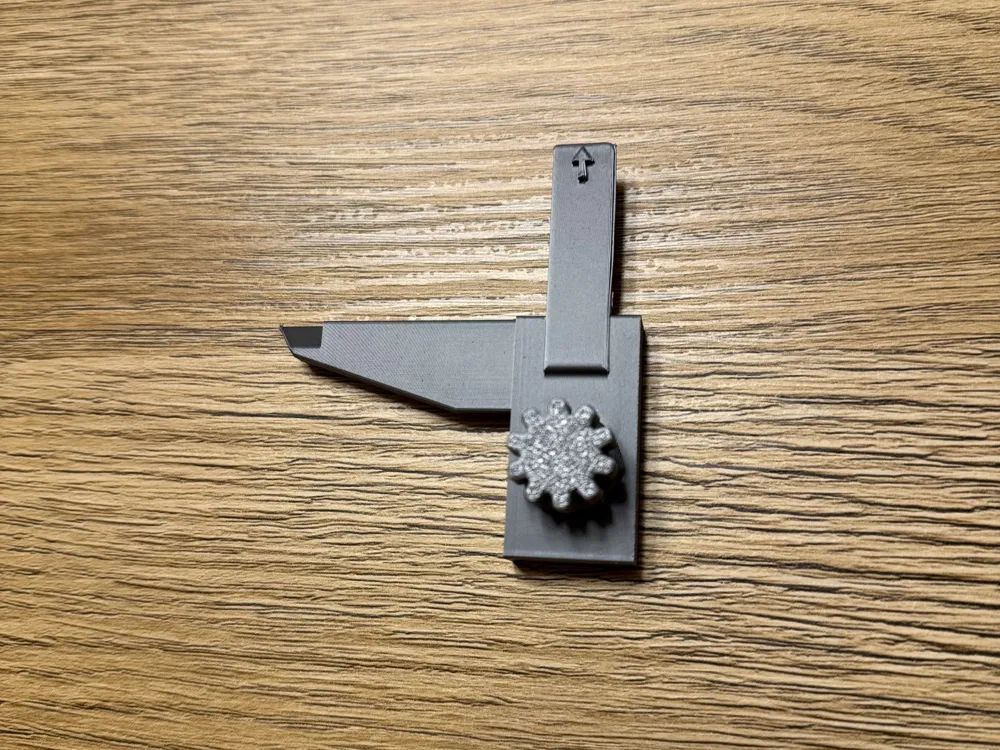

Caliper upper part

2 x M10 screws

Have fun printing ;)

Comment & Rating (4)

@user_510508170

But a caliber can measure in 0.1 mm. This is way less accurate than that. Can you make it so it reaches that level?

@faluethi108

Can you add a nonius/vernier scale? https://en.wikipedia.org/wiki/Vernier_scale?wprov=sfla1

@user_1615499565

Print Profile

0.2mm layer, 2 walls, 15% infill

The profile uploader has replied

@DKits_34

Hi, thank you for the rating!!! Of you want to see my print models, you are welcome!
