Bearing based spirographic WDT tool modified

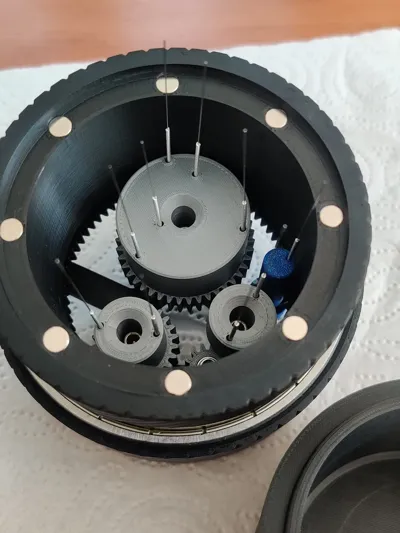

BOM is the Same as the original, aside from the 8 magnets I used to hold the basket in place when rotating. (Fits my 18g ridgeless VST basket nicely)

I used blind holes on my design to give the upper part a cleaner look.

The use of a blind hole tap is advised to start ¾ of the thread length, otherwise the part may crack when screwing the M3 Screw in an undersized hole.

BOM:

• 16x Magnets 5x2.5mm (2 stacked on top in each hole)
• 1x M3x20mm SHCS
• 5x M3x12 SHCS
• 2x 61813 ZZ / 2Z (65x85x10 mm)
• 10x MR63ZZ (3x6x2.5mm)
• 10x Acupuncture needle
