For Titebond brand glue bottles

Designer

3.9 h

4 plates

5.0(19)

For Gorilla brand glue bottles

Designer

3.9 h

4 plates

For PET bottles

Designer

3.8 h

4 plates

5.0(1)

Open in Bambu Studio

Boost

538

2010

504

229

Released

Description

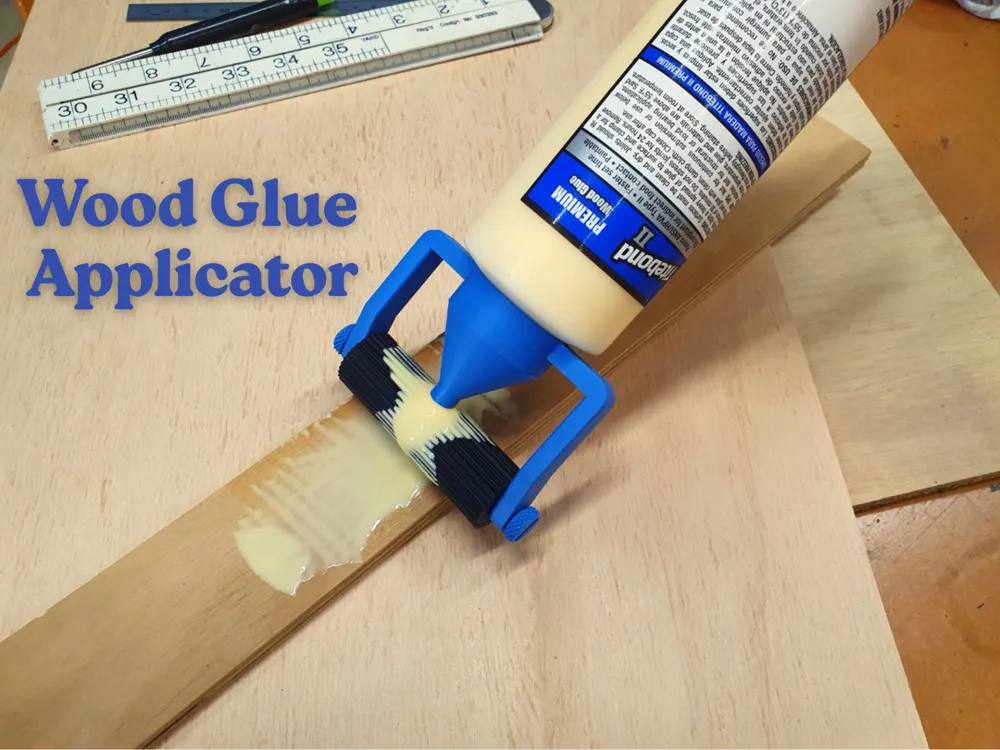

A roll-on glue applicator which fits -

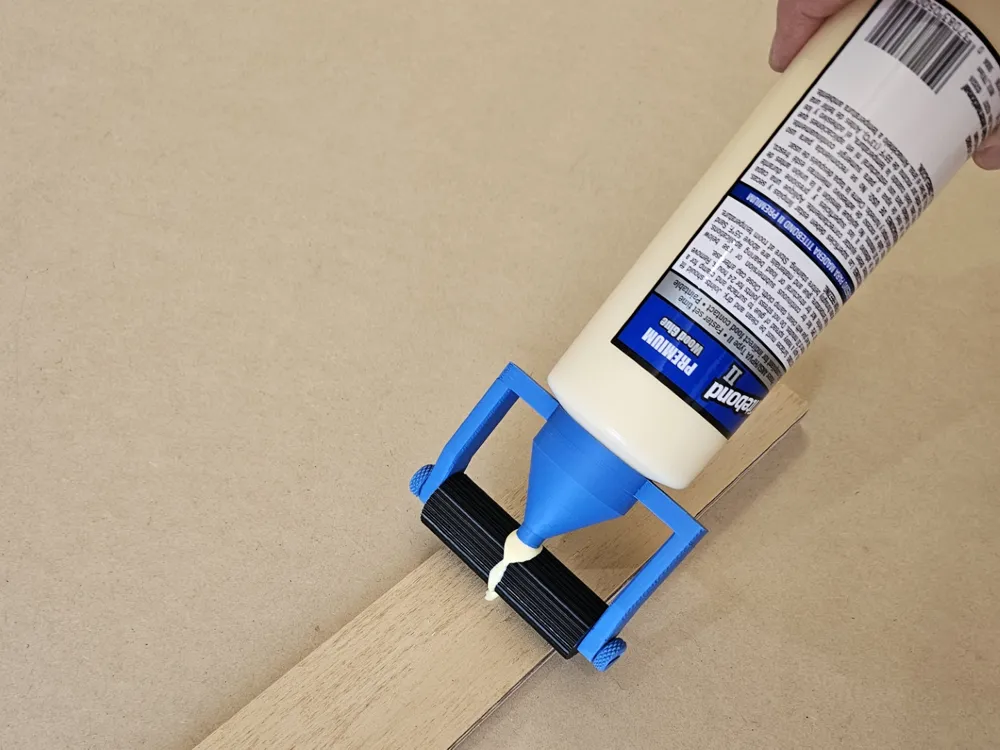

Titebond brand glue bottles in 473ml and 946ml (16oz and 32oz) sizes

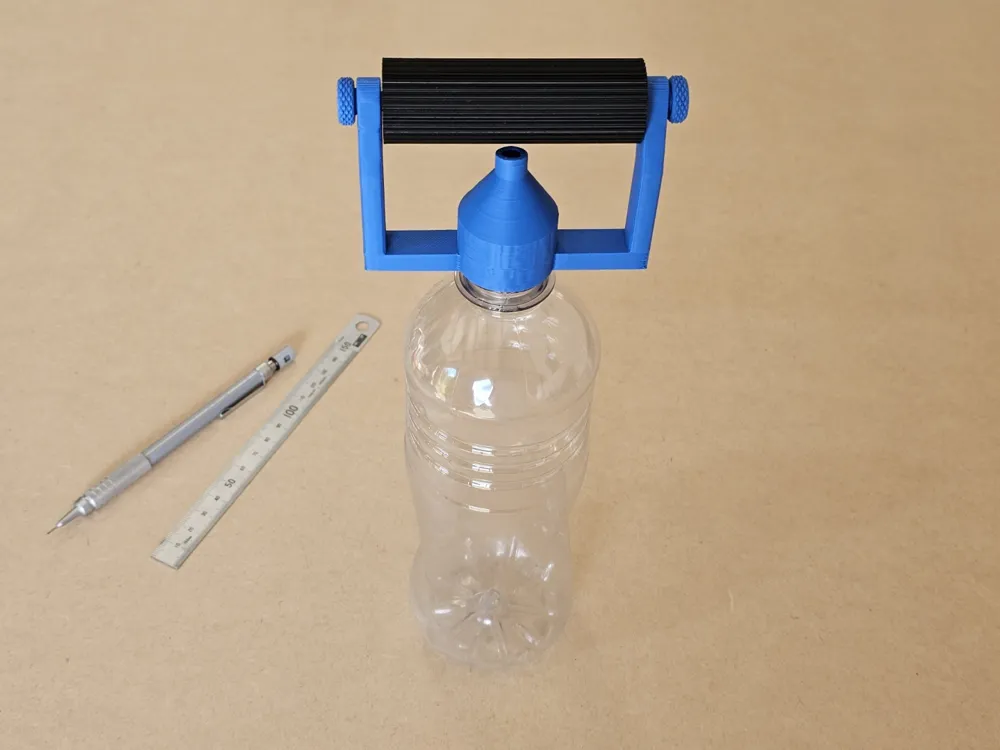

Standard PET drink bottle. Just fill an empty PET bottle with glue and attach

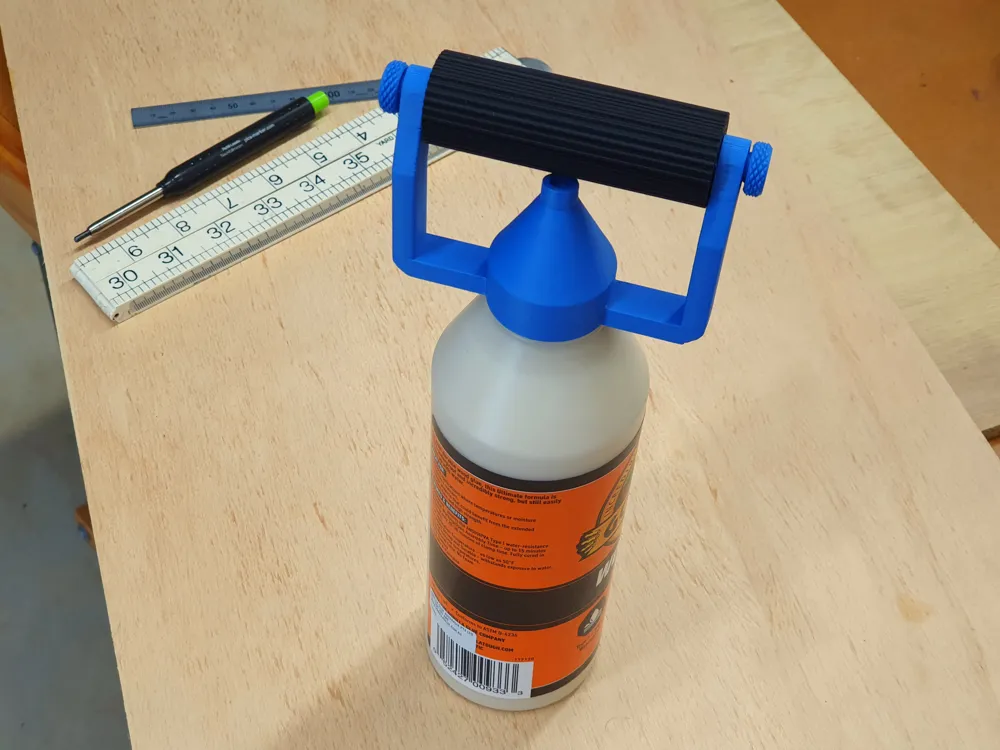

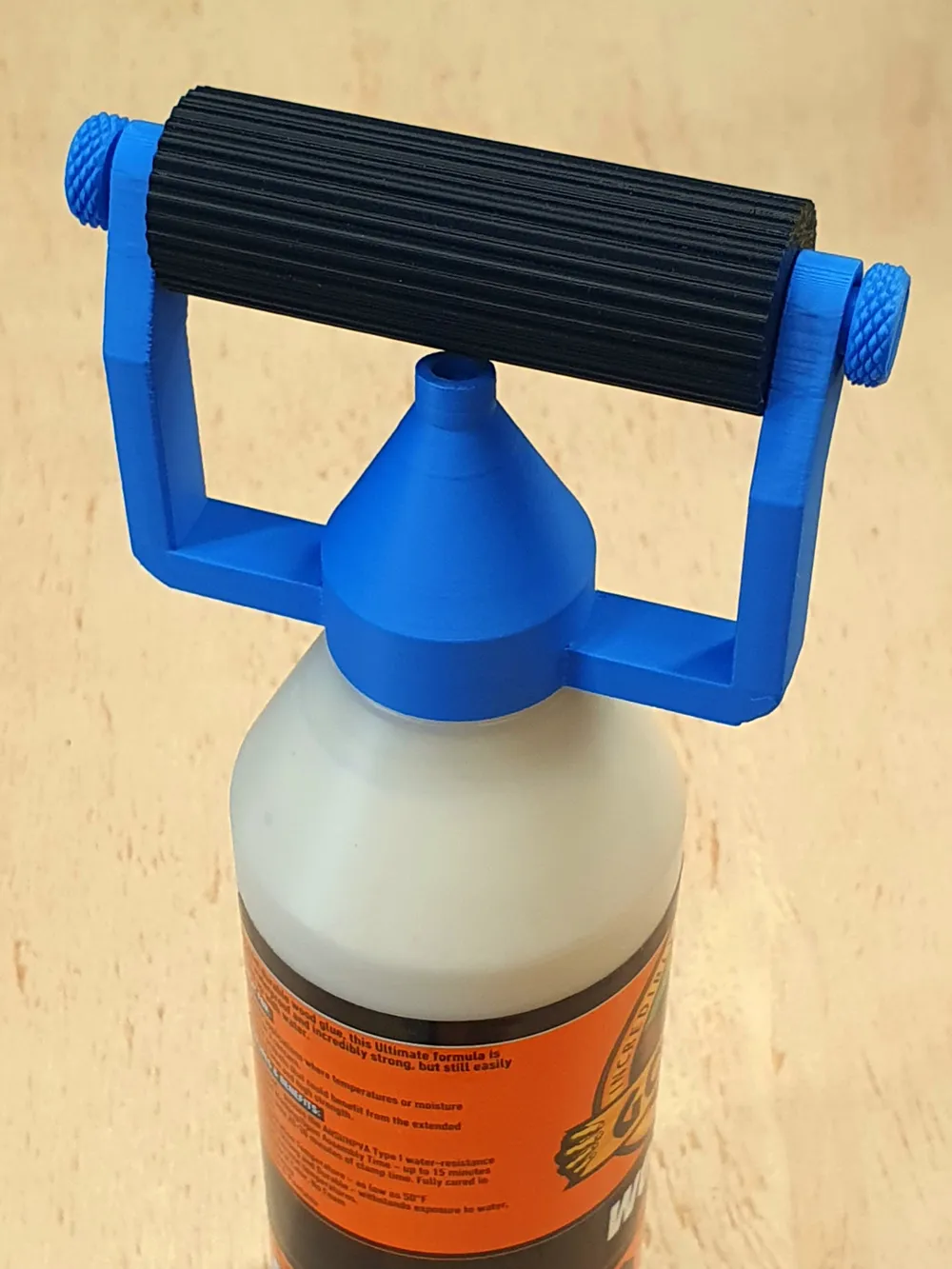

Update 15/03/26 - Gorilla Wood Glue version added -

Gorilla brand glue bottles in 236ml and 532ml (8 oz and 18oz) sizes

Three print profiles are provided, one for each type of glue applicator.

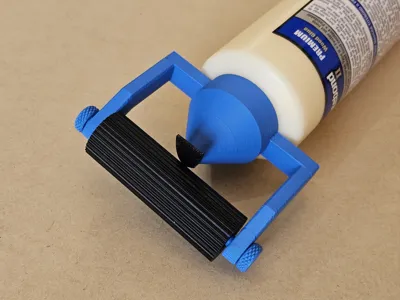

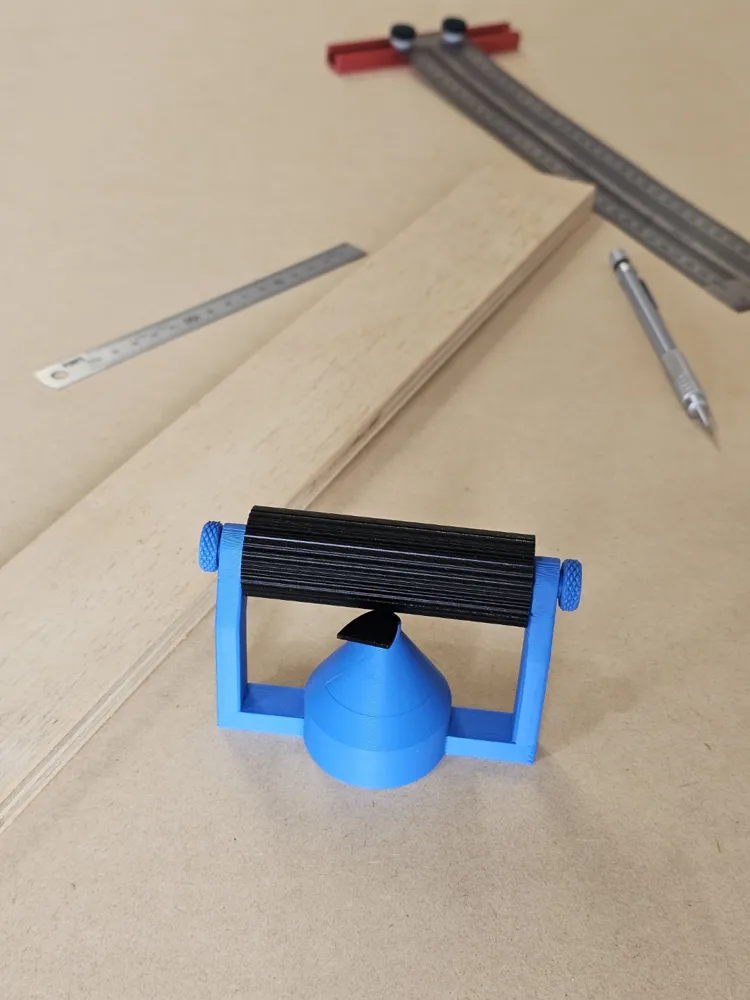

The applicator roller and nozzle sealing cap are printed in TPU 95A but any filament could be used for this.

The threads of the roller screws should be lubricated with a dab of petroleum jelly, candle wax etc, on first use.

Happy glueing 😊

Other models by the designer: https://makerworld.com/en/collections/2631717

Boost Me (for free)

If you like my model I would appreciate your BOOST 🚀
Thanks!

Membership

Want to sell prints of this design? Become a Licensed Seller

Join

gorilla glue attchment

Comment & Rating (37)

@user_881623170

Boosted

Pinned by Designer

works great

The designer has replied

@maxv

Nice print, thanks for the feedback and Boost! ☺️

@user_667858522

Print Profile

For PET bottles

worked well 😊👍

Show original

@adamk123

Print Profile

For Titebond brand glue bottles

printing tpu next looks great.

The profile uploader has replied

@maxv

It looks great, thanks appreciate the feedback 🙂

@user_2628051797

prints perfectly! This was a ME issue: titebond cap is way too wide for the roller that prints with it. even with screws installed, it won't stay in place. can you take a look?

(Edited)

The designer has replied

@maxv

The gap between the titebond cap body arms is 77mm and the width of the roller is 76.7mm (approx. depending on printer calibration). If the roller isn't long enough and doesn't even reach the screws then there's been an issue with the printing of the roller.

@user_2628051797

Replying to @maxv :

reprint fixed it. something went sideways the first time

@maxv

Replying to @user_2628051797 :

That's great, thanks for the update 👍

@olpallix

nice. does it work with gorilla glue screw type? cheers

The designer has replied

@maxv

Sorry I can't say as I don't have access to that brand, let us know if you find out 🙂

@maxv

I have added a version for gorilla wood glue bottles 😊

@user_2802703237

Boosted

Well this is just great !

The designer has replied

@maxv

Thanks for the boost!😊

@Voodstoc

Boosted

Print Profile

For Titebond brand glue bottles

Printed perfectly from the handy app. I printed it from all PLA and it works fine. I threaded it onto our glue bottles at work, which are basically ketchup bottles and it threaded on and leaked a small amount, but it was useable for me. Thanks for the file!

The profile uploader has replied

@maxv

Glad you like it, maybe you could try a few turns of plumber's Teflon tape around the bottle threads, that's worked for me. Thanks for the feedback ☺️

@harris.john61

Boosted

Great Product just tried it myself

The designer has replied

@maxv

Glad you like it, thanks for the boost and feedback! 😊

@user_789470496

Print Profile

For Titebond brand glue bottles

printed well and works well. I did chase the threads with a 8x1.25 tap & die.
