Description

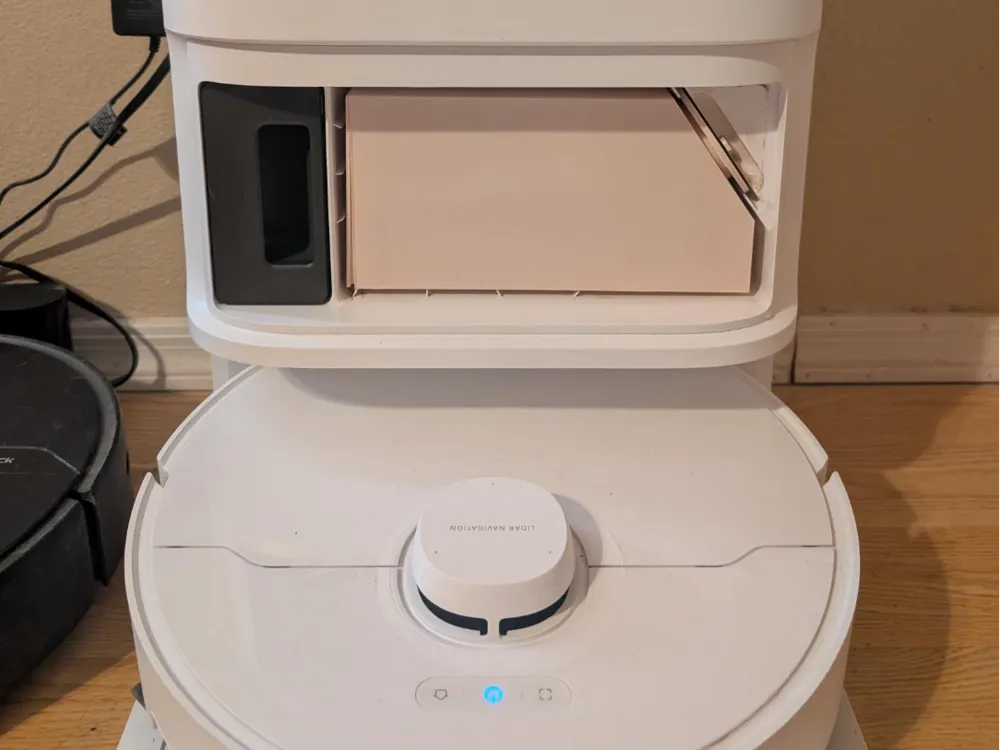

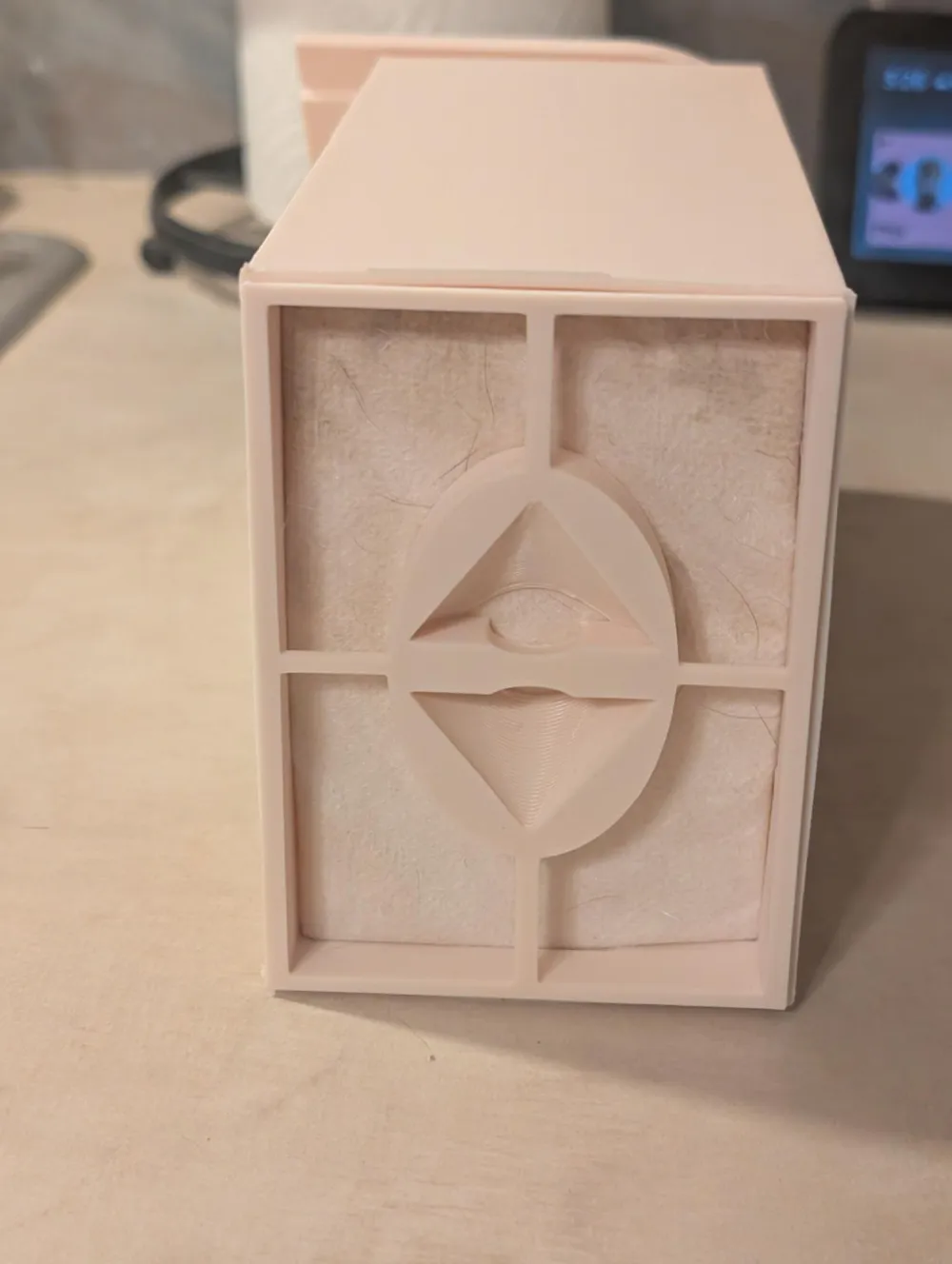

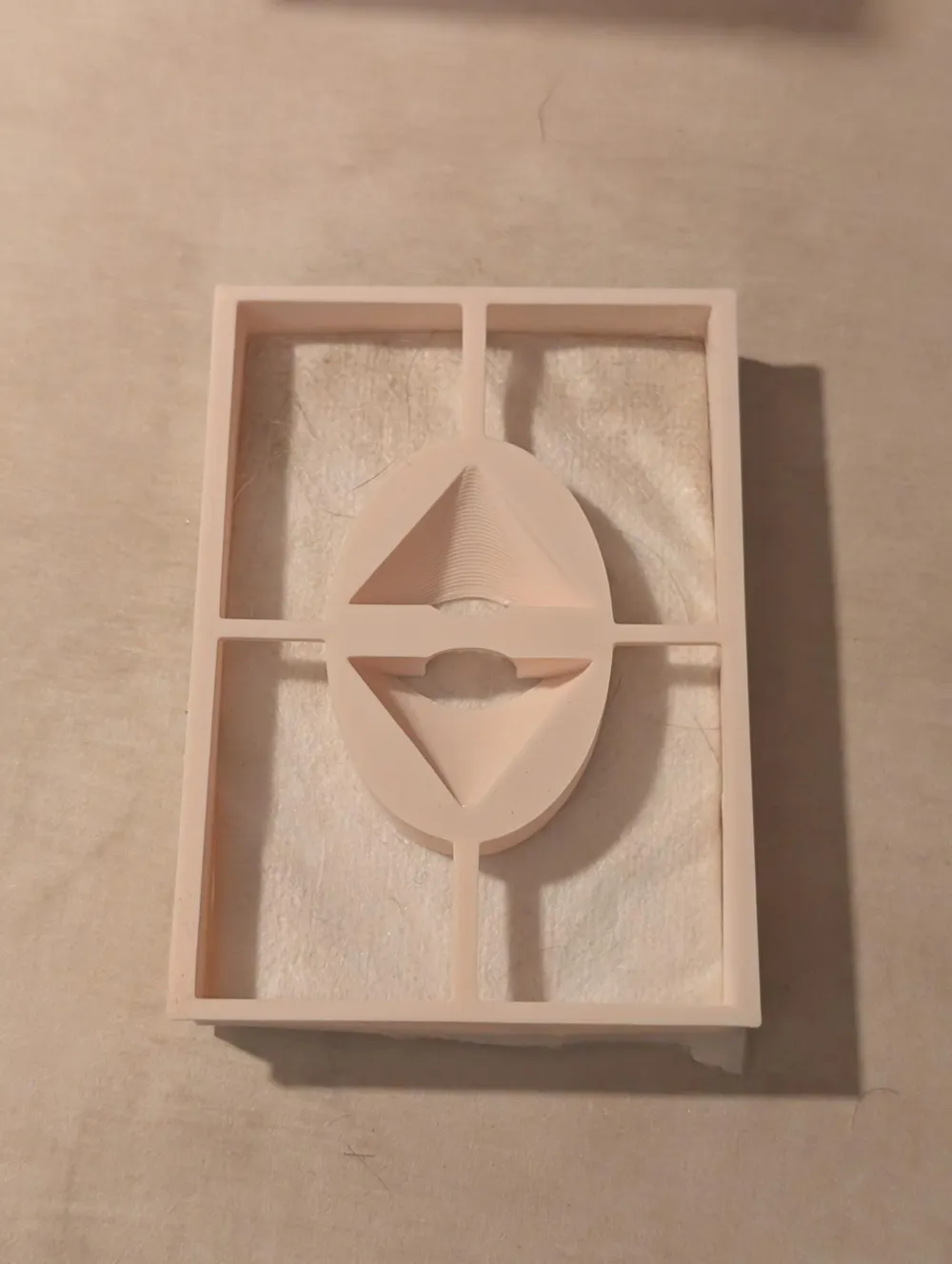

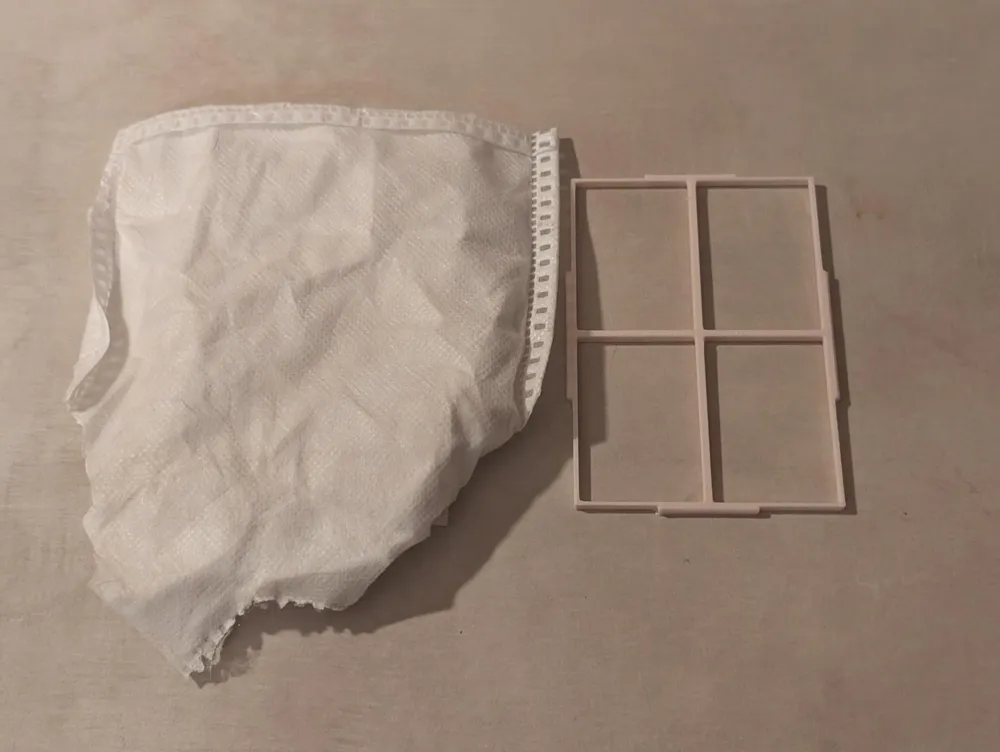

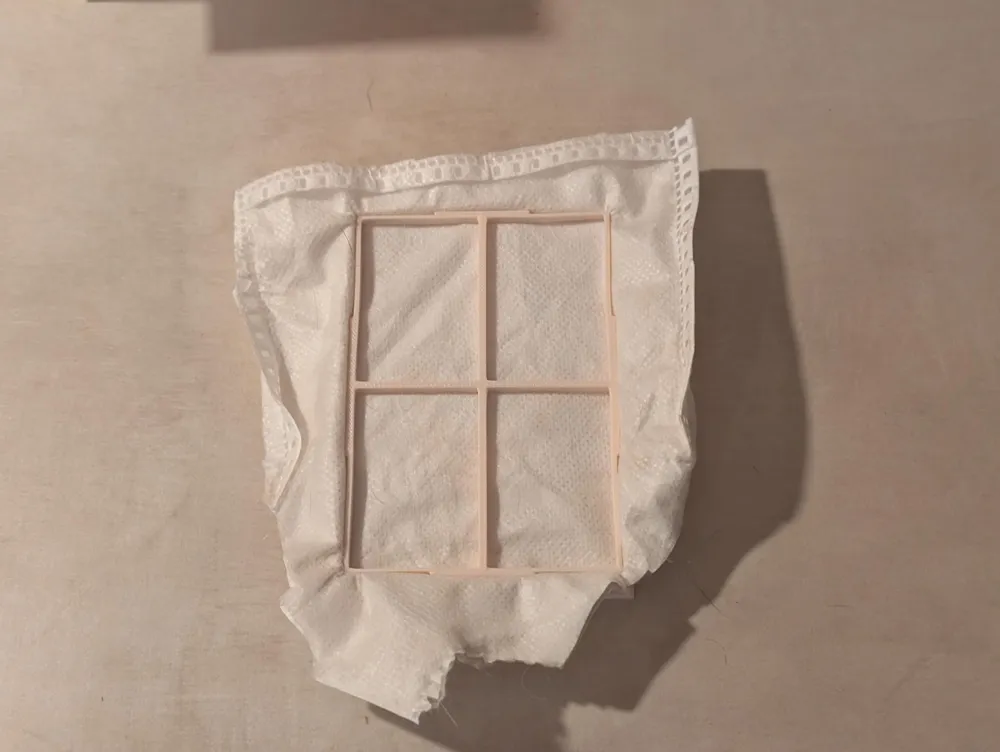

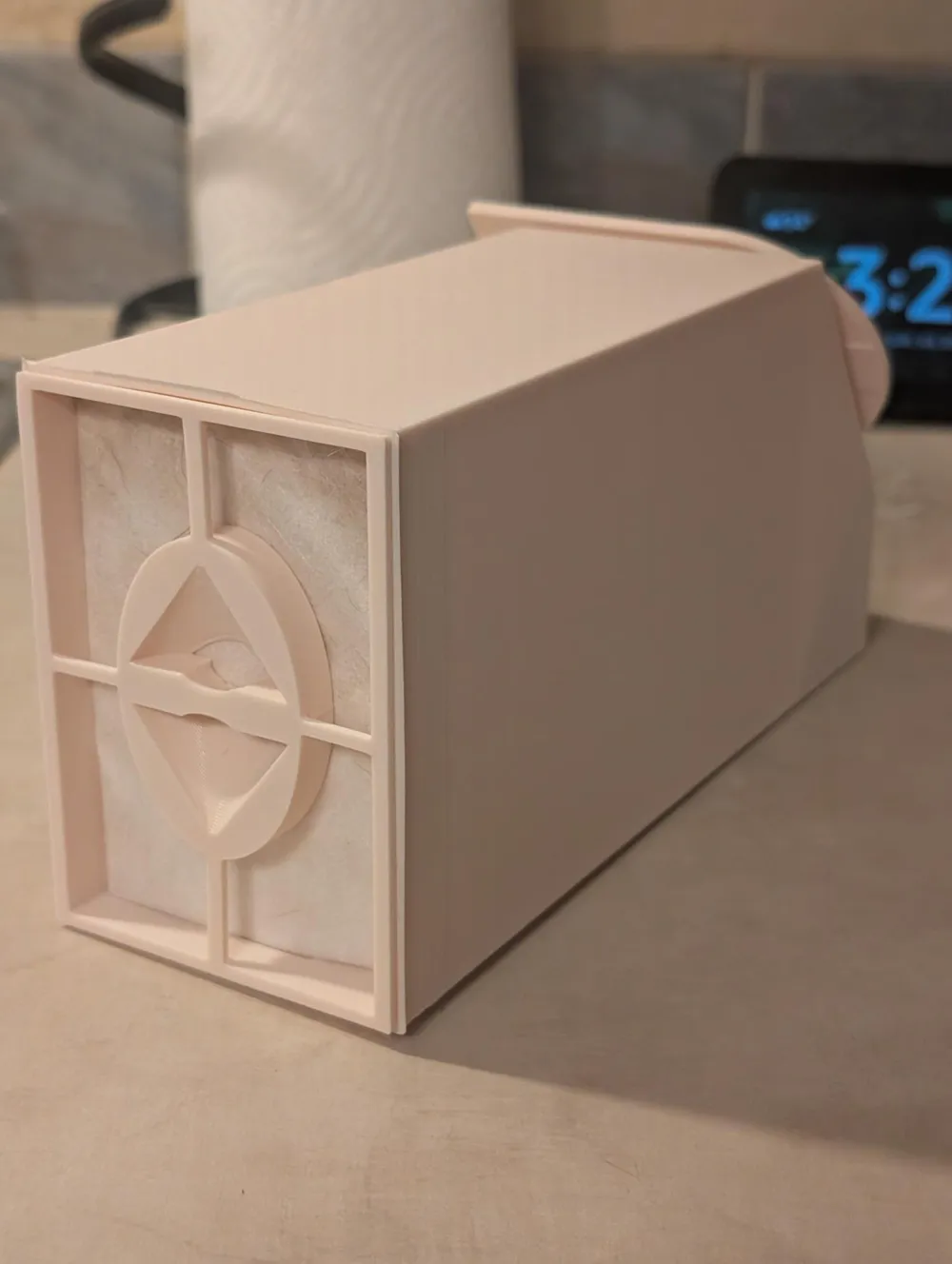

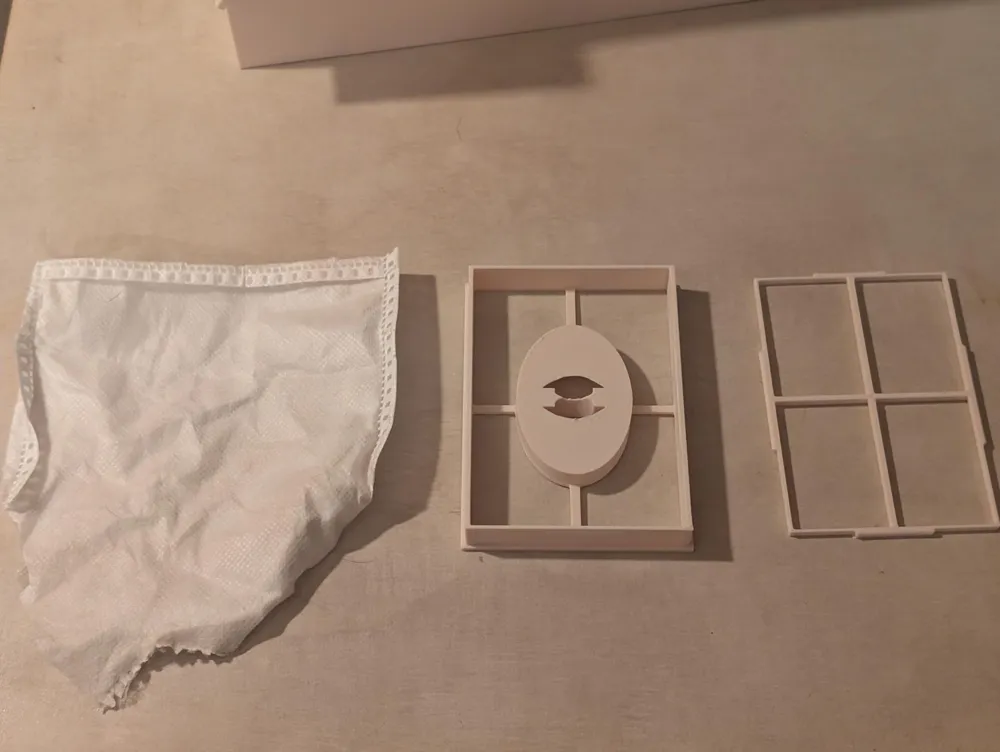

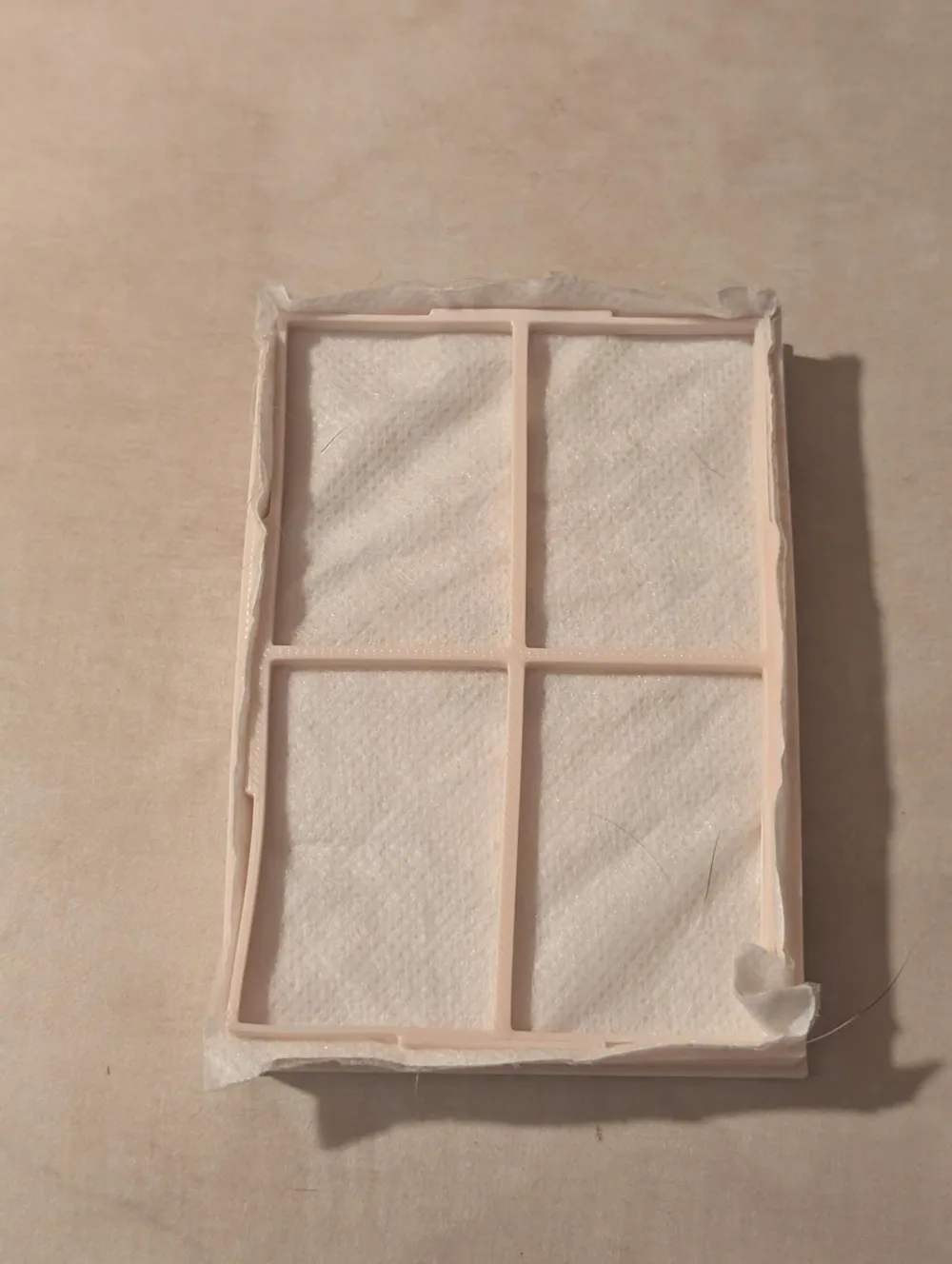

Upgrade your Mova P10 Pro Ultra with this custom 3D-printed dust bin, designed for enhanced durability and a perfect fit. This innovative bin eliminates the need for disposable bags, offering a more sustainable and cost-effective cleaning solution. Ingeniously, it also requires no separate third-party filter; you simply cut a piece from a used bag to fit the filter cover, maximizing resourcefulness and waste reduction!

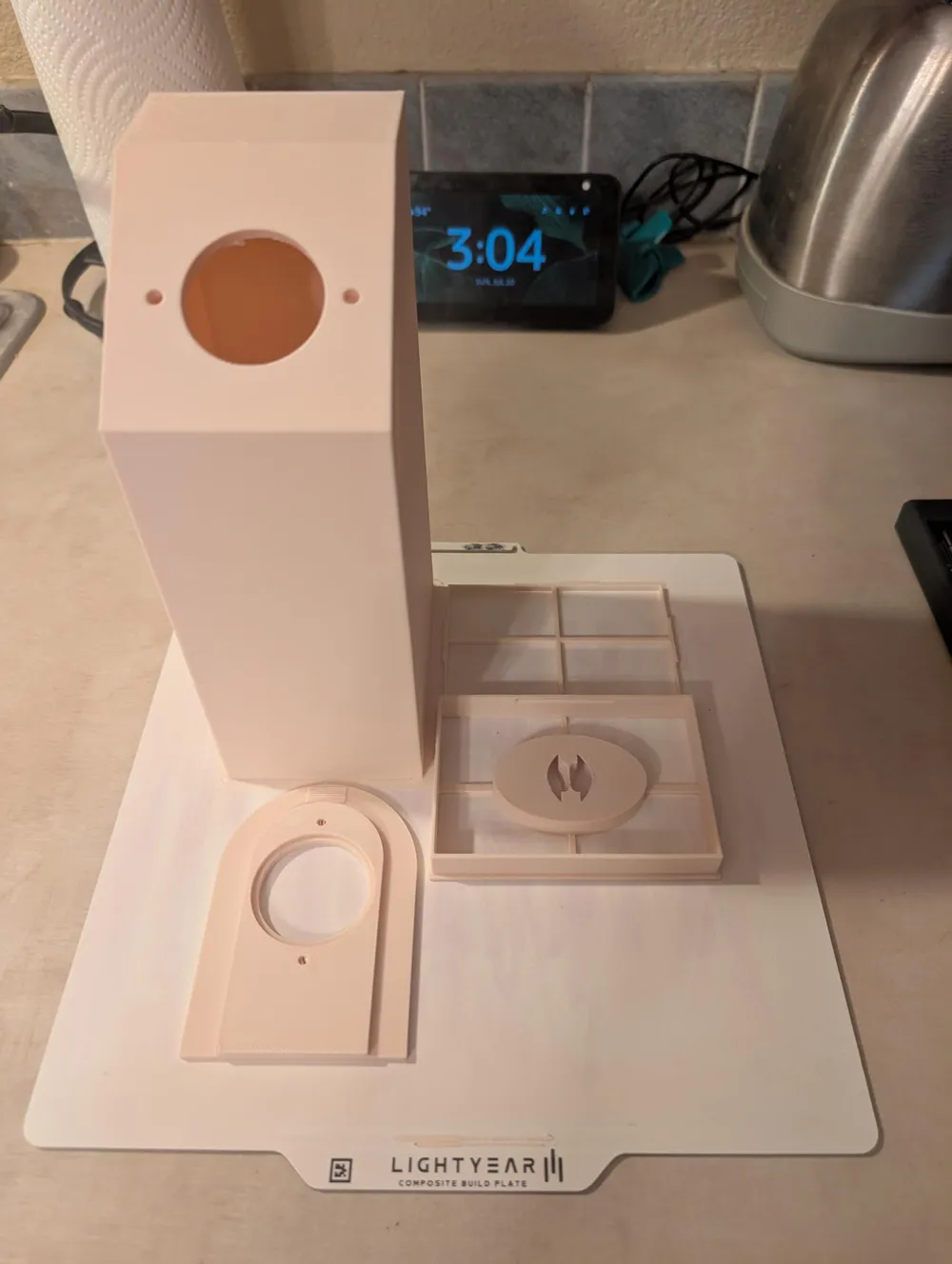

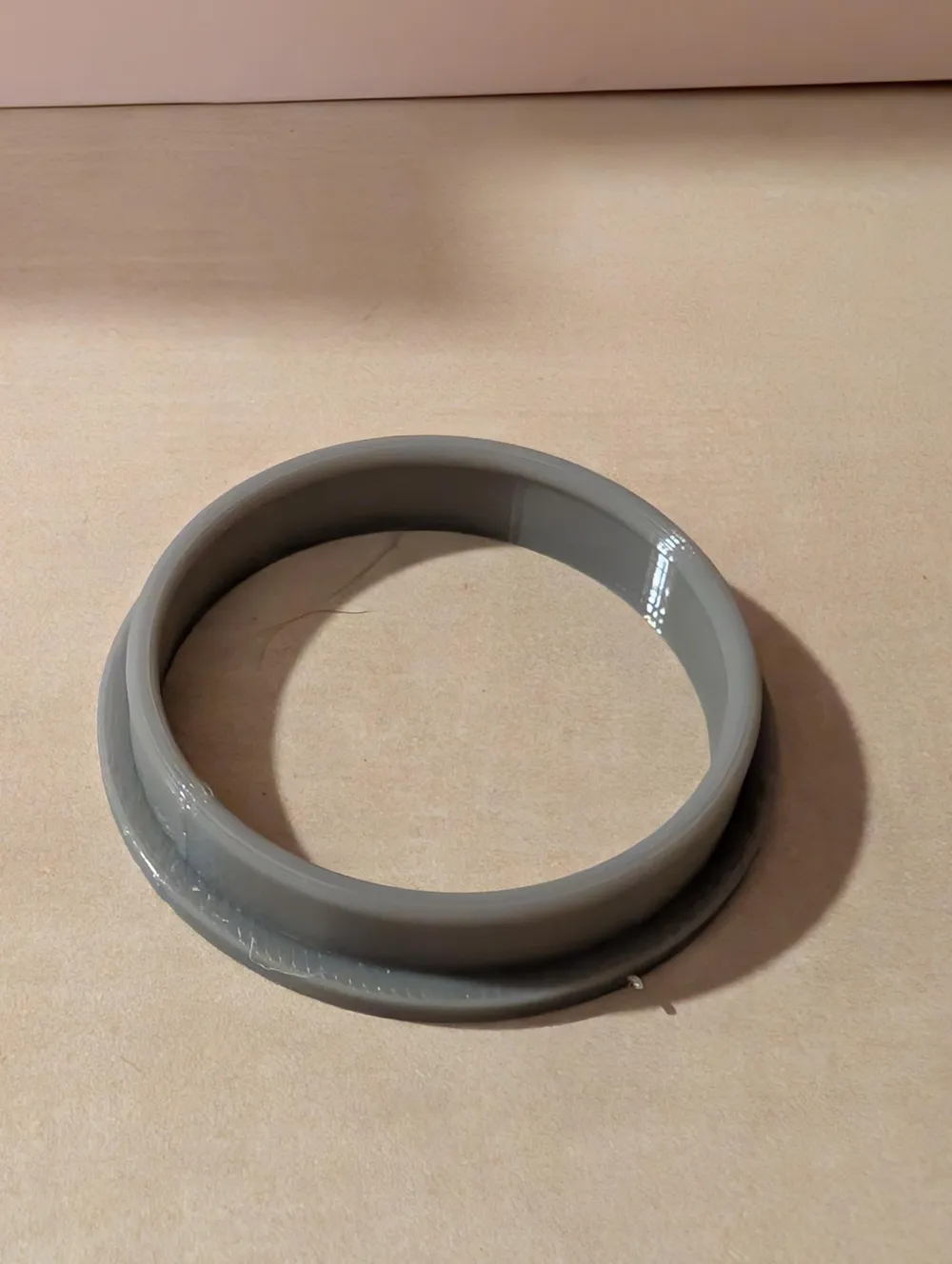

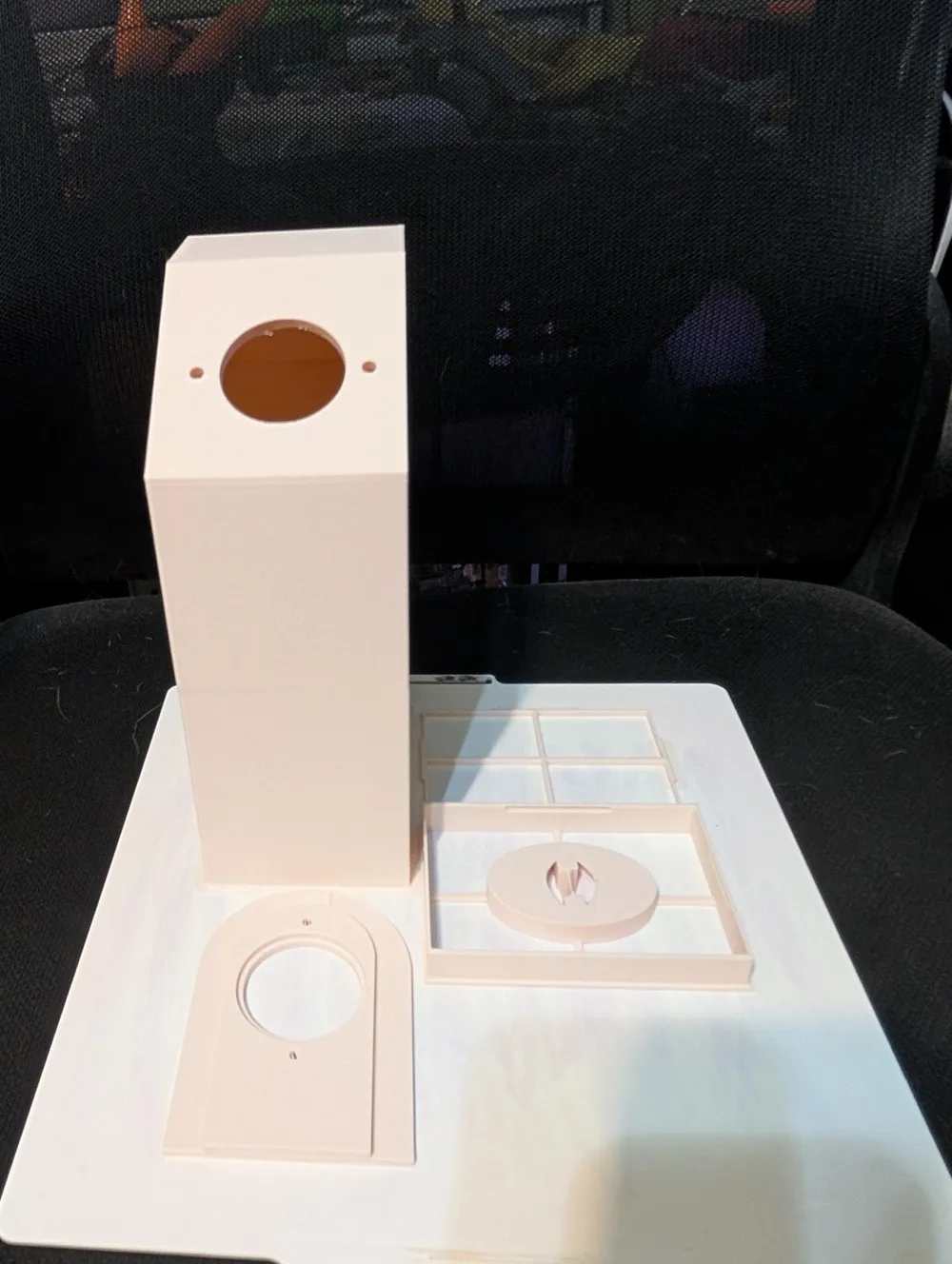

Crafted efficiently, it uses less than 200 grams of filament and prints in roughly 4 hours. For optimal sealing and performance, the included gasket is designed to be printed in flexible TPU.

Hardware Requirements for Assembly:

  • 2x M3 5mm heat-set inserts (recommended for a cleaner finish)
  • 2x M3x5 screws
  • Alternatively, if not using heat-set inserts: 2x M3 nuts (assembly will be slightly more finicky)

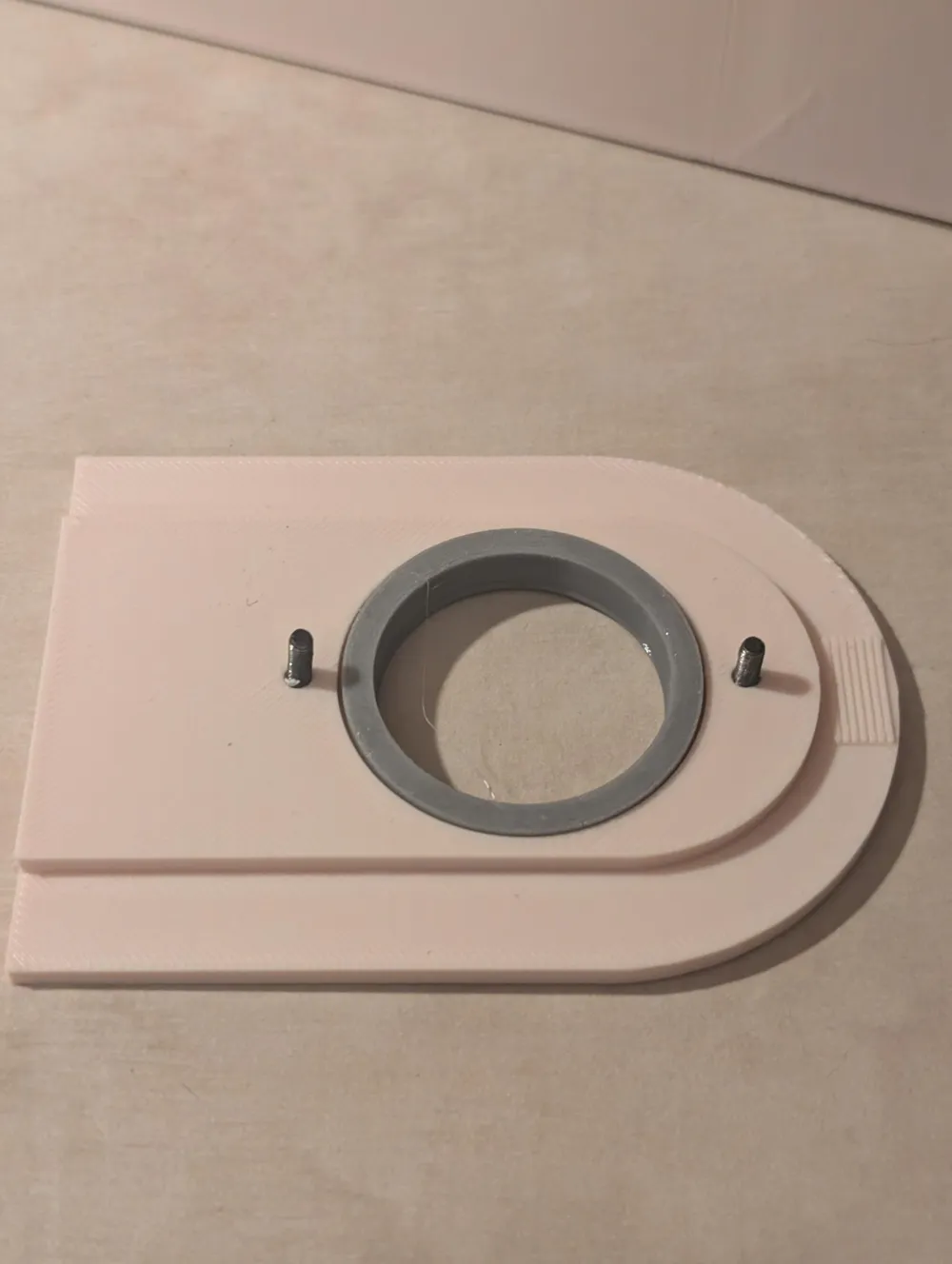

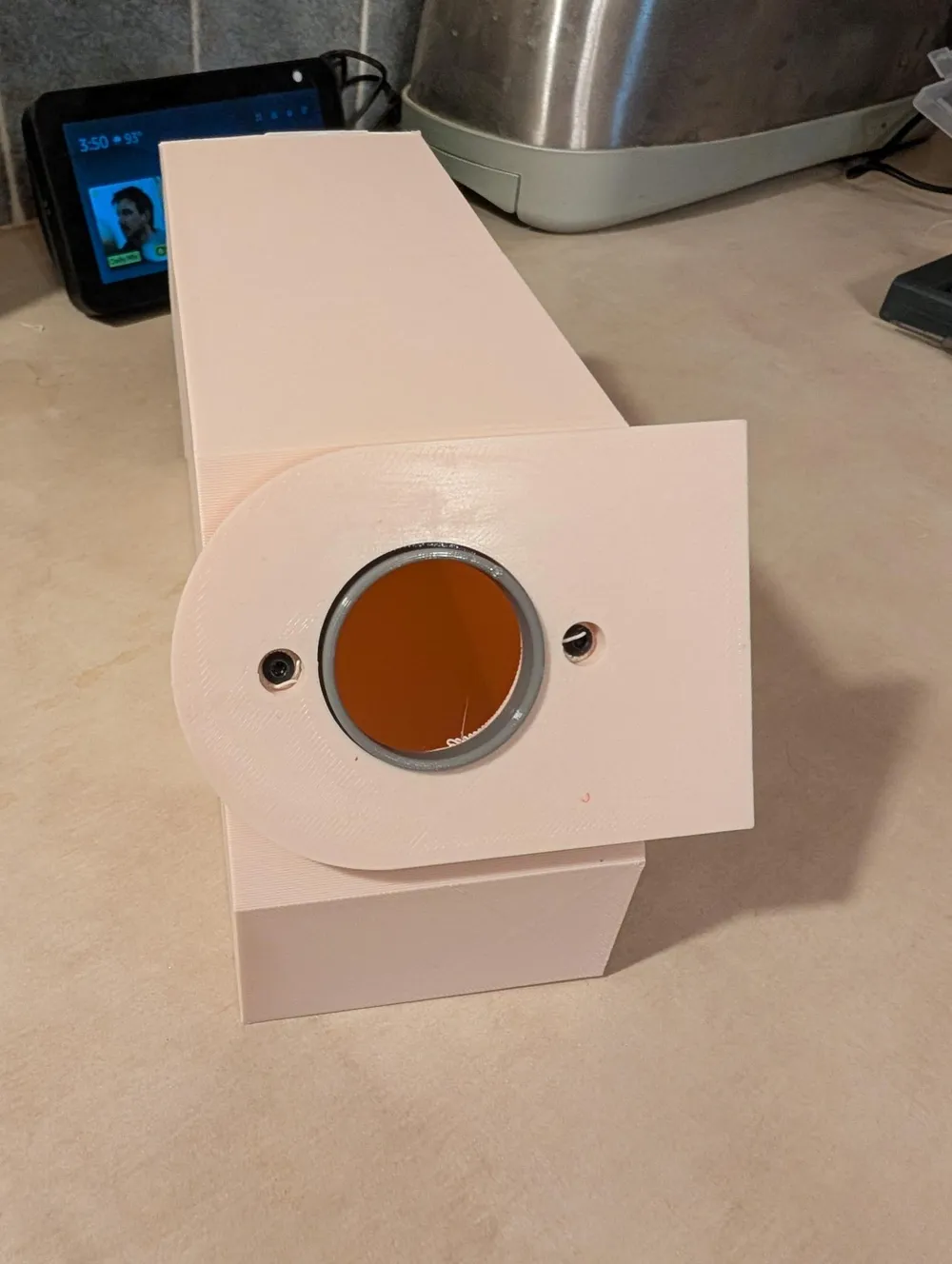

Assembly is straightforward: secure the bin interface with the M3x5 screws (using either heat-set inserts or M3 nuts). This hardware setup effectively wedges the TPU gasket in place, ensuring a tight seal.

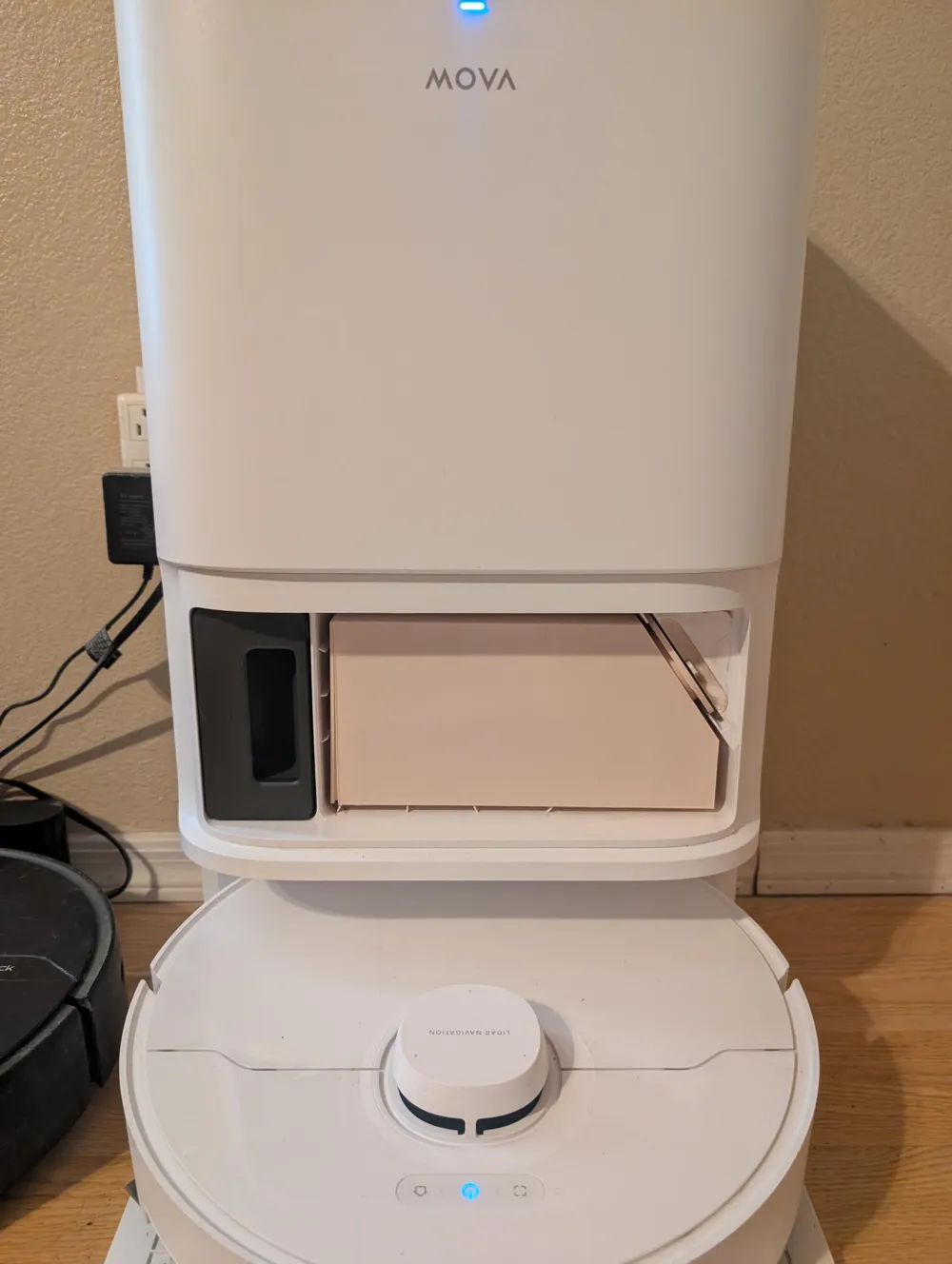

Please note: While this design has been thoroughly tested with the Mova P10 Pro Ultra, it may fit other Mova or Dreame vacuum cleaner models. Compatibility with other models has not been officially tested.
