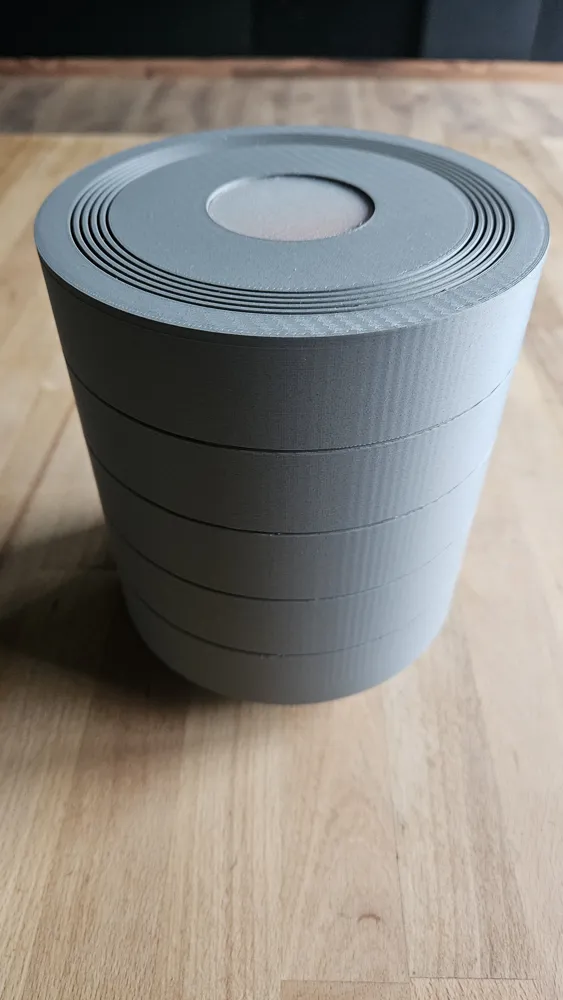

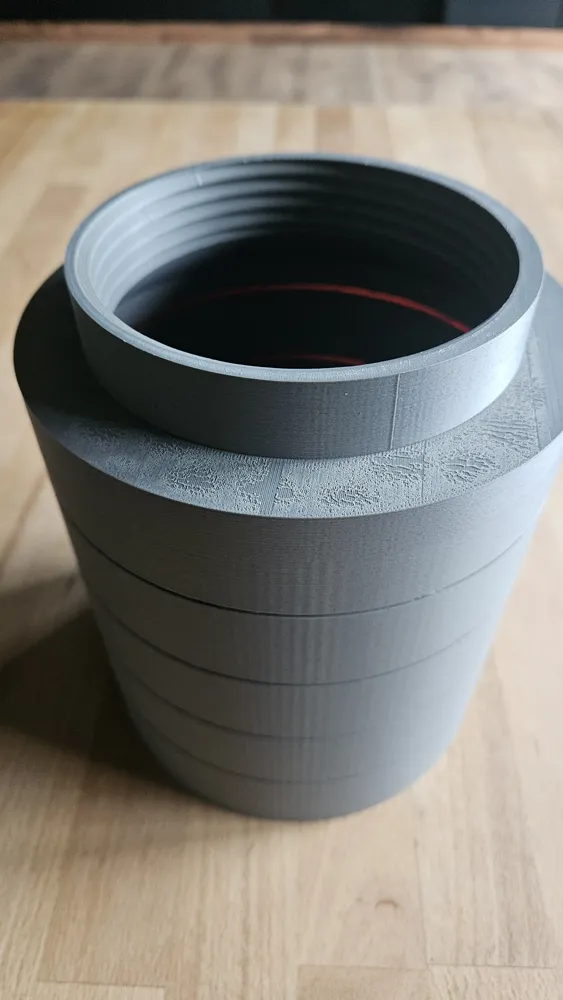

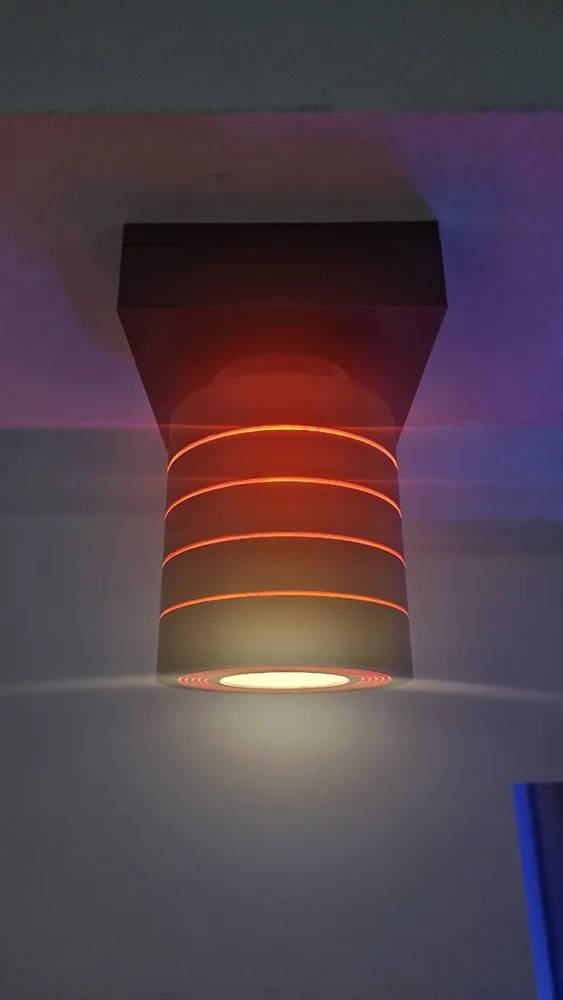

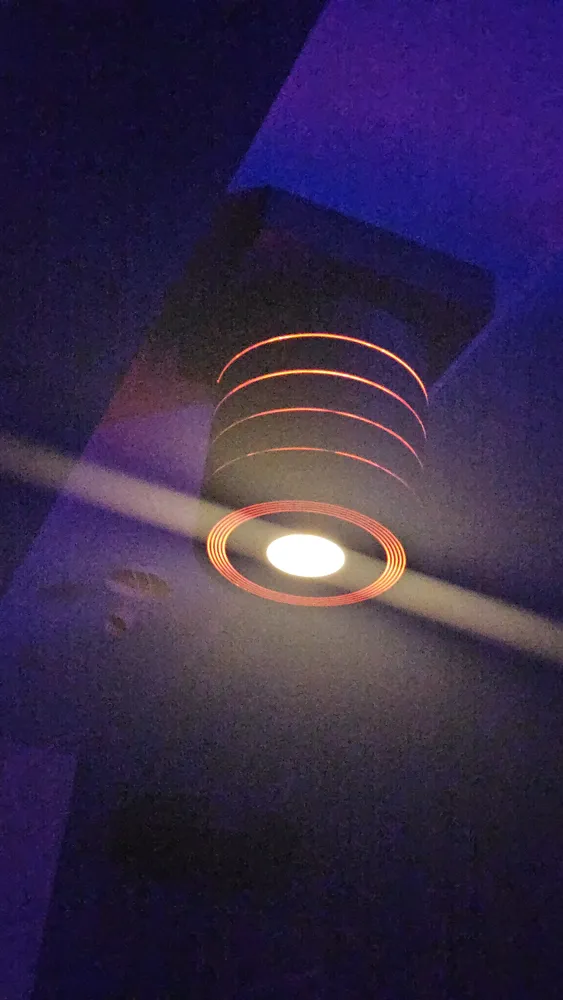

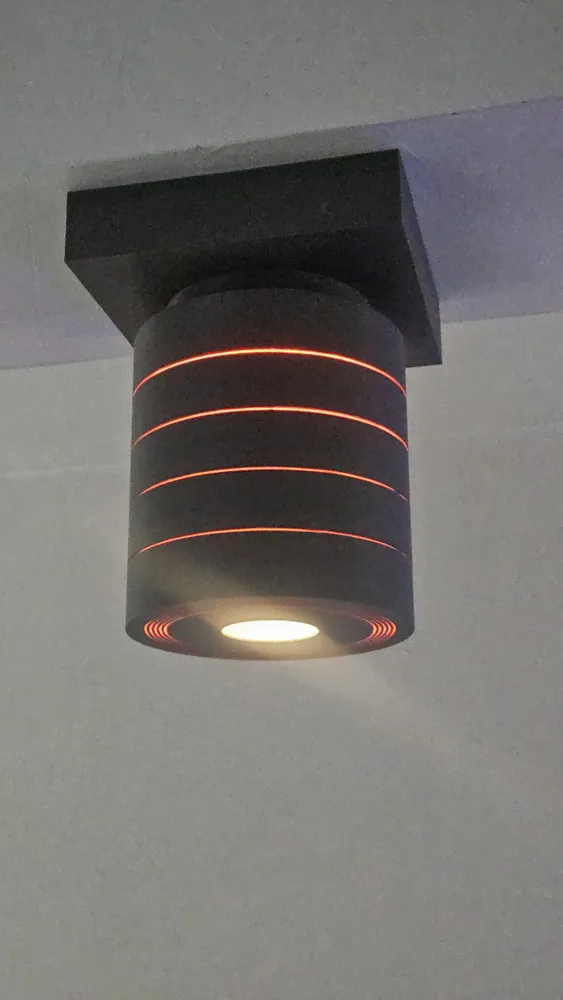

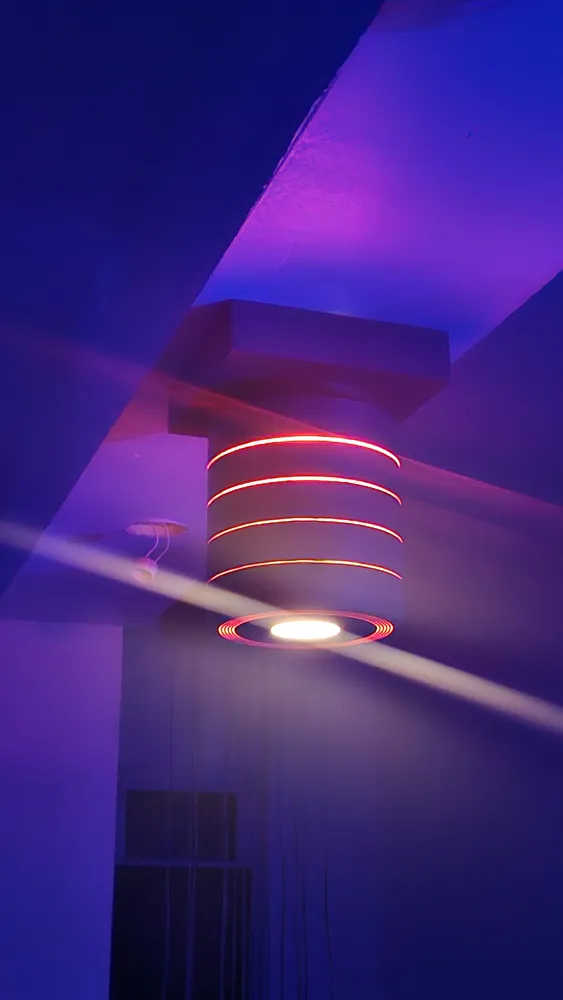

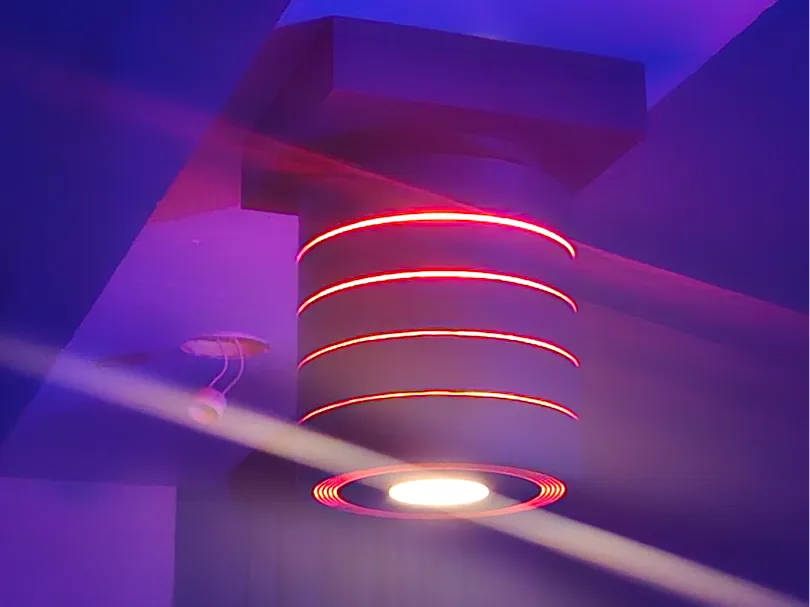

Futuristic Large Round AMS Modular Ceiling Lamp

Modular ceiling lamp for indoor mounting.

I printed my version with the following filament and settings:

Sunlu Marble Concrete PLA

Anycubic Red PLA

Transparent filament

You can, of course, also print the lighting area in color and choose other colors freely.

Infill: 5% honeycomb

Ironing at 15% amount 30mm/s 0.1mm

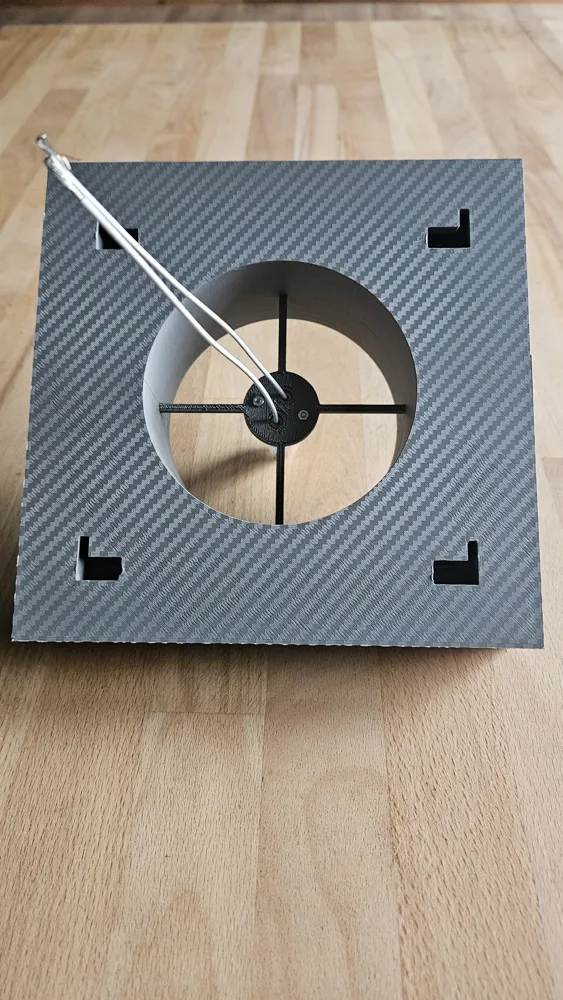

Supports for mounting plate and base

Supports for the luminaire only on the print bed (bottom for the lighting field)

Reduce the overhang speed significantly for the luminaire

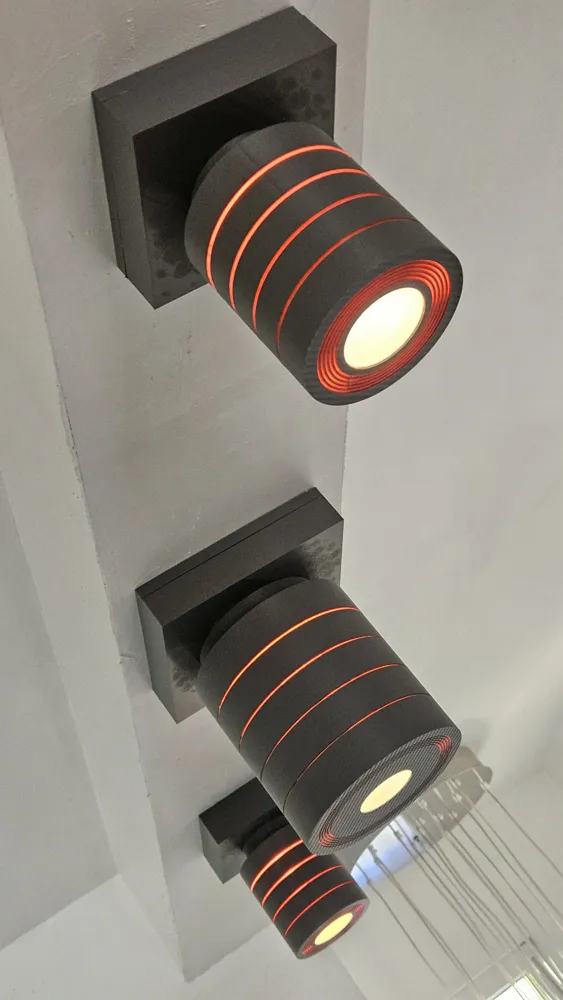

The lamp is modular and can be combined with the following luminaires

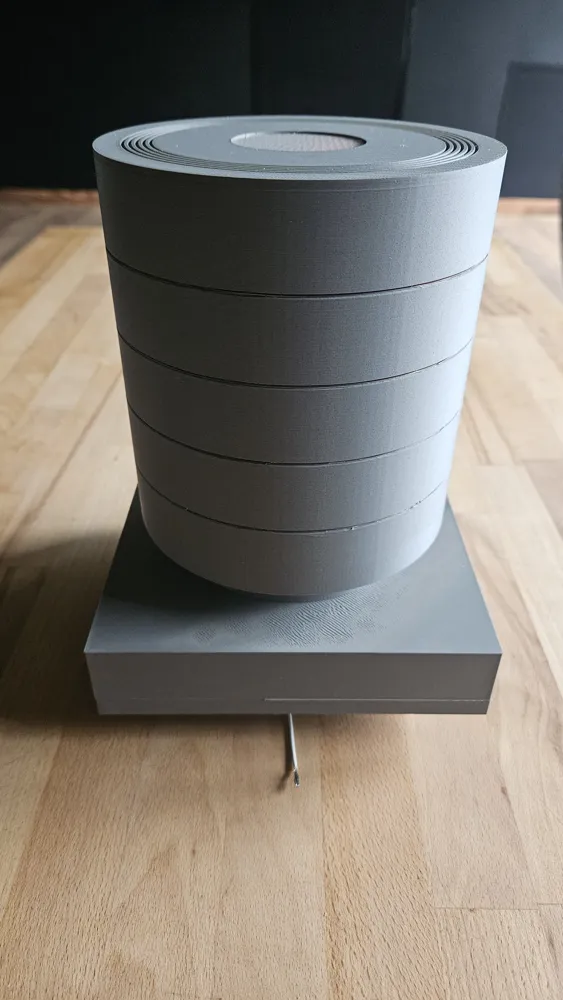

This is the large version (17.5cm base length / 15cm luminaire diameter)

There is also a smaller version, the following link (12.5cm base length / 10cm luminaire diameter)

https://makerworld.com/en/models/1641244-deckenleuchte-rund-futuristisch-ams-modular-klein

The following is required for assembly:

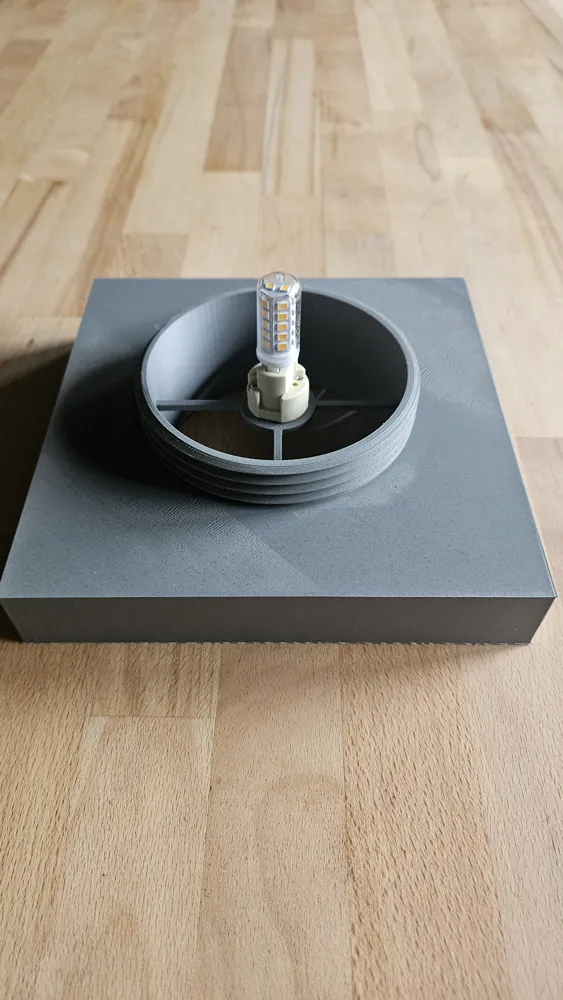

GU9 ceramic socket (VDE)

GU9 light bulb (!!!LED only / Tested up to 5W, no heat generation/buildup)

2 screws + nuts for the GU9 socket (M1)

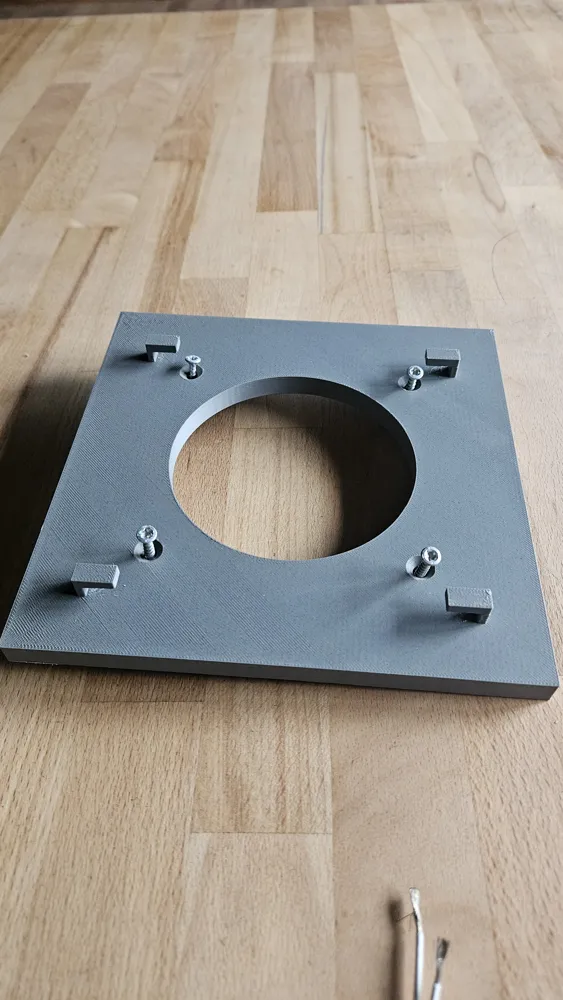

4 screws for the mounting plate (optional, suitable for the wall material)
