HW-585 PWM fan controller case / mount
IP Report
Print Profile(1)
PETG 0.2mm layer, 2 walls, 100% infill
Designer
1 h
1 plate
Open in Bambu Studio
Boost
14
31
4
3
59
43
Released
Bill of Materials
Bambu Filaments
Select all
Description

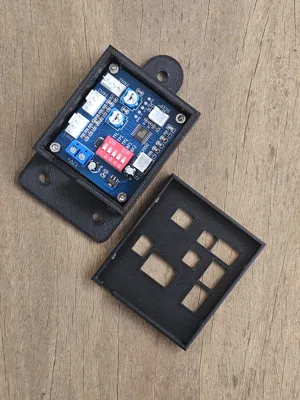

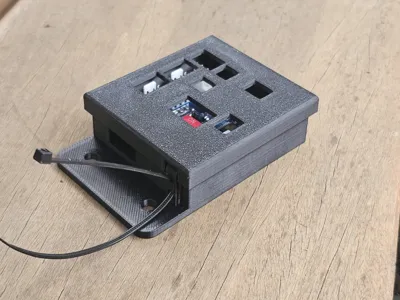

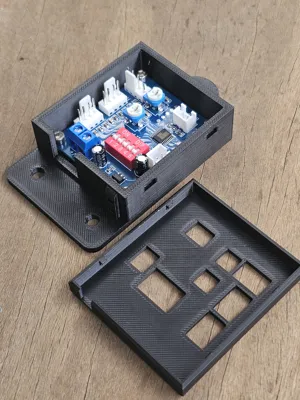

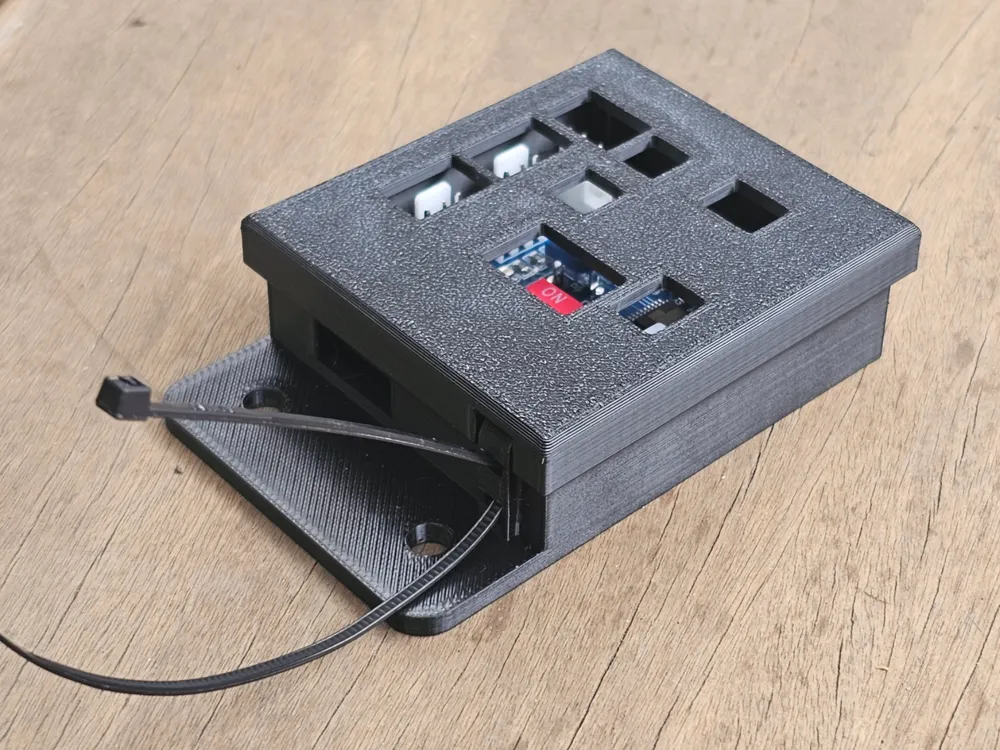

I wasn't really happy with all the existing cases for the HW-585 PWM fan controller, so I made my own. It's quite thick and has an optional cover that snaps in place. To fix the PCB, 4 m3 screws of around 5mm are needed. The holes should be the right size to be self-tapped by the screws with a little push. It features three mounting holes and a small notch to attach a tiewrap for strain relief of the power cable.
Best printed in PETG to resist possible high temperatures.
