Rock 5B+ Case

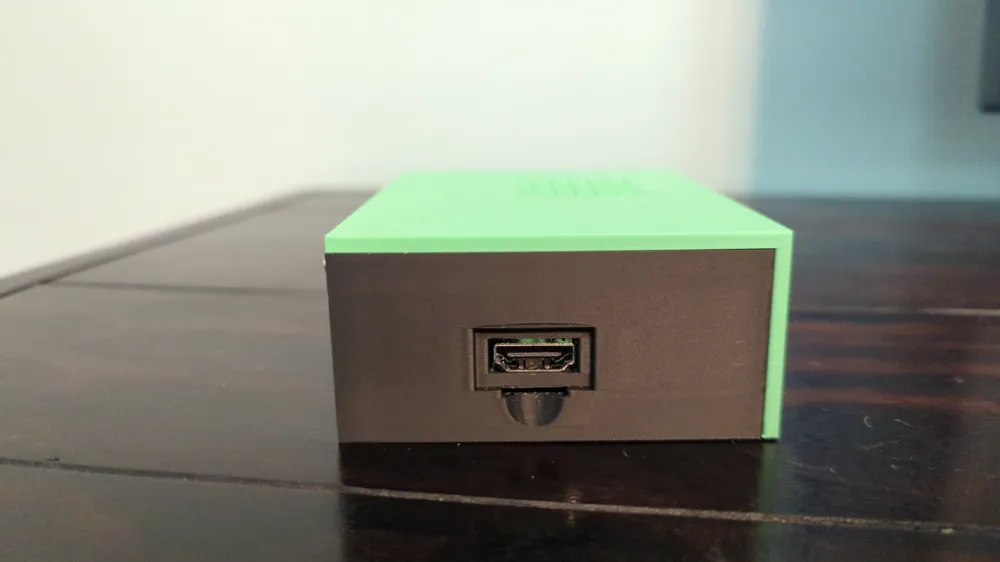

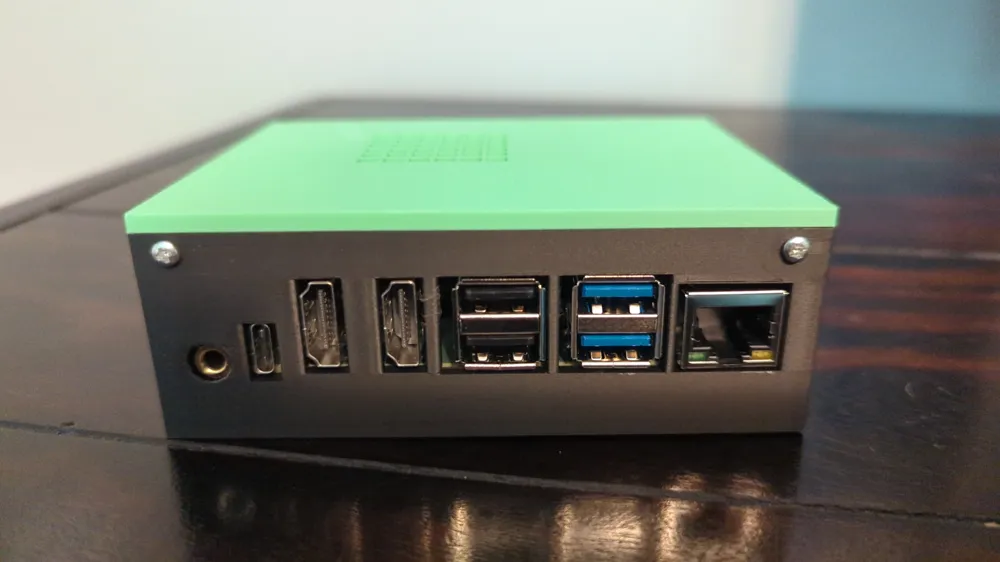

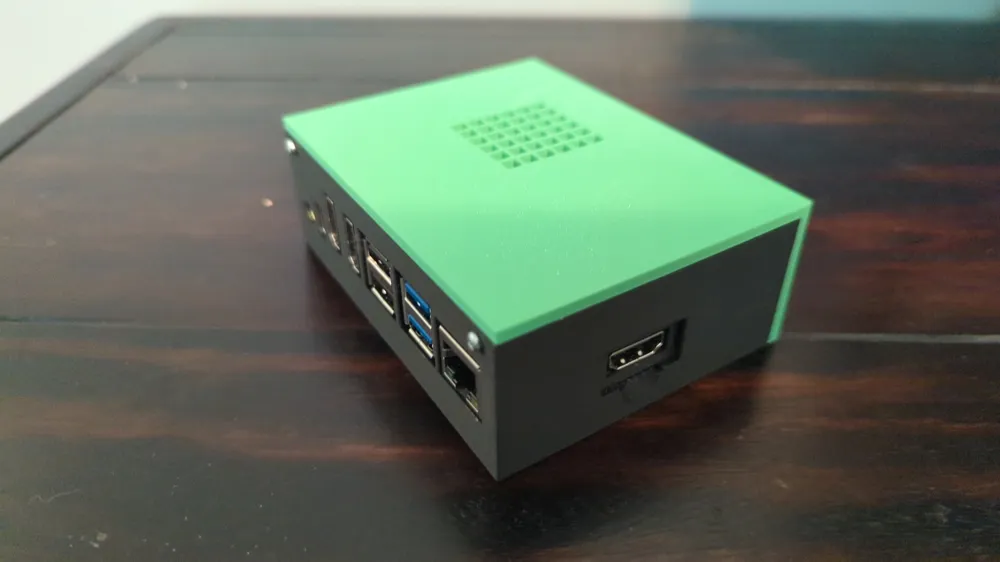

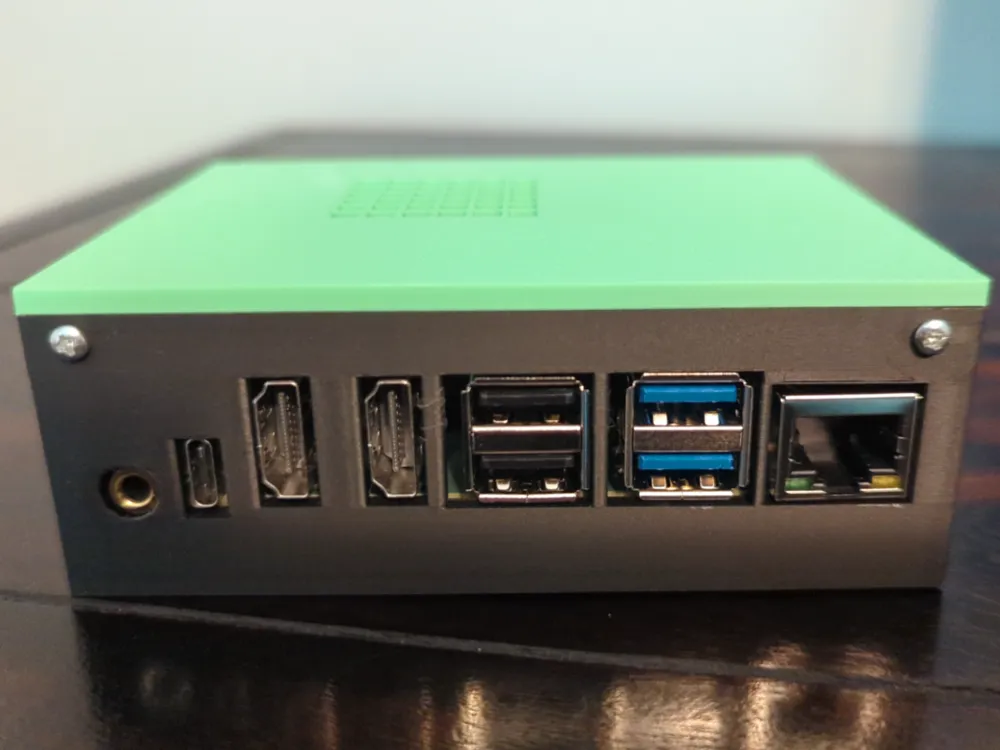

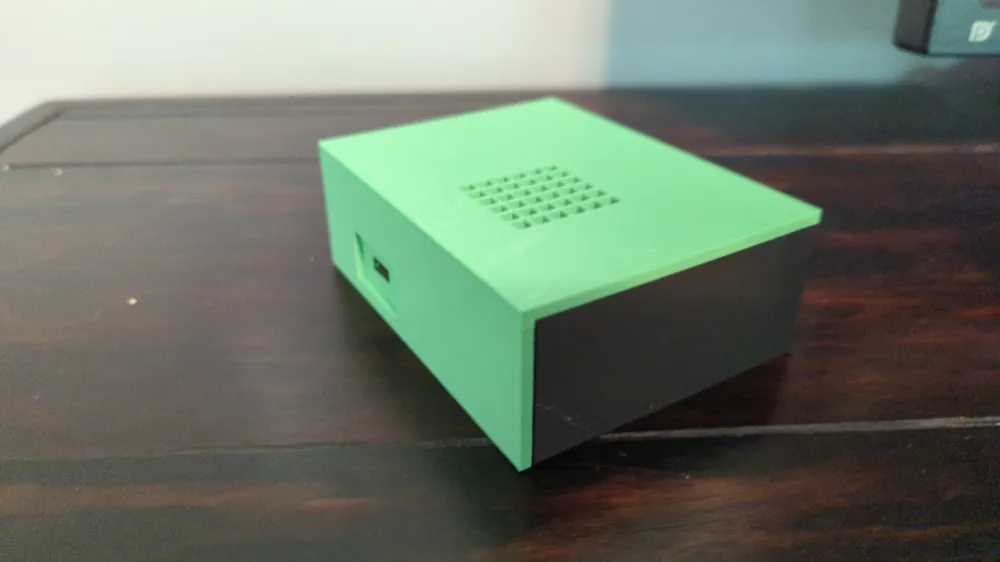

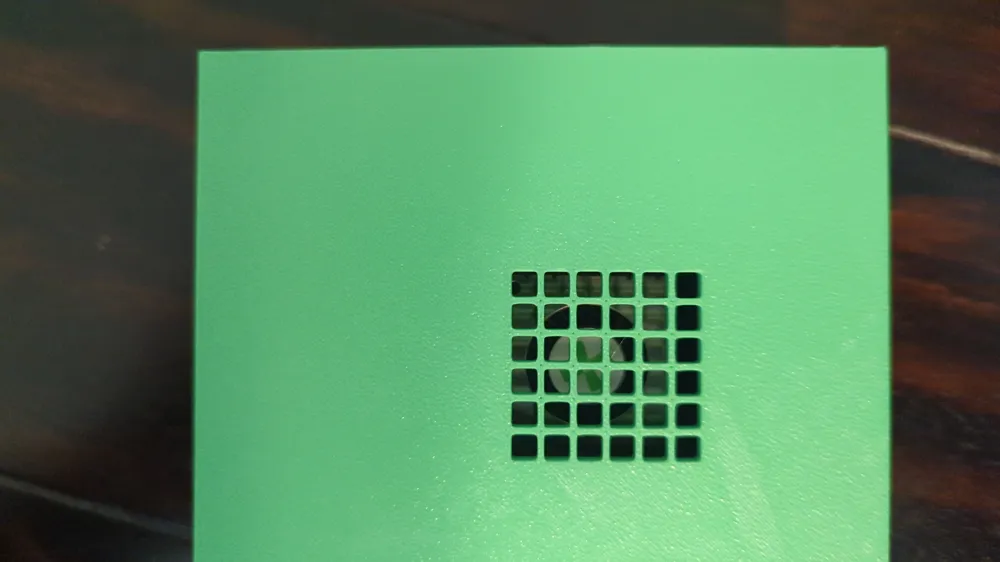

This is a case for the Radxa Rock 5B+. There is space on the underside to allow for the two NVME disks. The screw posts are narrow to compensate for some potential overlap with them so I stuck with ~M2.5 screws. The lid slides on from the front and can be secured with two similar screws on the back. I have a Radxa Heatsink 6240B with fan so the fan grid aligns to this, but its possible this won't work for others.

I have included the stl and scad files so you can feel free to modify it as you like. Some ideas for modification include:

• Tighten up the gaps if they bother you
• Add holes for antennas
• Add a hole for gpio access
• If you don't care about nvme disks you can make the screw posts more substantial
• Adjust the fan grid for a different fan
• Reduce the height some
• Make the walls thinner and save some filament
• Add some ventilation

I like my case, but maybe you like something a little different.

I printed both on one plate to save time but using different color filament and by Object rather than by layer to prevent extruding lots of extra waste filament. If you just want to print a single color you may want to switch it back to by layer. I don't know that it will save any time, but it may.
