Jurassic Park Gate Diorama – With lighting!
Print Profile(1)
Bill of Materials
- 3mm LED Diods x 1: https://www.amazon.se/dp/B09PDGFY3S?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
- Power Adapter x 1: https://www.amazon.se/dp/B0CLGRFFBC?ref=ppx_yo2ov_dt_b_fed_asin_title
- Wago connectors x 1: https://www.amazon.se/-/en/221-413-Electrical-Connector-220-240V-Terminal/dp/B01AKF3I58?crid=1WIISZHZLV7GK&dib=eyJ2IjoiMSJ9.1Dm3rQf6owLFyqwxb7VS5Dhttps://www.amazon.se/-/en/221-413-Electrical-Connector-220-240V-Terminal/dp/B01AKF3I58?crid=1WIISZHZLV7GK&dib=eyJ2IjoiMSJ9.1Dm3rQf6owLFyqwxb7VS5D_RWkE0QlCz9qEr2p2JVQago&qid
- PLA Brown x 1: https://printonion.com/butik/filament/pla/pla-kaffebrun-1000g-1-75mm/
- PLA Yellow x 1: https://printonion.com/butik/filament/pla/pla-pro-gul-1000g-1-75mm/
- PLA Red x 1: https://printonion.com/butik/filament/pla/pla-pro-rod-1000g-1-75mm/
- PLA Woodlike x 1: https://printonion.com/butik/filament/pla/pla-trabrun-1000g-1-75mm/
Description
🦖 “Welcome... to Jurassic Park!”

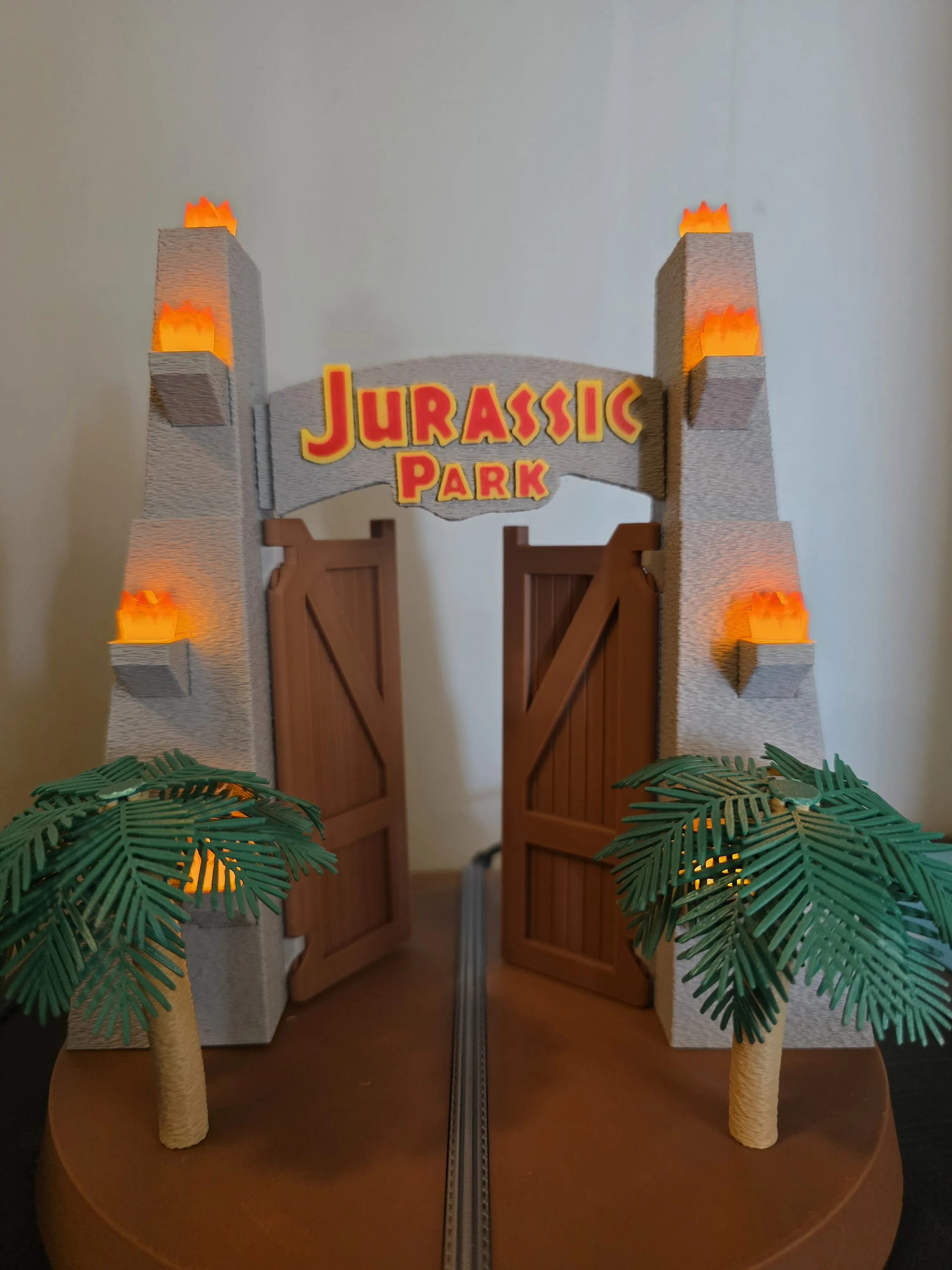

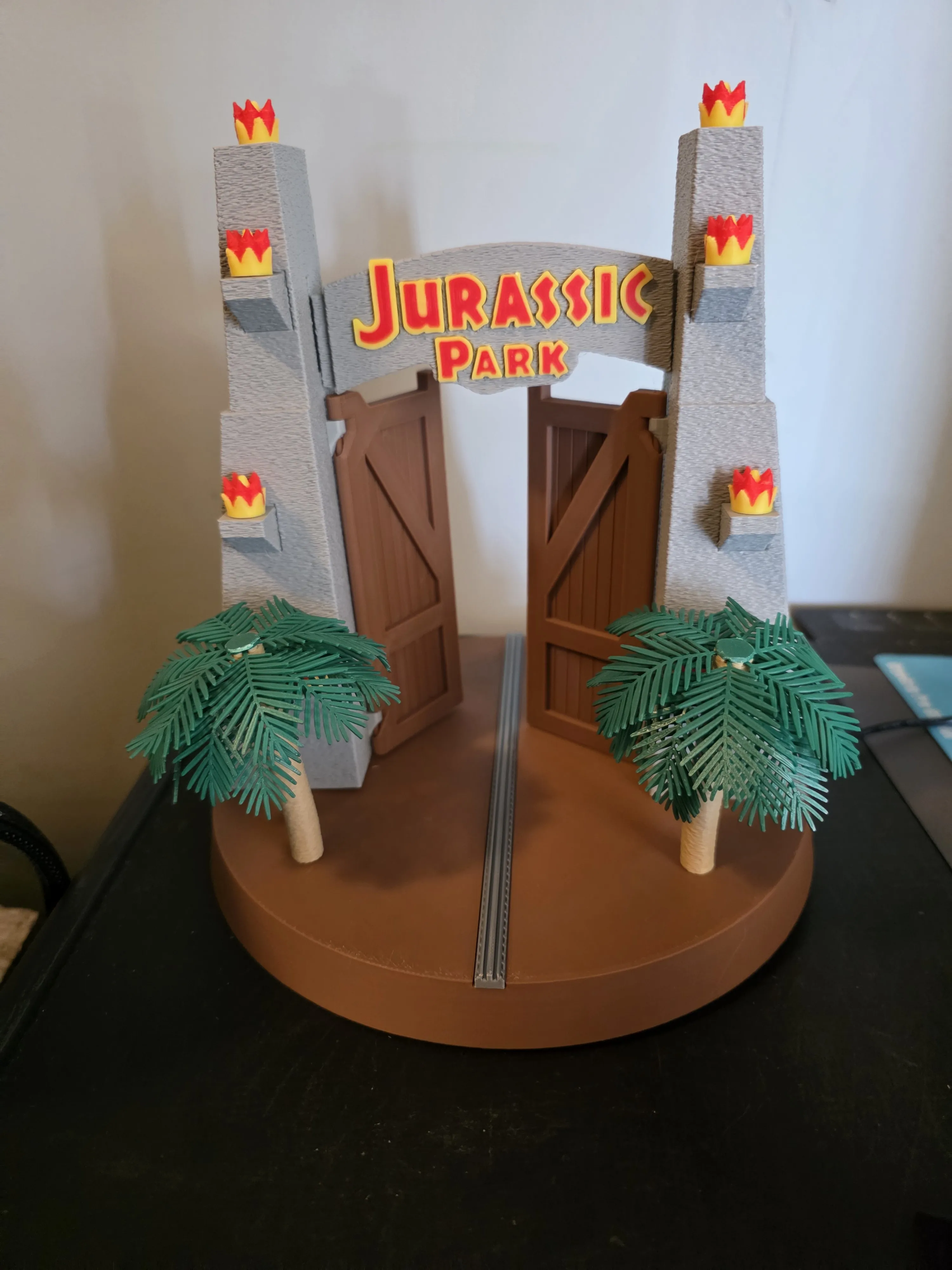

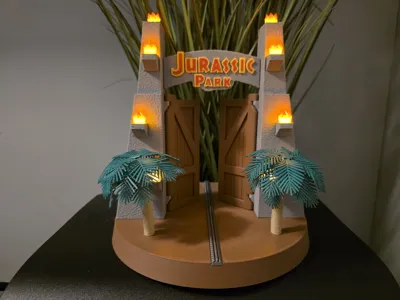

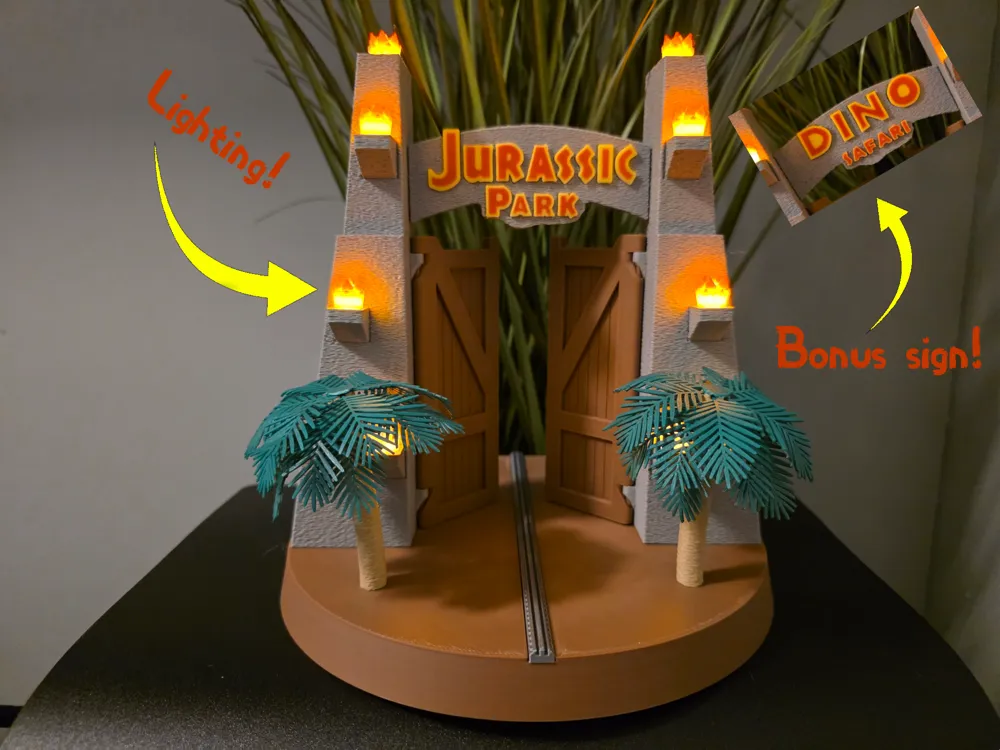

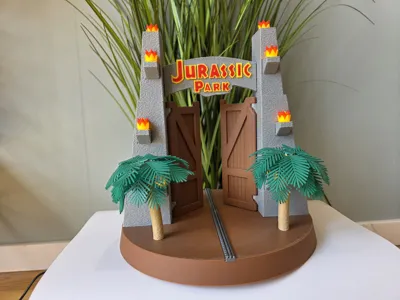

Bring one of cinema’s most iconic scenes to life with this detailed fan made gate diorama! Designed with working doors, glowing LED torches, and heat-shaped palm leaves, it’s the perfect centerpiece for any Jurassic fan or movie-themed shelf.
🔹 Prints with minimal supports
🔹 No soldering required – Wago connectors recommended
🔹 LEDs create a warm, torchlight effect
The palm leaves are delicate and benefit from gentle heat shaping (see assembly guide). I recommend printing a few extras just in case.
🛠️ A full step-by-step assembly guide with detailed images is included in the model listing – including tips for wiring, glue points, and final assembly. I also included Bill of materials that I used.
Boost Me (for free)
If you like this design, a boost would be greatly appreciated! It helps me continue creating and prototyping new projects. 🚀😊
Assembly:

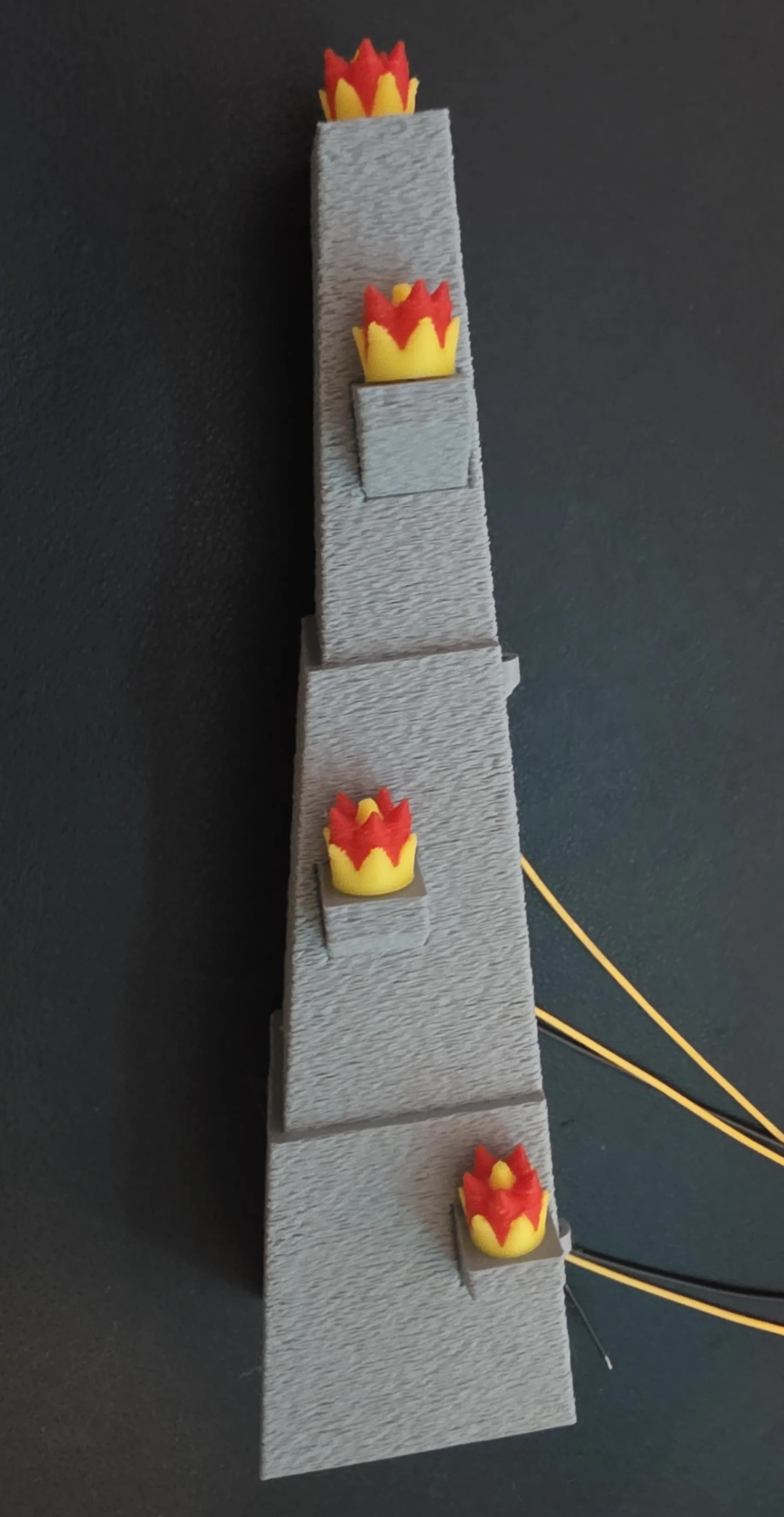

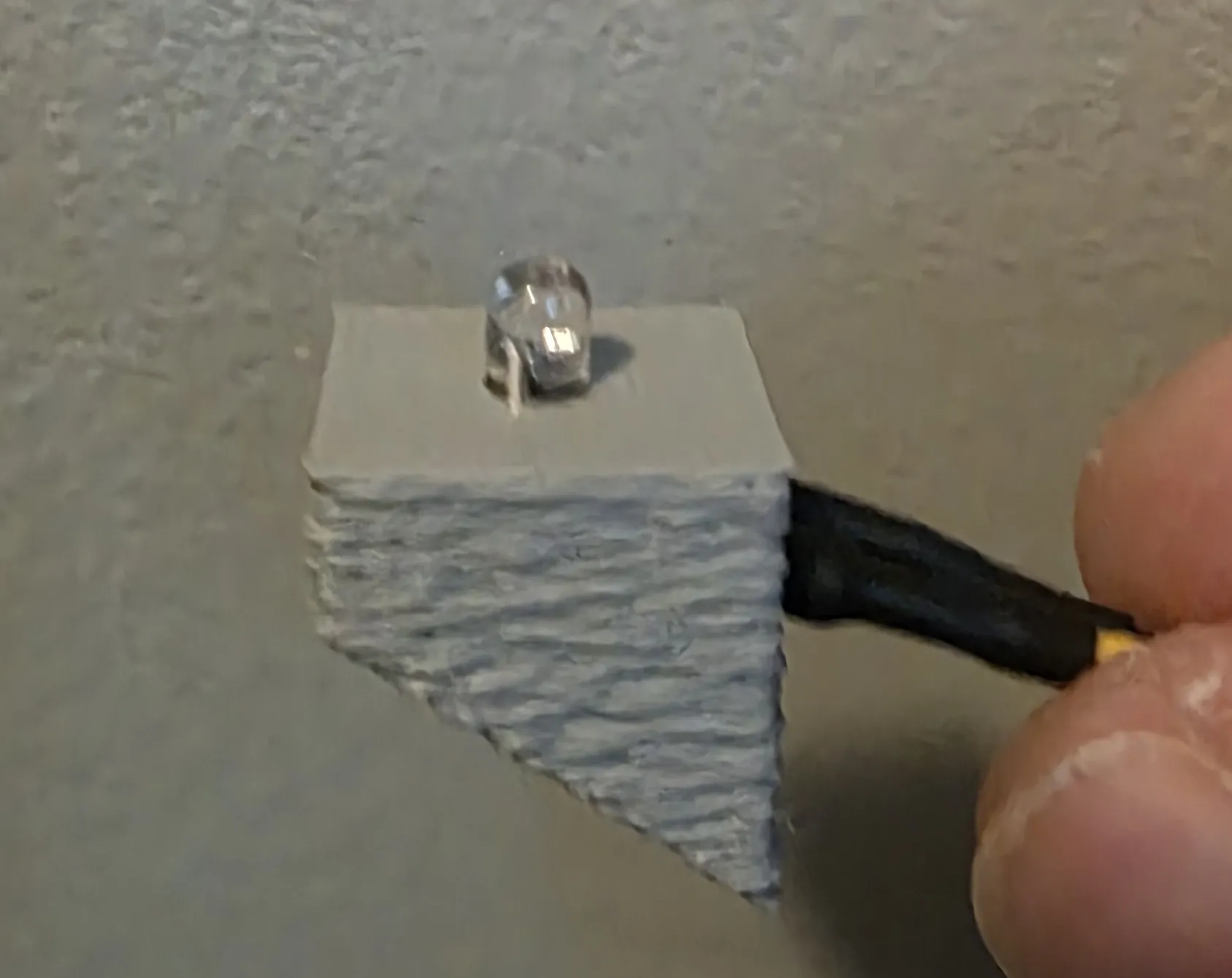

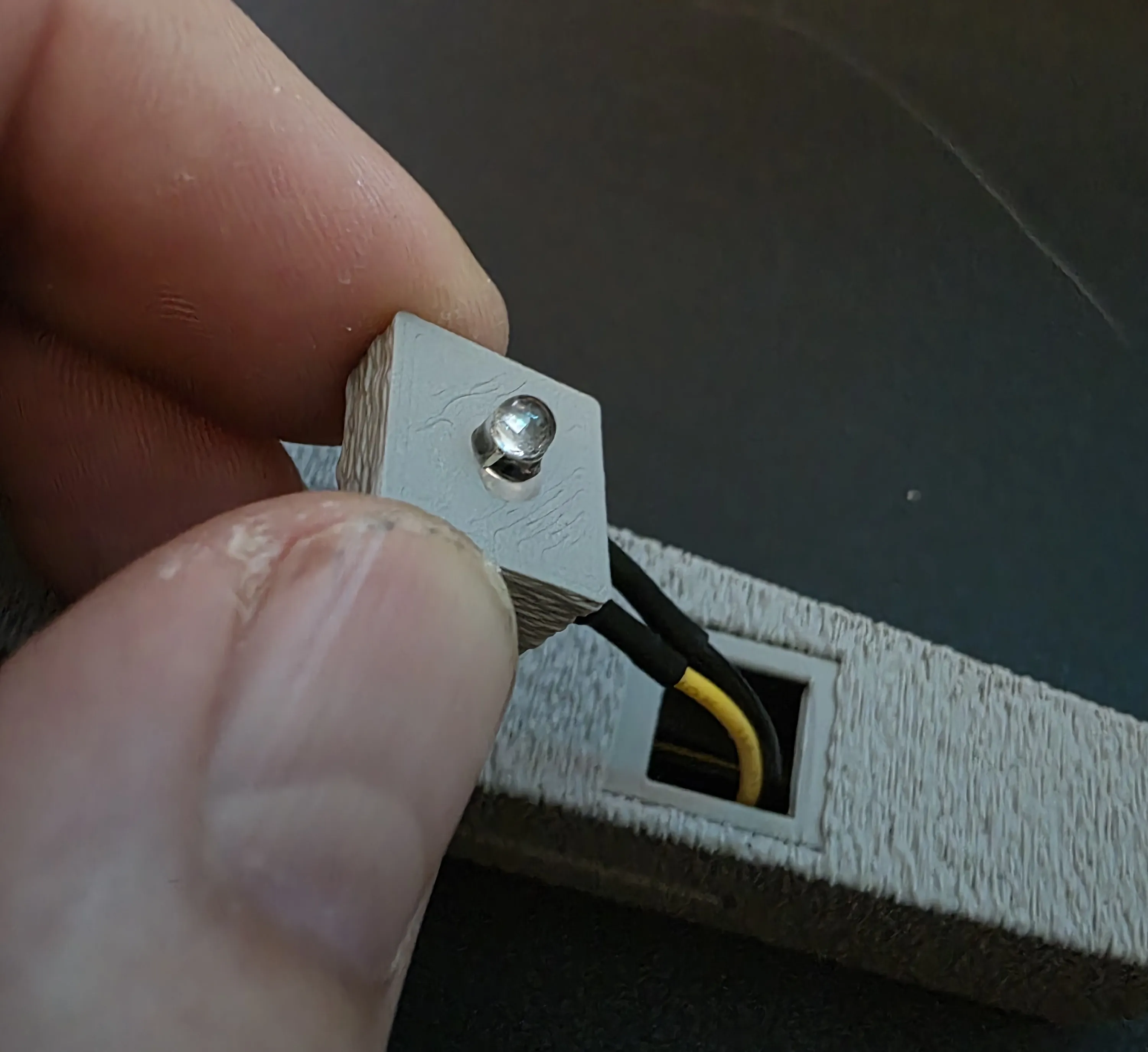

Add a LED diode to the flame holder and put a dab of glue to secure it. Then thread the diodes cable through the pillar and add a dab of glue to the flame holder to secure it to the pillar. Do the same with all the flame holders. For the top diode thread it all the way through from the inside of the pillar, Glue a piece of the flames to it and then glue it in place on the top of the pillar
 |  |

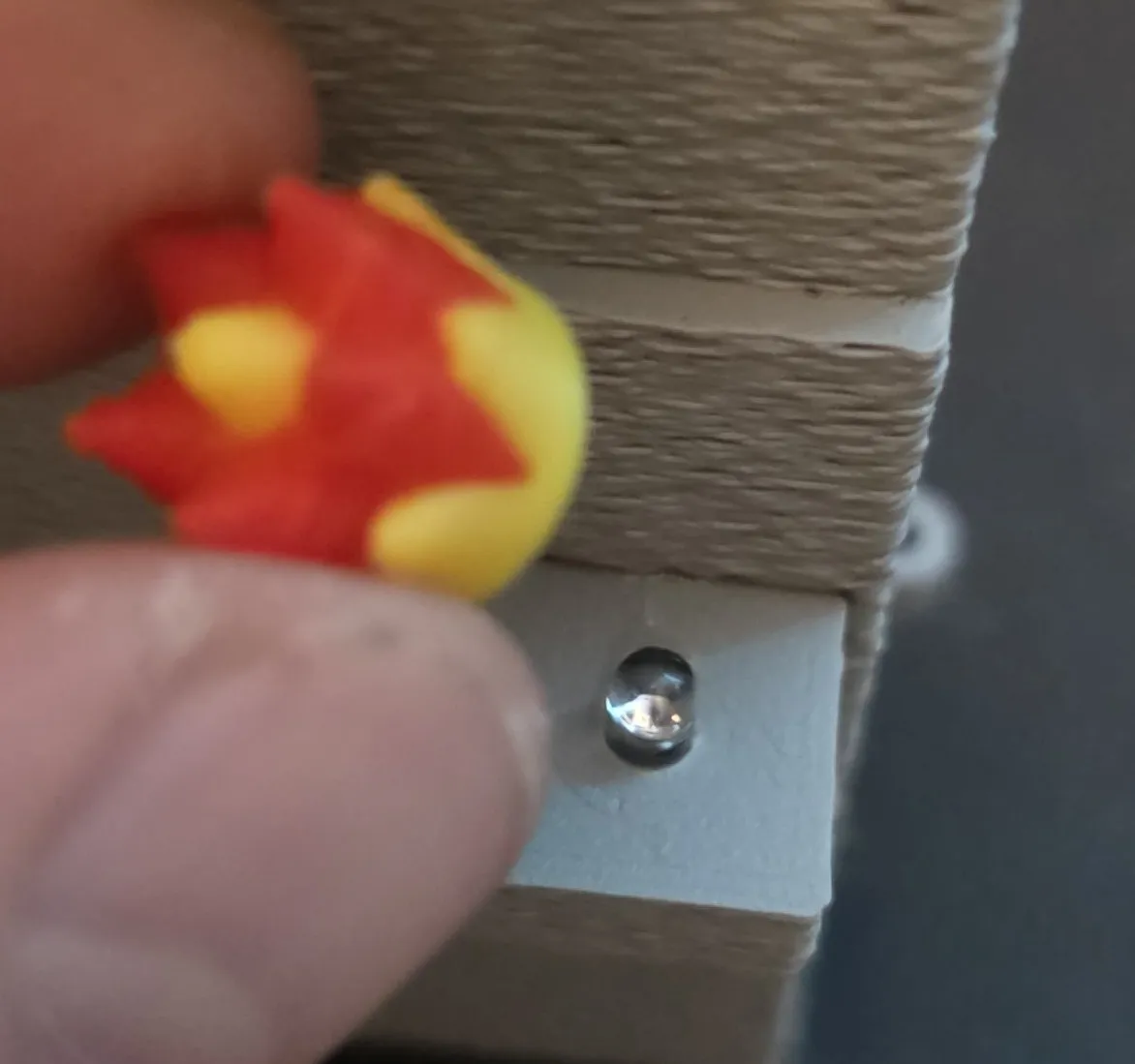

2. Add a Dab of glue to the diode and place the flame.
 |  |

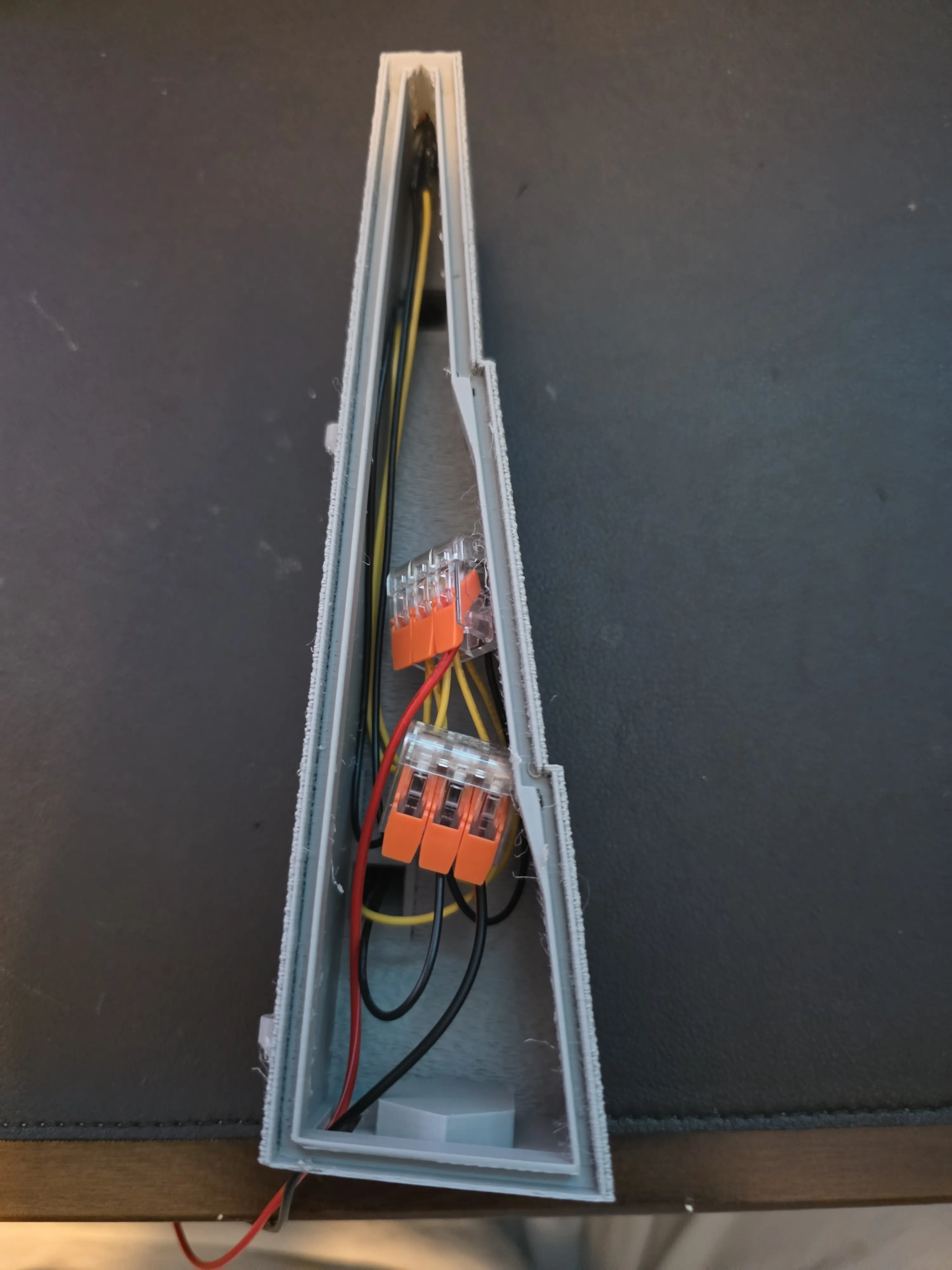

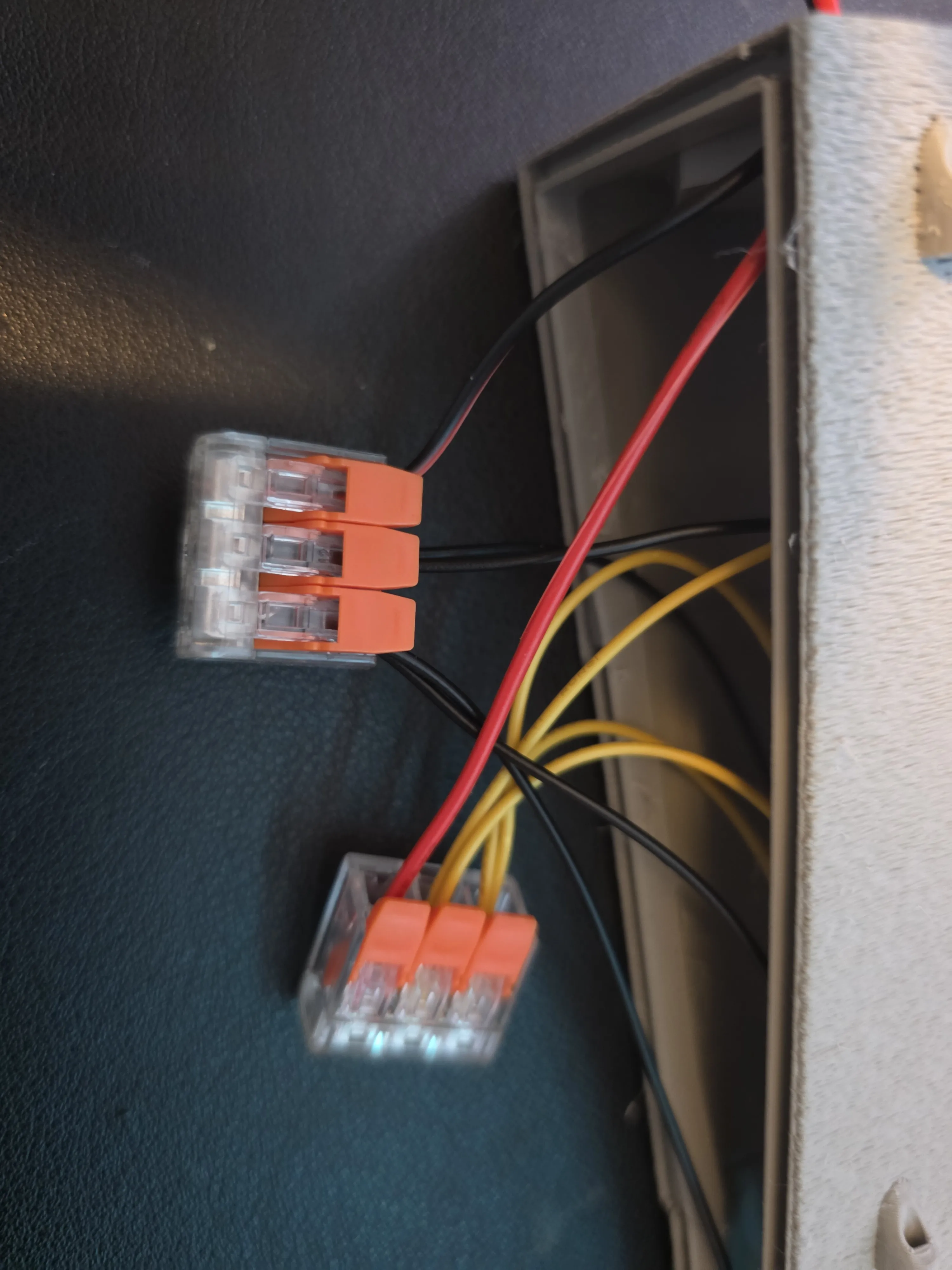

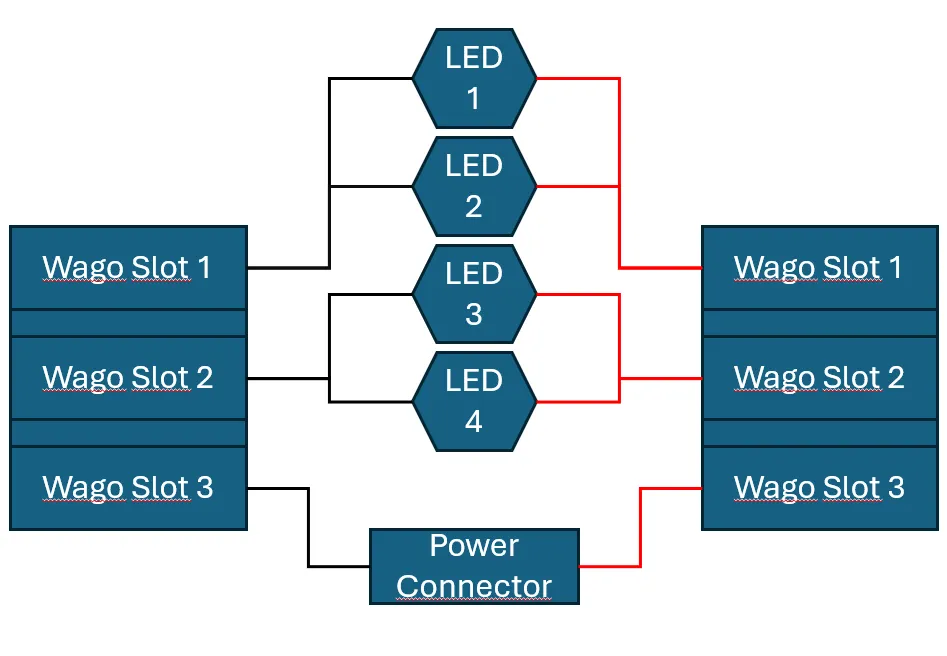

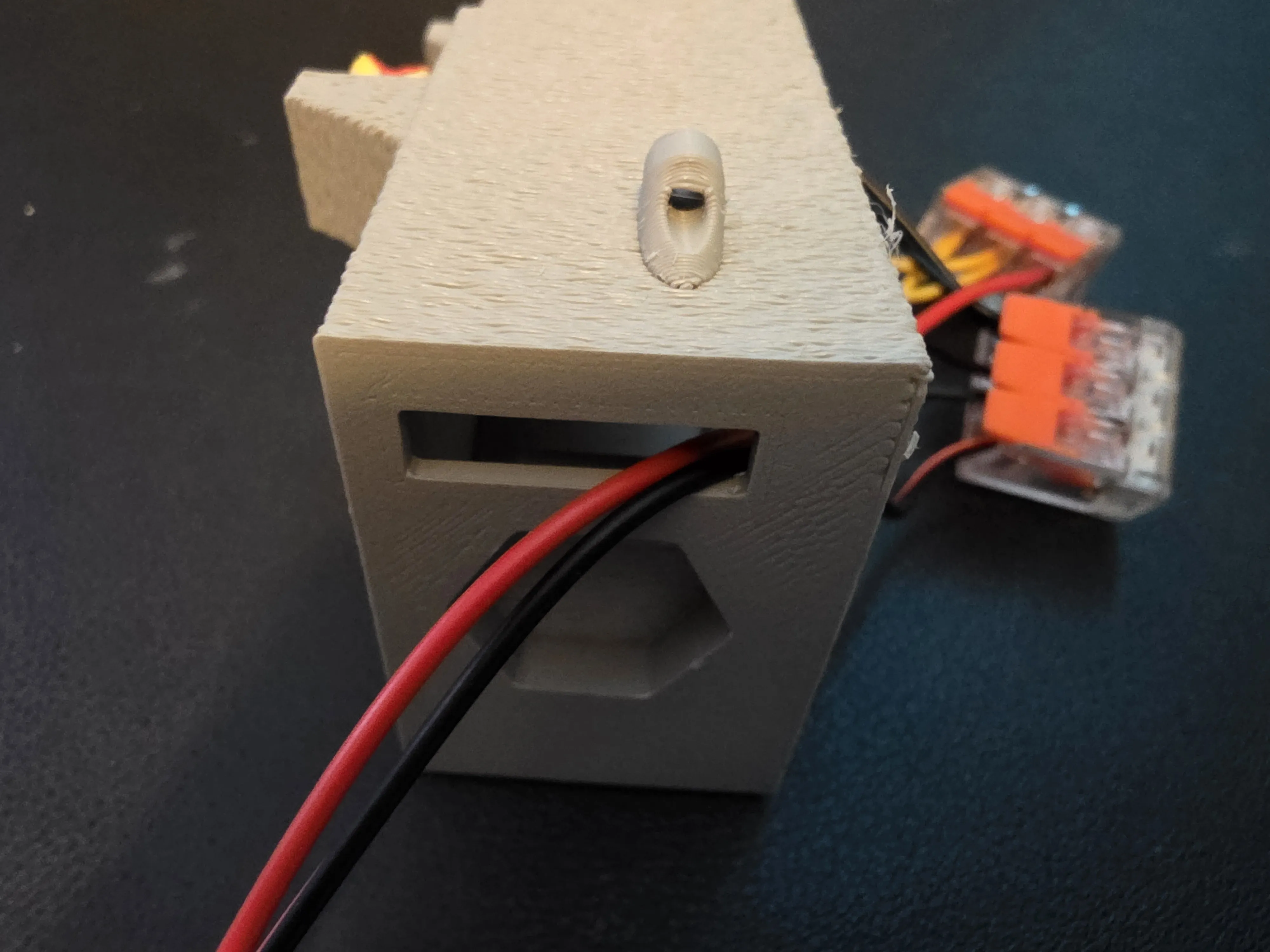

3. Cut wires to length. I connected mine using Wago connectors. Once connected put a longer piece of wire on the last connector. This cable will go through the base at a later step. Repeat with the second pillar
 |  |  |  |

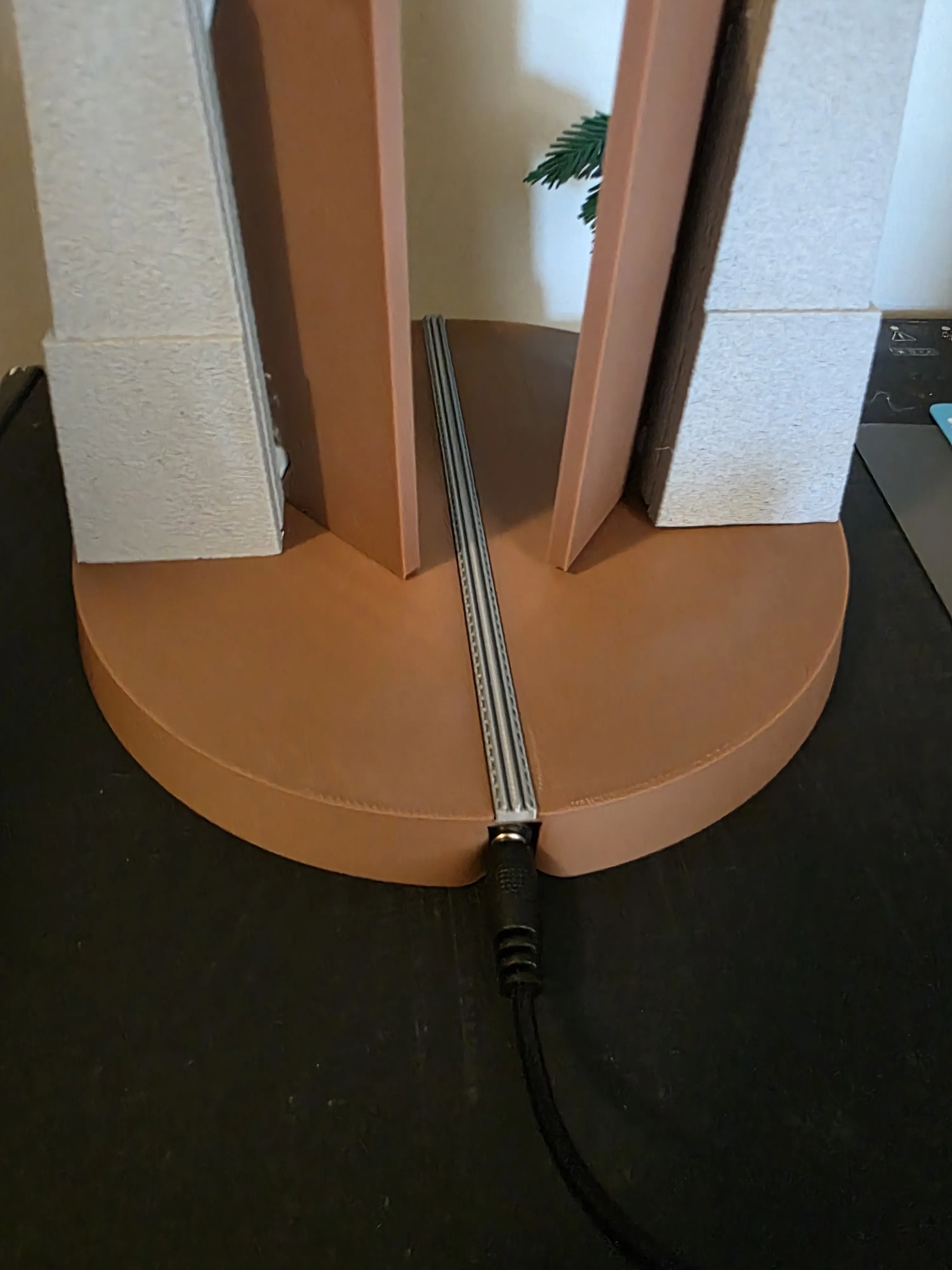

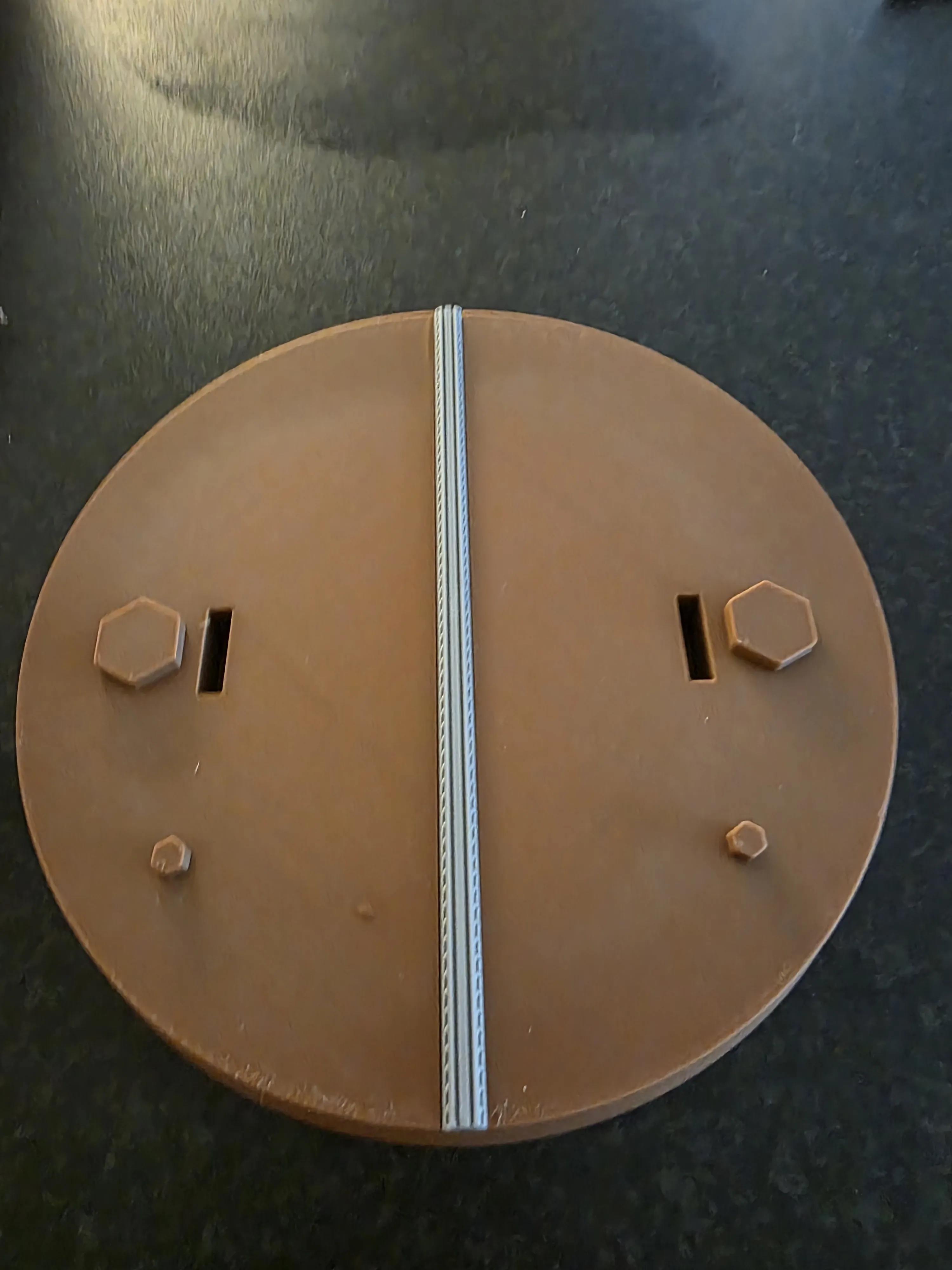

4. Glue the car rail to the base

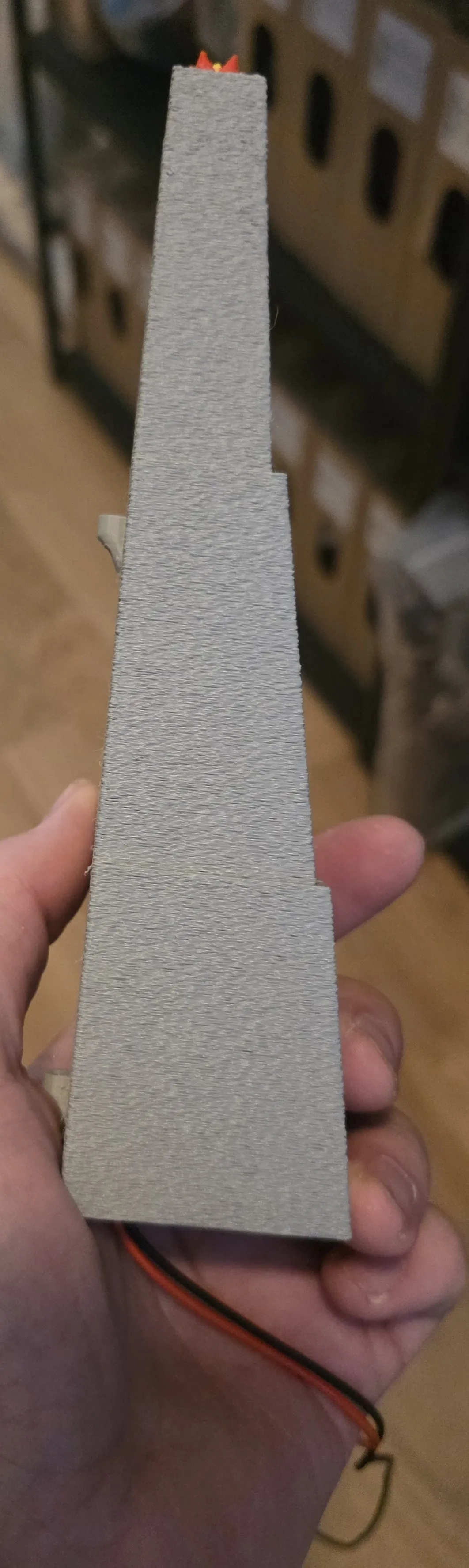

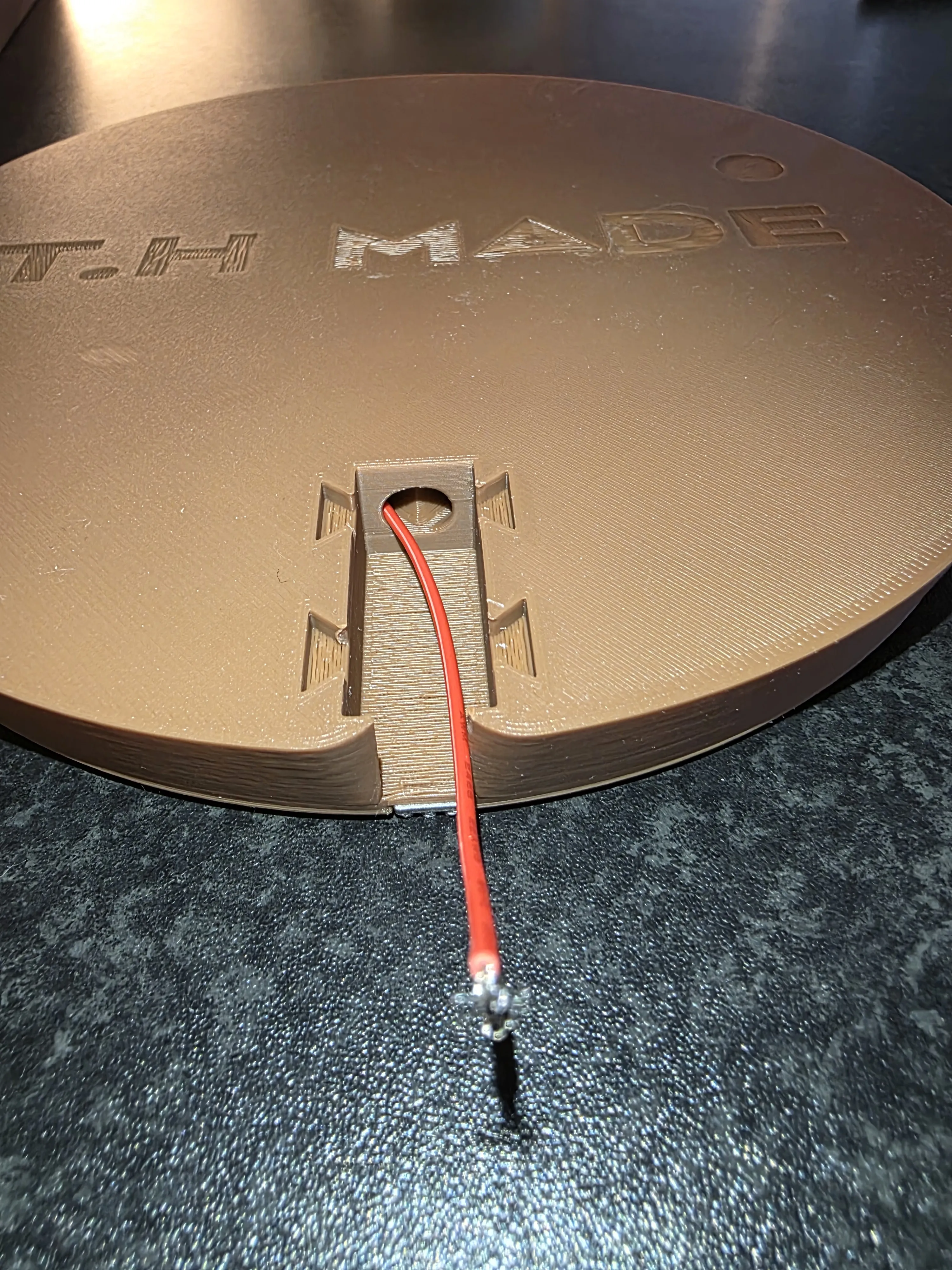

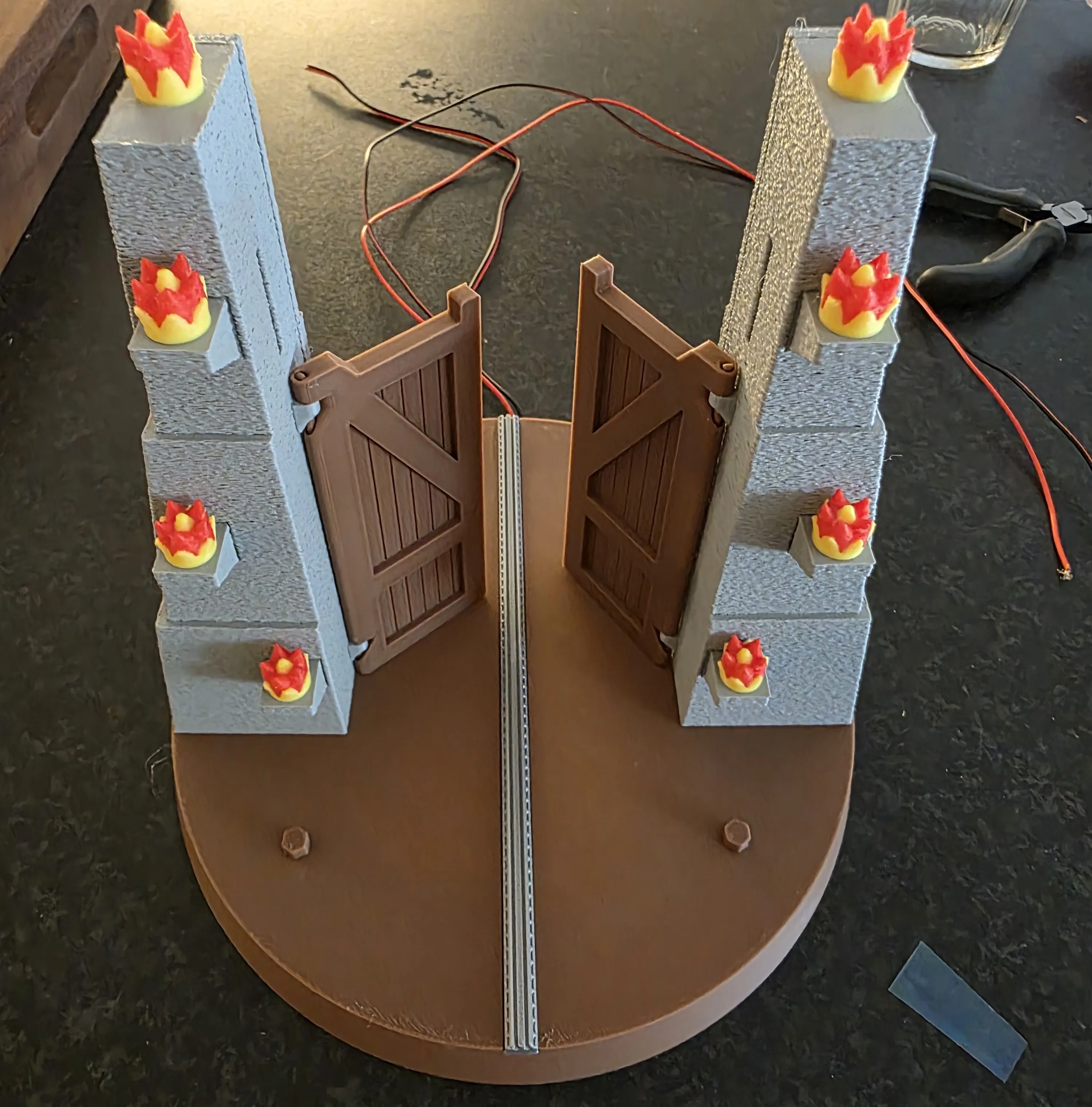

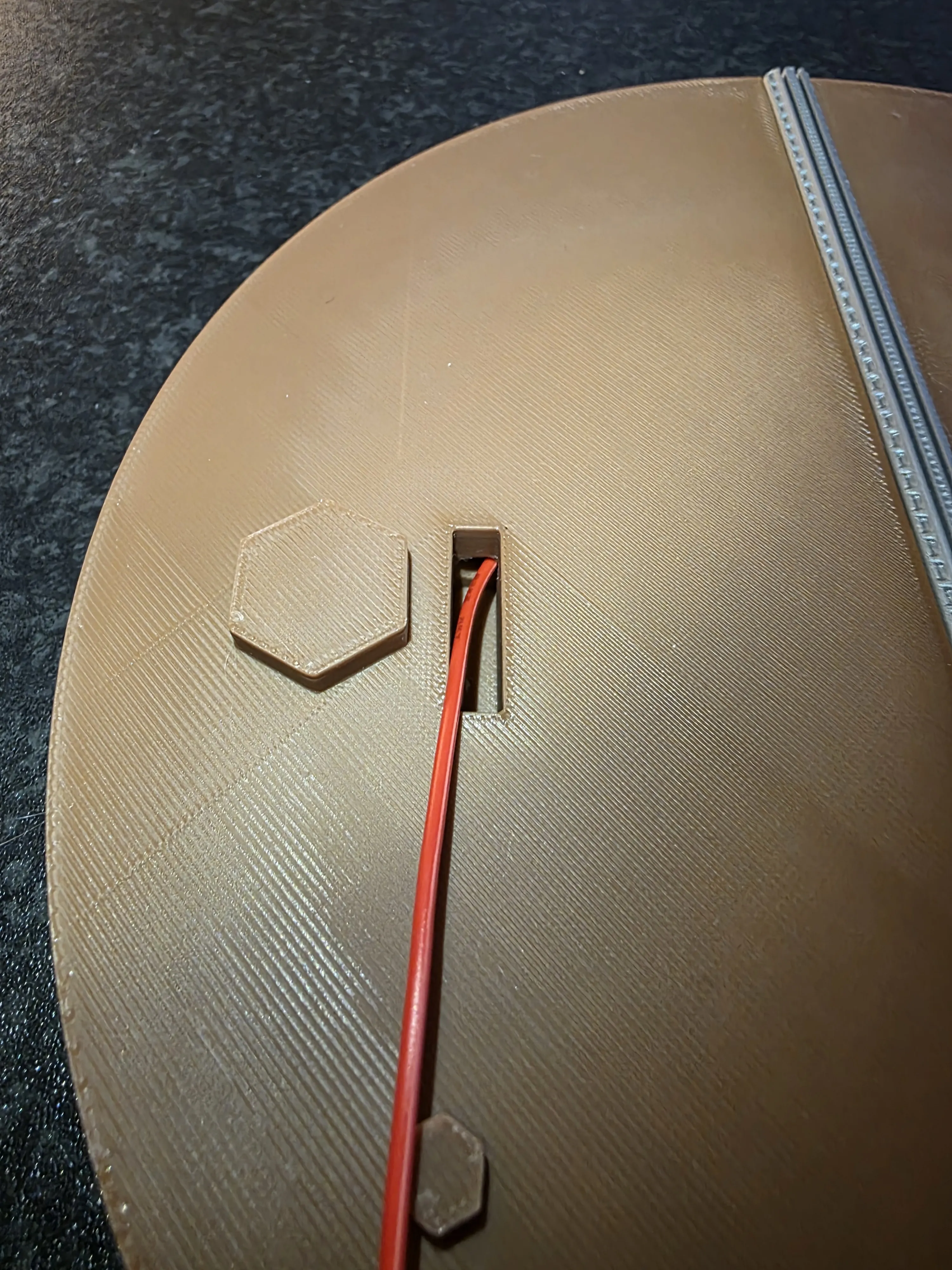

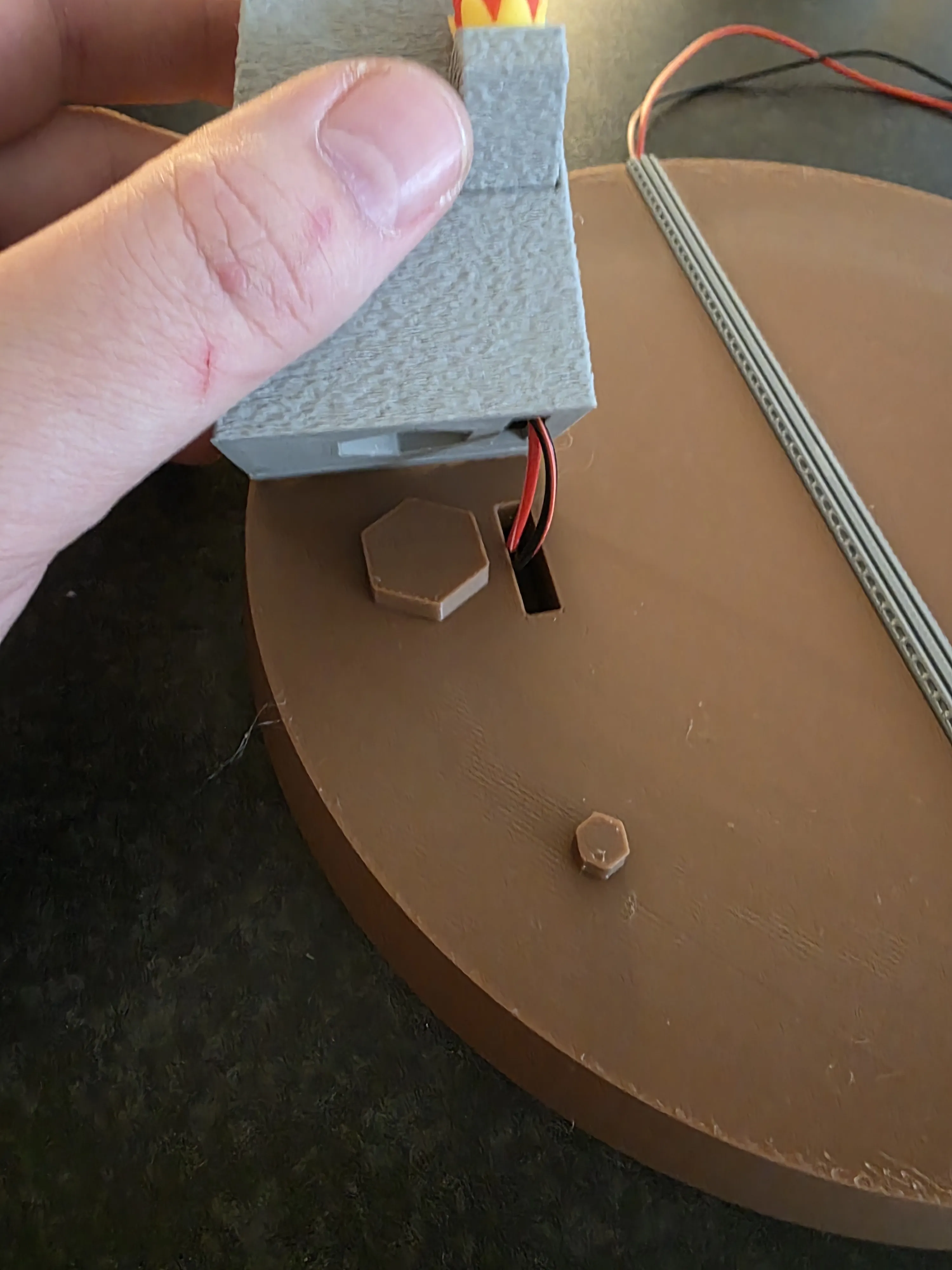

5. Put on the backpiece of the pillars and then thread the wires through the base
 |  |  |  |

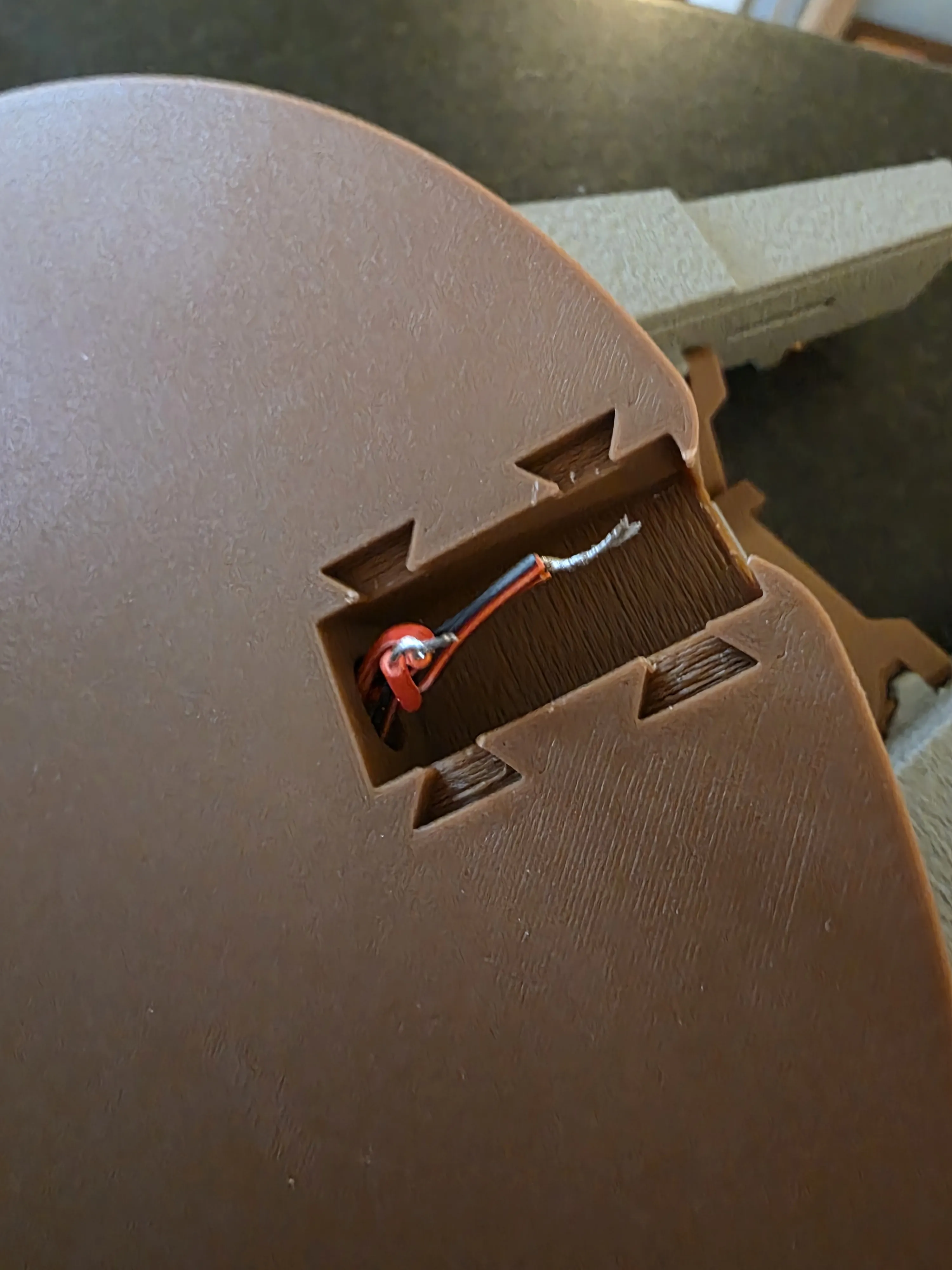

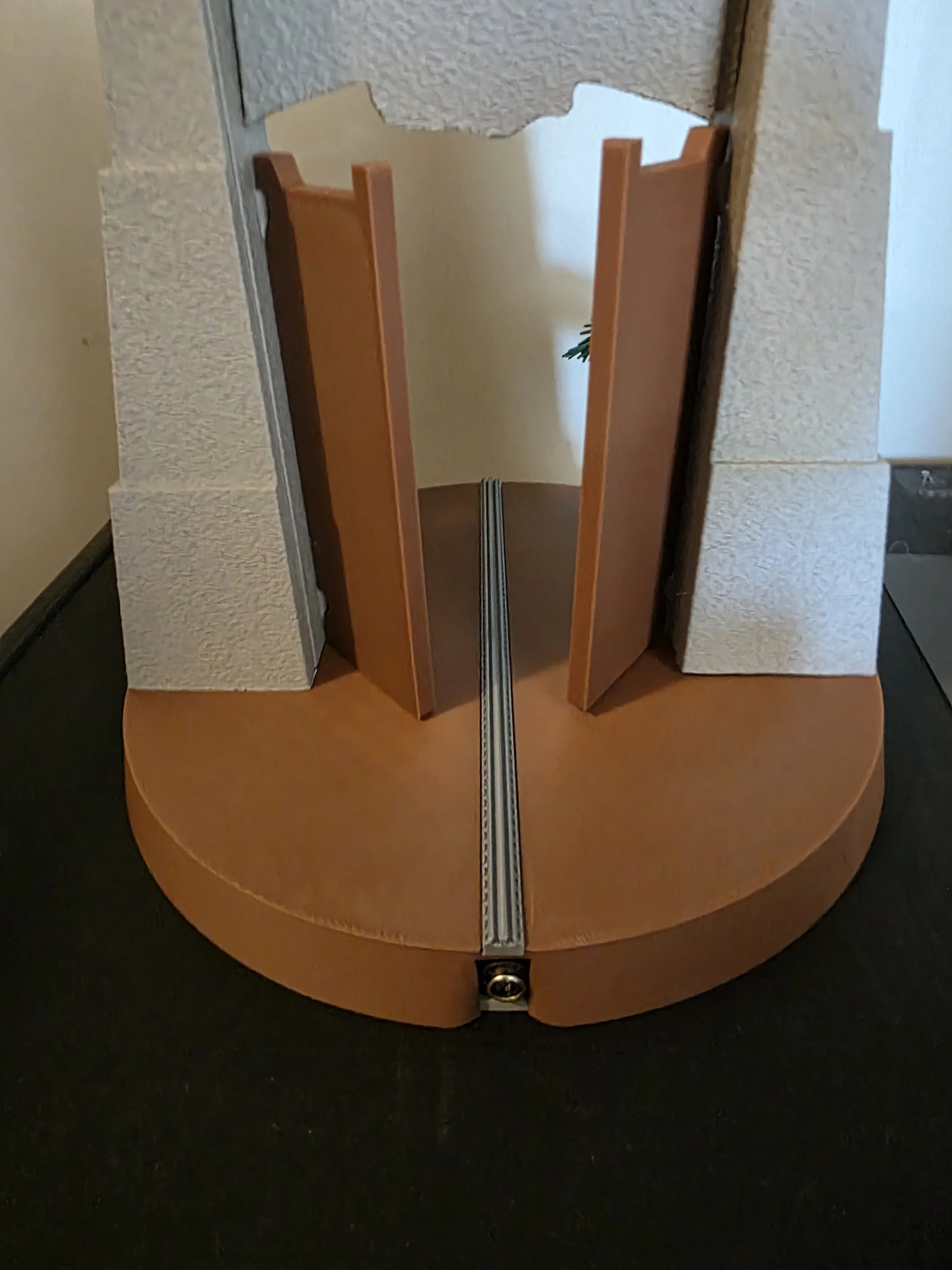

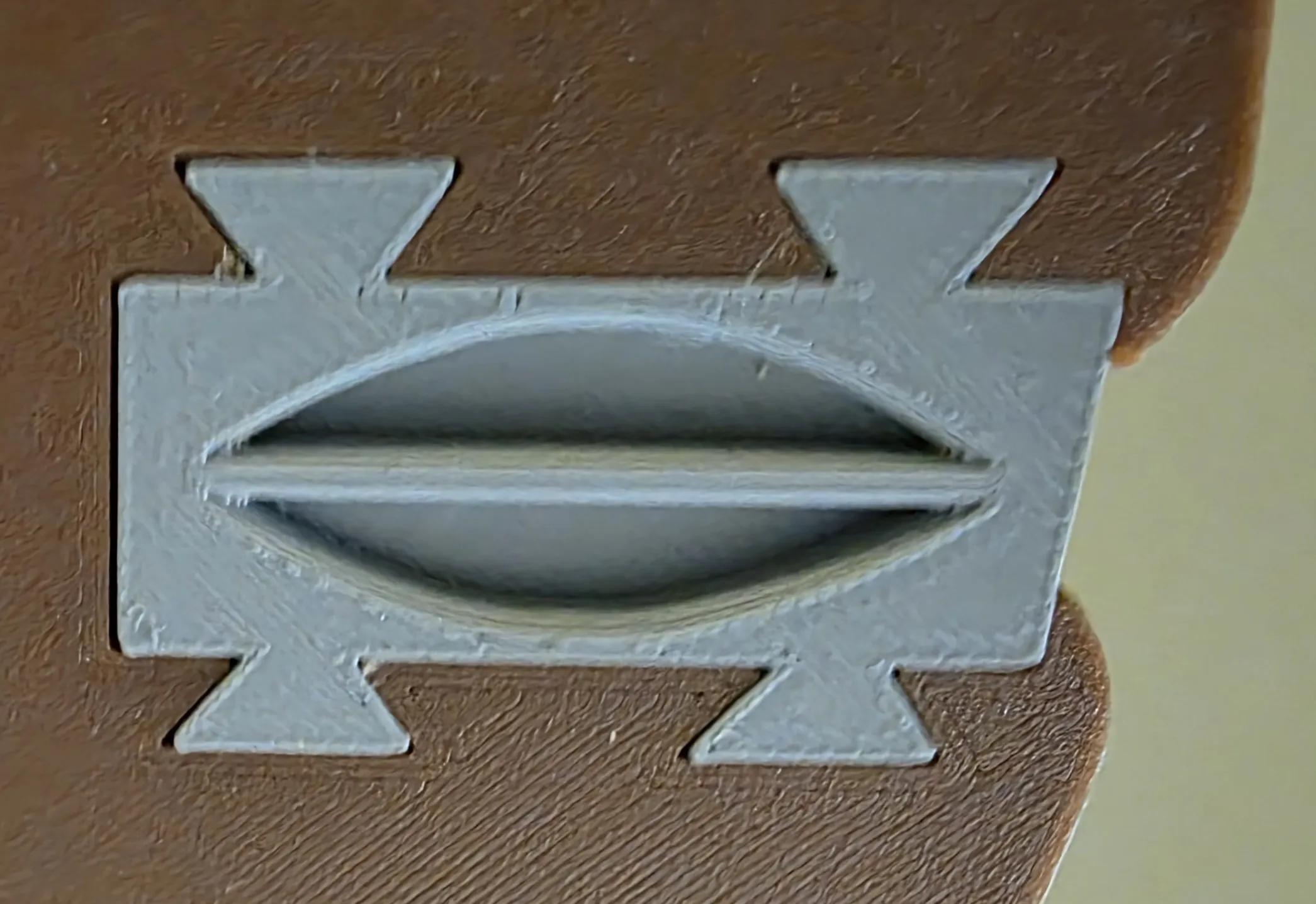

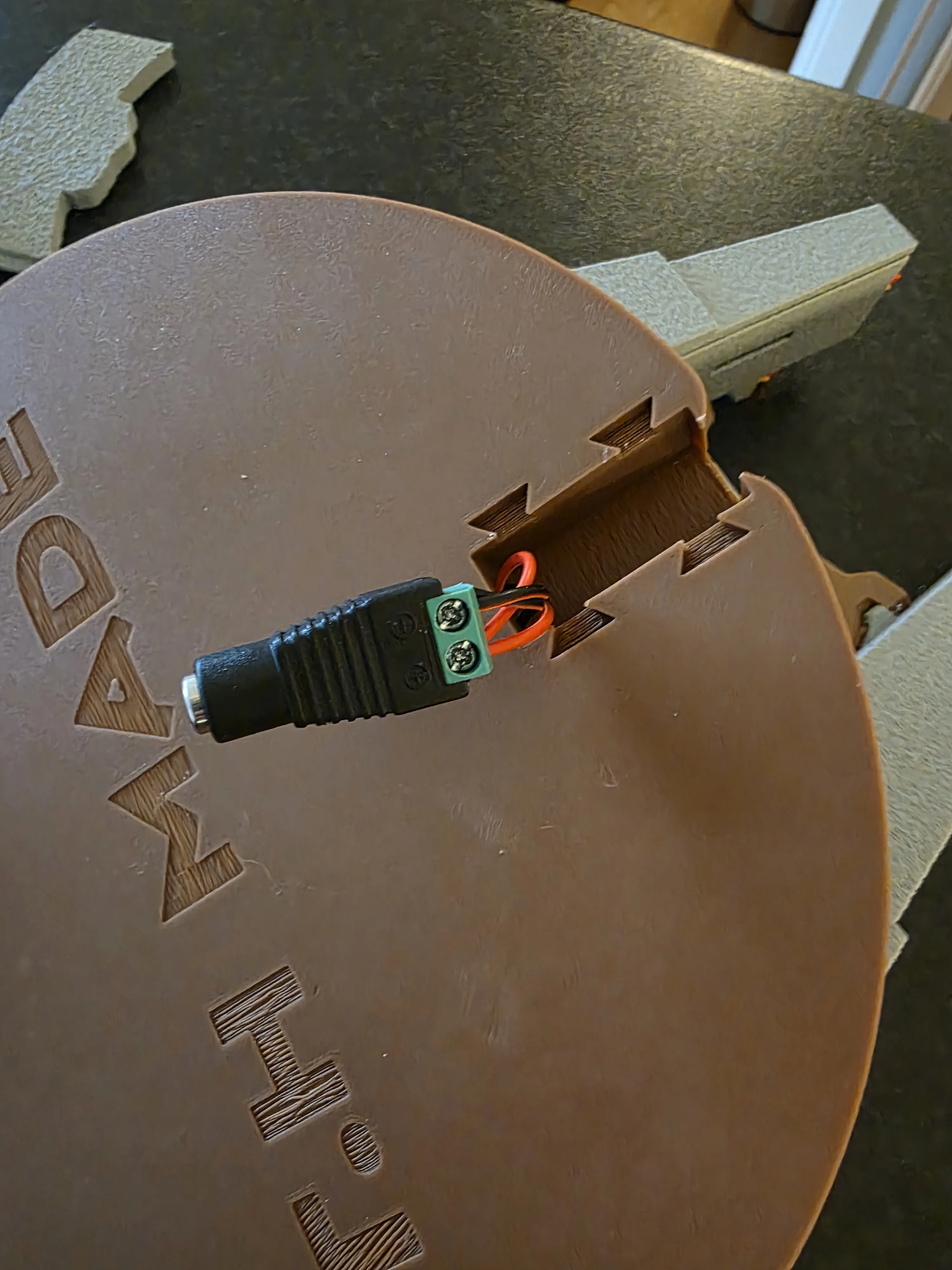

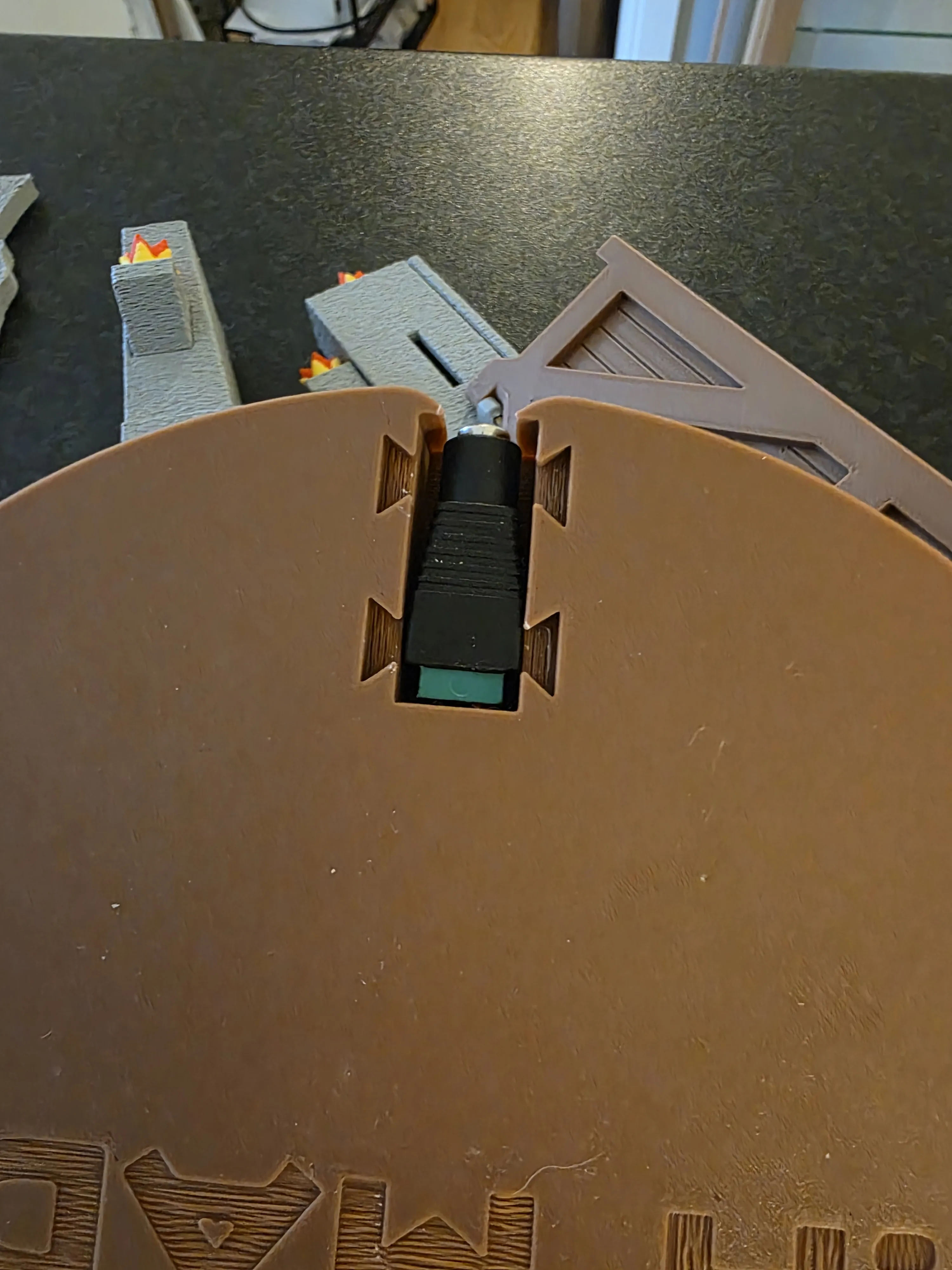

6. Cut wires to length and connect the power connector and put on the base lid
 |  |  |  |

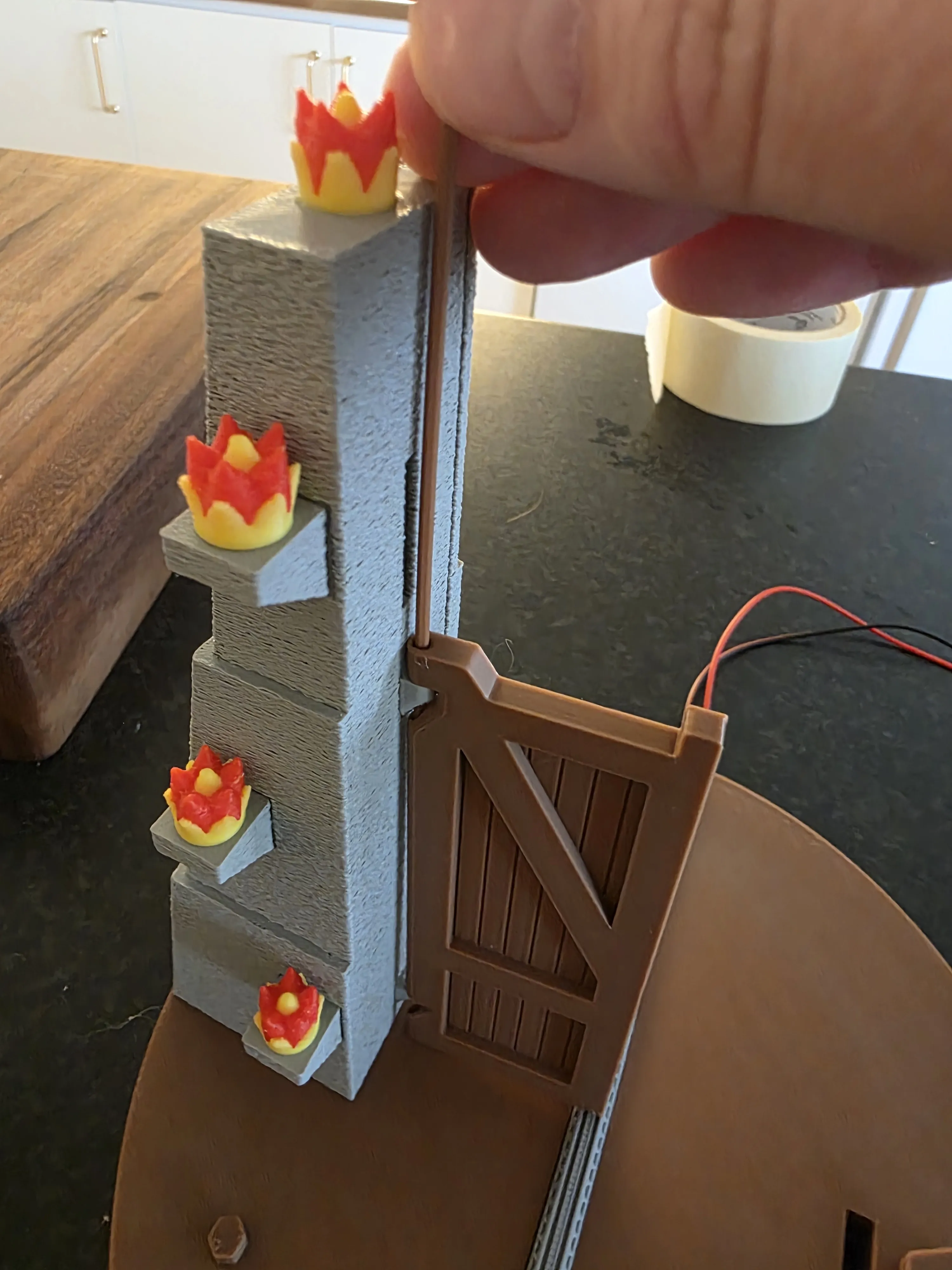

7. align the door with the hinges and put in the hinge rod. Repeat on the secfond pillar

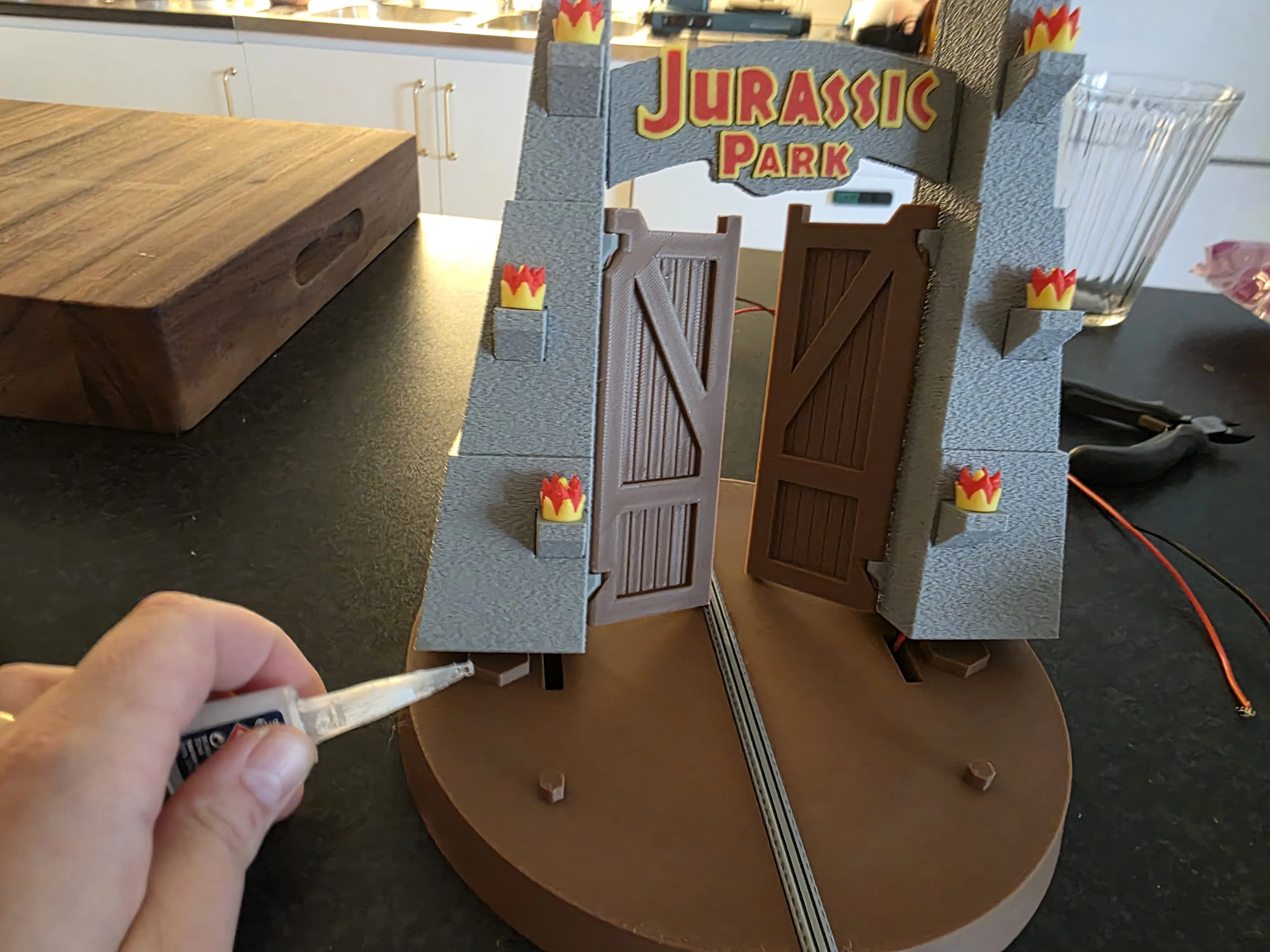

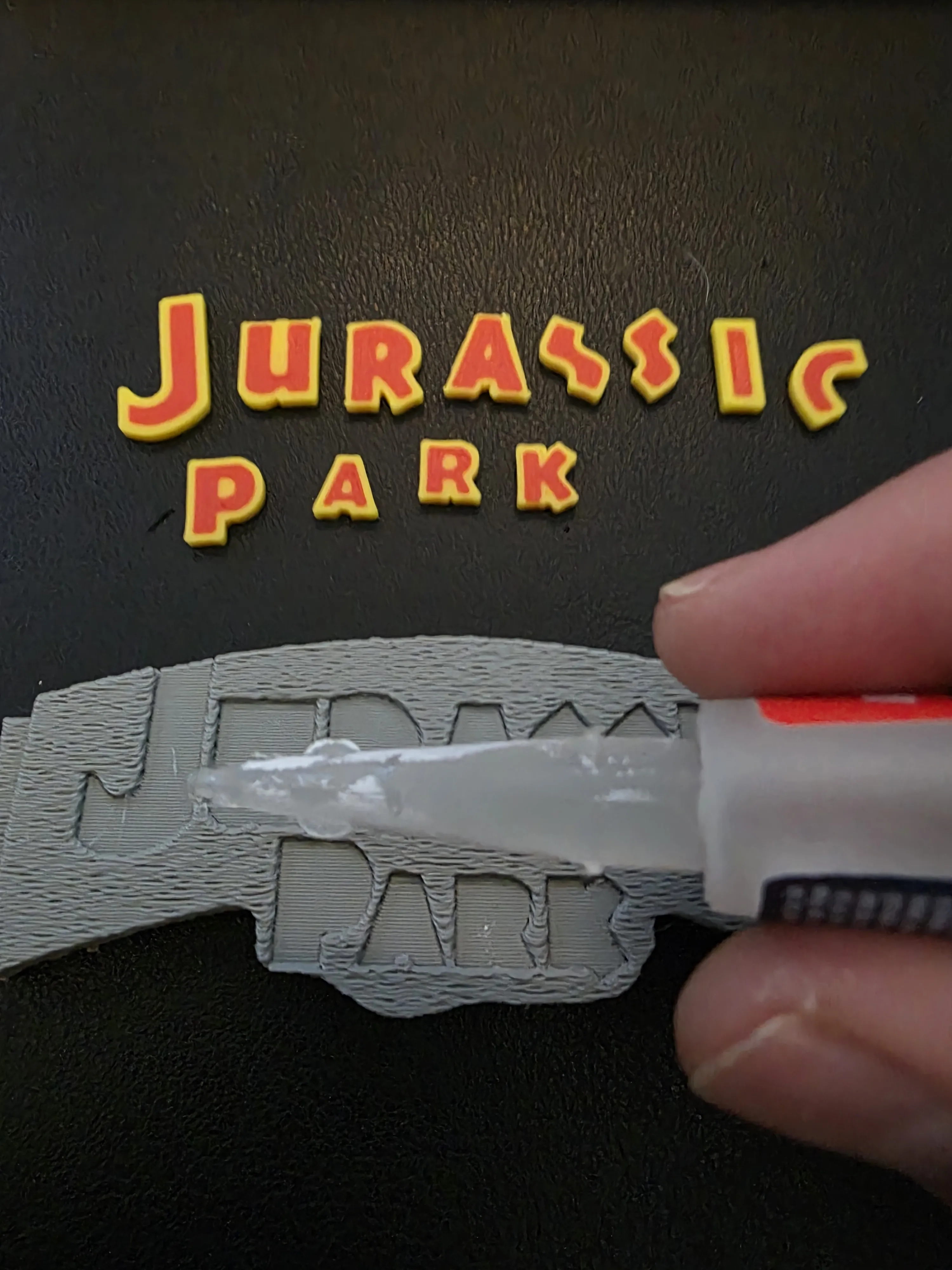

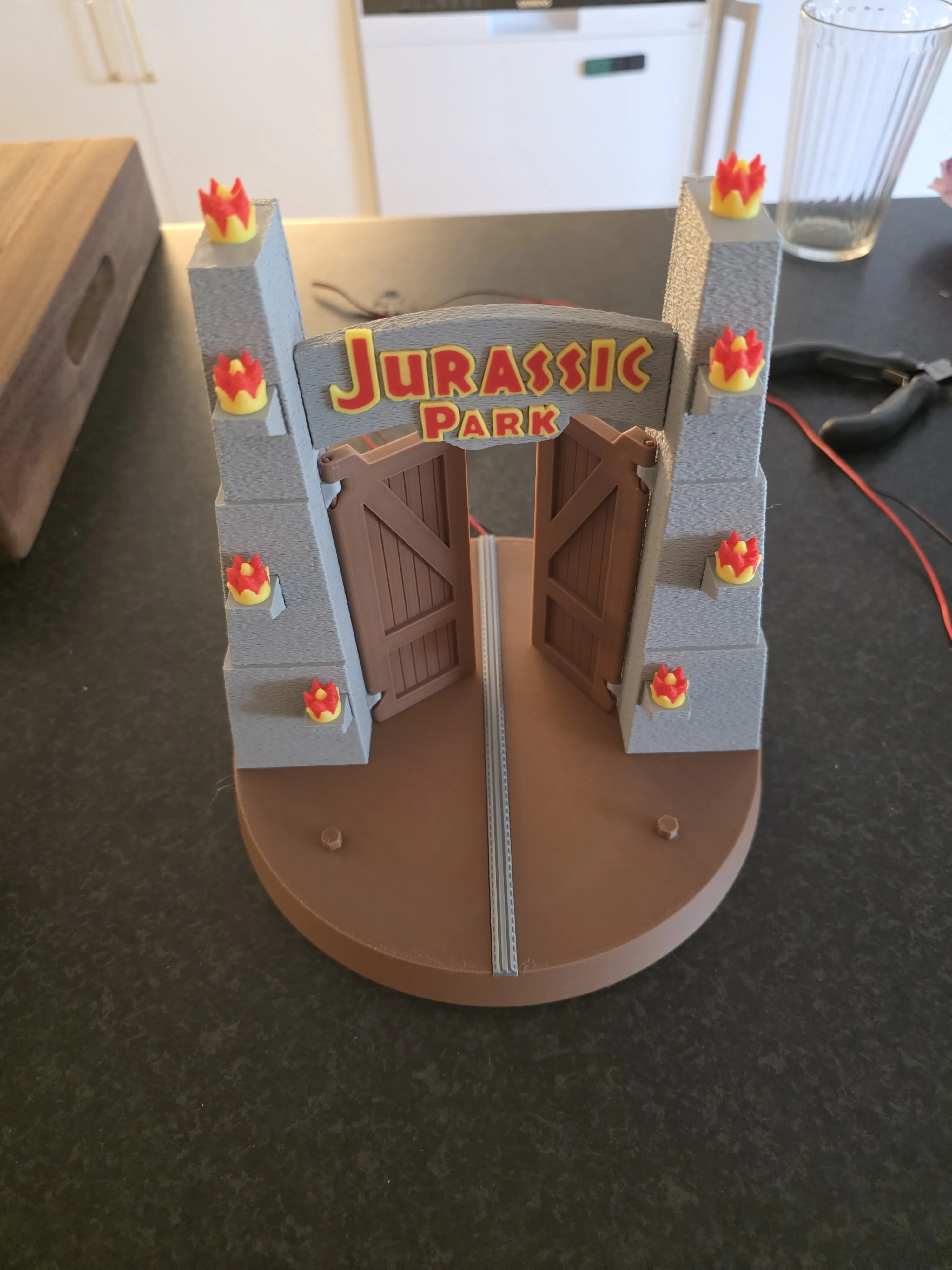

8. Glue the letter to the sign and then place the sign in the slots between the pillars. Secure sign with a dab of glue. Carefully tilt the pillars and add a dab of glue to secure them to the base
 |  |  |  |

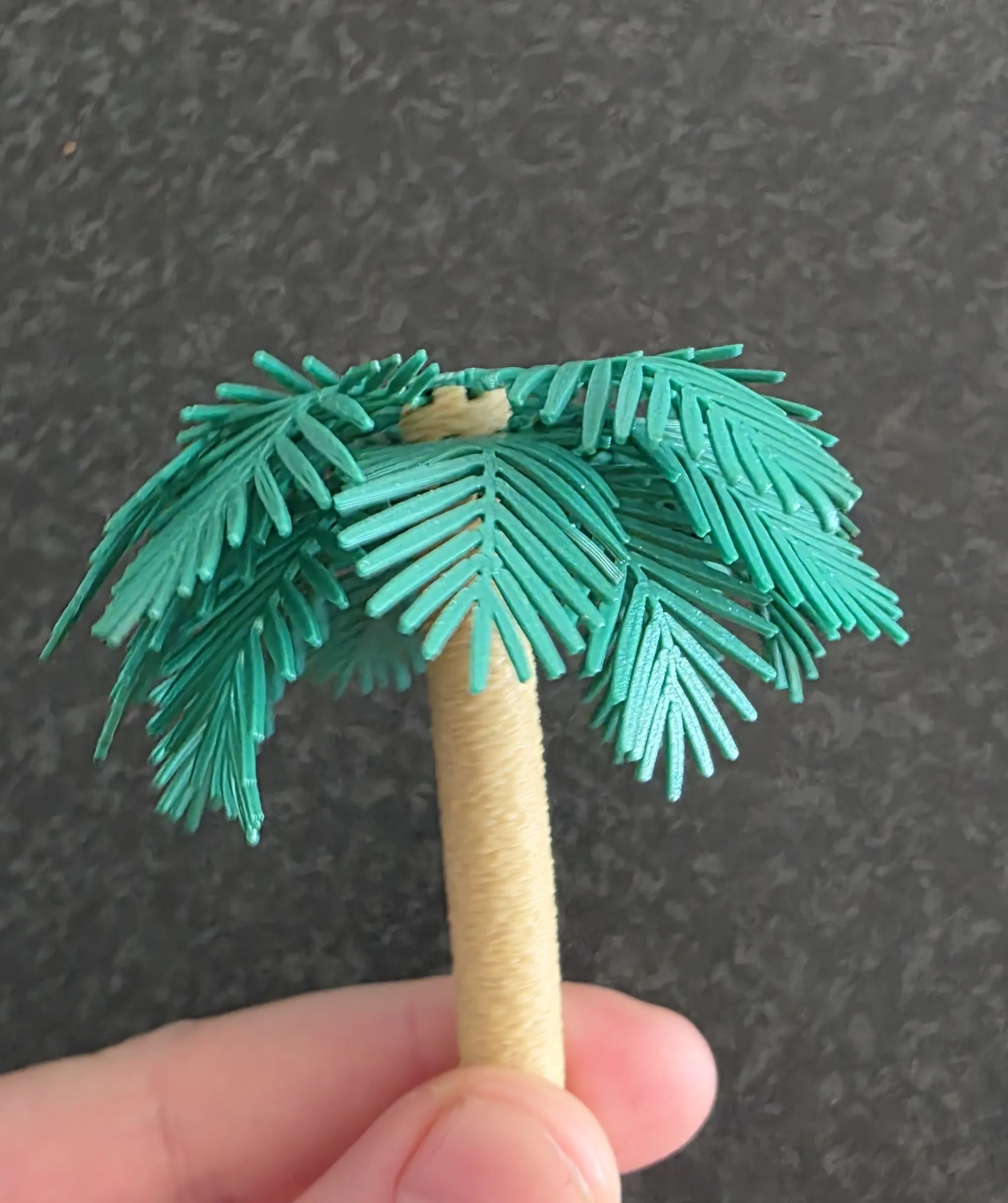

9. Form the leafs. IF YOU ARE GOING TO USE THE LIGHTER METHOD LIKE ME, MAKE SURE THAT YOU HEAT IT FOR LESS THEN A SECOND AT A TIME. I really recommend using a small heat gun or something. The leafs are really fragile and i recommend that you print a few extras.

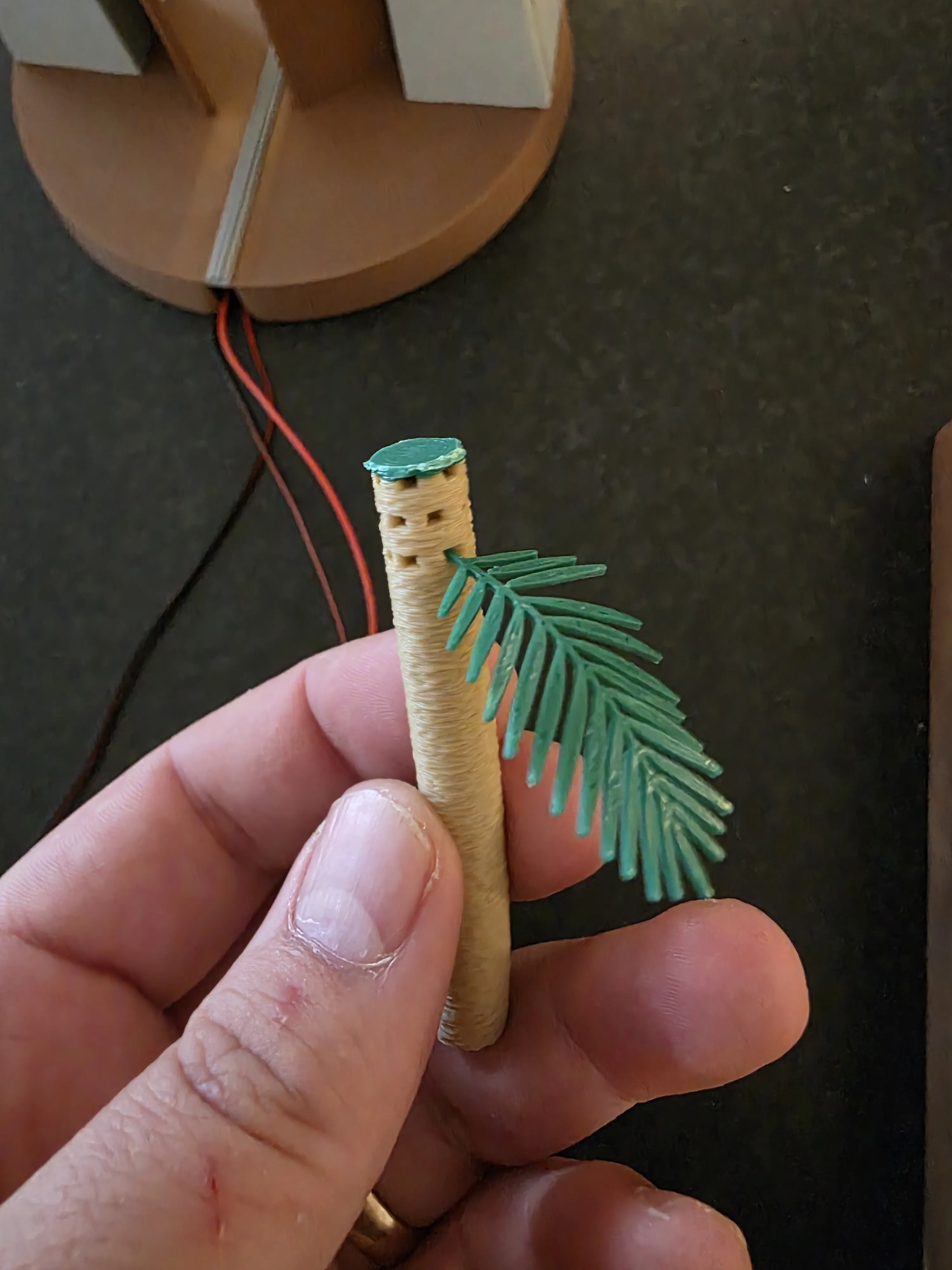

10. Attach the leafs to the tree trunks with very small dabs of glue. Start from the bottom and work your way up. Then Finally glue the trees to the base.
 |  |  |
11. Done! Just connect your power!
 |  |  |
