BITING T-REX (MULTIPART PRINT) by IDMyron

IDMyron

Toys & Games>Other Toys & Games

GIF

Print Profile(8)

All

X1 Carbon

P1S

P1P

X1E

A1 mini

Print by object or without AMS

2.7 h

2 plates

4.9(540)

[1 color 1 plate] 0.16mm layer, 2 walls, 15% infill

2.8 h

4 plates

4.9(103)

Multicolour version 43g Filament

3.6 h

2 plates

4.8(97)

Add down part fix,0.2mm layer, 2 walls, 10% Gyroid infill

2.1 h

2 plates

5.0(25)

Click to see more

Open in Bambu Studio

Boost

5777

11335

1246

1.3 k

10.3 k

4.7 k

Released

Description

Boost Me (for free)

Check my other models. I hope you will like something :)

These baby dinosaurs can bite. This is my new free design and is can be printable without supports. The spring mechanism provides a strong enough bite. You will also need a spring and a small nail

I have already published the tutorial

https://www.instagram.com/reel/C-FzpRuNKqv/?igsh=d2FxNWNpYnAwZWEz

-nail 0.7x19mm
-Torsion spring

-3d printed spring by patrickbryant1996 https://makerworld.com/en/models/606905#profileId-529821

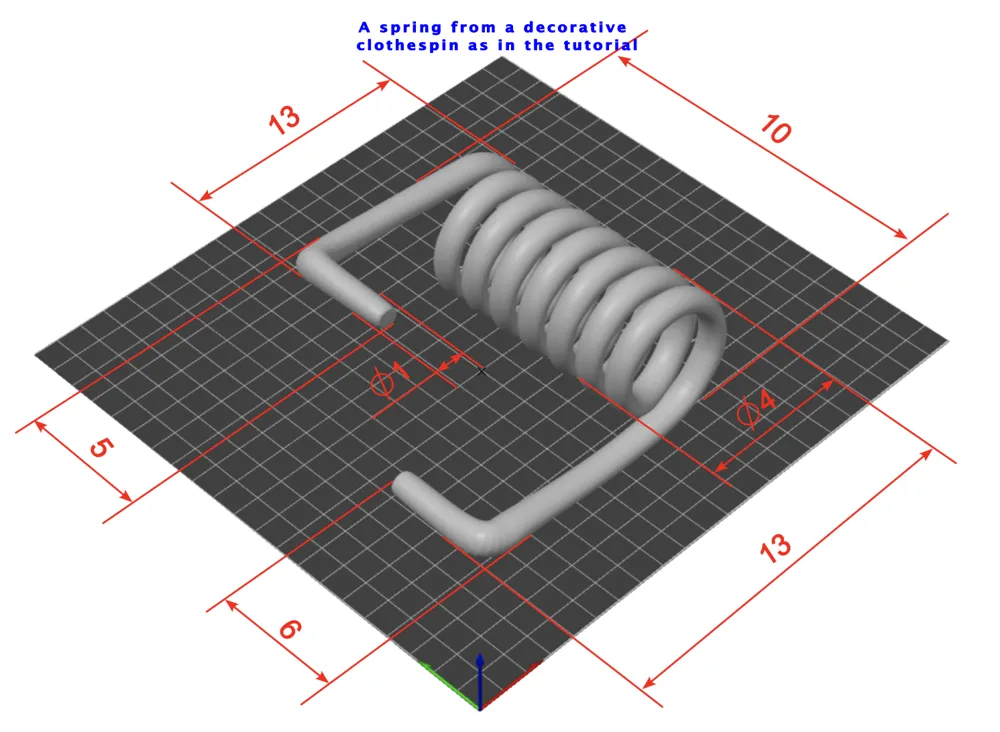

Find a small similar spring in a stationery store, as in my tutorial.

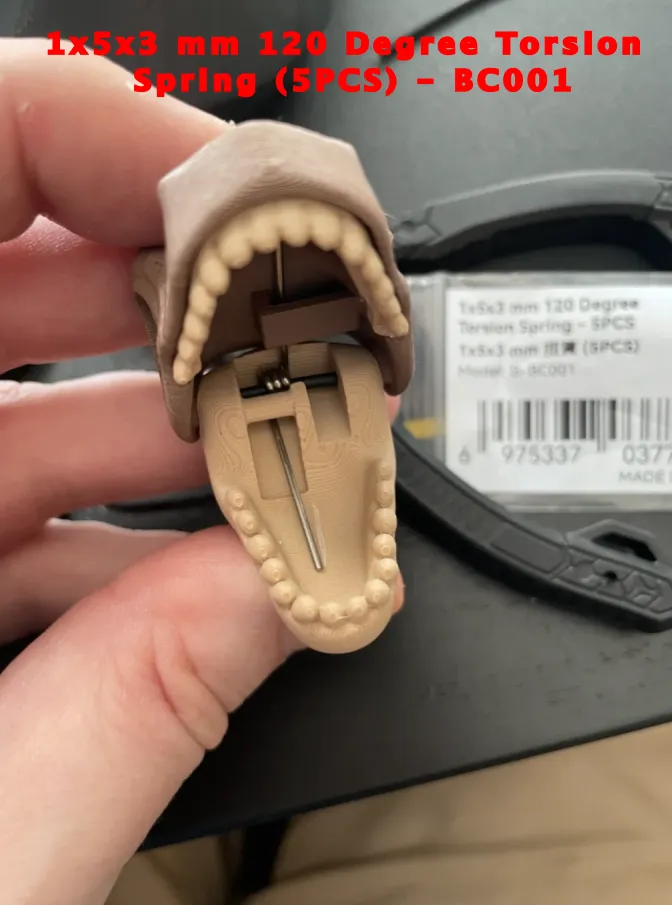

Or you can buy spring(1x5x3 mm 120 Degree Torsion Spring (5PCS) - BC001) in bambu store
With bambu spring works well for play though. In that you can squeeze the mouth shut and it opens, so easy to make it talk, roar etc.

And please, post images of your prints here; I’d love to see them!

Thank you!

If you want support me or sell physical prints of my designs,

please become a Patreon🙂

https://www.patreon.com/Yuskovych

Bill of Materials

Maker’s Supply Kits and Parts

1x5x3mm 120 Degree Torsion Spring (5PCS) - BC001

B-BC001

1.49 USD

× 1

2x18mm Stainless Steel Dowel Pin (20PCS) - DA001

B-DA001

1.30 USD

× 1

Buy Now

Download BOM

Comment & Rating (1246)

@BerryBLK

Boosted

love these little guys! I created an army but there’s not enough food to go around.

The designer has replied

@Yuskovych

Dinosaur party☺️ Thanks for sharing!

@Yuskovych

What is happening in the 2nd photo😢

@BerryBLK

Boosted

Replying to @Yuskovych :

not enough food 😂😭

@Karlldann

Boosted

Mom and Babies!

The designer has replied

@Yuskovych

Woow, What size is this?😍

@Karlldann

Boosted

Replying to @Yuskovych :

200%

@HoudiniC

how were the tolerances on the upscaled one?.. I've experienced some models where things can start to get loose when you upscale

@trusteddev

Boosted

Just a heads up the Bambu part linked will keep the mouth open not closed, it does not match the pictured spring which I think I / we may all have on a clothes peg somewhere ..... Darn it my cloth's peg spring is just a little too large in diameter. The Bambu part 2x18mm Stainless Steel Dowel Pin works well if you do not have a nail at hand and have the Bambu maker's kit.

(Edited)

The designer has replied

@Yuskovych

Hello. I advise you to bend the bamboo spring to reduce the degree. But I think it's better to find a small decorative paperclip in stationery

@trusteddev

Boosted

Replying to @Yuskovych :

Decorative paperclip is the way to go! After a while forcing the Bambu spring into different configurations I am unable to make it do what we need.

@Smoothies1

Boosted

Are you away of anyone has remixed to fit a normal peg? I'm having the same issue as you....

@gori_1990

I printed it at 300% scale. I put a spring inside its mouth with two screws to close and tighten it. It turned out great!

The designer has replied

Show original

@Yuskovych

How did you manage to get your head in order? It's only calculated in the original size, and even in the original it's too heavy.

Show original

@gori_1990

Replying to @Yuskovych :

It is true that if you move the head, it turns by itself, but if you leave it centered, it does not move. However, if you put a little paper in the fit of the body where the head fits, it makes the movement more rigid and the head fits more securely. The spring was my own invention because otherwise it would not be possible to make the mouth close.

Show original

@ImageGenerator

Boosted

Replying to @gori_1990 :

I like dat 👍😬

@Tanguy

Boosted

Print Profile

Print by object or without AMS

Nice and easy print!

@Yuskovych

Colours like mine. Looks great! Thanks for sharing❤️

@mystoopidstuff

Love this model, the overbite is perfectly goofy! It's a great design too, and went together really well with some superglue.

(Edited)

The designer has replied

@Yuskovych

Love this art xD

@mystoopidstuff

Replying to @Yuskovych :

Thanks! I had some help from AI :D

@GiZmOGG

Boosted

Print Profile

Print by object or without AMS

Nice

@Yuskovych

😍

@Karlldann

Boosted

Print Profile

Print by object or without AMS

Very Fun! I love it! Thank!

@Yuskovych

😍Good print! Thanks for sharing

@Rayman

Boosted

Print Profile

Print by object or without AMS

Cute baby T-Rex. Smooth and easy print.

@Yuskovych

Great job! Have you assembled a mechanism with a spring?

@Rayman

Boosted

Replying to @Yuskovych :

Yes. Had some of these from a decoration project laying around: https://www.amazon.de/dp/B0CP5MCH1W The spring from the middle size was perfect for the mechanism.

@Yuskovych

Replying to @Rayman :

Thats good👍🏼

@MVN.Mx

Print Profile

Print by object or without AMS

The kids love it

@Yuskovych

Hooray, cool job. Have you assembled a mechanism with a spring?

@MVN.Mx

Replying to @Yuskovych :

no, i have no spring @ home which fits :D but if i find some anytime i will assemble it later.
