Dust Deputy 3 way blast gate
Print Profile(0)
Description
Boost Me (for free)
If this model was helpful to you, I could appreciate some boosts. Thanks!

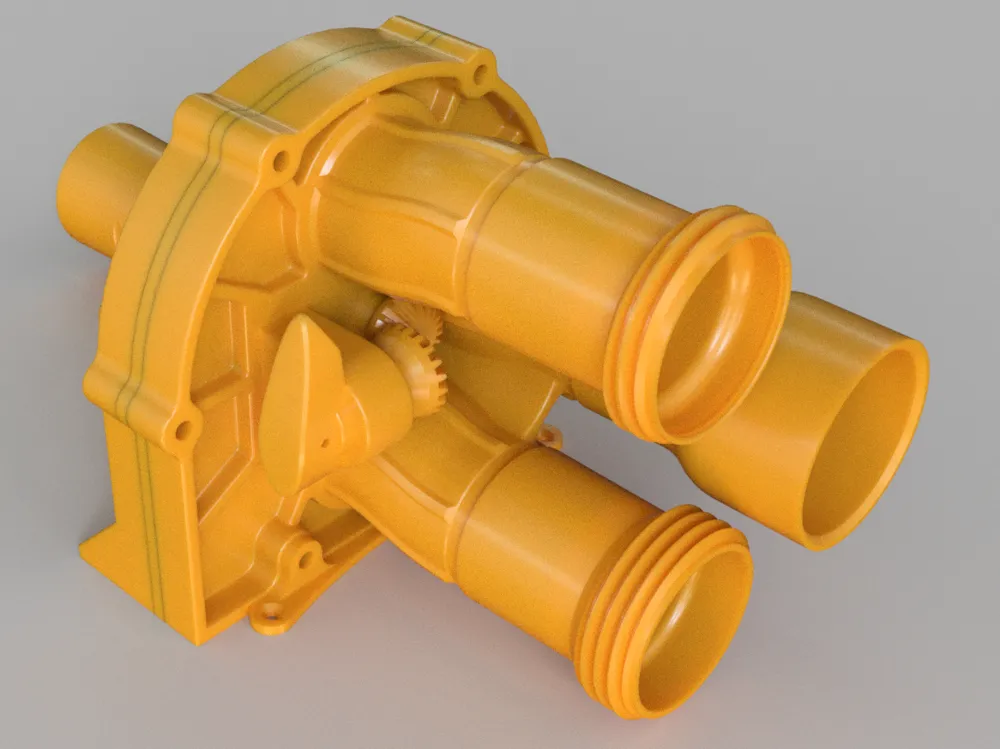

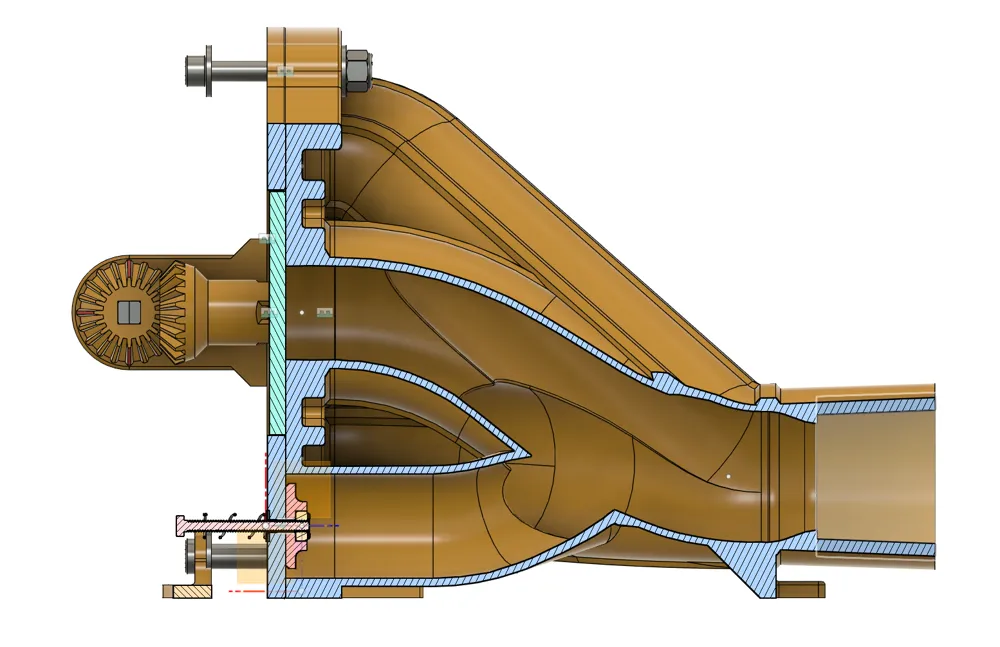

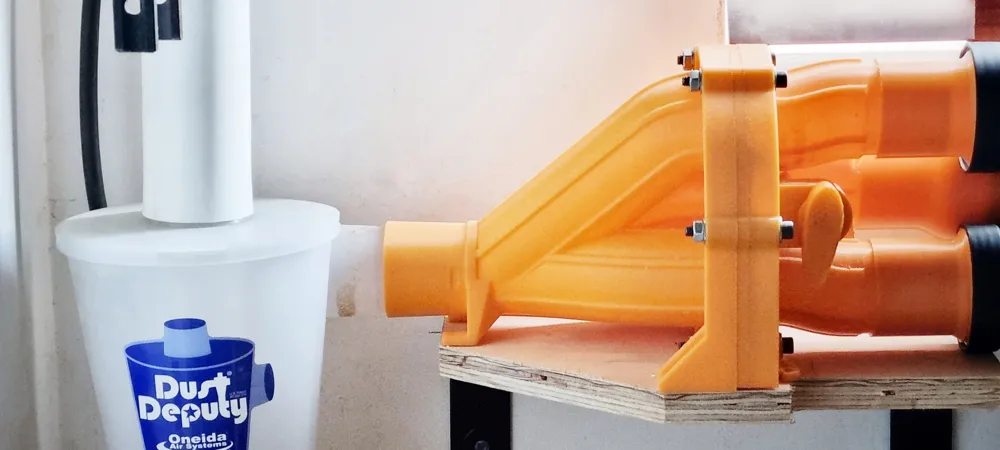

A reliable 3-way vacuum manifold designed for DIYers who like to keep dust under control. It allows permanent connections to multiple tools, reducing clutter and speeding up operation changes. The three inlet ports have a fixed diameter so that different types of vacuum pipes can be adapted and connected. The ones currently attached are for a Ryobi hose, a Vacmaster hose, and 2" PVC pipe.

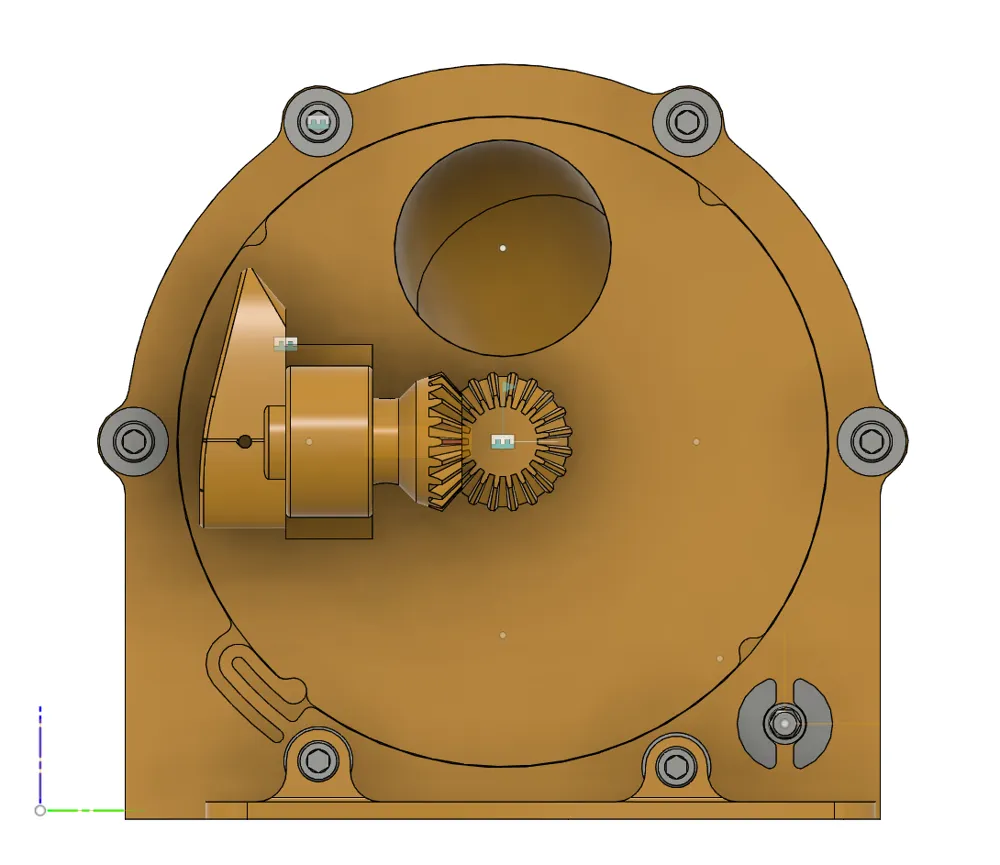

I printed it in PETG about 3 years ago, and it has been working without any problems or wear on the gears. Some assembly is required—glue the parts that should stay fixed, and apply grease where movement is needed. It also features a vacuum relief valve to prevent the tank from collapsing.
