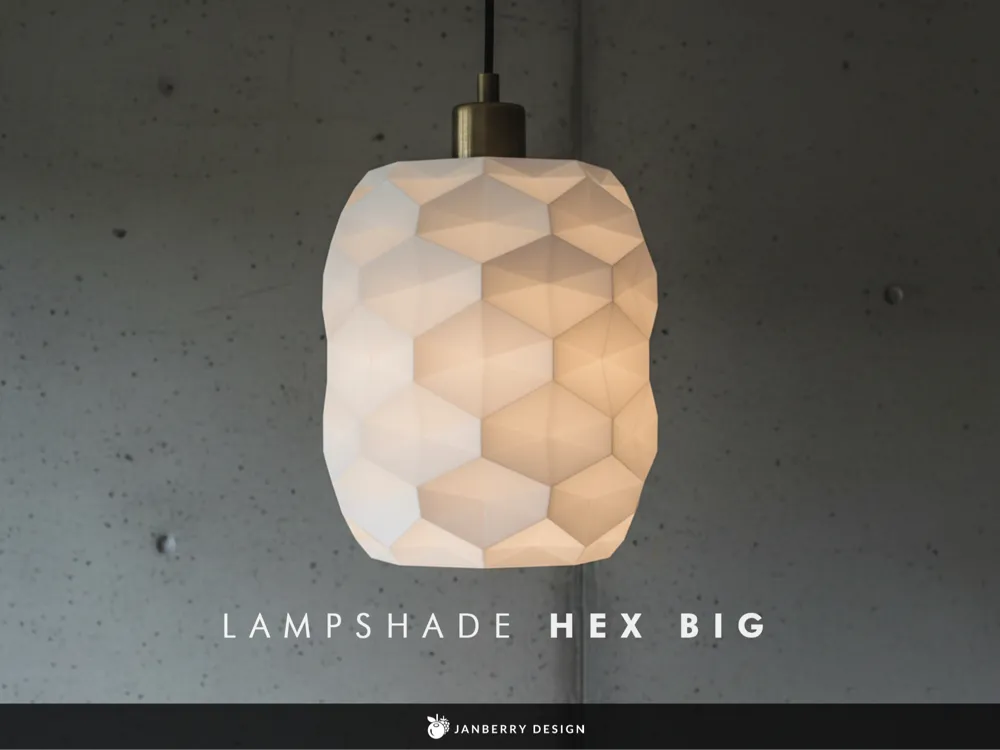

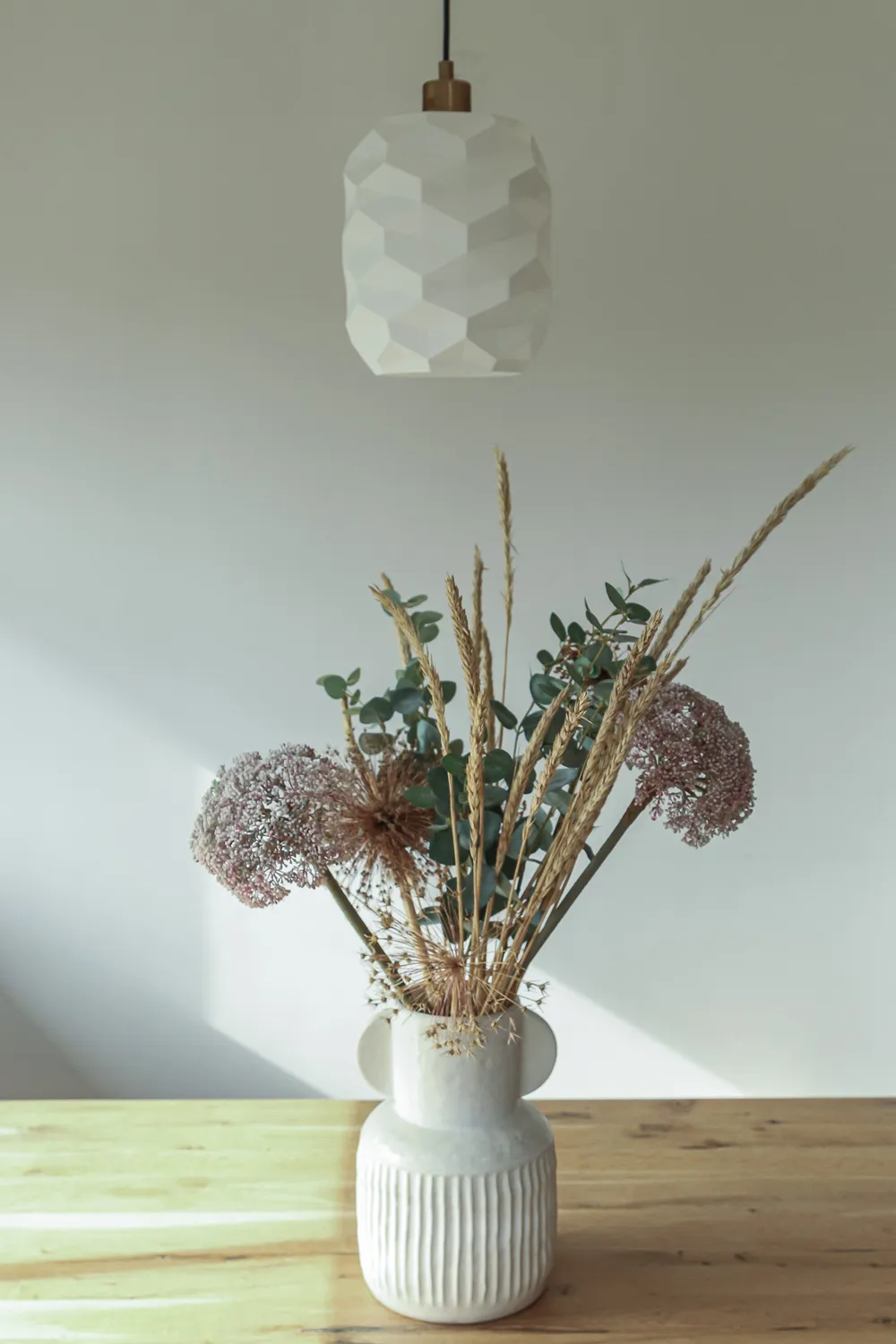

Lampshade - Hex Big

Lampenschirm – Hex Big

Lamp shade with hexagon pattern.

Print in Spiral Vase Mode

0.2 Layer height

0.6 Layer thickness

Time ~ 2.25 hours

Measurements

215 mm x 215 mm x 248 mm

The lampshade is scalable. Please ensure that only the model itself is scaled, and not the 40 mm cylinder (modifier). Otherwise you E27 fitting will not fit.

The hole in the file is for a typical 40 mm threat (E27 light bulb). You can adjust the whole size to whatever size you need. Go under objects and scale the generic cylinder to whatever size you need. The lamp shade itself can be scaled aswell.

Please be careful when removing it from the print bed. The shade only has a whallthickness of 0,6 mm. Especially the first layer after the 7 bottom layers is fragile. I would recommend to go with a scraper under the bottom layer.

Tripod Stand

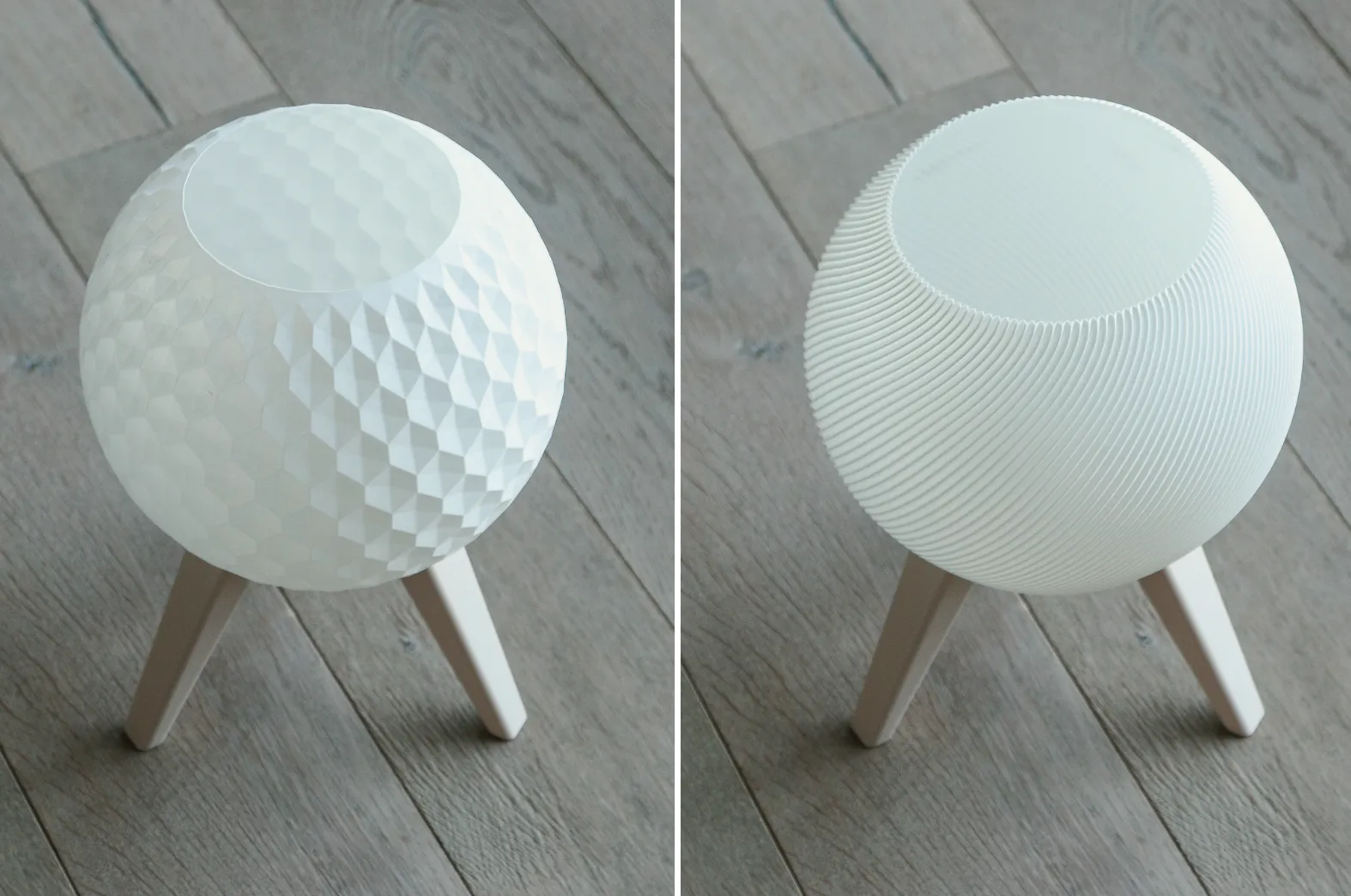

If you prefer not to hang the lamp as a pendant, you can use the tripod stand instead. It features a 41 mm hole compatible with standard E27 fittings. The tripod is also compatible with my other lampshades.

Approximate print time: 6 hours
