Kayak Anchor Spool
IP Report

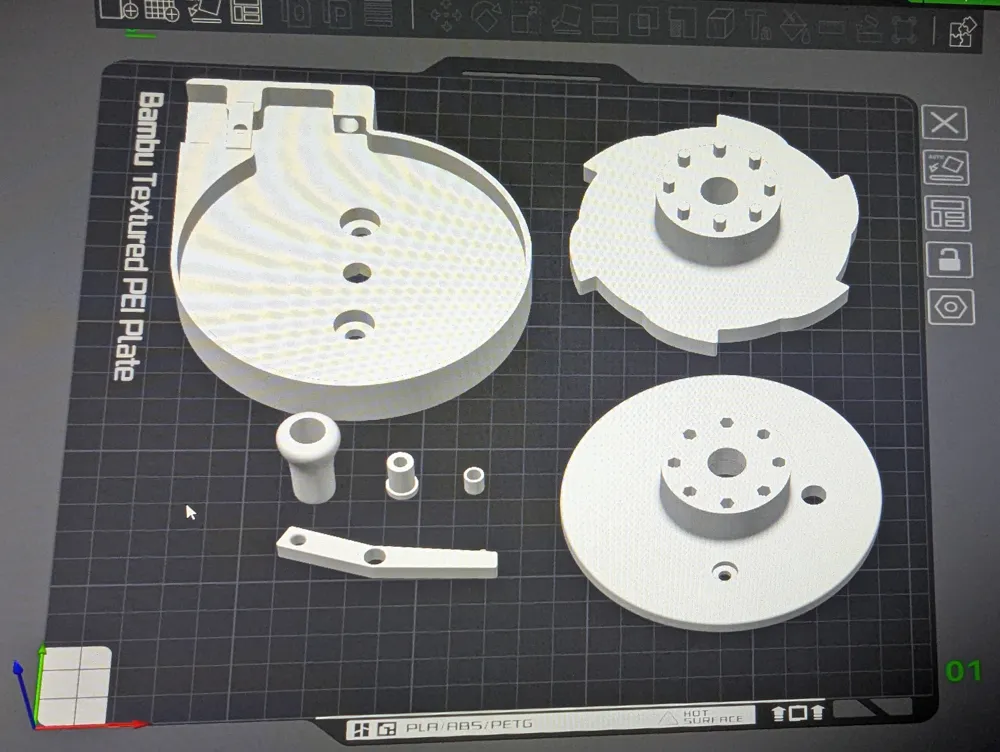

Print Profile(1)
0.24mm layer, 2 walls, 50% infill
Designer
3.3 h
1 plate
Open in Bambu Studio
Boost
190
600
18
7
254
122
Released
Description

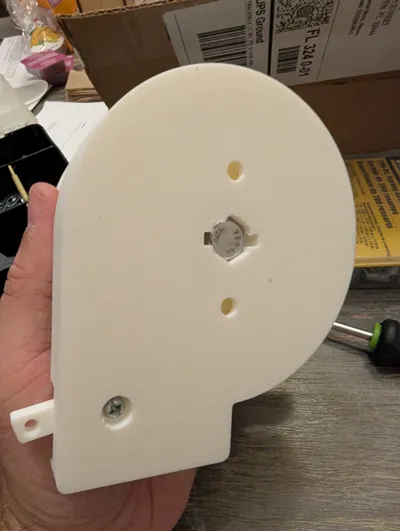

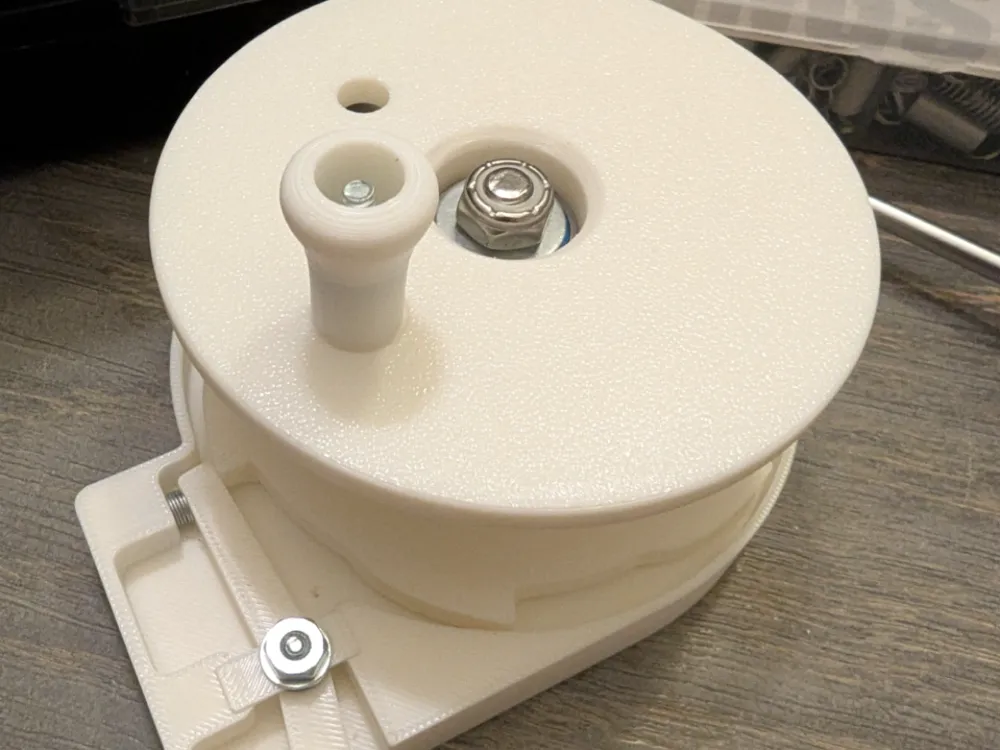

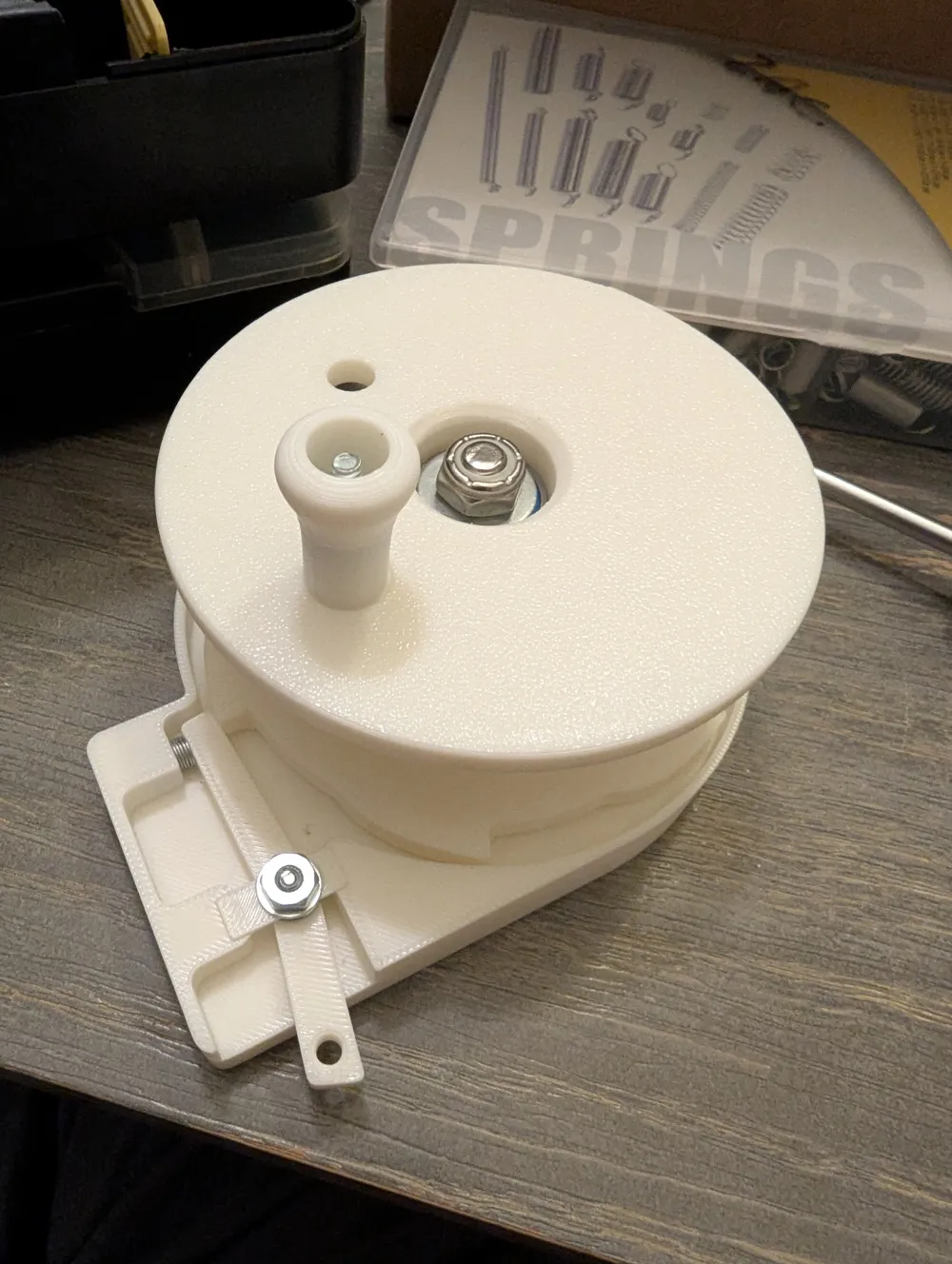

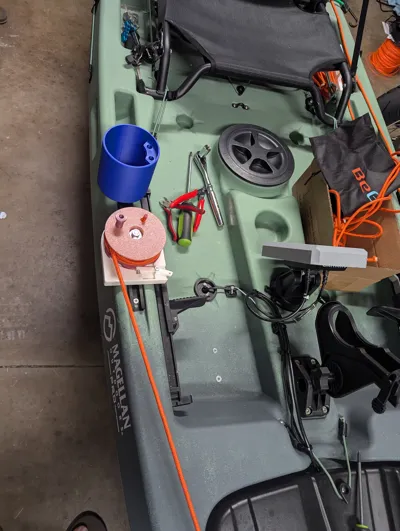

This is an experimental Kayak Anchor Spool with a one way ratchet. A lever can be used to drop the anchor and the spool can be turned to retract the anchor.
This design requires two 608 bearings, sealed recommended.
A reference for the shaft bolt is McMaster # 92198A689.
18-8 Stainless Steel Hex Head 5/16"-18, 1 ¾" long, Partially threaded.
The hex head is ½"
A reference for the nut is McMaster # 90101A237
18-8 Stainless Steel Nylon Insert Locknut, 5/16"-18
I haven't spec'd the hardware for the lever and the knob as I just used some from an assortment I had.
I will likely update this portion of the design later so I haven't bothered.
Reminders:
- Use at your own risk. This was designed as a fun project and is not a product with professional safety testing.
- Most plastics will degrade with TV exposure over time.
- You will want to use a fairly high infill.
- Recommended for use with a light anchor…
- Its plastic… Use common sense.
