Elora Hyper Case

Elora Hyper Case is a custom case for the https://splitkb.com/products/halcyon-elora Split Keyboard.  It is only compatible with Halcyon Elora. The Non-Halcyon version is NOT supported.

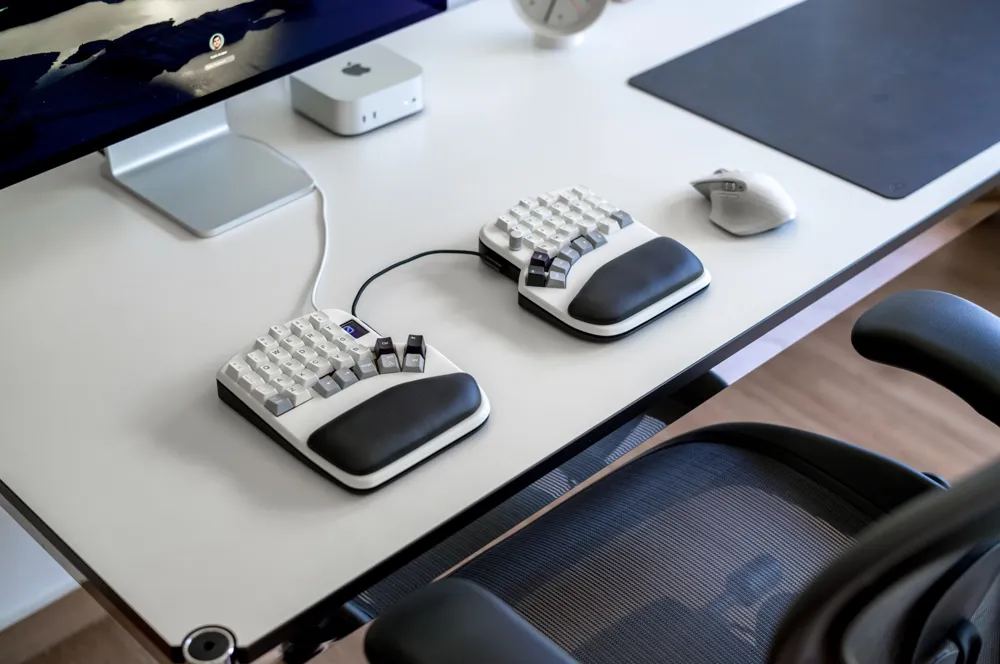

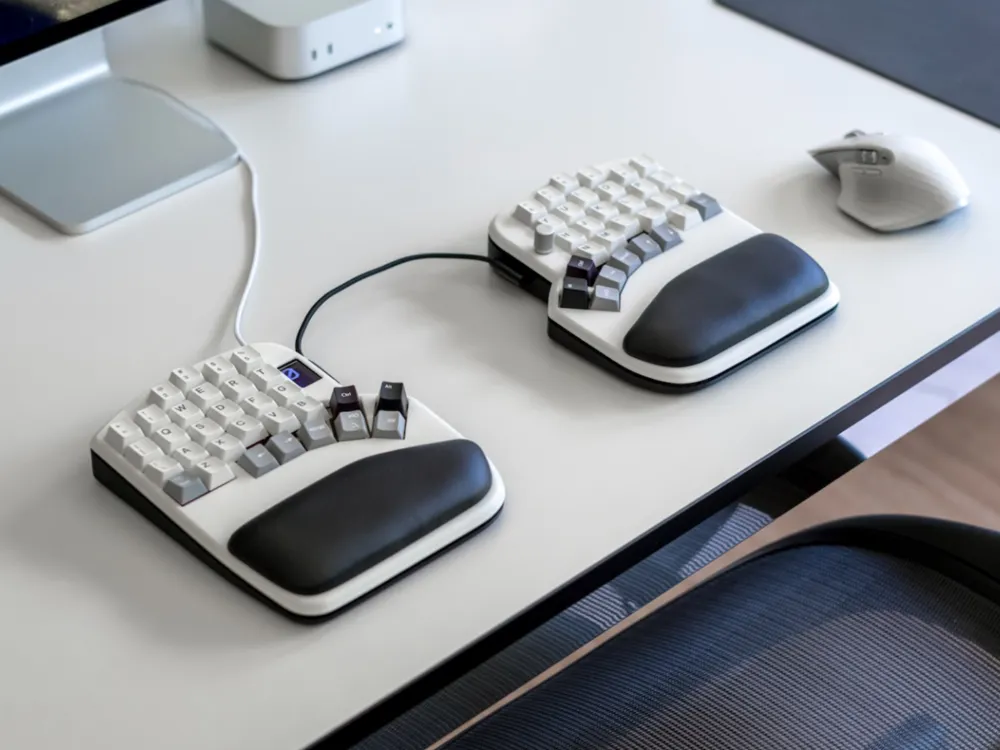

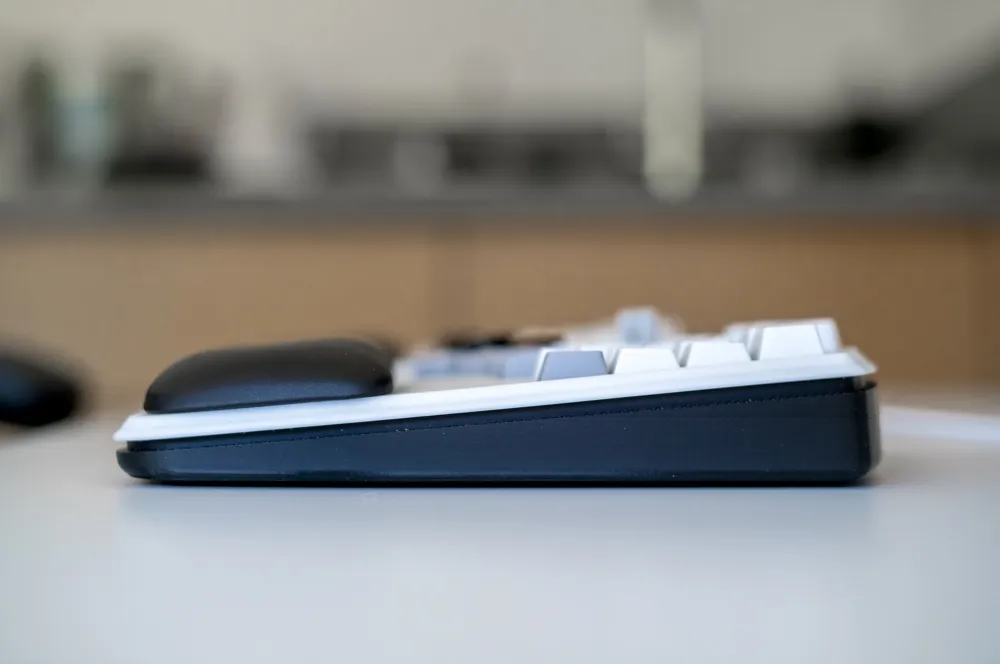

The wrist pads from the photos are optional. You can purchase them from Kinesis: https://kinesis-ergo.com/shop/ac360pp You need four magnets of the size 10mmx 3mm.

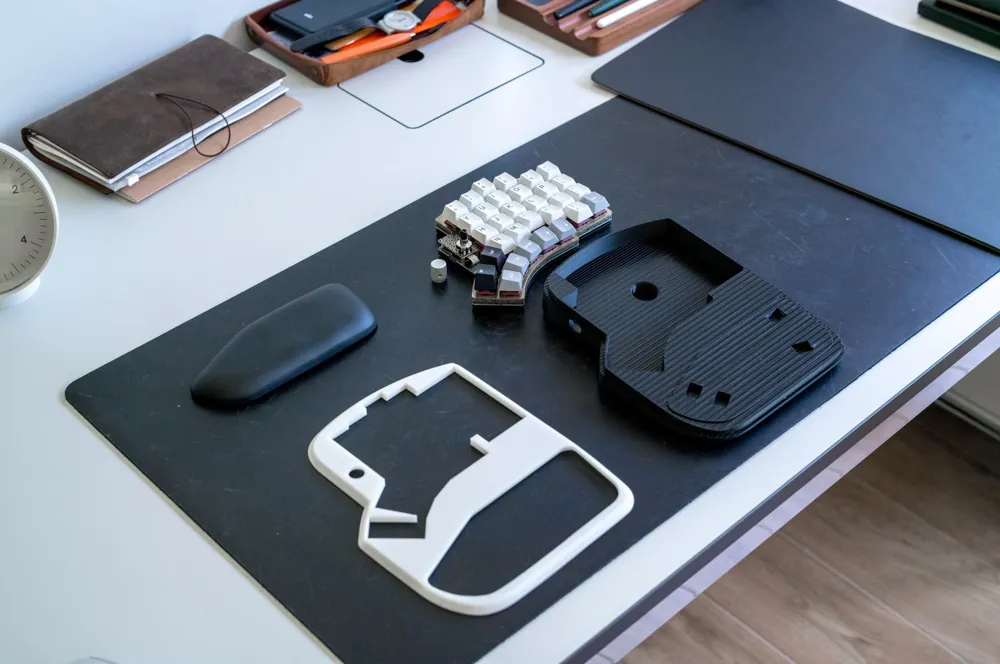

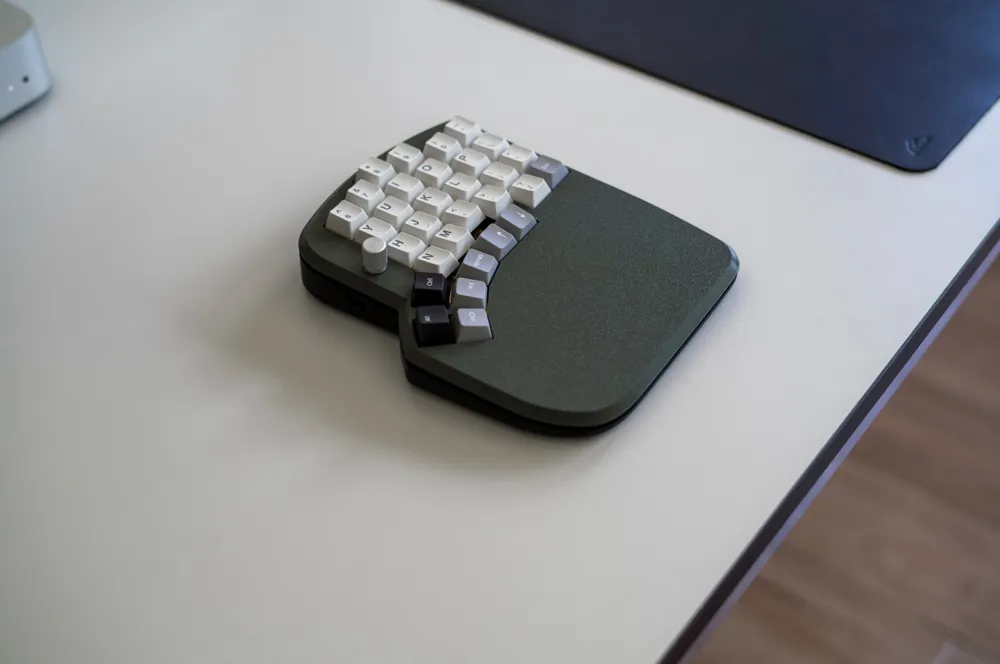

The design is fully modular. It comes with a two tone configuration. Once the bottom case is printed, the top plates can be printed in different colors to create a unique design. I included various configurations, so pick one that chose you.

You need to print first the bottoms:

• Left Bottom
• Right Bottom

Once you printed the bottom bases, you need to pick up one Left and one Right top plate. You have several options from here. If you want to use the wrist pad, choose the basic versions, if not use the “No Wrist” options. After that choose depending on whether you use a Display, Encoder  or nothing. The options are:

• Left Top
• Left Top Encoder

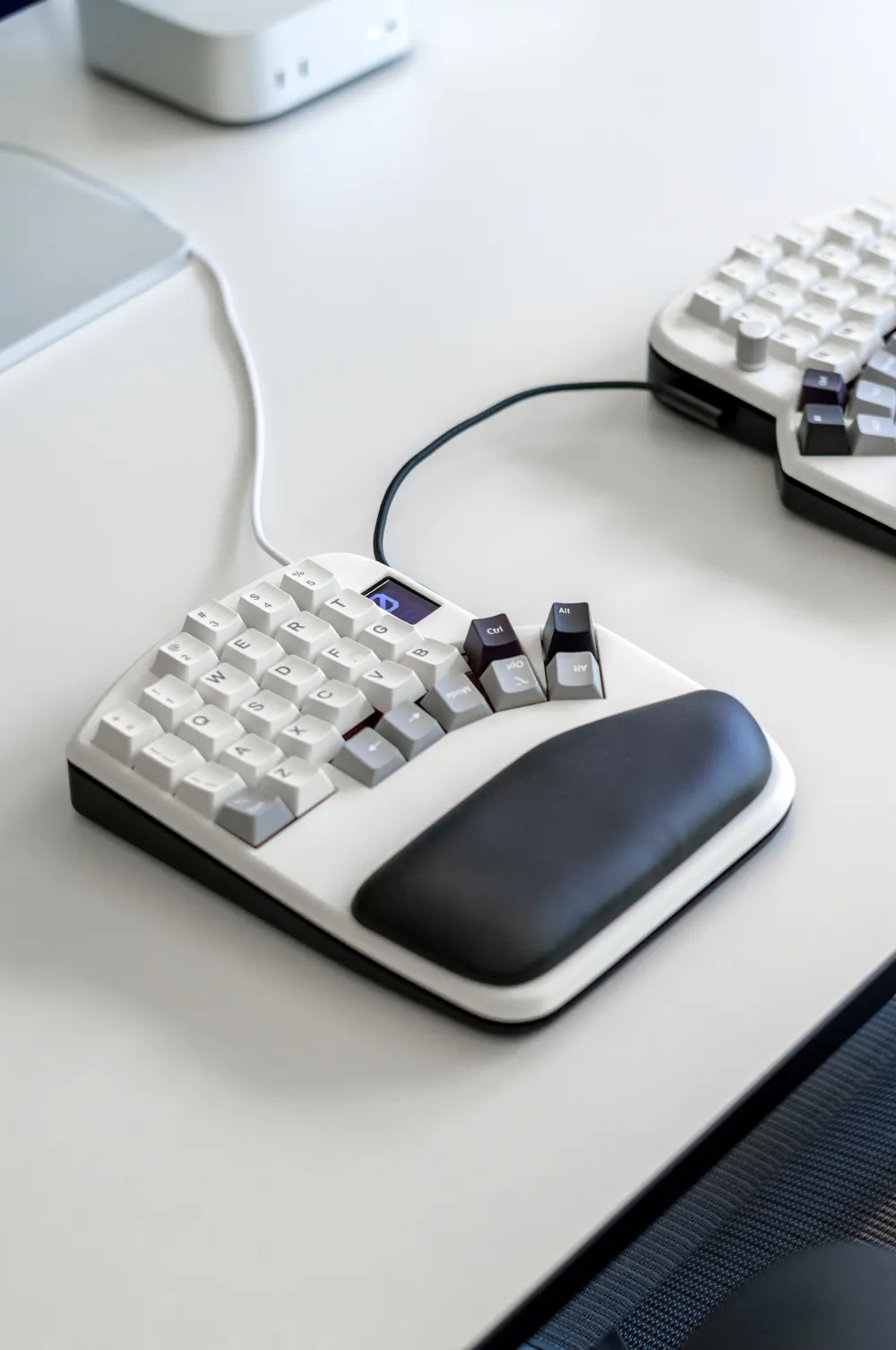

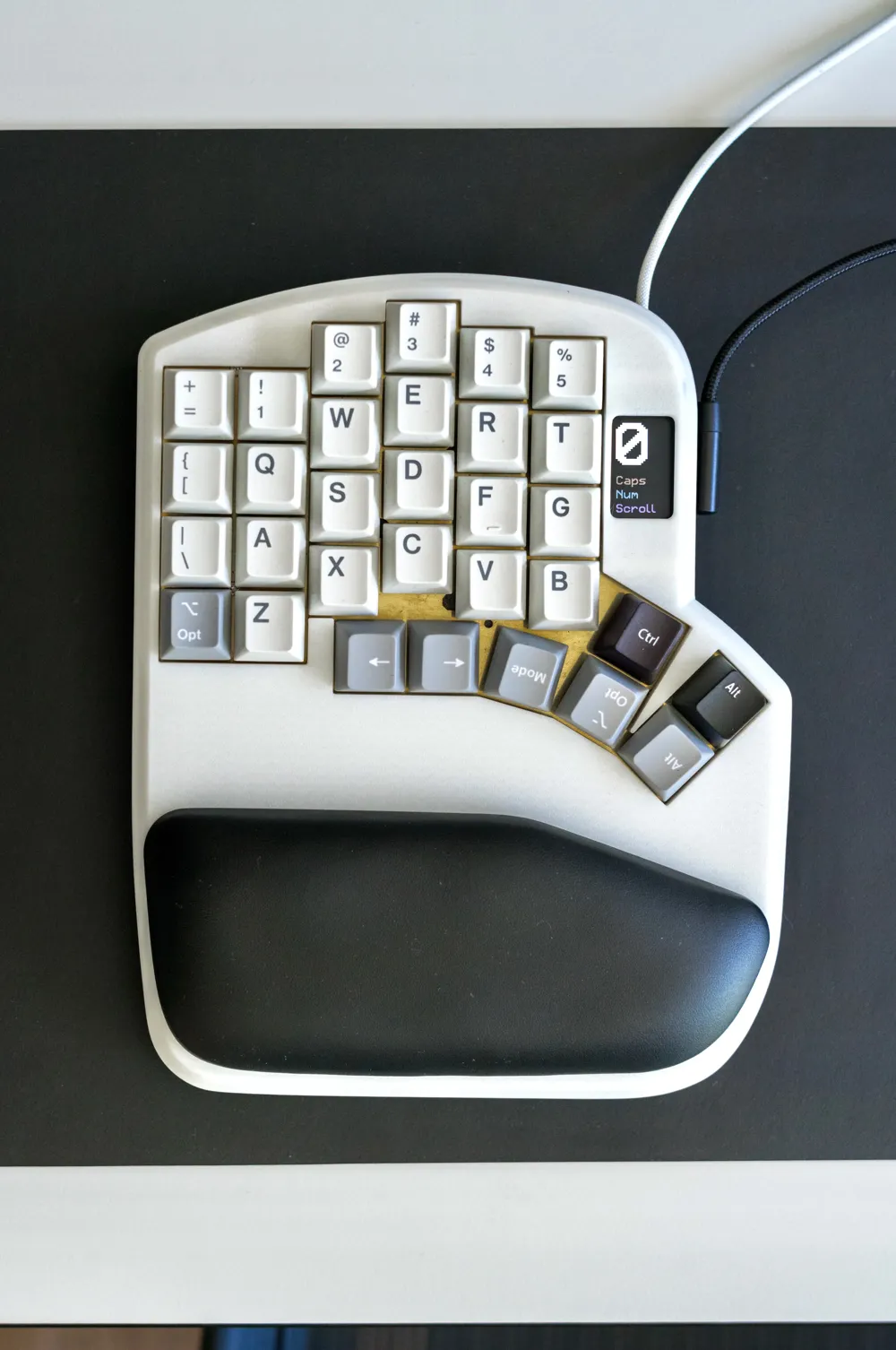

• Left Top Display

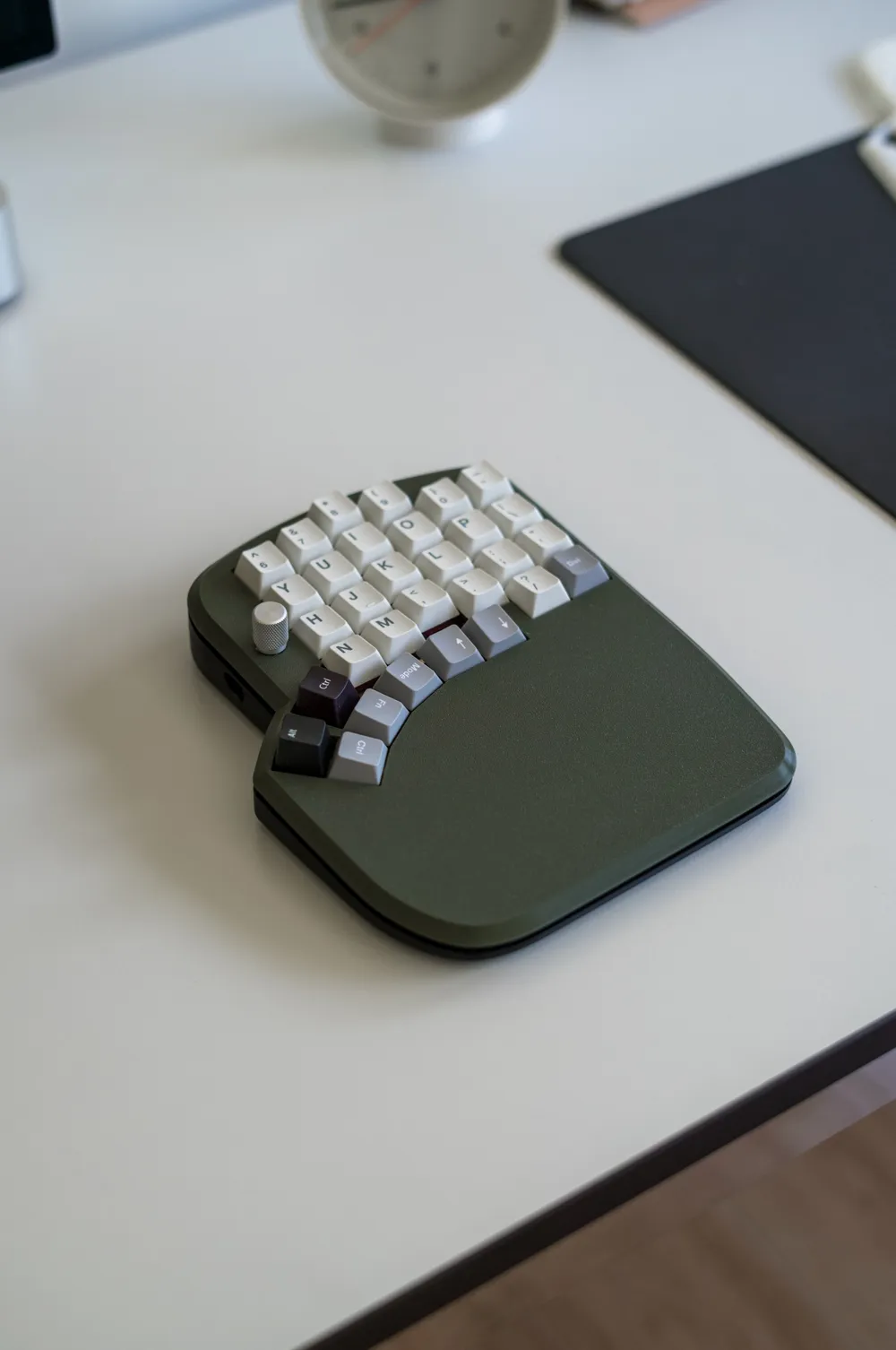

• Left Top No Wrist
• Left Top Encoder No Wrist

• Left Top Display No Wrist



• Right Top

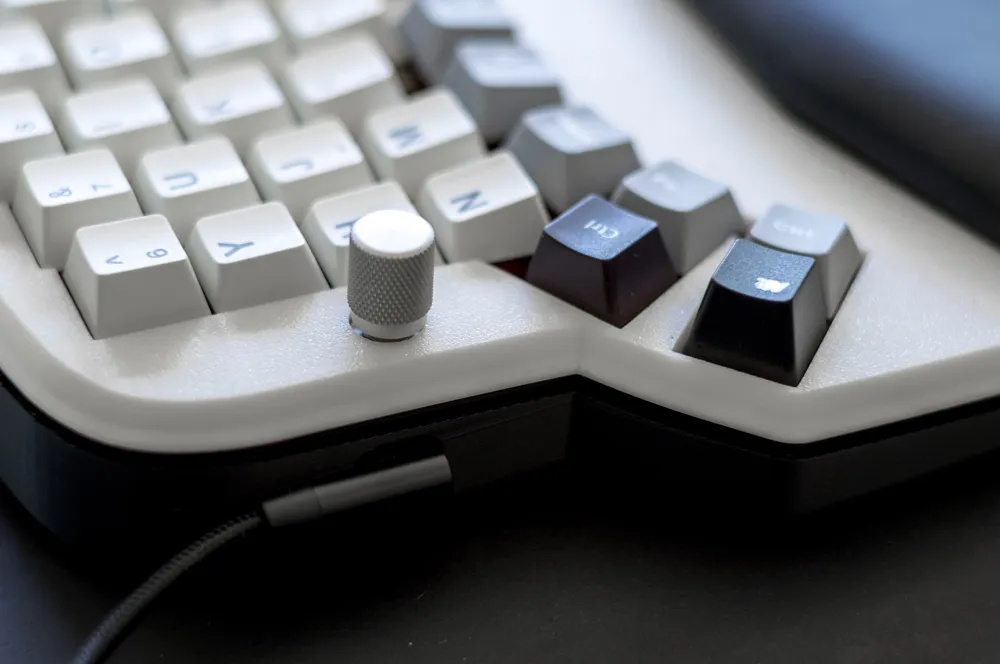

• Right Top Encoder
• Right Top Display
• Right Top No Wrist
• Right Top Encoder No Wrist
• Right Top Display No Wrist

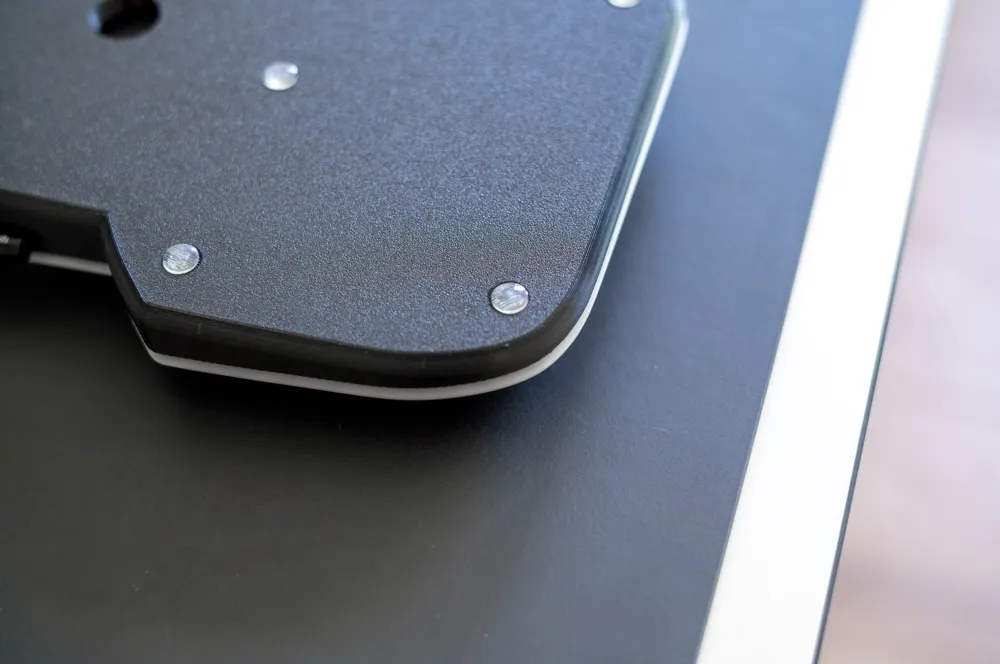

Lastly, it has support for rubber stops. The size I used in the photos are of 9mm x 2mm. I purchased them from Amazon.com (random no name)
