Drill Powered Filament Re-Spooling Tool

Print Profile(1)

All
A1
P1P
H2D
X1 Carbon
X1
A1 mini
P1S
X1E
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.12mm layer, 4 walls, 15% infill
0.12mm layer, 4 walls, 15% infill
5.6 h
1 plate
4.2(39)

Open in Bambu Studio
Boost
363
959
45
12
1.3 k
667
Released

Description

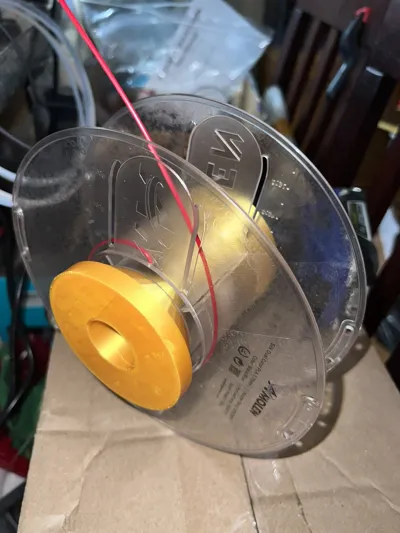

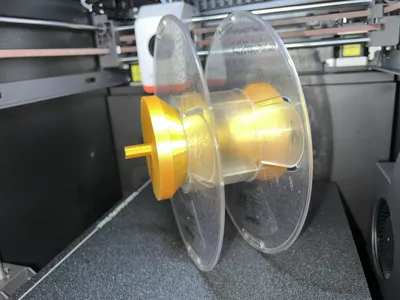

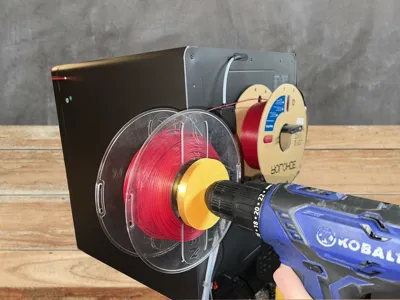

An easy to use tool to move filament between two spools. Don't waste a kilo of your filament on something you'll probably never use. No extra parts needed to complete the print, just hook it up to a drill and have something to hold your bad spool like your external spool adapter on your machine and just crank away, don't go too fast. I use reverse and just move the tool left and right to make the filament go back and forth.

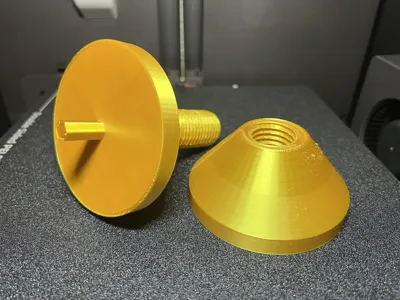

Printing instructions: If you use the stls make sure it prints the top drill bit attachment part solid. I added extra walls to the bit attachment part by adding a small negative cylinder. As you can see it creates a core structure for extra stability without the need for a bunch of extra walls and filament. Model comes in just under 80g with my recommended settings.
