Dragon_Burner P.I.N.D.A. Cowl

Remixed by

Print Profile(1)

All
P1S
X1 Carbon
H2D
X1E
X1
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.2mm layer, 4 walls, 40% infill
0.2mm layer, 4 walls, 40% infill
Designer
1.1 h
1 plate

Open in Bambu Studio
Boost
2
1
0
0
3
1
Released

Description

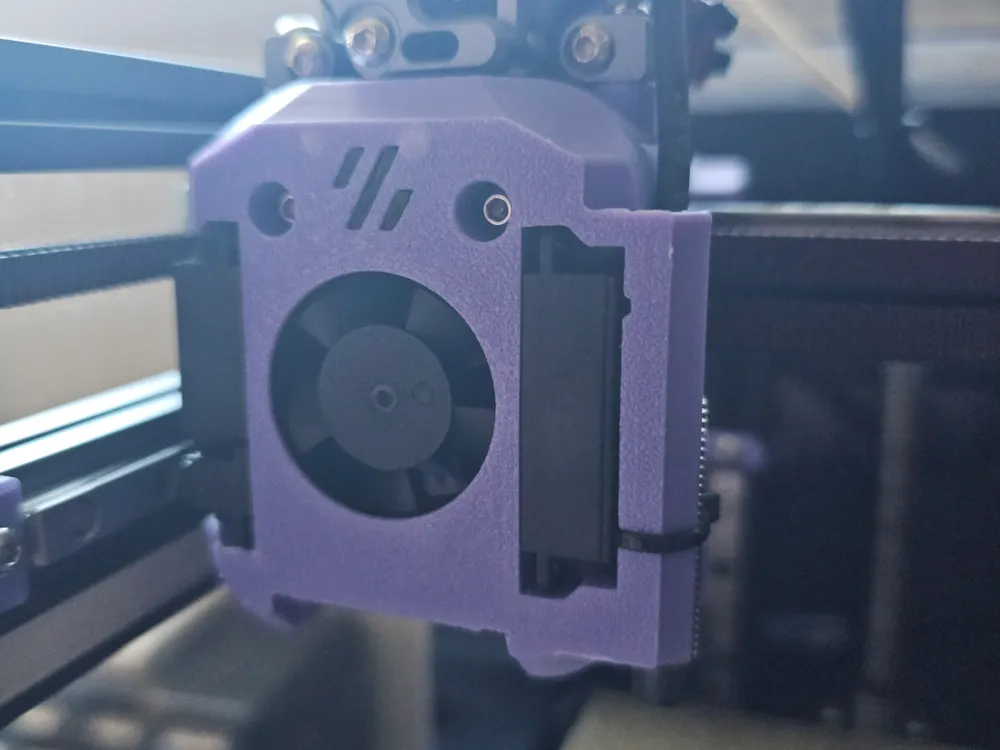

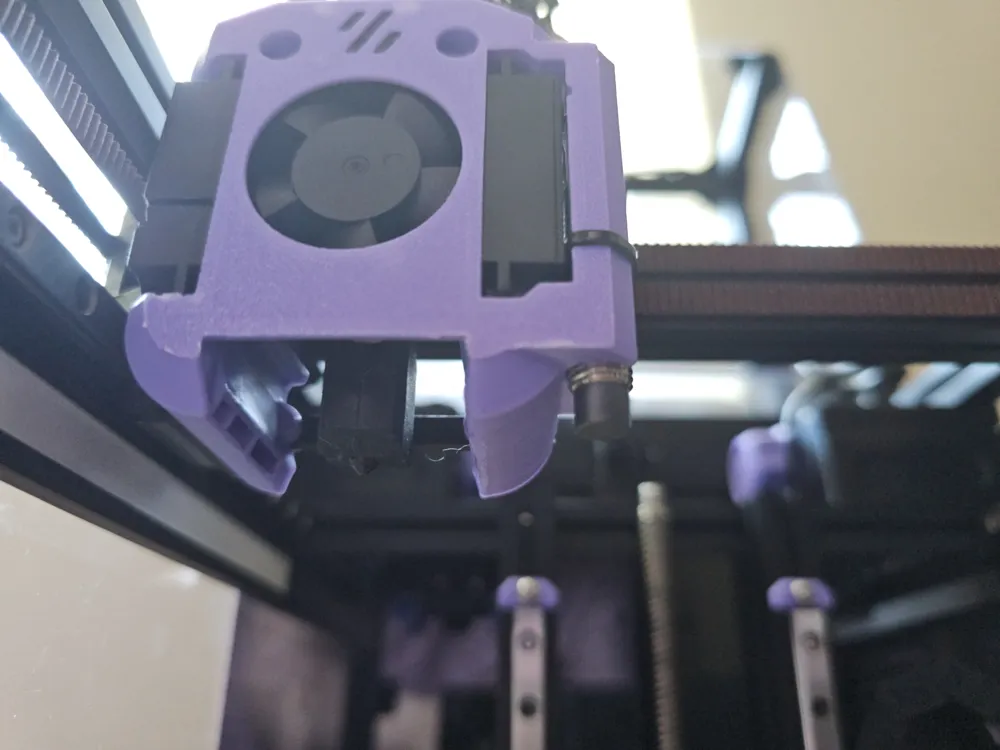

Simple P.I.N.D.A (pinda) mount for your DragonBurner toolhead. The Y range loss is quite minimal, I think it's around 1mm or less. Here is my Klipper config:

```

[probe]
pin: ^gpio25
# TZ V6 2.0  (formbot kit) offset
x_offset: 30.922
y_offset: -15.67
samples: 3
speed: 100
samples_tolerance: 0.010
samples_tolerance_retries: 4



[bed_mesh]
speed: 100
horizontal_move_z: 5
mesh_min: 31,5
mesh_max: 110, 104
#mesh_pps: 2,3
move_check_distance: 3.0
split_delta_z: .01
probe_count: 3,3
algorithm: bicubic

```
