Smoke Machine Bracket for Wind Tunnel
IP Report
Print Profile(2)
0.2mm layer, 2 walls, 15% infill
Designer
48 min
1 plate
0.2mm layer, 2 walls, 15% infill
Designer
43 min
2 plates
Open in Bambu Studio
Boost
5
9
0
0
9
4
Released
Description

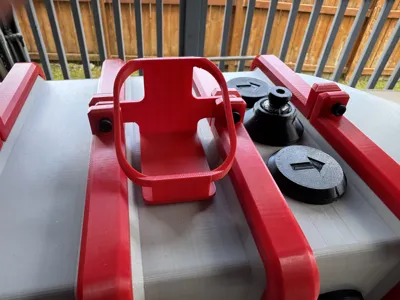

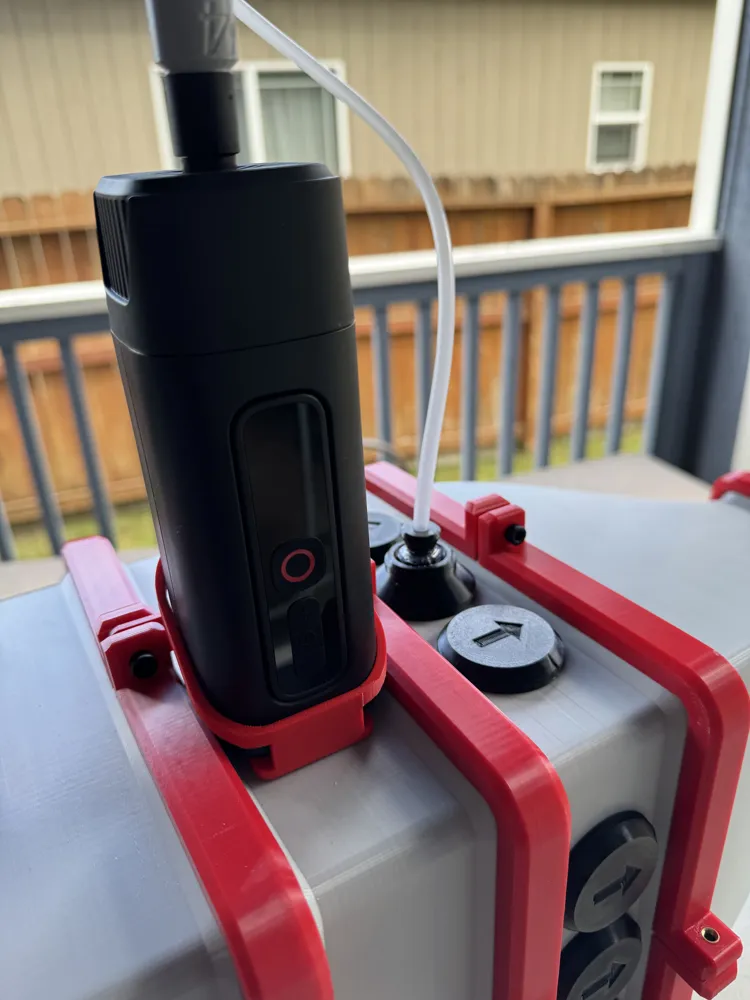

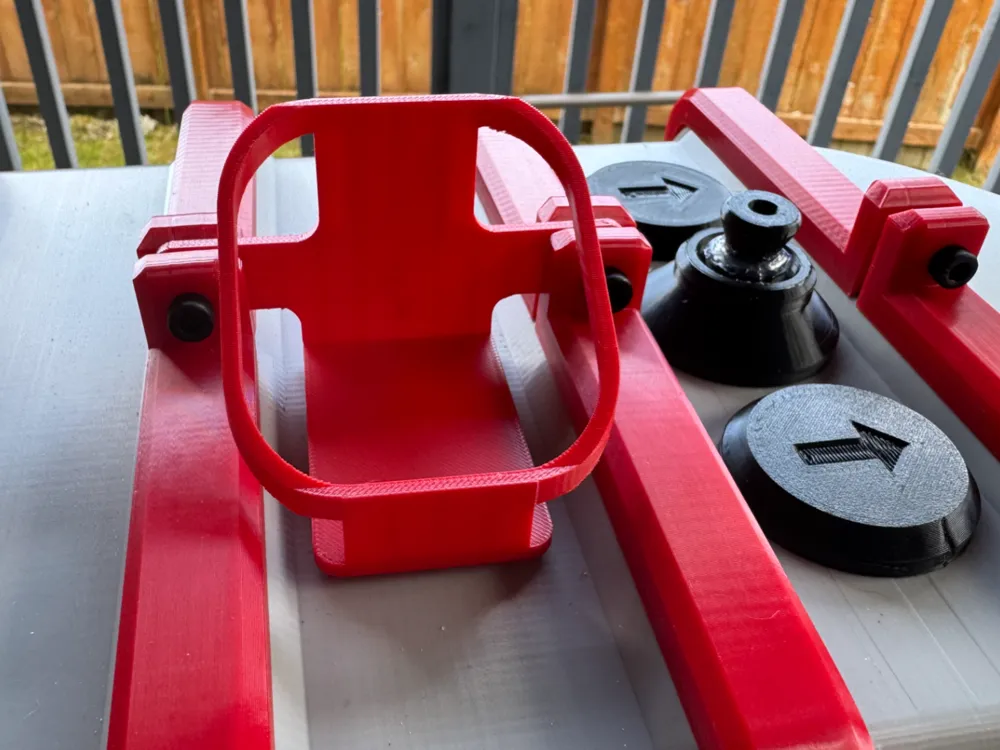

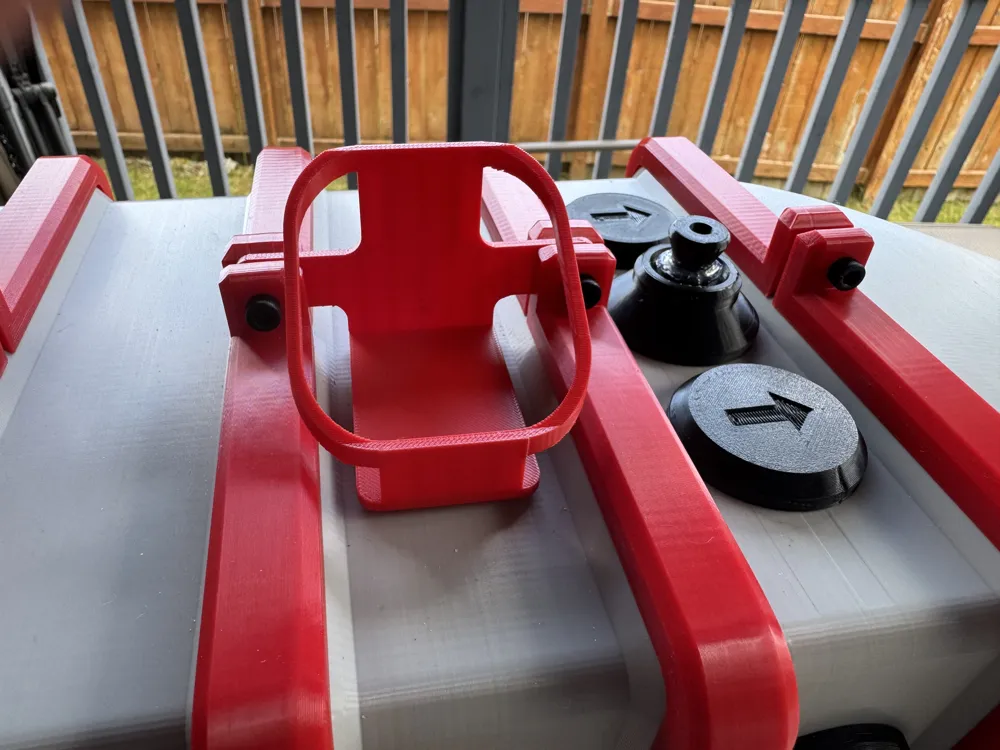

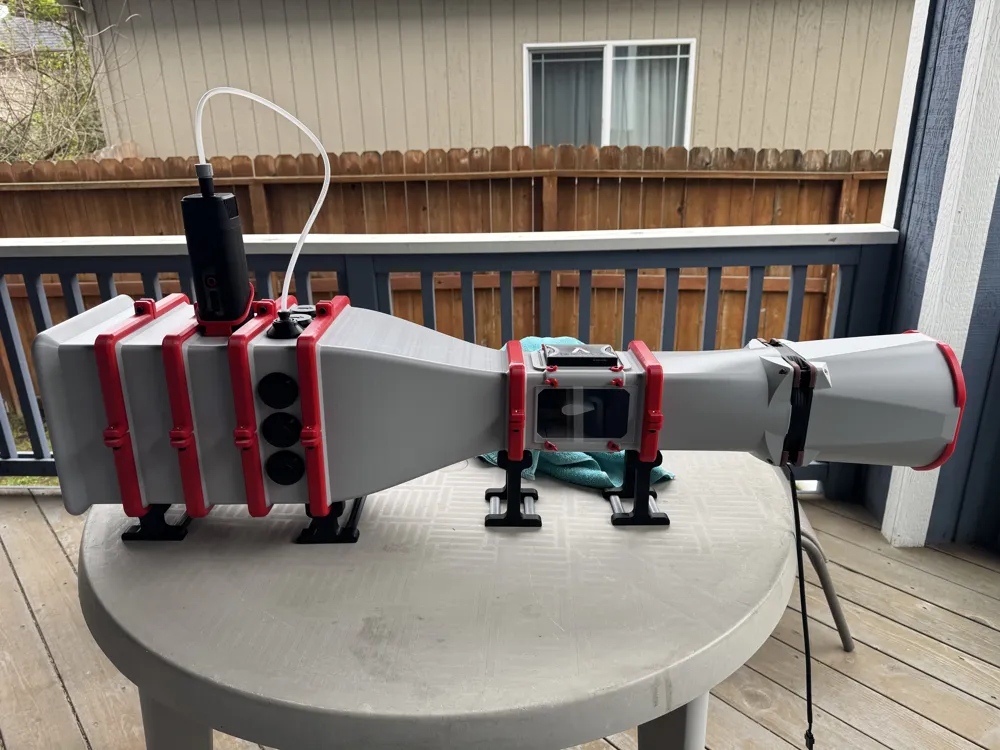

I modeled this mounting bracket to hold the Ulanzi Filmog FM01 smoke machine on @jerrodh's STEM Wind Tunnel.
Revised 7/27/25 - Uploaded the tubing adapters that I made for the smoke machine. The threaded adapter is remixed from Thread Gauge Tester: A Handy Tool for Measuring NPT Hydraulic Pipe Threads by @3DKIMBA on Printables. The Loc Line adapter is remixed from Loc-Line Fittings (1/4", 1/2" and 3/4") by MinyMan644 on Thingiverse. The Loc Line Adapter was printed in TPU and sealed with hot glue to prevent leaks. Standard ¼" tubing from the local hardware store is press fit into the adapters.
