Description

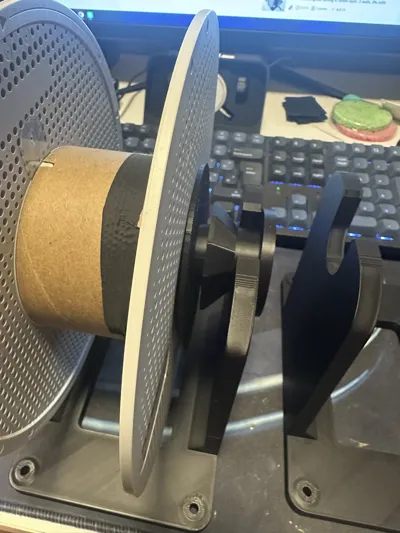

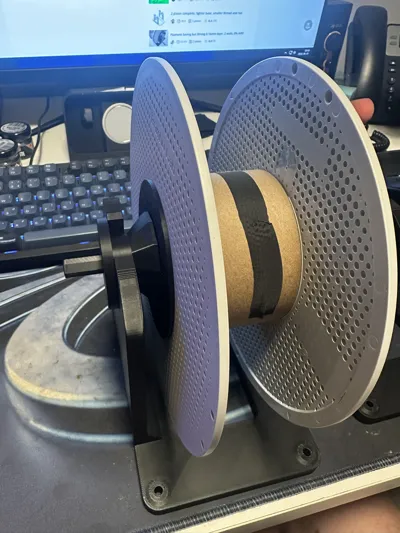

Hi, I needed to bring some filament onto AMS compatible spools, I've seen excellent projects around but too complex and expensive, I don't want to waste filament, time and money buying bearings, screws or anything else.

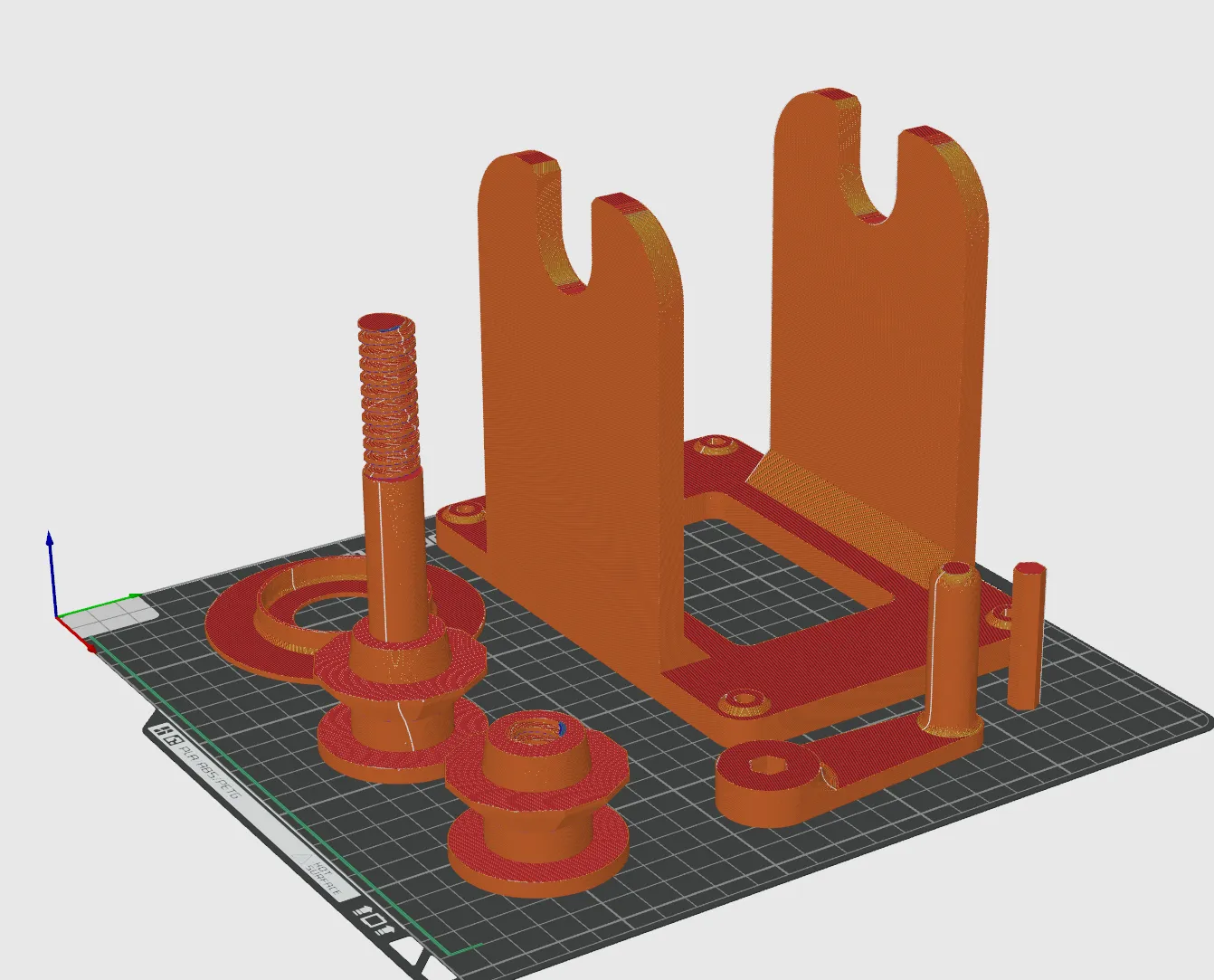

Simplifying as much as possible and without needing anything else apart from a printer, I designed this. Simplicity is fundamental for me! you can use the crank, or a screwdriver on the removable pin.

WARNING: for the unwinding spool I use an open filament dryer, otherwise print the parts 2 times to have a complete set

If you are interested feel free to bring updates, I left

consider this alternative with AMS Lite: AMS Lite Spool Winder by B-Lab 3D - MakerWorld

HAPPY PRINTING EVERYONE :D

bambu

spool

winder

Comment & Rating (1493)

@soltharix

Attempted with PETG-CF and everything seemed to come out OK, but upon fastening the bar together the male side broke off inside the female before I got anywhere close to it being finished. I was thinking PETG-CF would be a little tougher than just standard PETG but I could be wrong. Going to reprint just the male bar again but with more infill and a different pattern to test.

The designer has replied

@B_lab

Ciao, il CF ha come dici tu una resistenza superiore, ma come ho provato per altri miei progetti non essendo liscio da molta frizione tra le parti, bisognerebbe rivedere le tolleranze nel progetto.

@soltharix

Replying to @B_lab :

I think you're correct...it didn't seem like a smooth turn into the hole of the receiver so i'll try with just basic PETG on my next run and let you know!

@B_lab

Replying to @soltharix :

aspetto tue notizie grazie per il tuo interessamento 👏

@JM84.ie

Print Profile

0.2mm layer, 2 walls, 15% infill

printed 2 copies, printed well with PLA basic. used for unspooling Amazon PETG filament to a Bamboo lab spool to fit in AMS.

The profile uploader has replied

@B_lab

grazie per aver supportato questo modello, spero ti sia utile, felice stampa 🌈

@lrcustoms

Print Profile

0.2mm layer, 3 walls, 25% infill

Work properly. Printed on PETG, easy and simply to use.

The profile uploader has replied

@B_lab

grazie per il tuo supporto, sono davvero contento che tutto sia al giusto posto, felice stampa ☃️

@Xderbe

Print Profile

0.2mm layer, 2 walls, 15% infill

Works perfectly and flawlessly I designed adapters for the new Sunlu spools for this purpose Simply superb You can find the adapters on my profile :-)

Show original

@ayip75

Thanks for the spool adapter.

@Xderbe

Replying to @ayip75 :

With pleasure, have fun and best of luck

Show original

@user_2917553969

Print Profile

0.2mm layer, 3 walls, 25% infill

The model is good, sadly tronxy spool is narrower

The profile uploader has replied

@B_lab

se possibile puoi caricare il modello per tutti... felice stampa 🌈

@user_2917553969

for anothers spools fit so good

@kobaX_

Print Profile

0.2mm layer, 3 walls, 25% infill

Works great

The profile uploader has replied

@B_lab

grazie per il tuo bellissimo risultato, felice stampa 🚀

@turb0hobo

Print Profile

0.2mm layer, 2 walls, 15% infill

easy print on the X1C!

The profile uploader has replied

@B_lab

ottimo risultato, grazie per aver supportato questo modello, felice stampa 🌈

@user_345574734

Grazie mille per il design. L'ho stampato con un infill al 25% con dell'Overture SuperPla+ estremamente resistente. Come altri utenti mi stamperò degli spaziatori perchè al primo utilizzo con l'avvitatore avevo stretto troppo e creato troppo atrito :p vedi foto 2. In ogni caso funziona benissimo !

The designer has replied

@B_lab

Grazie per il tuo supporto al modello, nella lista trovi tutti i diametri per gli adattatori, felice stampa 🌈

@TheKroete

Print Profile

0.2mm layer, 3 walls, 25% infill

fits nice and tight

The profile uploader has replied

@B_lab

grazie per il tuo contributo al modello, felice stampa 🌈

@vittorio.iadaro

Print Profile

0.2mm layer, 3 walls, 25% infill

perfect

The profile uploader has replied

@B_lab

grazie 🤩, felice stampa ✅
