Tesla 3|Y Center Console Tray - Modular | Backlit
Print Profile(2)
Description

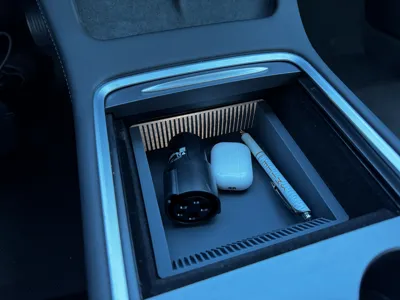

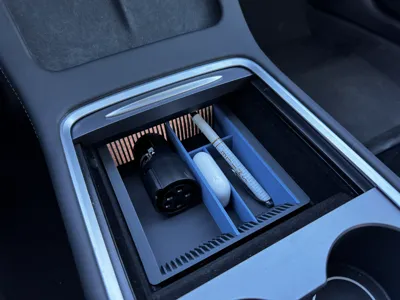

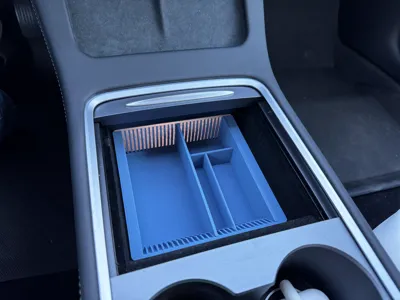

Upgrade your Tesla Model 3 / Y with this backlit modular center console organizer tray. Designed to enhance both functionality and aesthetics, this organizer integrates seamlessly with your vehicle, offering personalized organization and aesthetics.
Update: Added the STLs for a version that is 10mm longer, if the current version is a bit too small for you. The only downside of this version is the single wall is easier to accidentally slot in wrong. Other than that it works well!
NOT compatible with 2024 Highland Model 3.
Features Overview

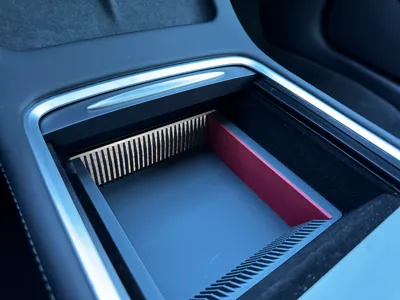

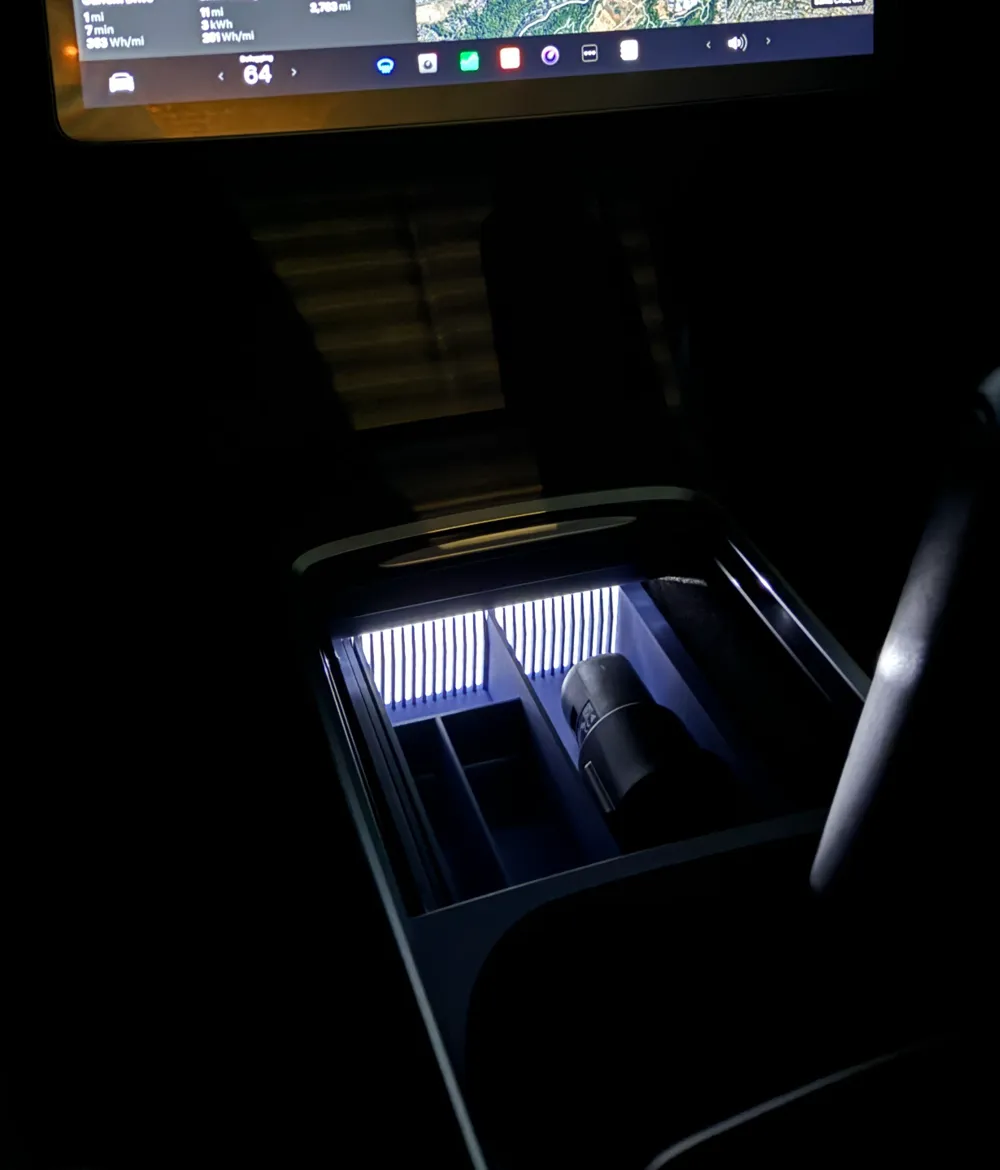

- Ambient Backlit Design: The tray is designed to utilize the existing light within the center console, featuring a clear back section to allow for illumination, for enhanced visibility and aesthetic appeal.

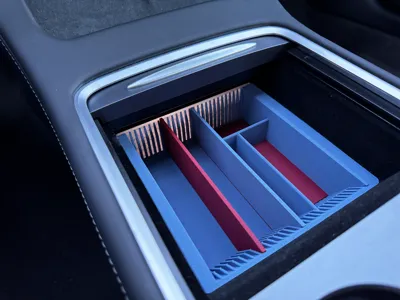

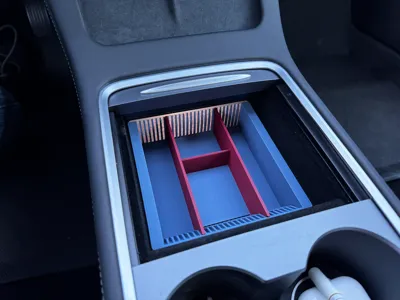

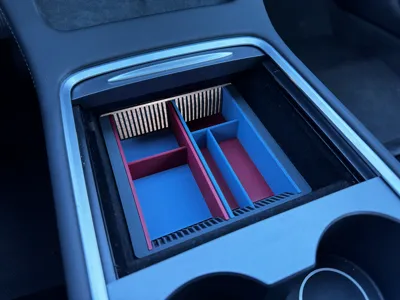

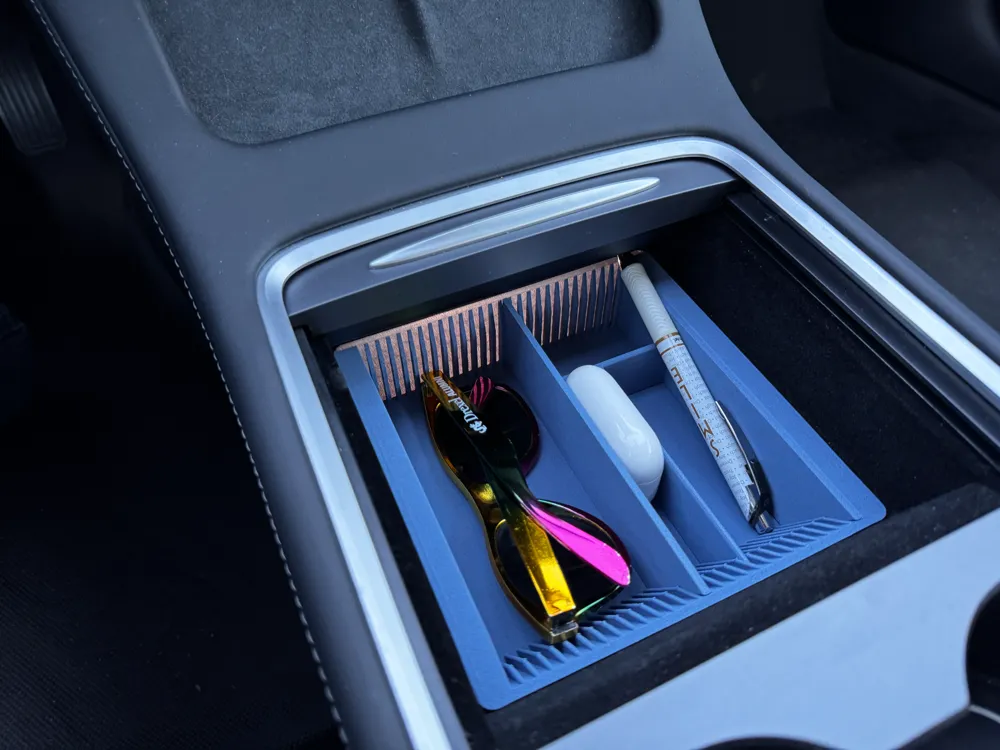

- Modularity & Color Customization: The organizer tray includes various inserts that can be positioned anywhere within the tray to customize compartment sizes and arrangements. Allowing for both functional, and aesthetic color customization.

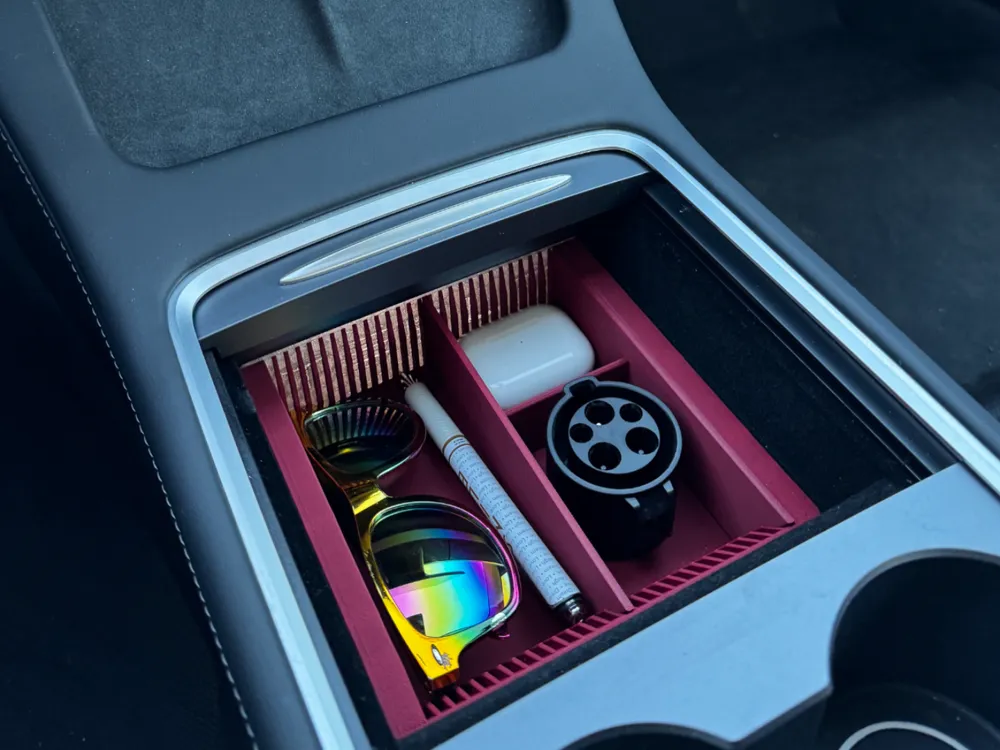

- 2 Tray Options: Select from a tray featuring a J1772 adapter hole or opt for a streamlined, flat tray design.

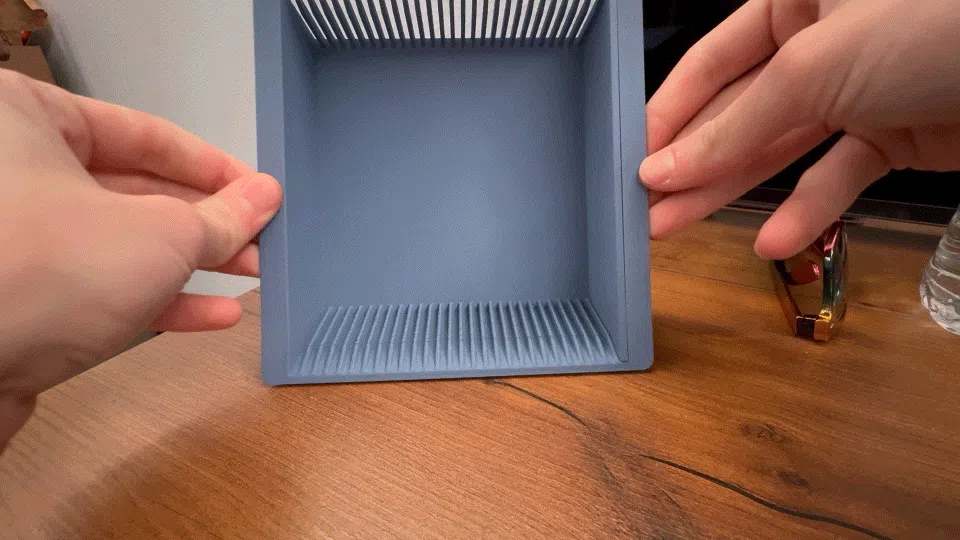

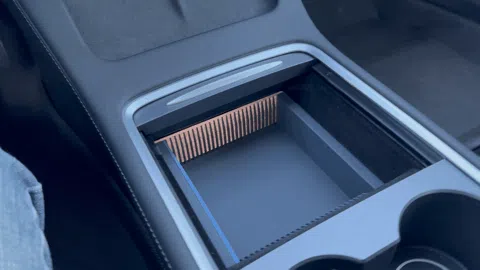

- Sliding Mechanism: The tray is designed to slide within the center console's grooves, allowing for easy access to both the tray and the storage area beneath it.
- Aesthetic Design Elements: The tray features grooves that not only secure the inserts but also create a textured, visually appealing effect.
Organizer Inserts
Single wall divider insert:

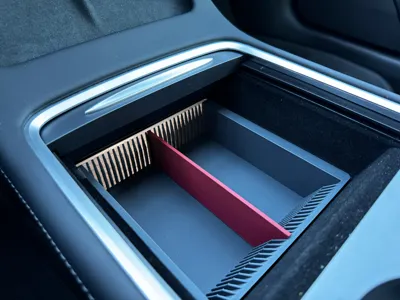

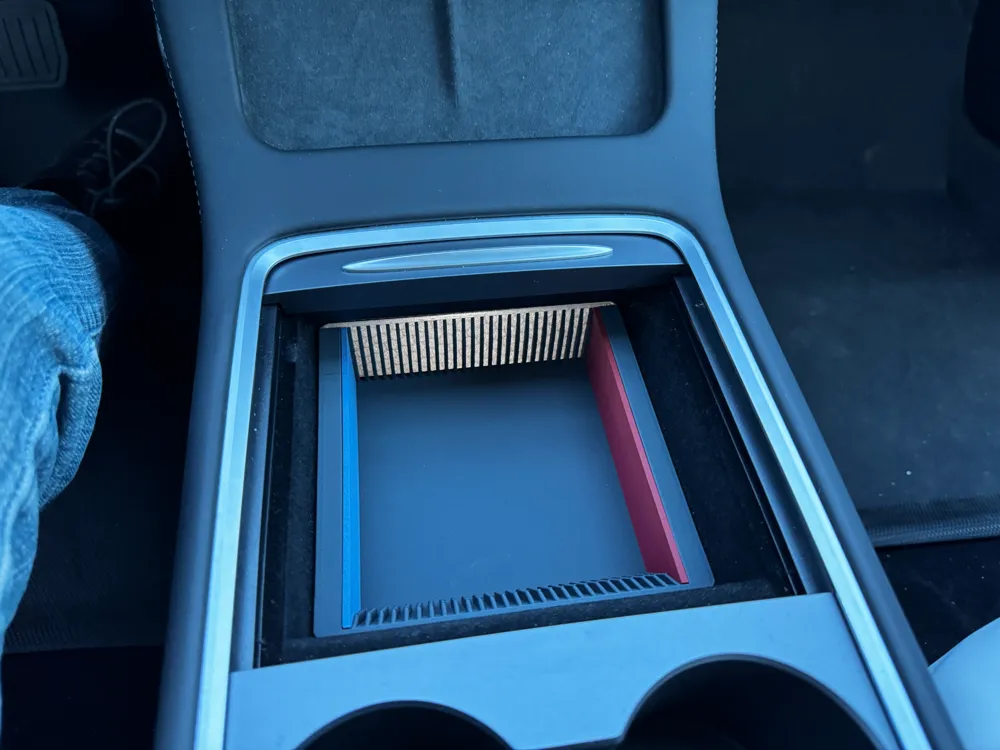

- The divider wall offers unparalleled flexibility, allowing placement anywhere within the tray—even snugly against the edge, blending in seamlessly when not in use. This versatility means the divider can function as both a practical compartment separator and an aesthetic element, by printing the divider in a contrasting color to add personalized customization without the printing waist!
Multi wall inserts, with two design types each:
- With a floor: which can be useful for color customization or to cover the J1772 hole if it's not in use.
- Without a floor: utilizing the tray's base as the bottom surface, ideal for lighter customization needs or to accommodate the J1772 adapter hole.
Tray 3-D printing considerations:
- The tray is designed for vertical printing, this streamlines the process by requiring just a single color change and eliminating the need for support structures.
- All multicolor inserts only need a single color change.
- I used PLA-CF for all the colors, except for clear PLA for the backlight.
Please let me know if you have any questions, and feel free to create your own modules to put inside the tray for even further customization! 😊
______________________________________________
🧰 My 3D Printing Essentials
Here are some of the tools I use regularly in my 3D printing workflow.
Note: Some of the links I share are affiliate links. As an Amazon Associate, I earn from qualifying purchases. Your support helps me keep creating new designs and improving my work. Thank you!
🛠️ The Only 3D Printer Tool Kit You’ll Ever Need | All‑In‑One Essentials Set
These comprehensive kits have everything you need—perfect for cleanup, trimming, assembly, and detailed post-print finishing. Each kit offers a unique selection and quantity of tools, so you can find your ideal match. I’ve linked 3 excellent options below! 😊⬇
➡ | Amazon Link | Amazon Link | Amazon Link (paid link)

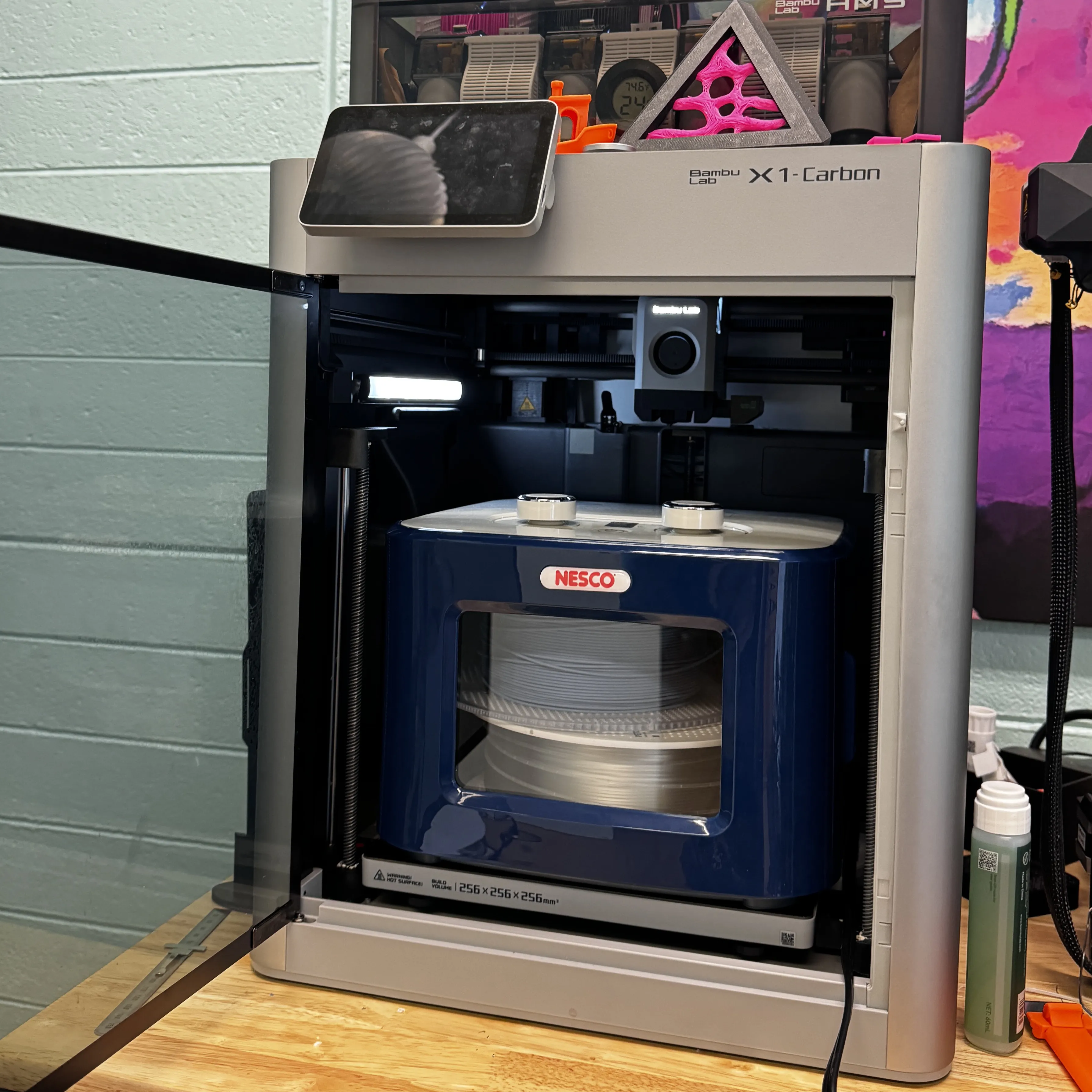

My Favorite Filament Dryer | NESCO FD-41B Food Dehydrator
