6mm Pegboard Pliers Rack—150-455-40-5.6

Matching pegboard hole diameter: 6mm, minimum distance between two holes: 10mm, center distance between two holes: 16mm.

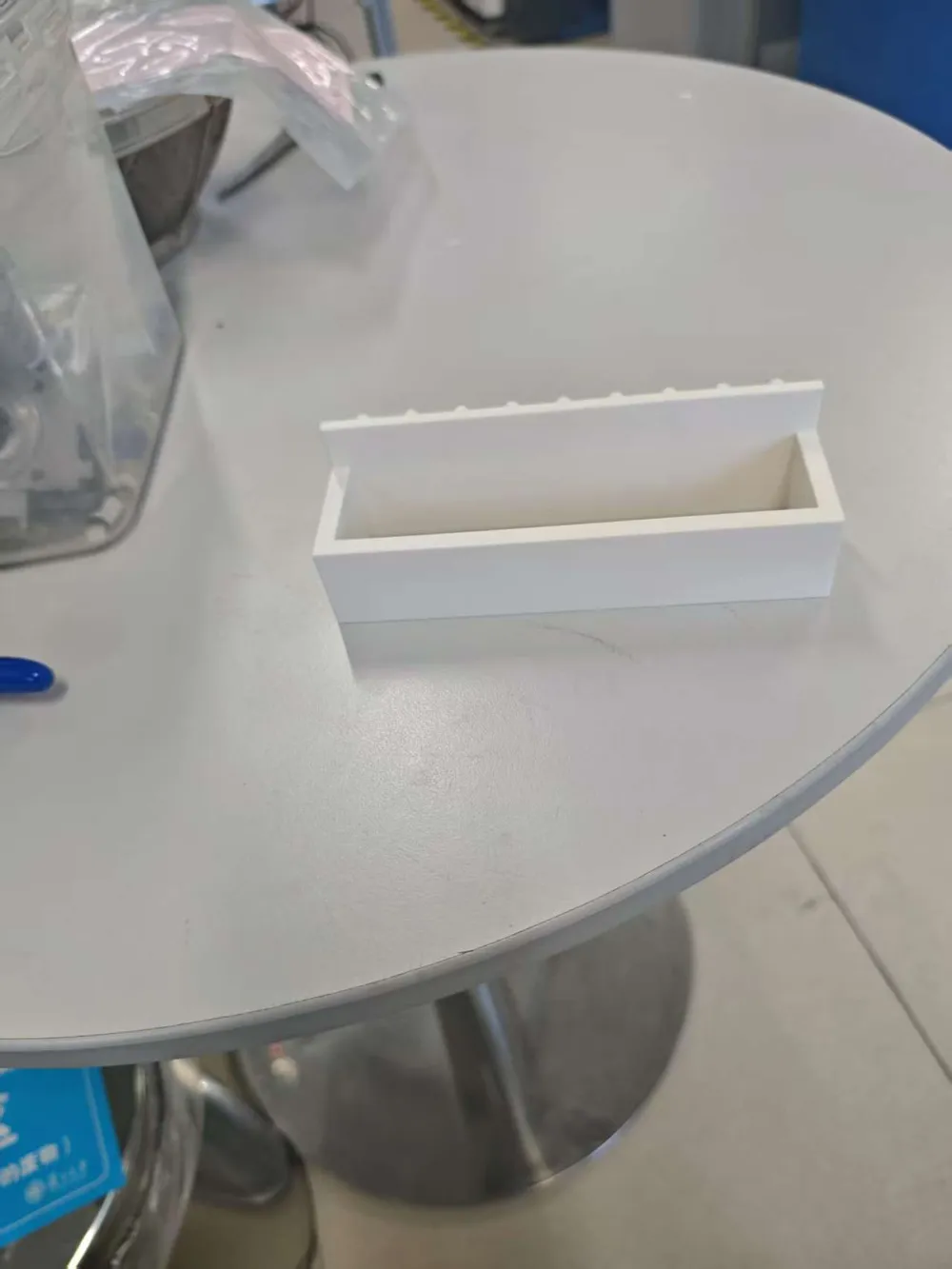

This model is a multi-tool storage rack specifically designed for 6mm round hole pegboards, mainly used for hanging and storing multiple pliers, screwdrivers, and other commonly used tools. The rack is securely installed on the pegboard via a rear buckle structure, and the front has multiple partitioned loops for orderly placement of tools, facilitating access and organization.

Design Features

• Strong Compatibility: Suitable for standard round hole pegboards with a hole diameter of 6mm
• Large Capacity Storage: 150mm in length, can simultaneously hang multiple tools
• Independent Partitions: Each loop is independently separated to prevent tools from colliding with each other

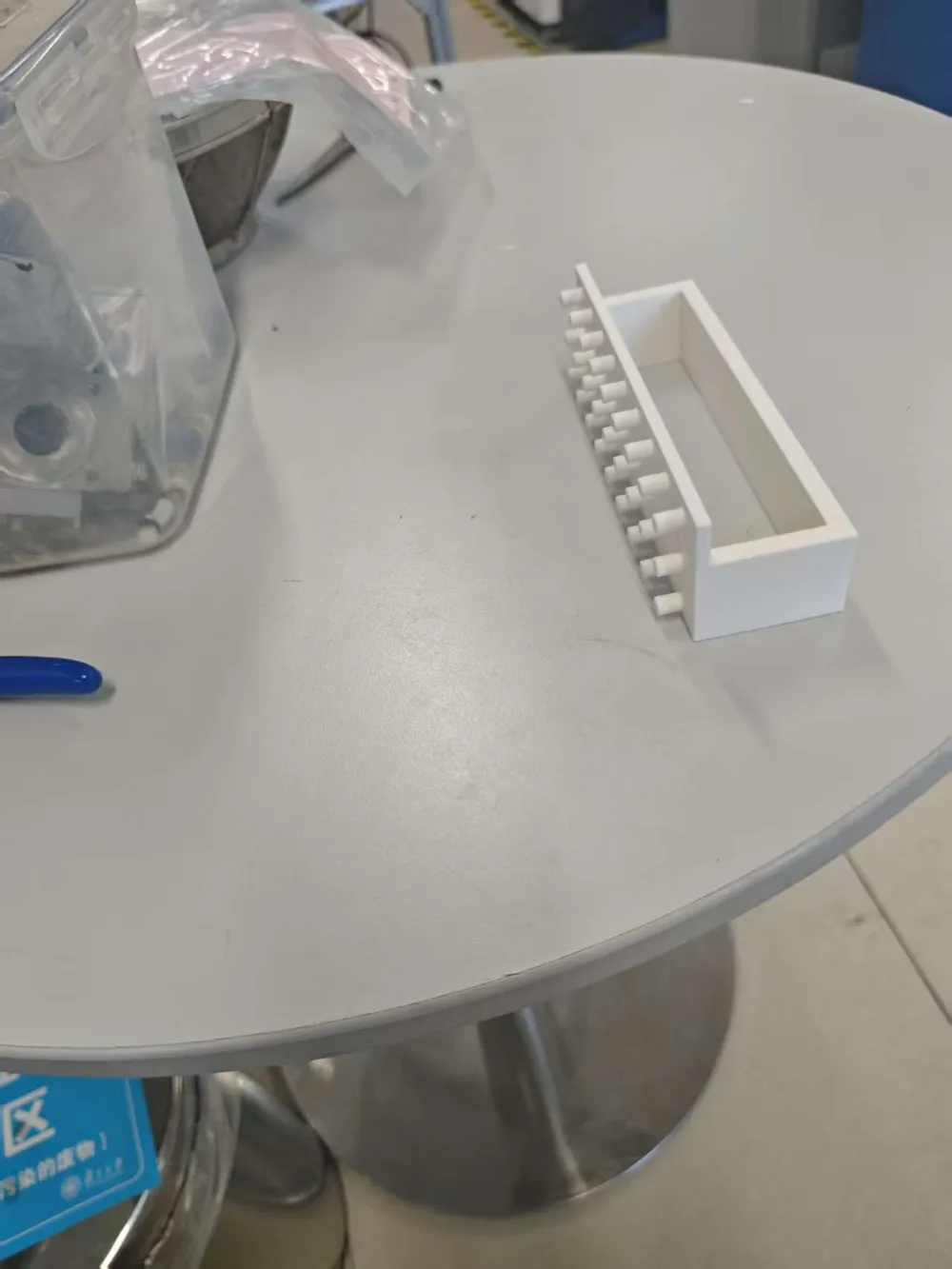

• Robust and Durable: The rear hook is widened for enhanced load-bearing capacity and prevents detachment
• Aesthetic and Practical: Simple in appearance, suitable for various scenarios such as homes, workbenches, and workshops

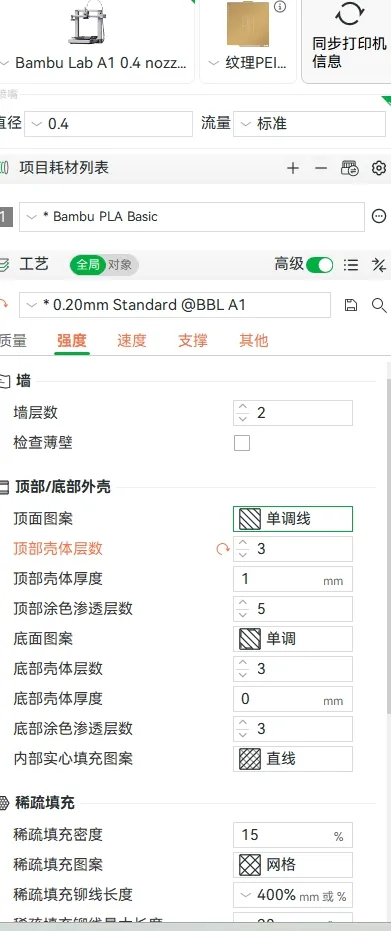

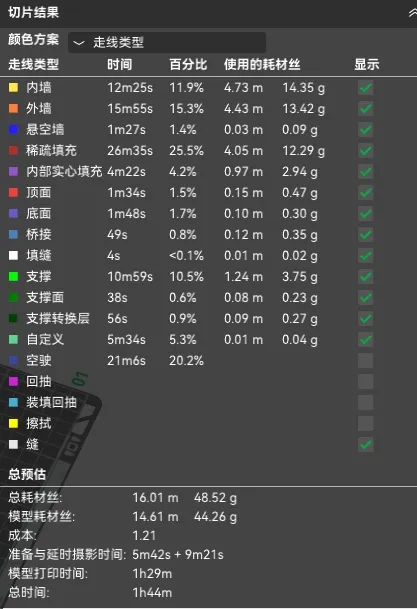

Printing Suggestions

• Recommended Material: PLA, PETG, ABS (higher strength materials are recommended)
• Layer Height: 0.2mm
• Infill: 30% and above to enhance load-bearing capacity

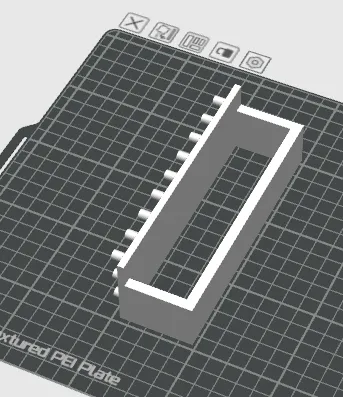

• No Supports Needed: The model structure is optimized, eliminating the need for additional supports
• Suggestion: Check the model dimensions to ensure compatibility with your pegboard before printing

Instructions

1. After printing, clean up excess burrs and supports.
2. Insert the hook part into the 6mm round holes of the pegboard to ensure the rack is secure.

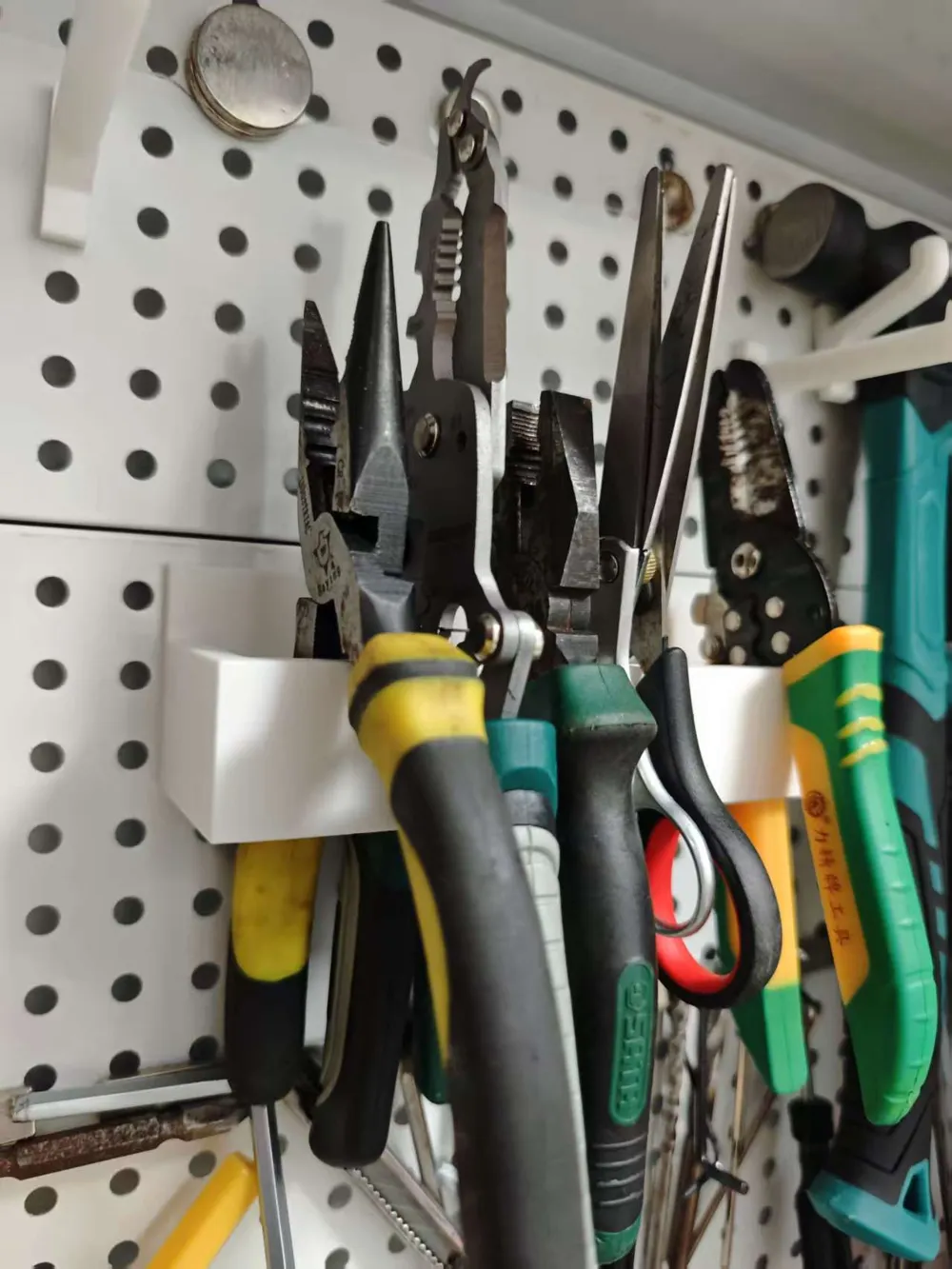

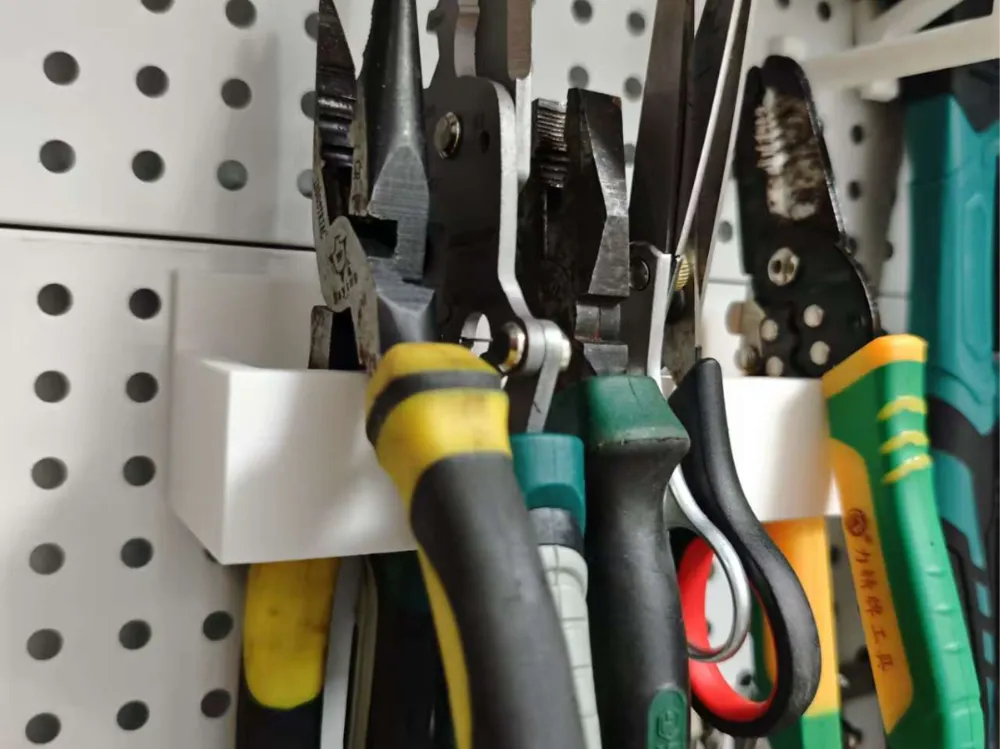

3. Neatly insert the pliers, screwdrivers, and other tools into the loops as needed.
4. For special storage needs, the partitions or dimensions can be adjusted according to the model structure.

Precautions

• It is recommended to test the hook strength with an unloaded test after printing to ensure safety before formal use.
• When hanging heavy tools, it is recommended to use high infill and high-strength materials for printing.
• If there is a slight discrepancy between the pegboard hole diameter and the model, the model size can be scaled appropriately before slicing.
