Vex Pushback Mini Field

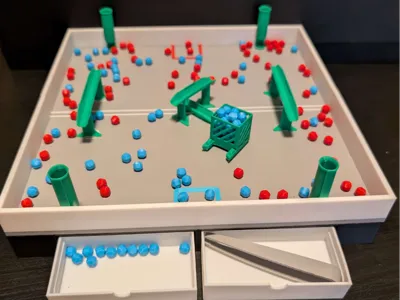

Vex Pushback 25-26 Miniature Field with Elements and bot.

Everything is to - scale with the real - life field and game

The Field is 240 x 240mm and the elements are 6.5mm.

Includes:

Base Field

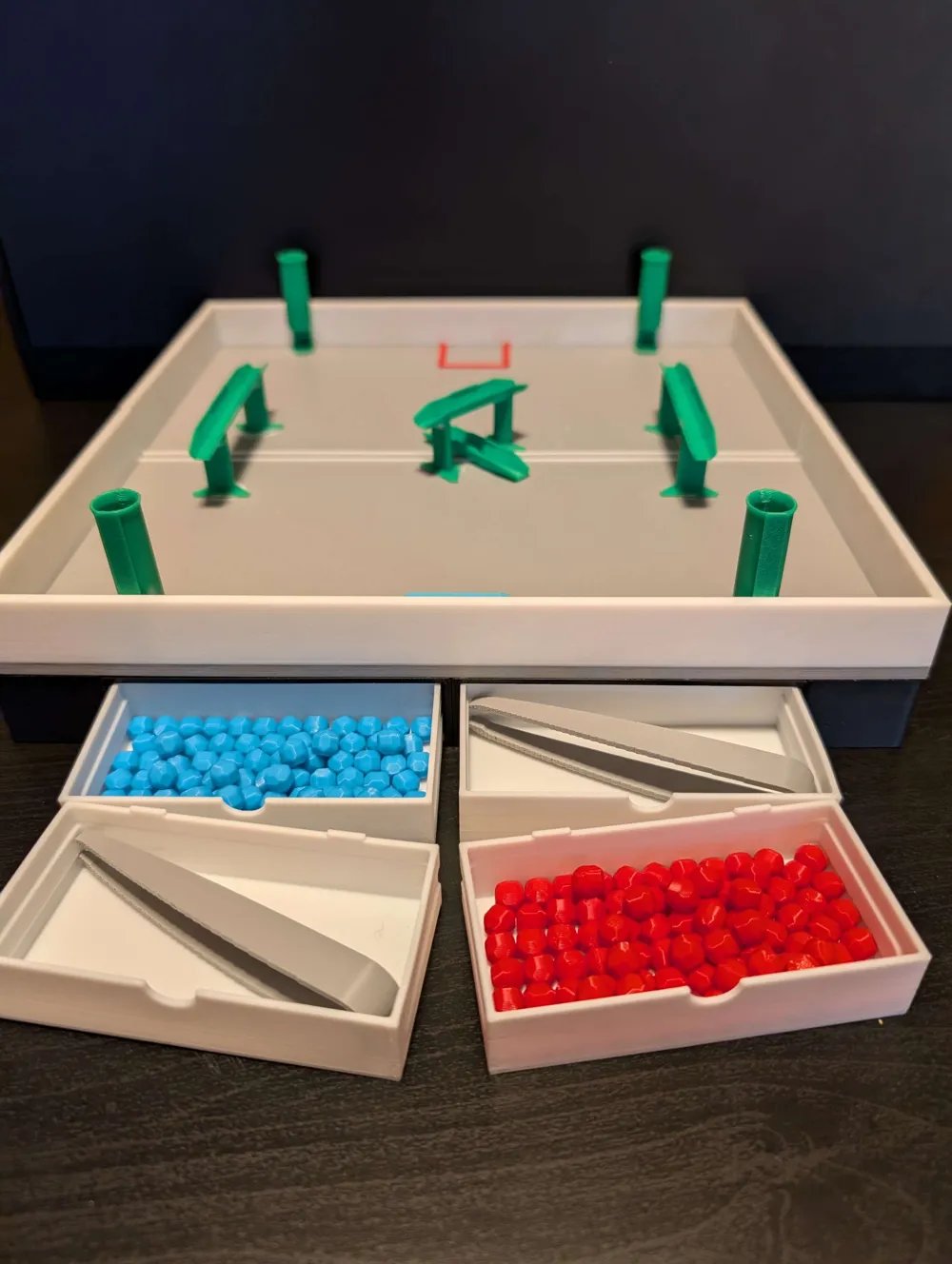

Stand With 4 Drawers Built In

Side and Middle goals

Parking Zones

44 Red Elements

44 Blue Elements

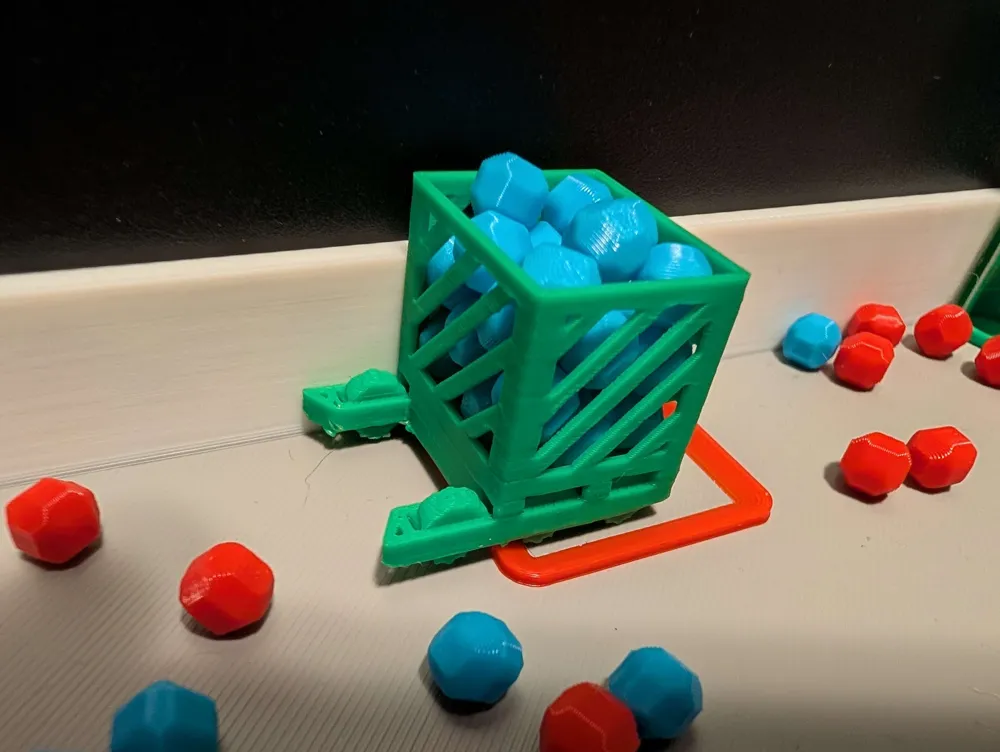

Mini Robot ( i Plan to Add More in The Future )

ASSEMBLY STEPS: (USE GLUE AND GLUE ONLY )

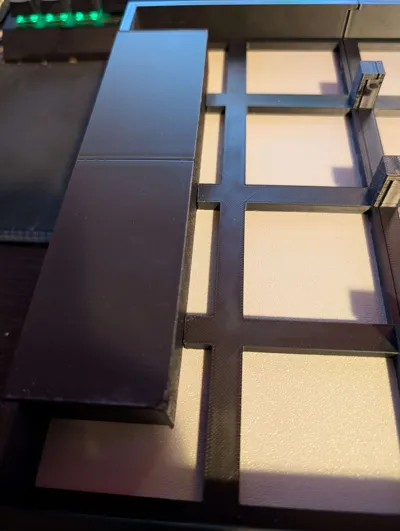

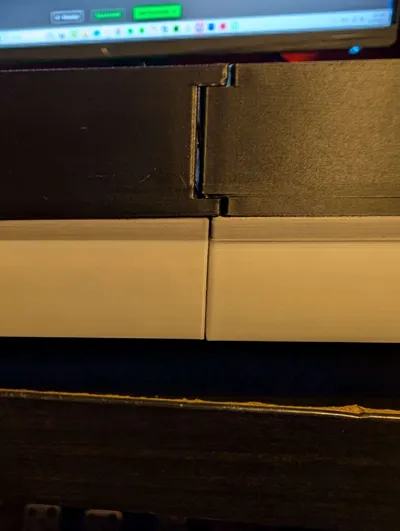

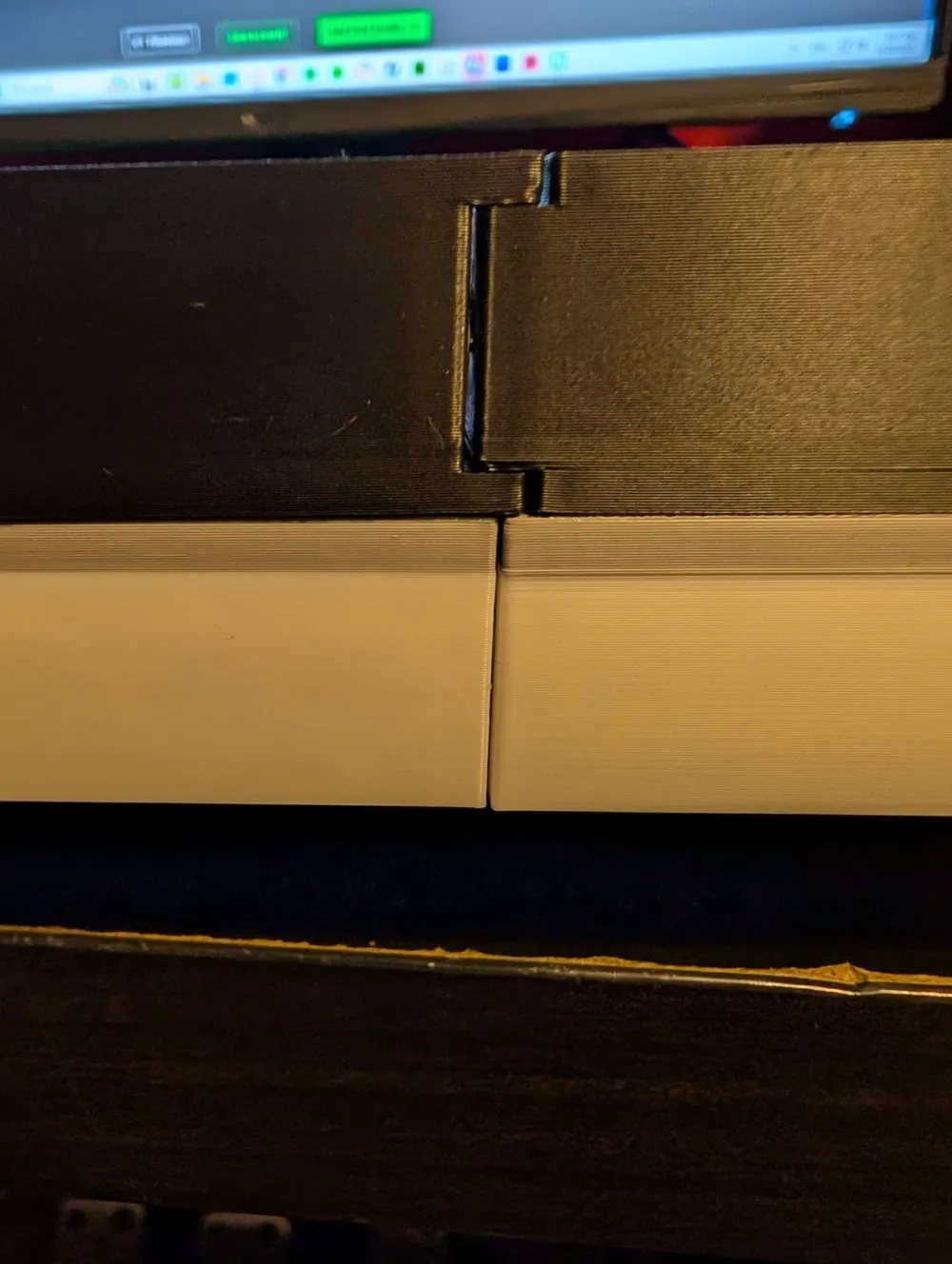

1. Glue Stand Frame Onto The Bottom of the Field, MAKE SHURE THE OPEN PART OF THE FRAME IS TOWARDS THE PARKING ZONES. OR MAKE THE SEPERATION LINES IN THE FRAME AND FIELD LINE UP LIKE THE PICTURE
2. Once Dry, Glue Drawer Housings into the frame, MAKE SHURE THE LARGE SIDE WITH THE TABS IS FACED TOWARDS THE FIELD, SMOOTH SIDE FACING DOWN

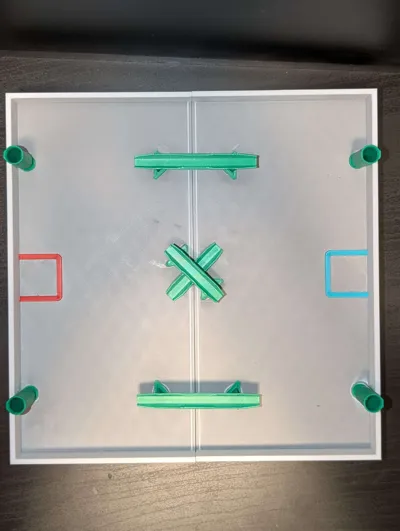

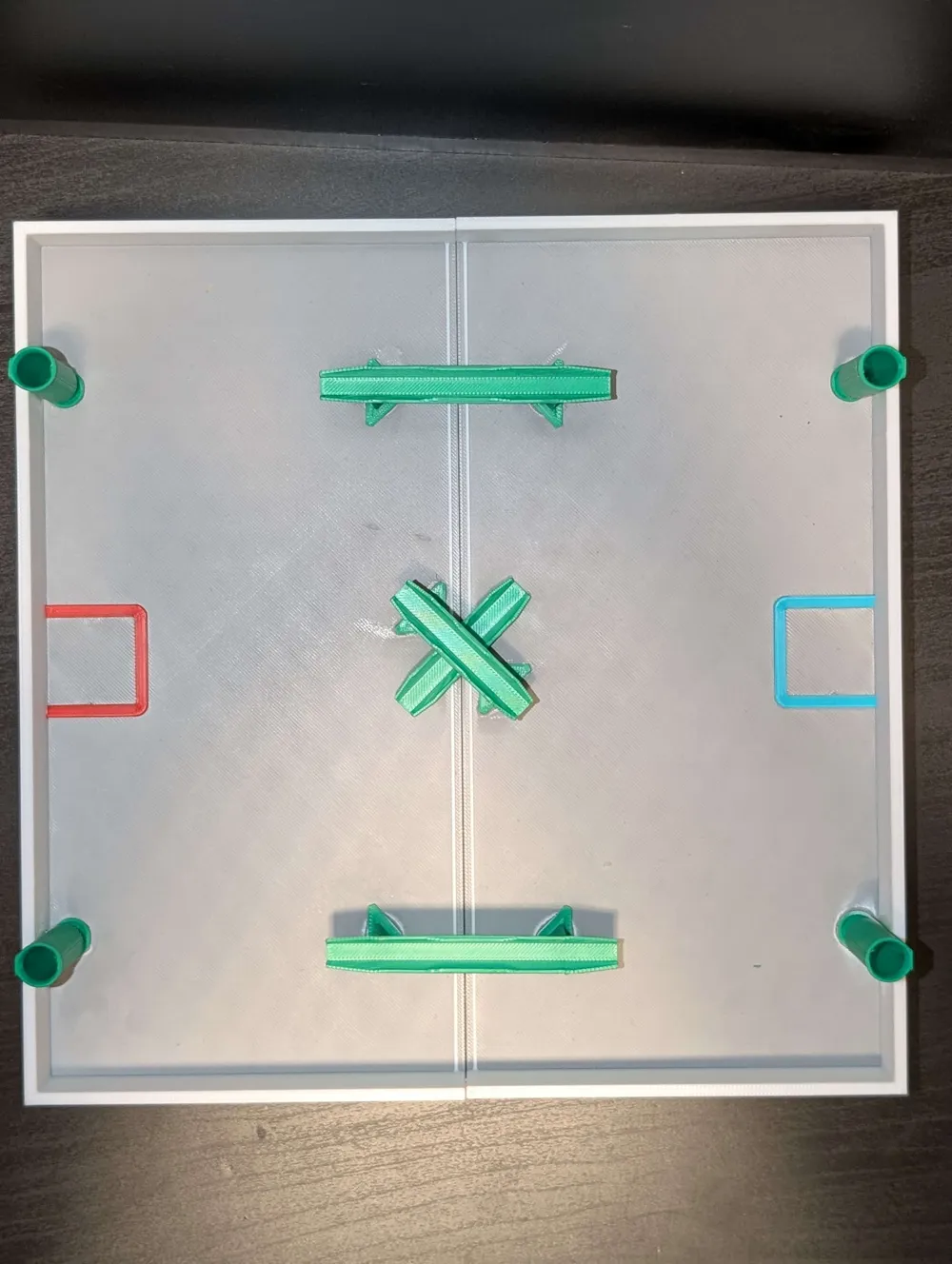

3. Glue the Green Parts on as how is shown in the picture, FOR TOO-SCALE DISTANCE YOU WANT THE MIDDLE OF THE PEICE 39mm AWAY FROM THE INSIDE OF THE WALL.

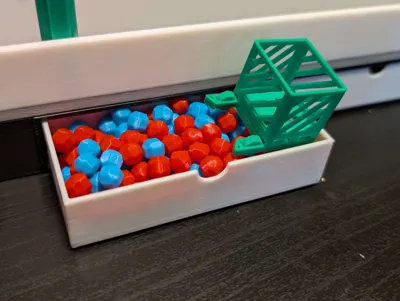

4. Insert White Drawer Pieces Into the Black Frame Pieces, THE DRAWER SHOULD TILT AND SLIDE IN, MAKE SHURE THE FINGER HOLE IN THE DRAWERS IS FACING UPWARDS, YOU MAY NEED TO RESIZE AND REPRINT THE WHITE DRAWER PIECES TO GET THE PERFECT FITMENT. ONCE THE DRAWERS ARE FULLY INSERTED THE DRAWERS SHOULD OPEN WHEN YOU SHAKE THE OBJECT. IT ALSO SHOULDNT BE TOO TIGHT TO OPEN TO THE POINT WHERE YOU CANT OPEN IT.
