Cat Window Protection Grid

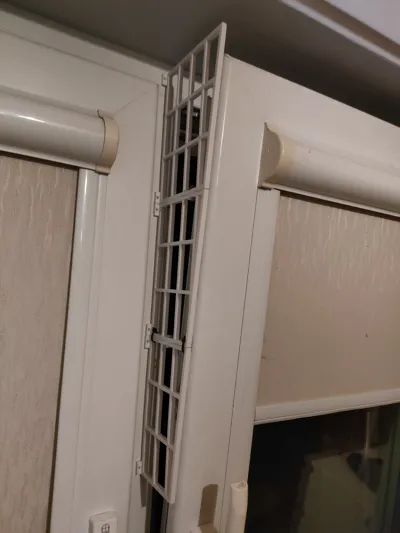

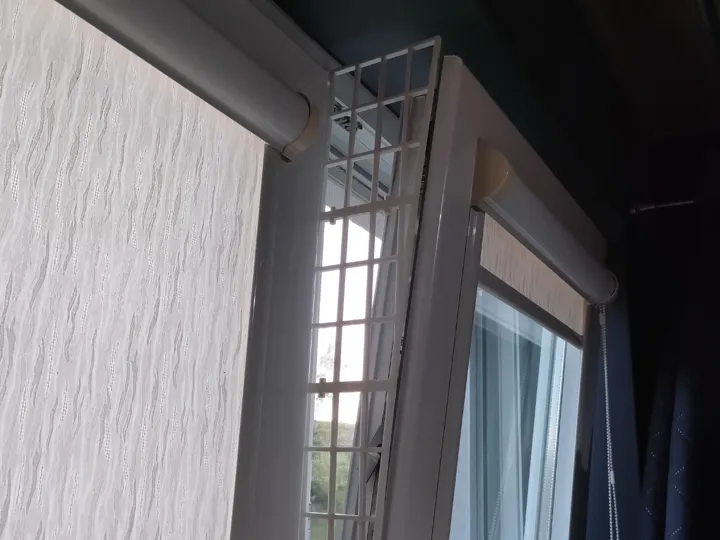

Protective window grid for cats – designed to secure the gaps that appear when the window is tilted open.

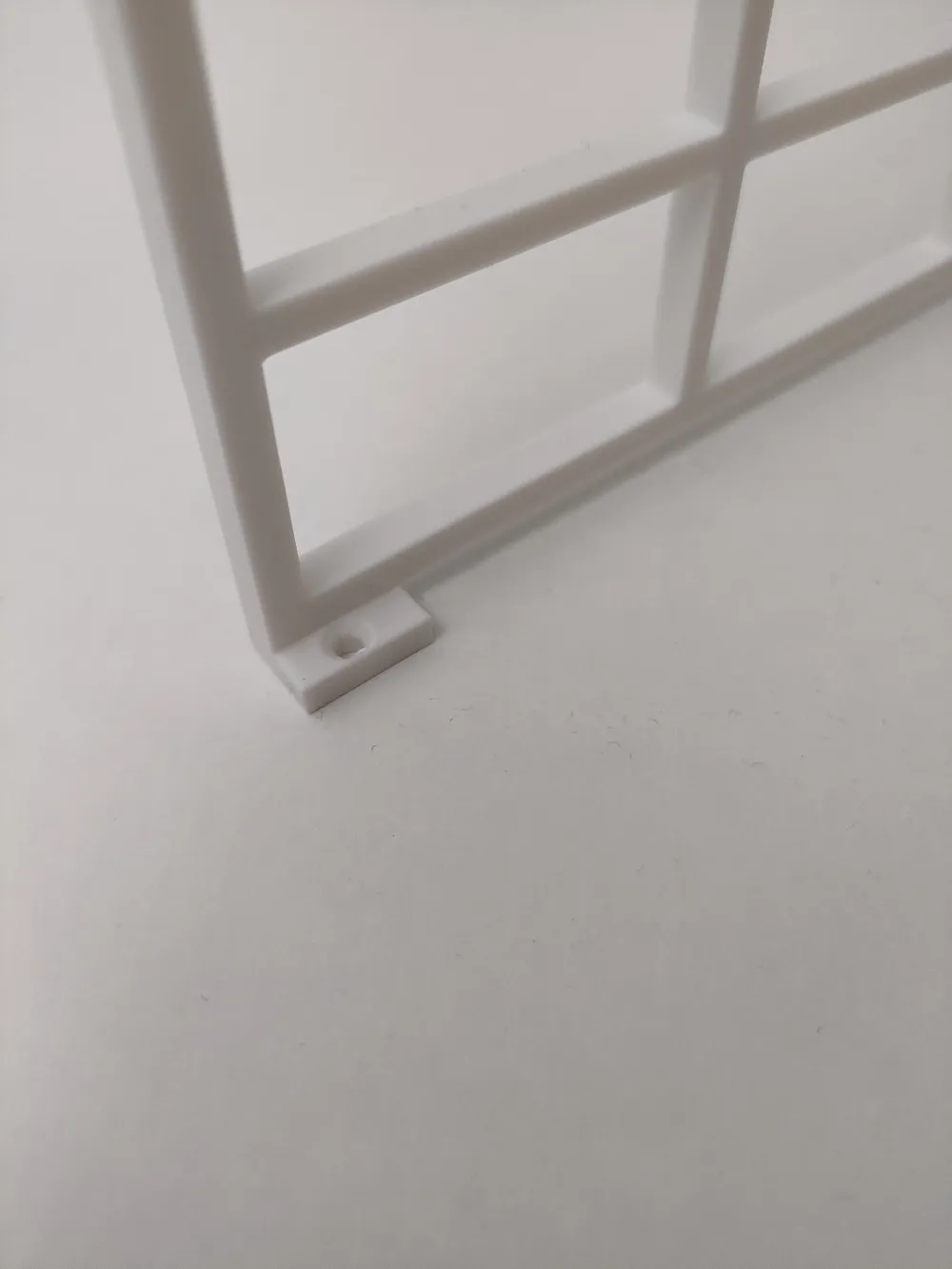

The grid includes holes that allow it to be screwed onto the window using M3 screws. However, I recommend using strong 3M tape instead to avoid damaging the window by drilling.
The grid consists of 3 parts that are connected with M4x12 screws and nuts.
Note: The model includes a design for M4x12 screws. If you want to use them, make sure to print them using a stronger material. PLA screws may break easily due to their small size. For stability, metal screws are recommended.
Grid dimensions:
128 x 502 x 11 mm
Accessories recommended for installation:
- Strong 3M tape or M3 screws
- M4x12 screws with nuts for connecting the parts
Recommended print settings:
- Layer height: 0.2 mm
- Elephant foot compensation: 0.15 mm
- Infill: 30%
For screw and nuts:
- Layer height: 0.12mm
- Speed: 80 mm/s
Infill: 100%
