Description

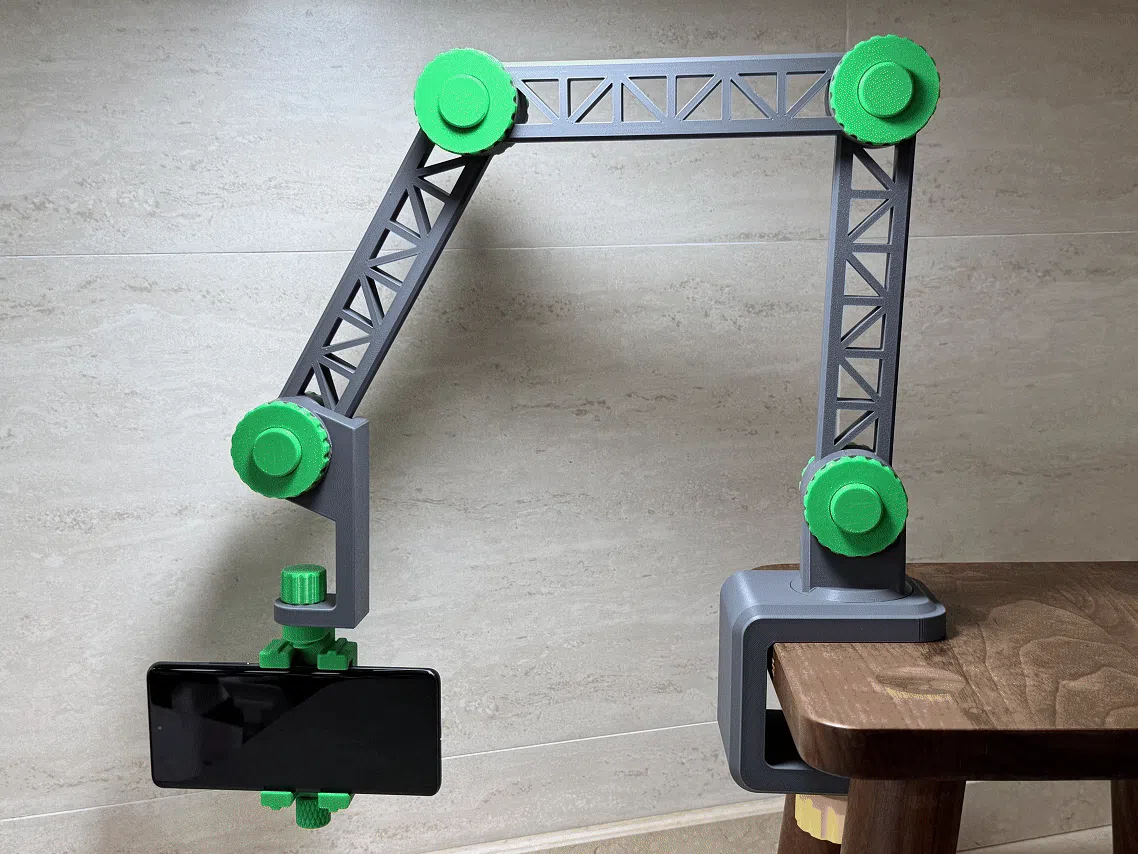

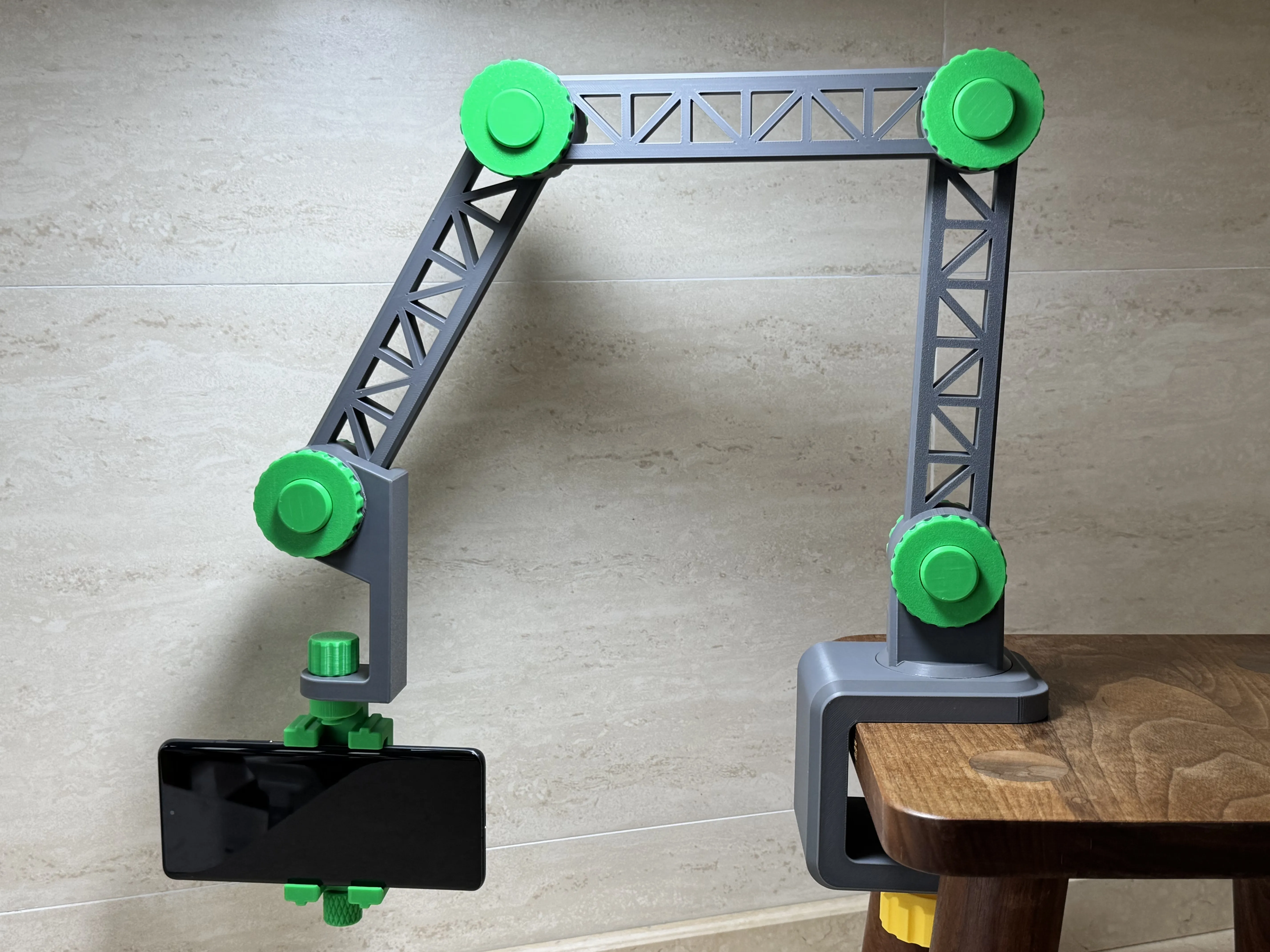

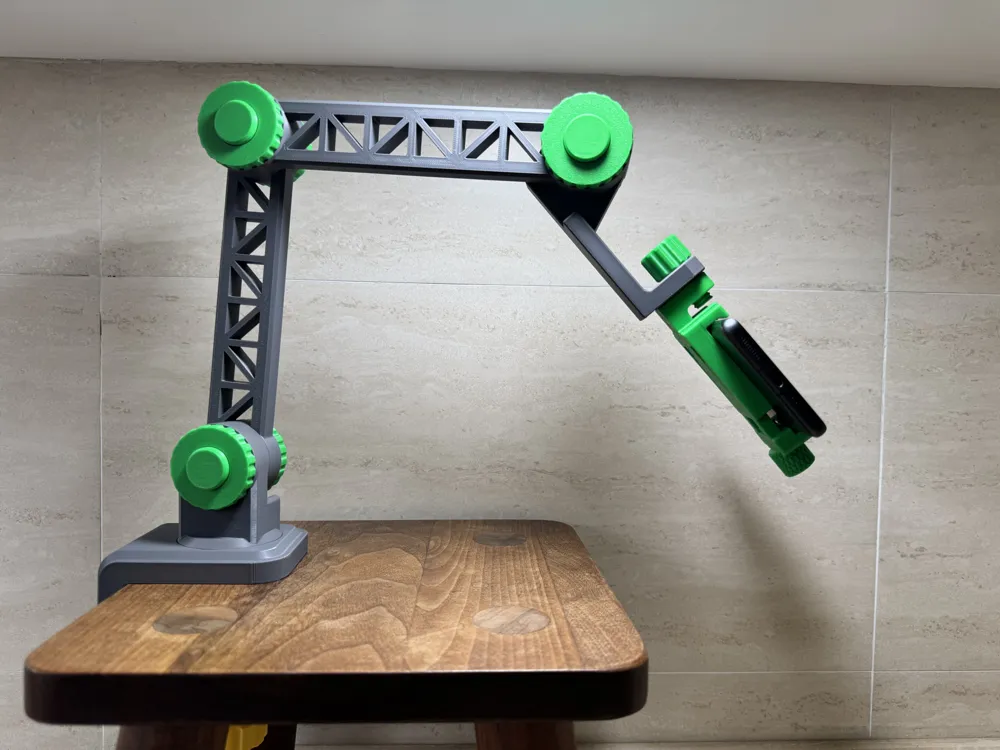

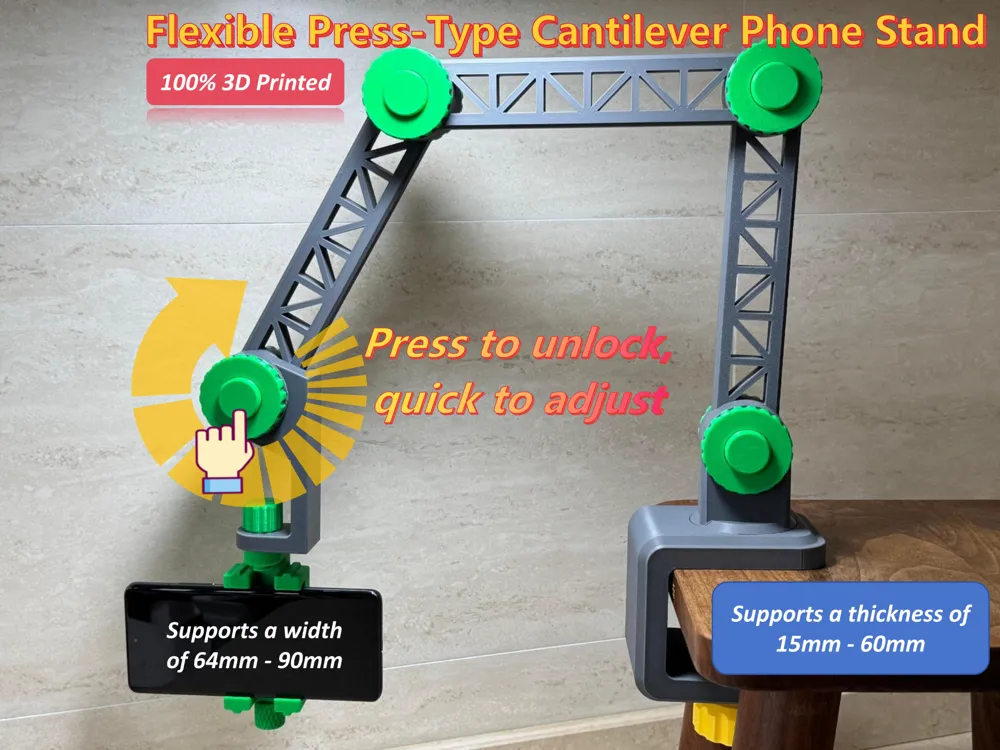

Newly Designed Press-to-Unlock Cantilever Phone Stand
The phone stand supports phones with a width ranging from 64mm to 90mm.
The clamping surface supports a thickness ranging from 15mm to 60mm.
The main body of the test sample is made of Bambu Lab PLA Basic, and the spring is made of Bambu Lab PETG HF.
The button-side cover must be fixed with glue after test assembly; the spring-side end cover should not be glued, as the spring needs to be replaced in the future.
Please replace the spring in time when its elasticity weakens.

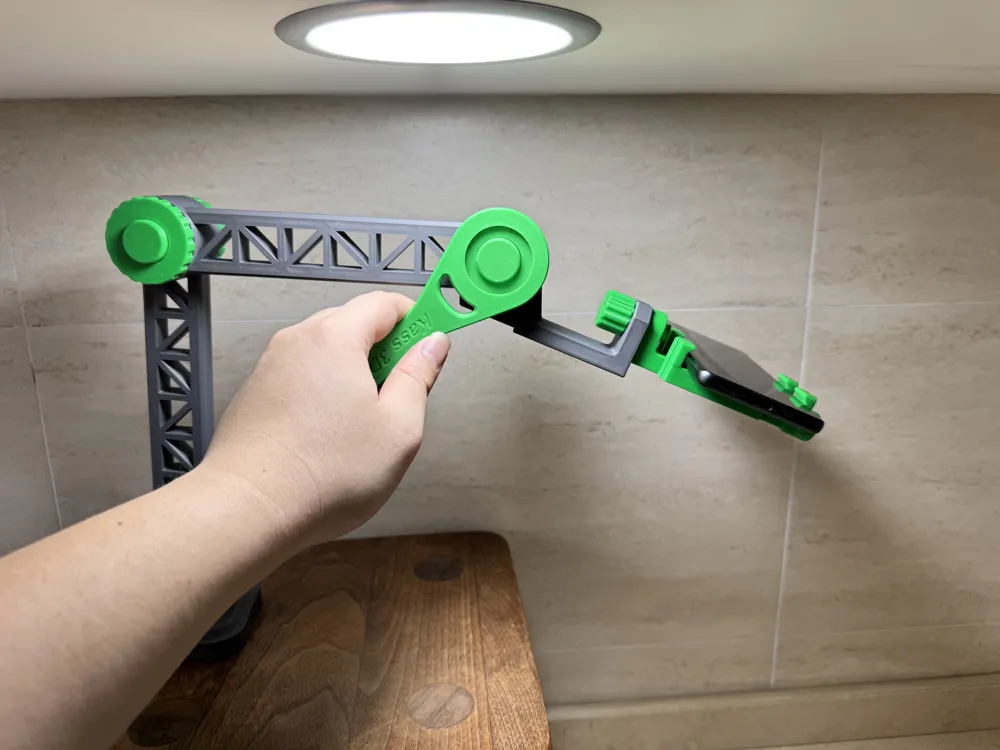

When rotating, release your hand only after the button pops out.
Assembly Guide：

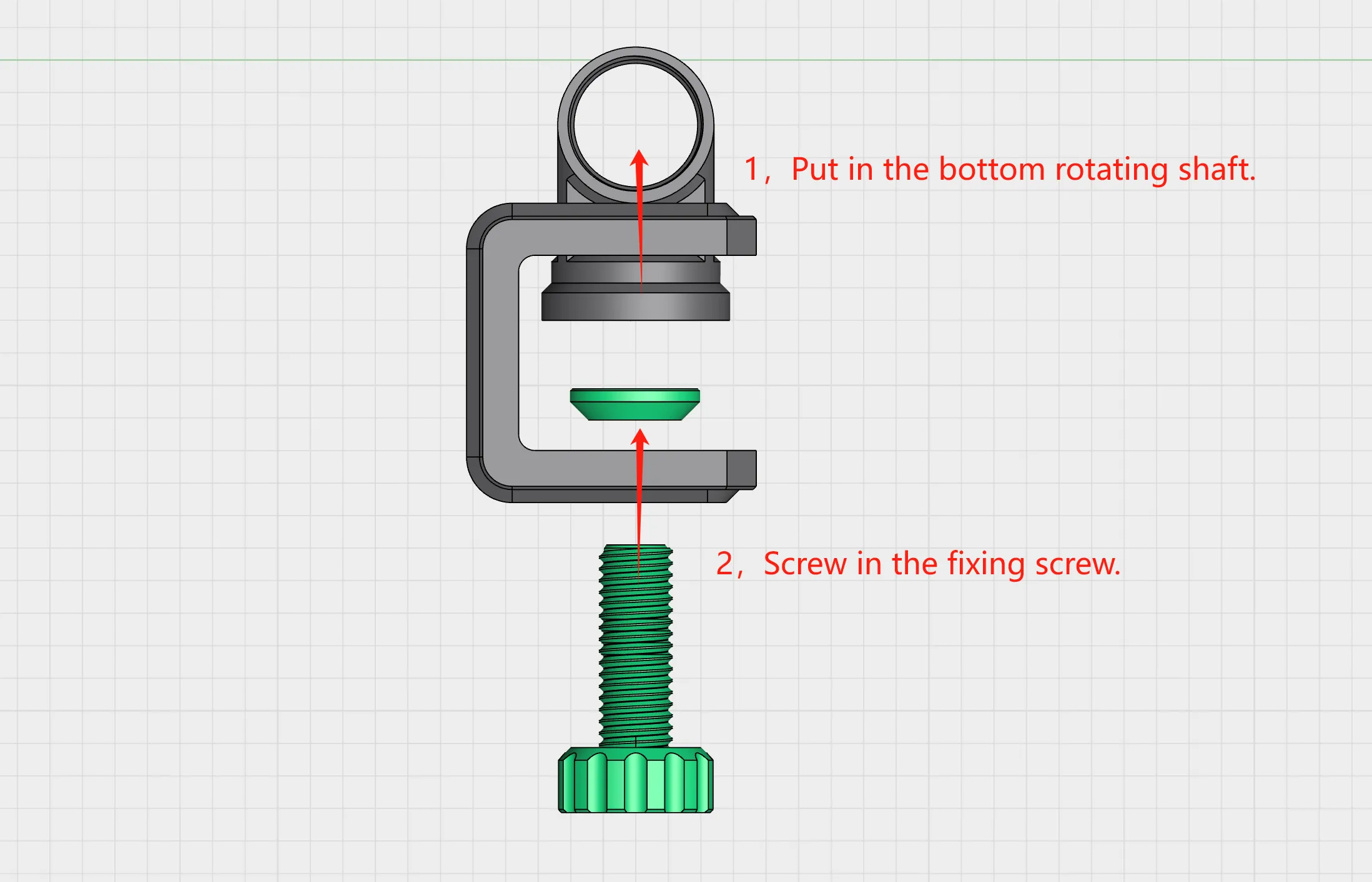

1，Base Installation Instructions：

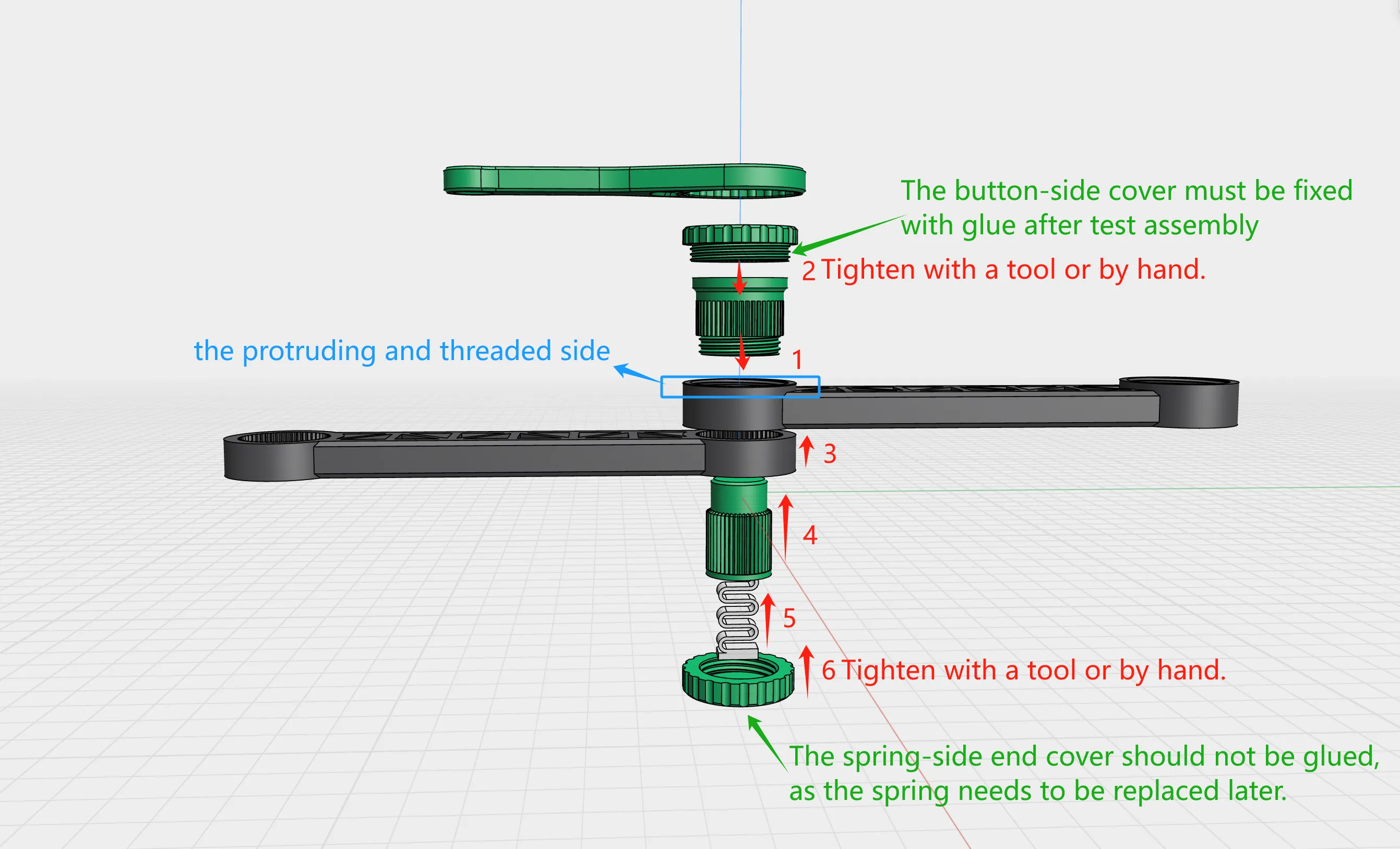

2，Joint Installation Instructions:

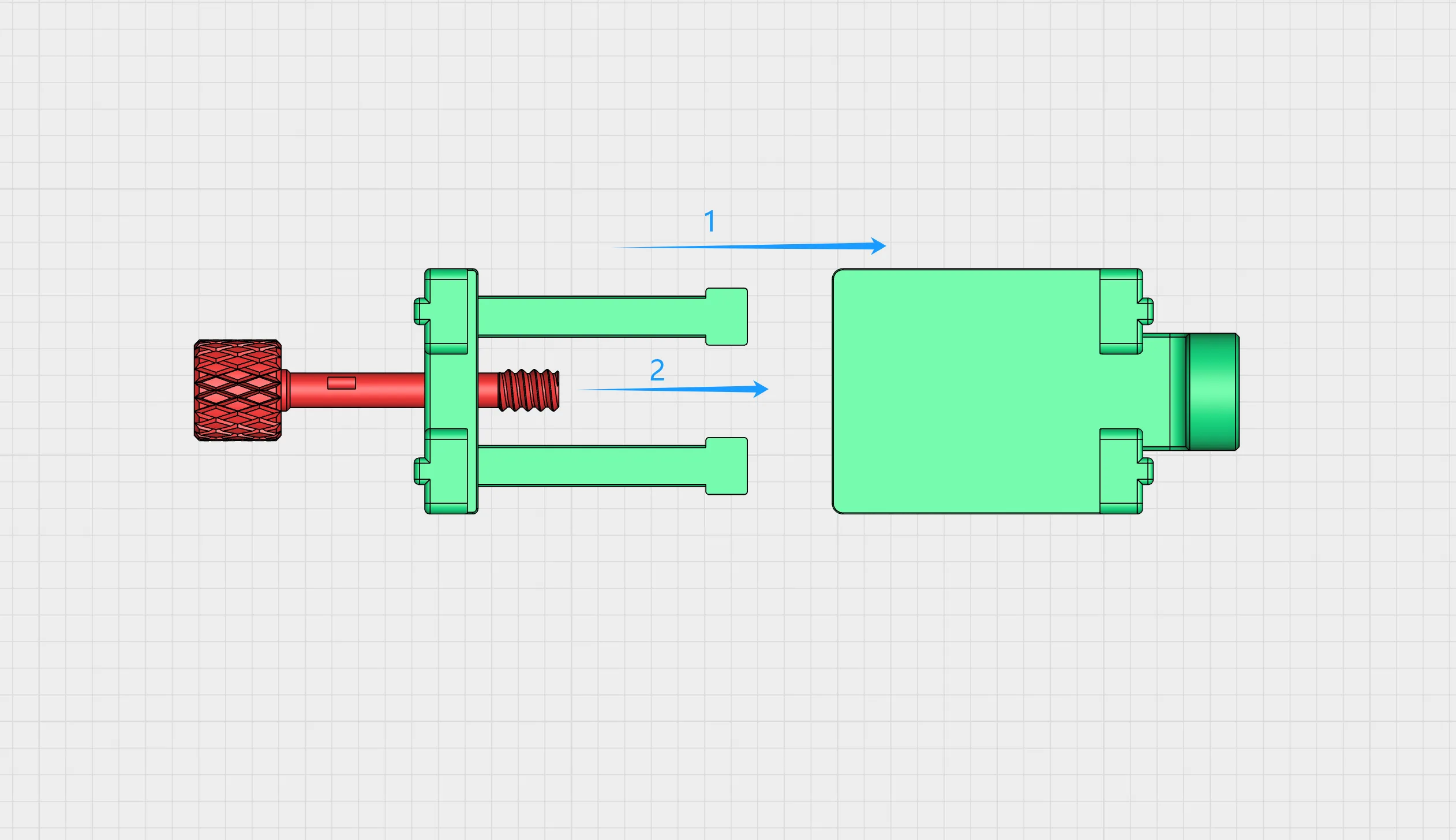

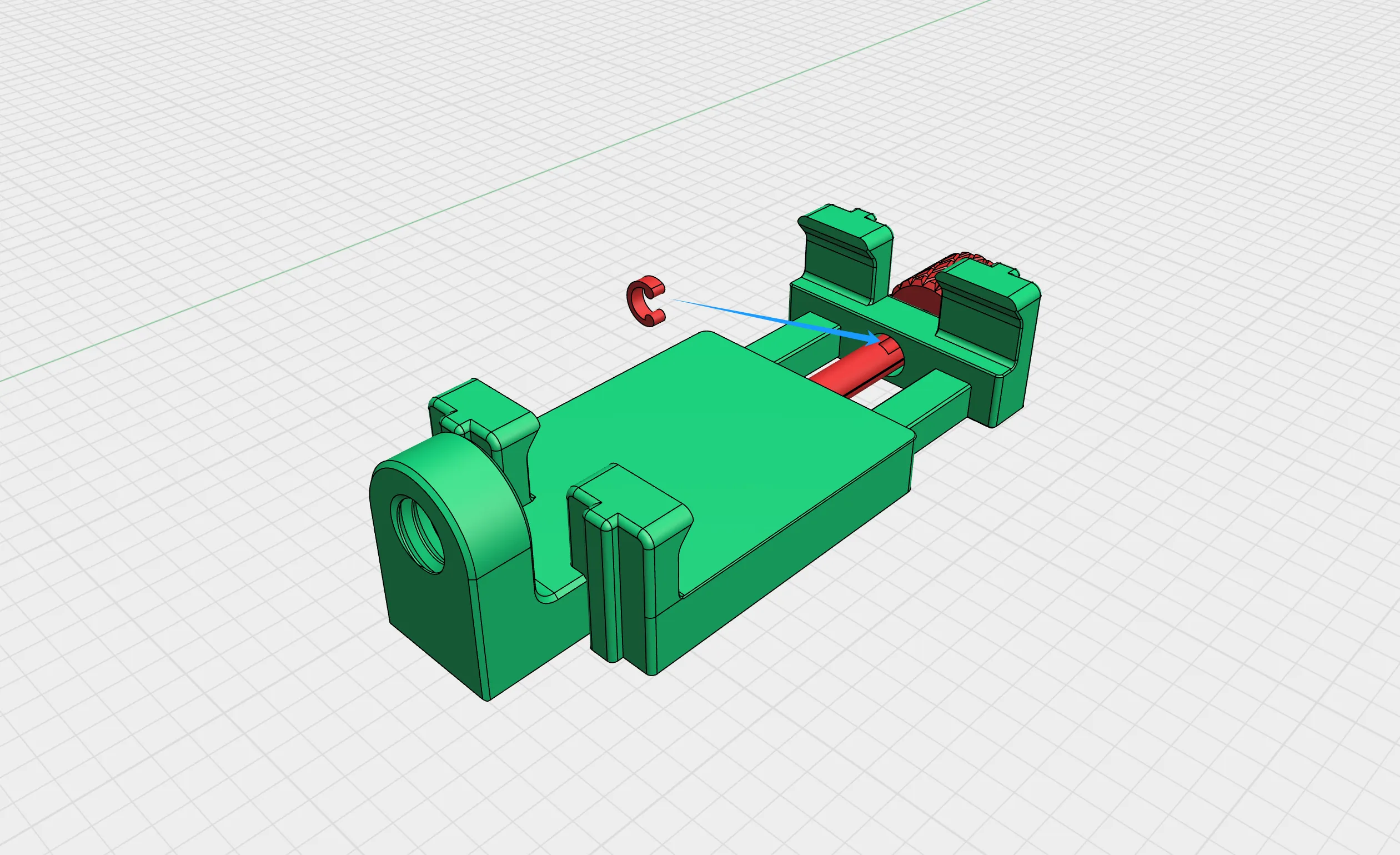

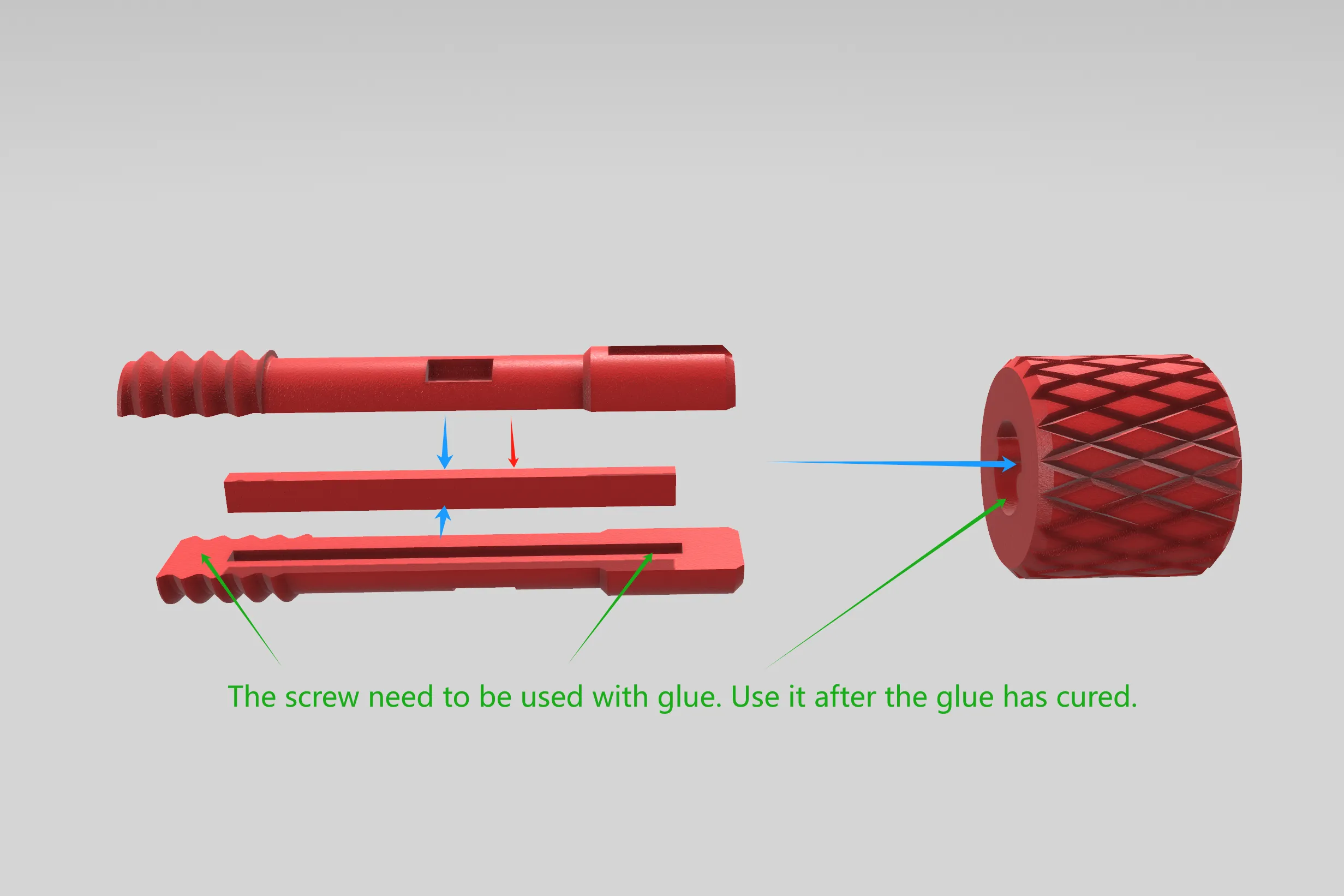

3，Phone Clip Installation Instructions：
4，Assemble all the components, and congratulations on getting a practical cantilever stand!
