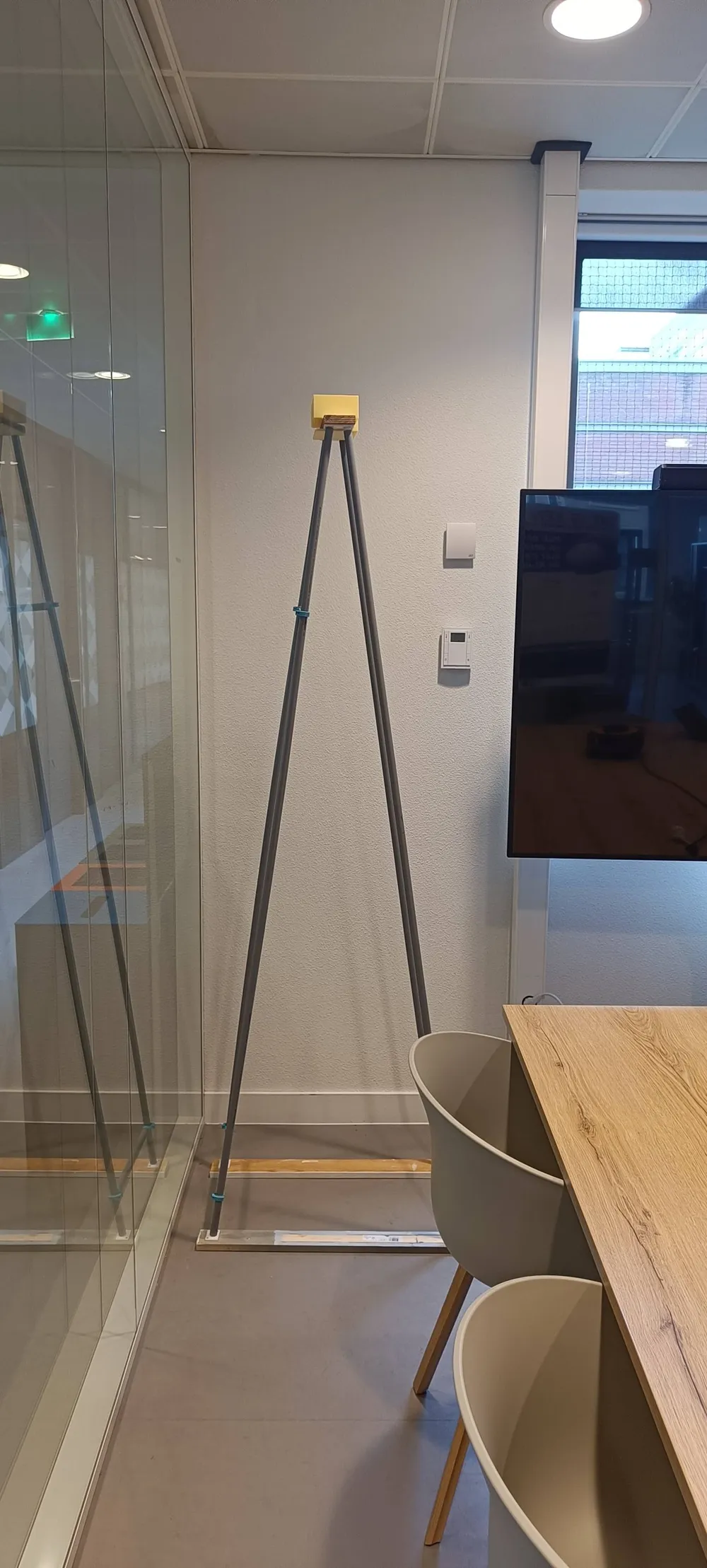

I created this model as I needed to place BLE devices 2 meters high on a music festival in-between the crowd and did not want to use expensive gear.

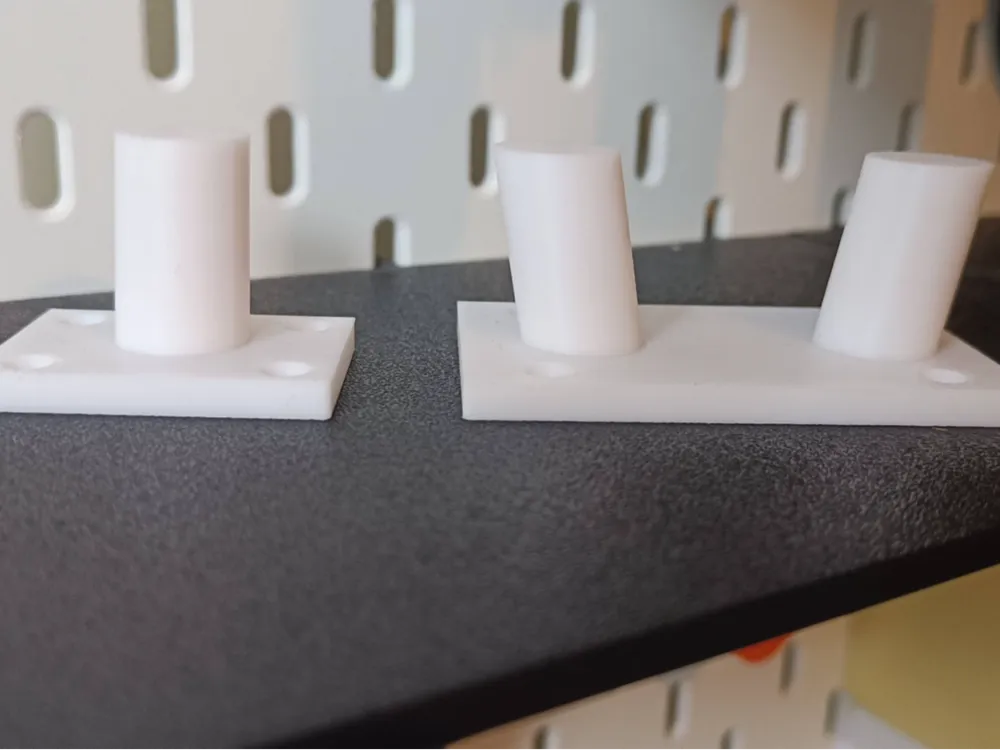

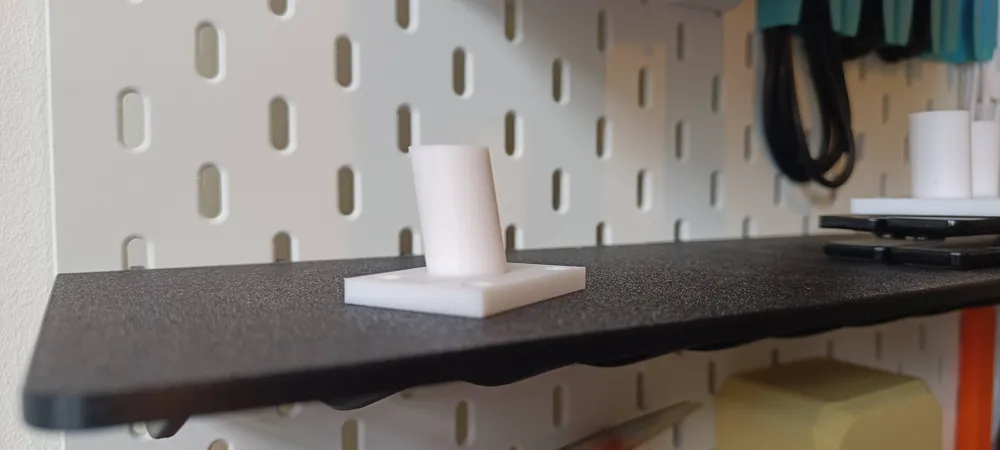

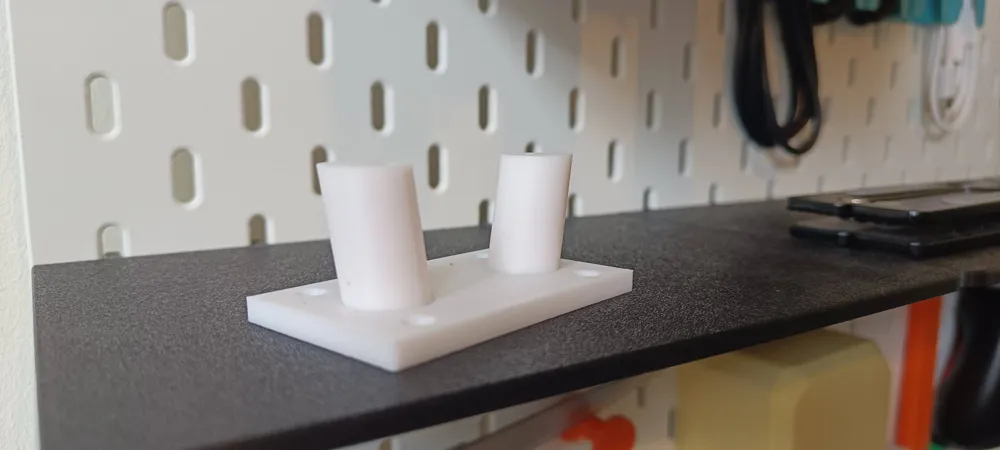

The pins are at a 10 degree angle resulting in almost no height loss but creating ample stability with 2m long pvc pipes.
It uses 4 ¾ inch/19mm PVC pipes with an inner diameter of 16.5mm
The model has screw holes which are modelled for 3x13mm woodscrews

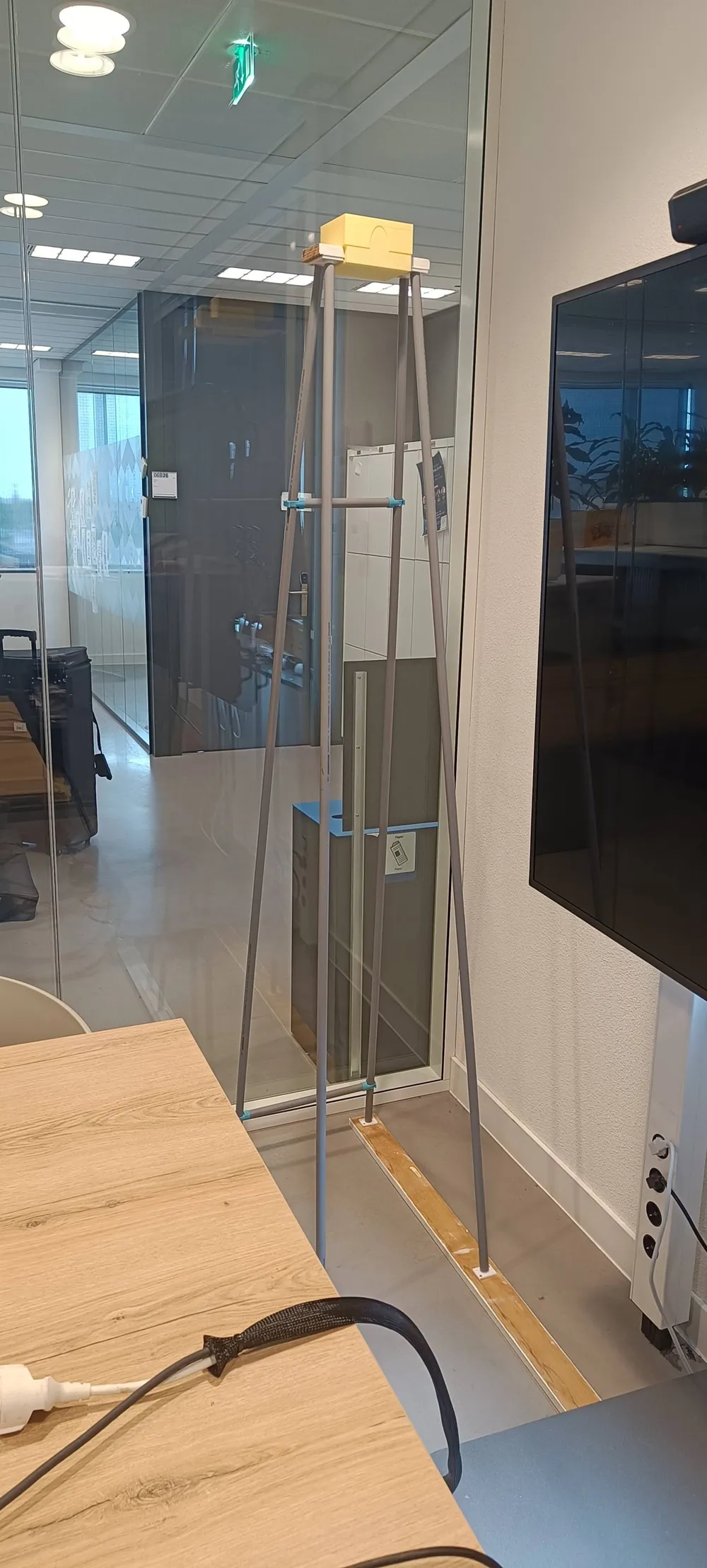

For stability I placed 2 pvc pipes in between the legs. I used this model to attach them easily but scaled down to 70.37% and print as is: https://makerworld.com/en/models/819625-quick-release-connector-for-3-4-to-3-4-pvc-pipe?from=search#profileId-762466
