Yarbo Spindle Cover

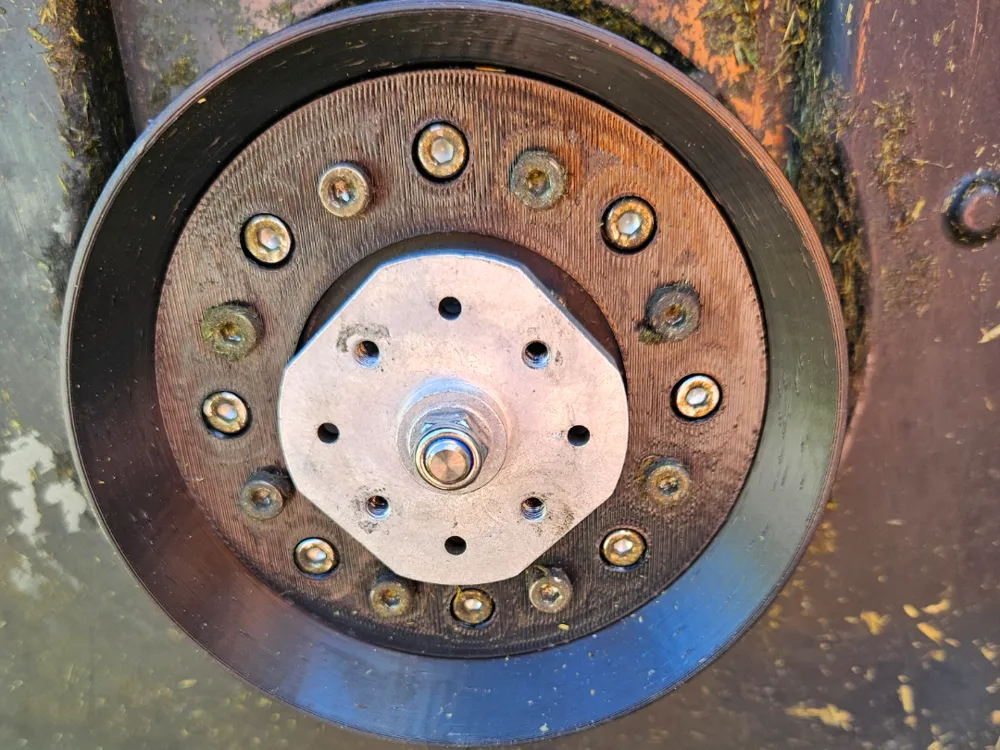

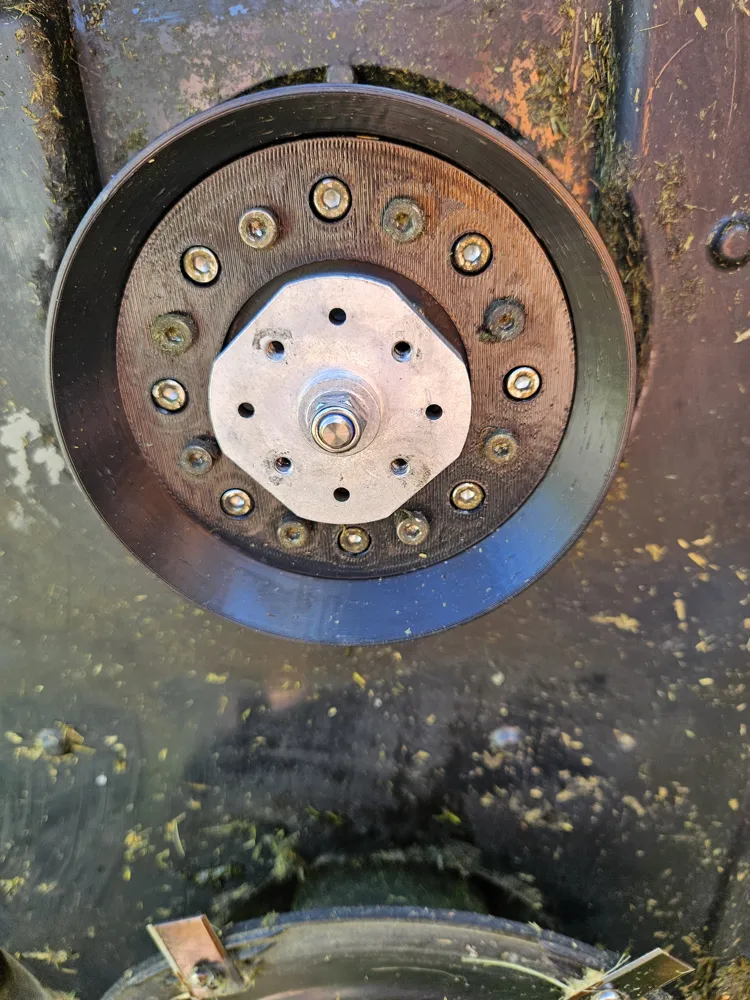

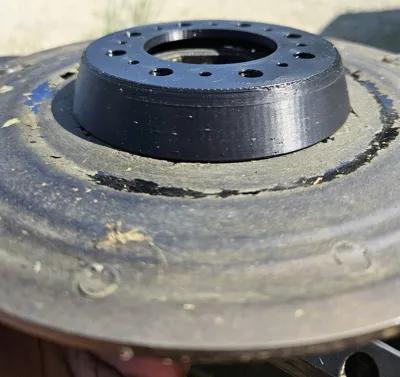

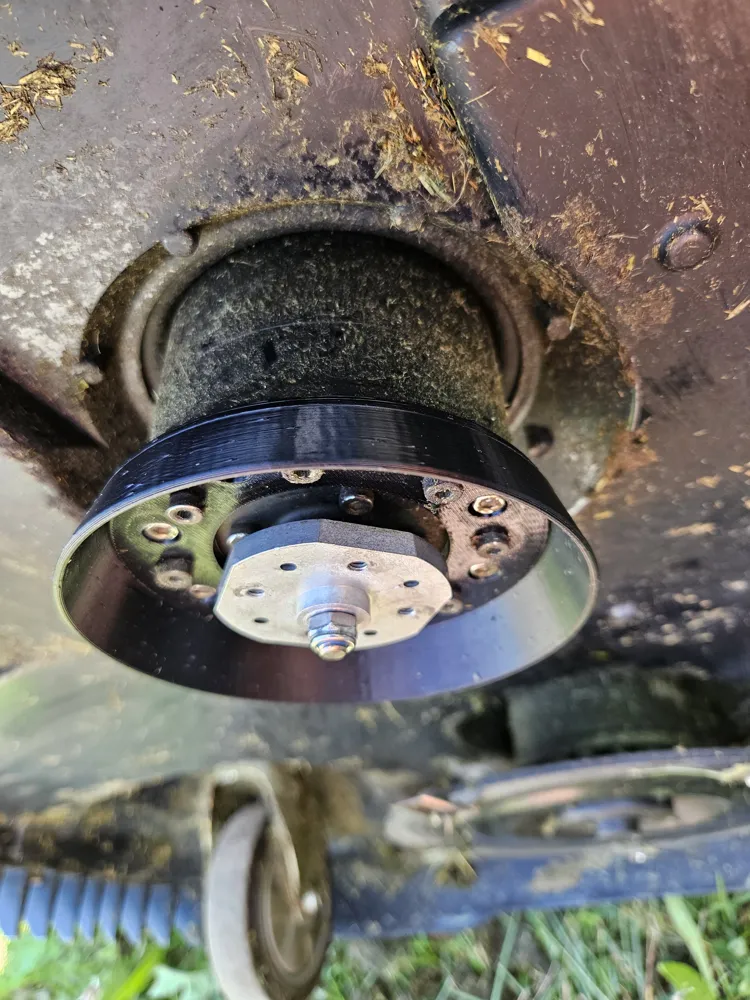

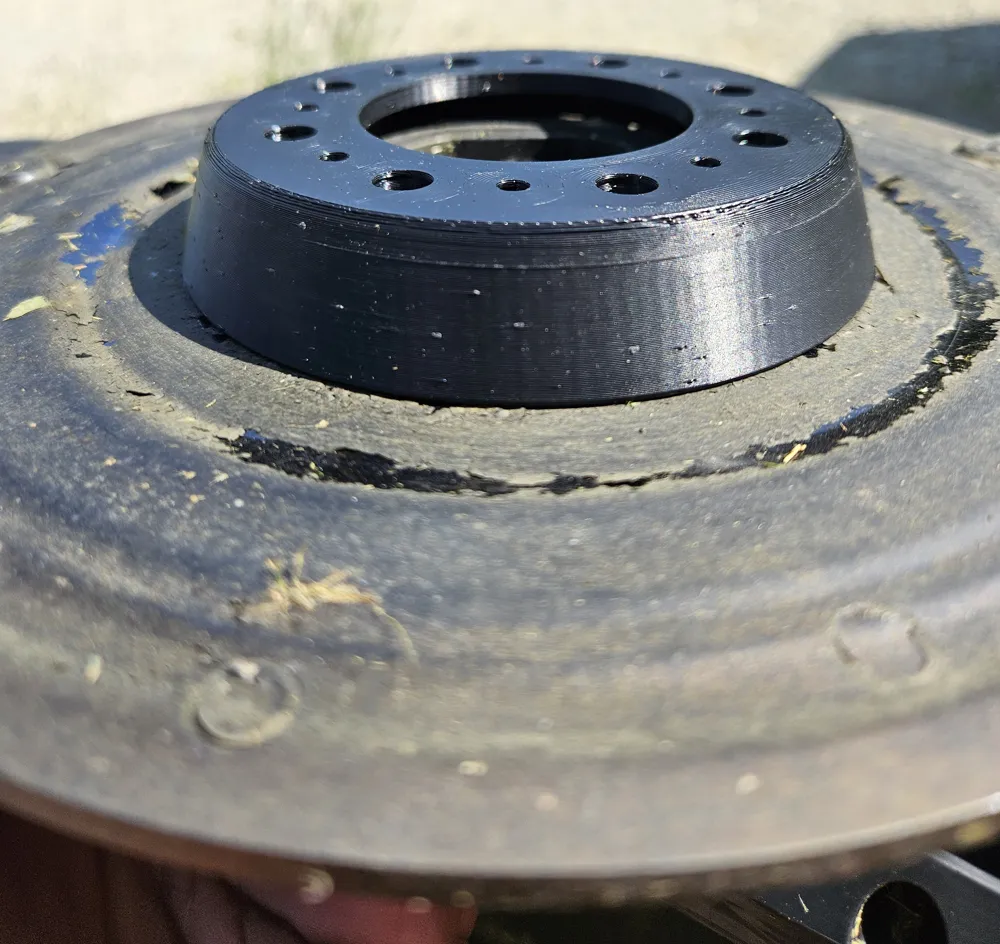

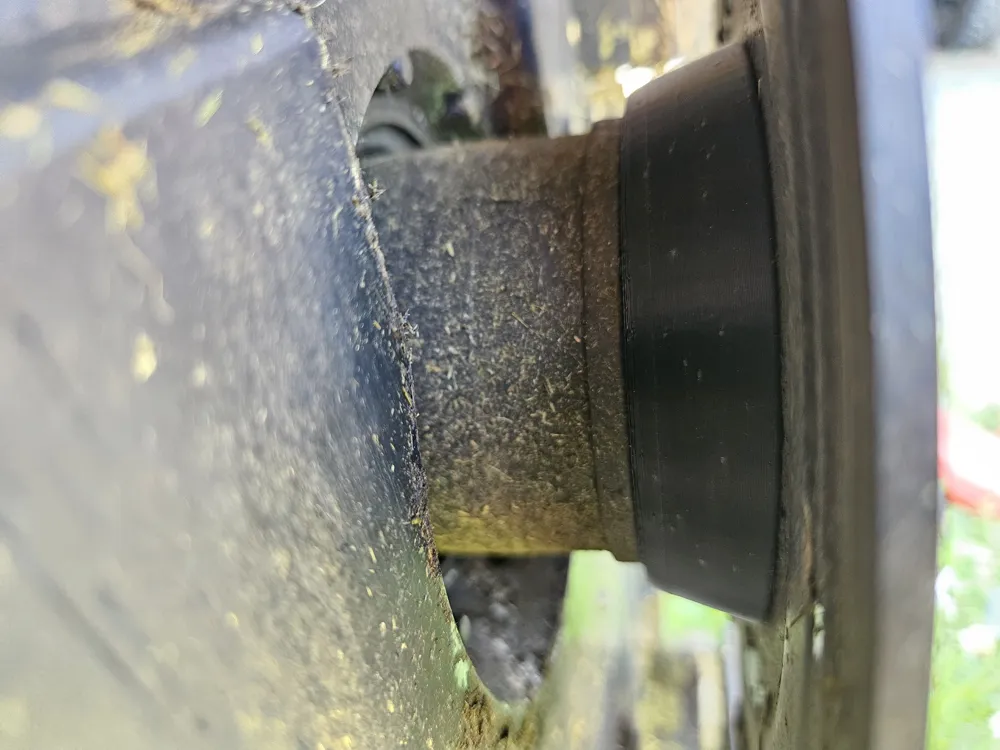

These are spindle covers for the Yarbo lawn mower module to prevent grass from wrapping around the spindles. The blade guards will need to be removed to use them. The bolts for the blade guards will be used to hold them in place, I suggest using Loctie on the bolts when reinstalling as they were from the factory for the blade guards. V1 was the initial design for testing which has a very small connection point between the guard and mounting plate that will allow it to break away easily. I used V1 for a week of everyday mowing with no issues but if any pressure is put on them they will break loose. V2 has a much heavier connection section and how I planned to design them in the end but I wanted to make sure they never put any pressure on the spindle motors first. I will be replacing the V1 for V2 and continue to test them. Please use at your own risk, I assume no responsibility.
