Rook MK1 Aux Part Cooling Fan Mount and Duct

Ever feel like you need some additional part cooling, but don't want to go CPAP or full remote cooling just yet?  Why not install an Aux Part Cooling Fan?

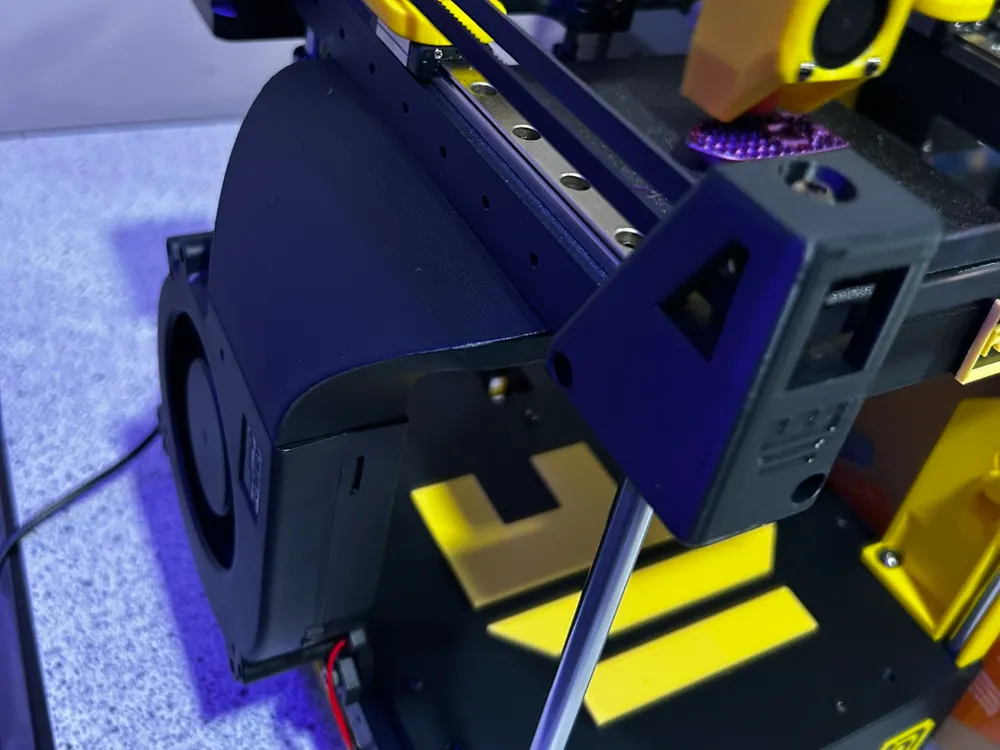

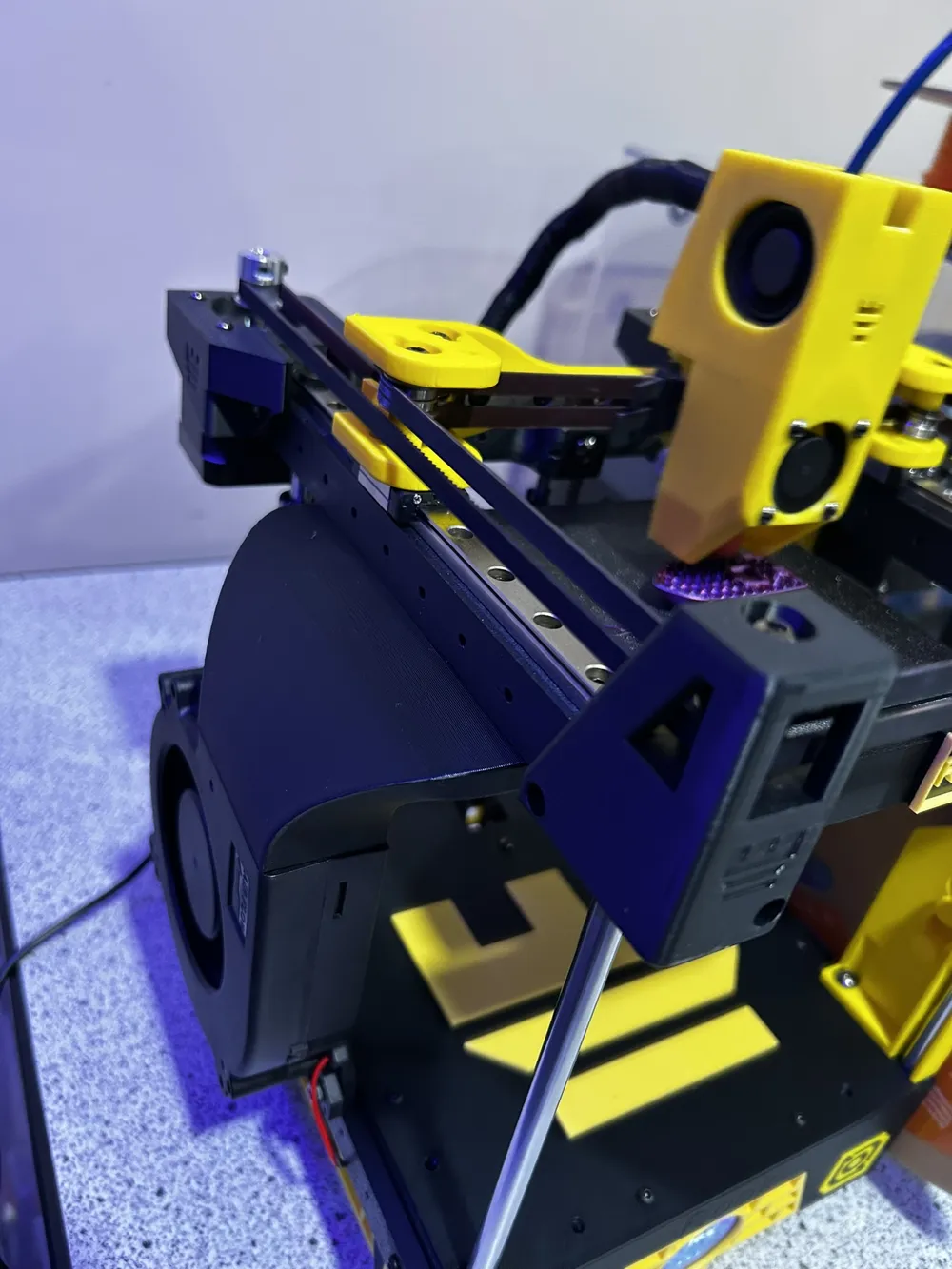

Well, with this remix you can now mount it to the side of the MK1 giving better bed clearance and placing the output of the air duct right at the perfect place to send a blanket of cooling air across the entire bed.  It'll actual bounce off the right side of the top of the MK1 to help hit the opposite side of the part too!

BOM:

• 3x M3x10 Screws (more if you want, but I find 3 is more than enough if spread out)
• 3x M4x10 Screws
• 3x M4 Nuts
• 1x 120MM blower fan

This is a remix of Simonp1080's remix/reposting of an older mod.  I simply changed the connection point of the bracket from a top of the bed mount to the side increasing its compatibility with Kanrog's Plate for the Rook MK1 (Plate for Rook MK1 [MK1] by Kanrog Creations | Download free STL model | Printables.com).

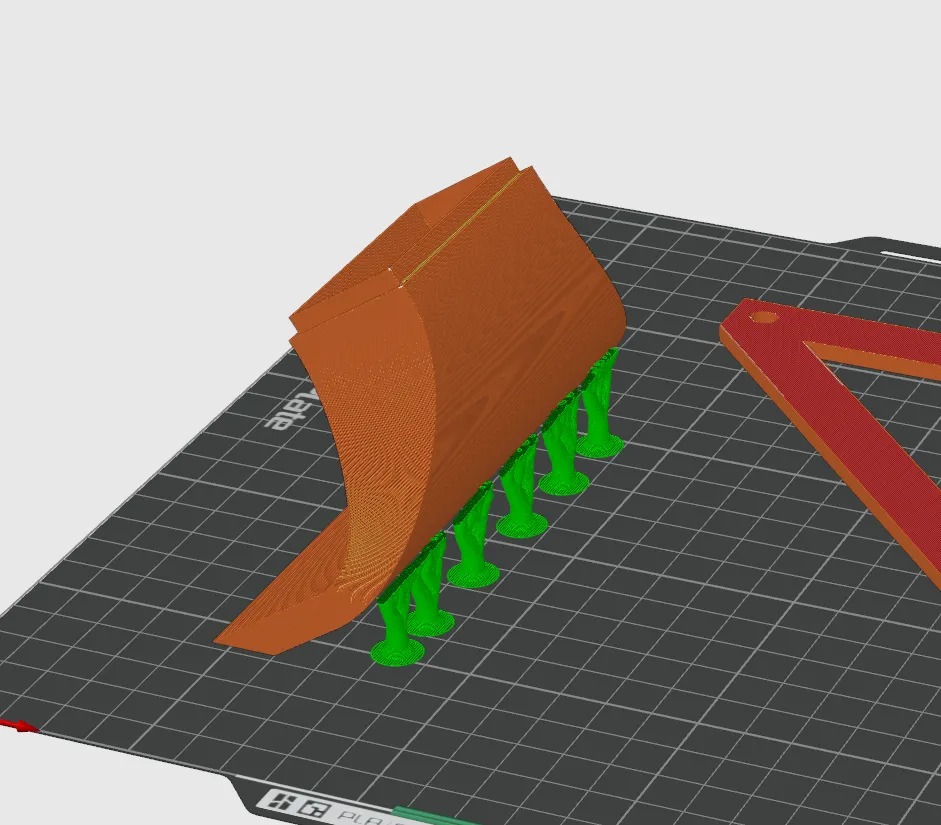

Included a Bambu Lab Profile that includes support settings and model placement.  The Duct is one piece in this mod, if you want one that's split up download Simonp1080's mod.  I've found this one works best with the stock Rook MK1 dimensions.

Printed with the following standard for rigidness.

• Layer Height: 0.2
• Arachne Wall Generator
• Walls: 5
• Top Shell: 5
• Bottom Shell: 5
• Sparse Infill: Gyroid @ 40%
• Support Top Interface: 3
• Support/Object xy distance: 0.5
• Support Tree(Manual) on build plate only
