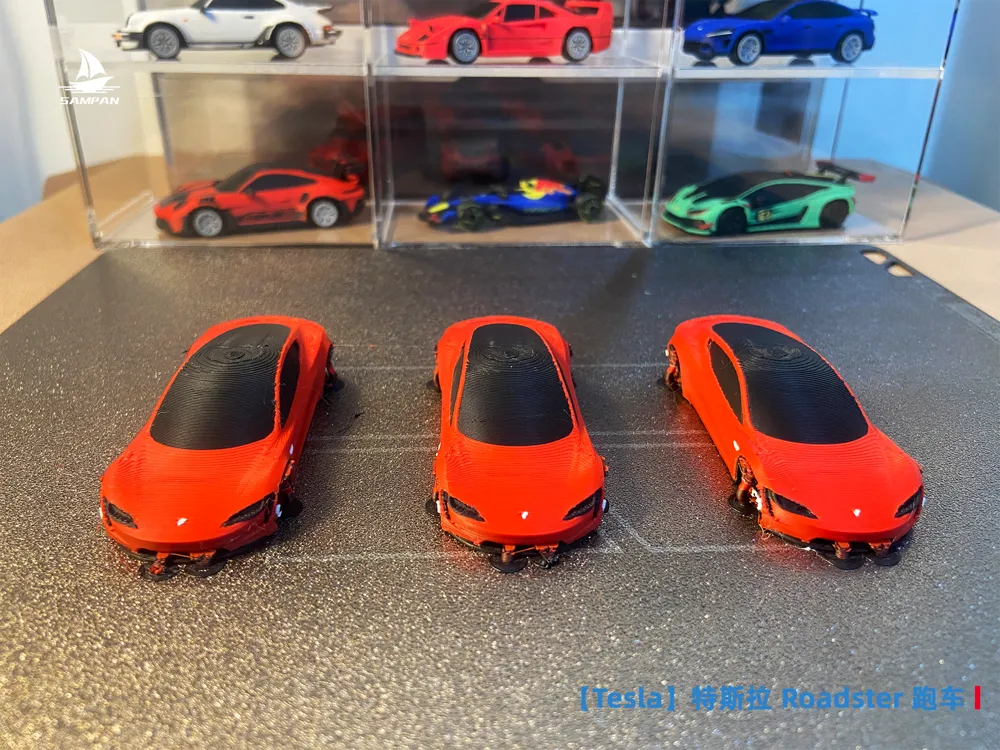

【Tesla】Tesla Roadster 1:64 scale model

【Special Notes for F1 Models】

1. The author has conducted structural printing tests on all models before release. However, the F1 model has a complex structure and requires high printing precision. Newcomers are advised to use the parameters in the slicer directly for printing and not to adjust them arbitrarily to avoid printing failures; experienced players may ignore this reminder.
2. The printing effect of the model is affected by various objective factors such as equipment, filament, and environment. If you encounter problems during printing, you are welcome to contact me through comments or private messages, and I will assist in troubleshooting. Creating is not easy. Please communicate before evaluating and do not give low scores at will; malicious negative reviews will result in being blocked. Thank you for your understanding!
3. All models from the author are tested based on Bambu Lab printers, and the configuration files use Bambu Lab's official slicing software. If you are using other brands of printers, it is recommended to adjust the parameters according to your own equipment's slicing software and preview before printing. Thank you for your cooperation!

4. As multi-color printing becomes the trend, the model is sliced with the H2C multi-nozzle printer by default. For other models, please refer to your own model for slicing preview to check the time and filament consumption.
5. Thank you again for the recognition and support from fellow enthusiasts. I hope to receive your likes and boosts. In 2026, let's unlock more F1 models together!

【Read Before Printing!!! Warm Tips】

It is strongly recommended to print the single-color configuration first before printing the multi-color configuration to test the model structure and slicing effect (Cost of single-color model printing: 64 scale 15g filament, 2 hours. 43 scale 50g filament, 3 hours). After being satisfied with the model's appearance, articulated structure, and slicing effect, then print the multi-color version. Thank you.

Note: Before printing the multi-color configuration file, you can enlarge it according to the complexity of the paint scheme. Preview in the slicing software to check the details and ensure printability.

---------⇪3D Printing Instructions-----------⇩ Product Introduction--------------

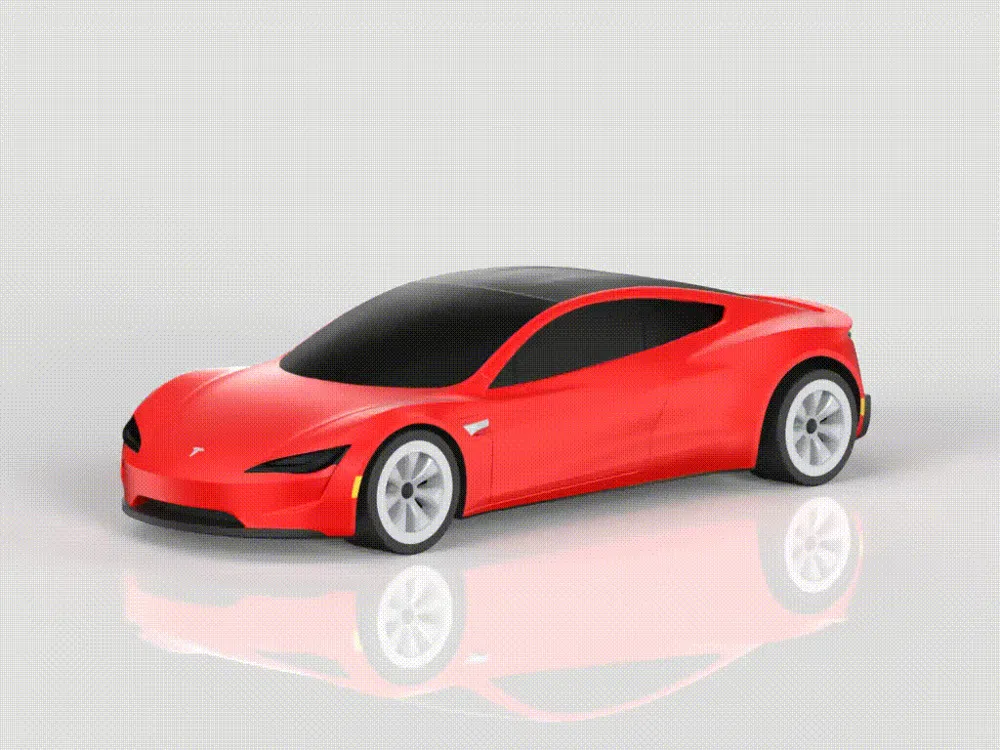

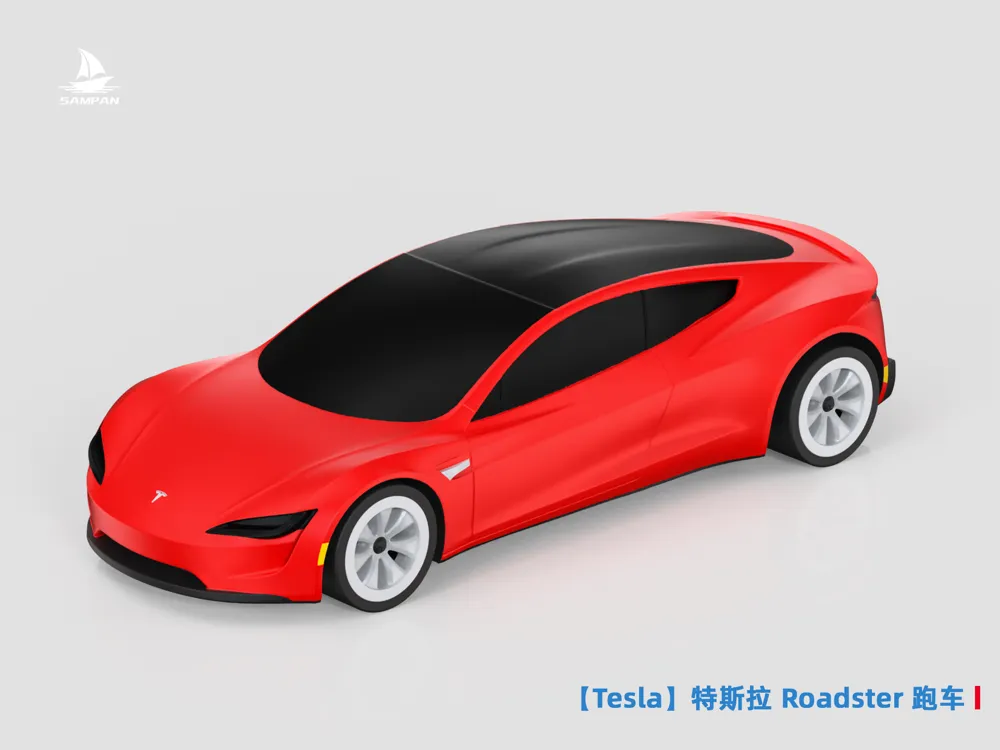

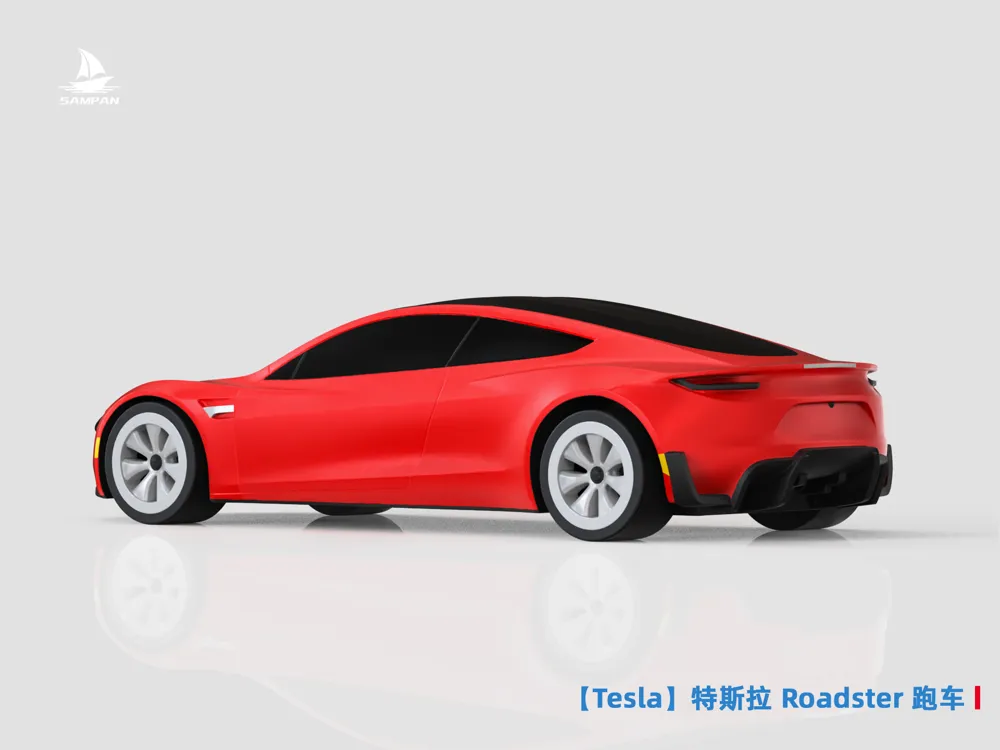

This Tesla Roadster boasts a minimalist design language, characterized by sleek, sharp lines and a low-drag wedge profile.
The front fascia features narrow, matrix LED headlights, eschewing a traditional grille. The side profile incorporates frameless doors and concealed door handles, while the rear is equipped with a deployable spoiler, culminating in a fastback design.
The vehicle utilizes high-strength aluminum alloy and carbon fiber materials, achieving a near-golden ratio of 1:2 in its body proportions.
The wheels are aerodynamically optimized and paired with a high-performance braking system.
The overall design harmoniously blends futuristic technology with classic sports car elements, showcasing the unique aesthetics of an electric hypercar.

Upon reaching 50 boosts, a 1/43 multi-color, multi-part version will be released.

Model Specifications

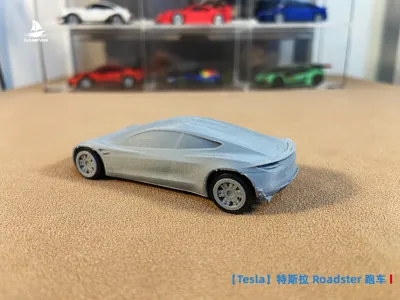

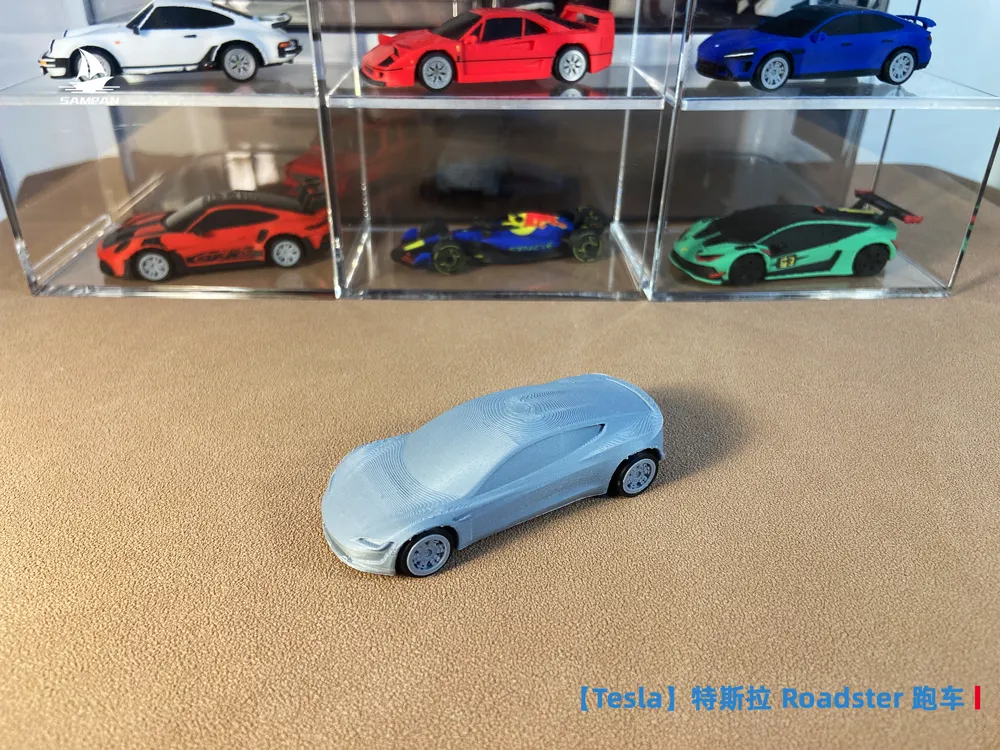

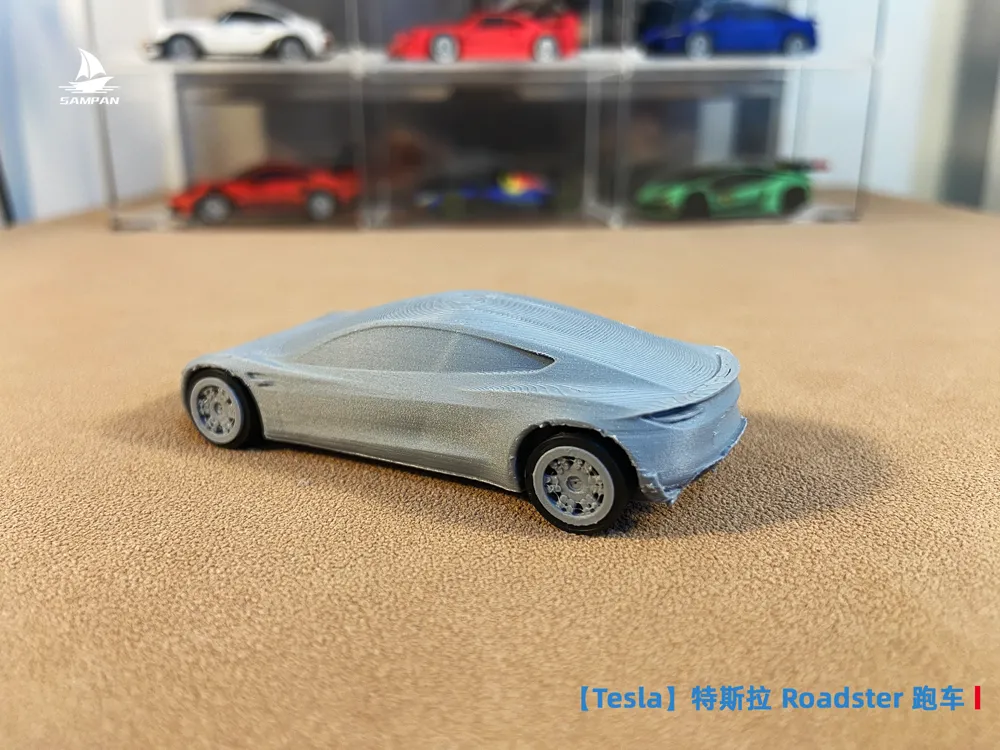

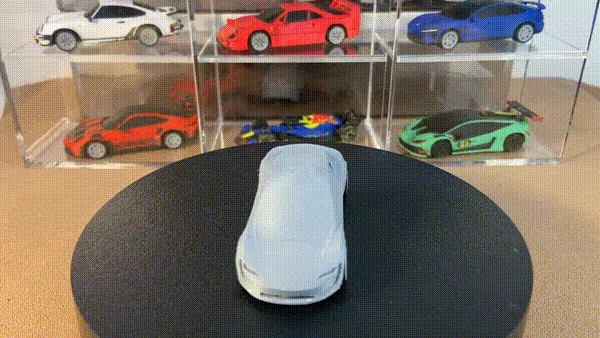

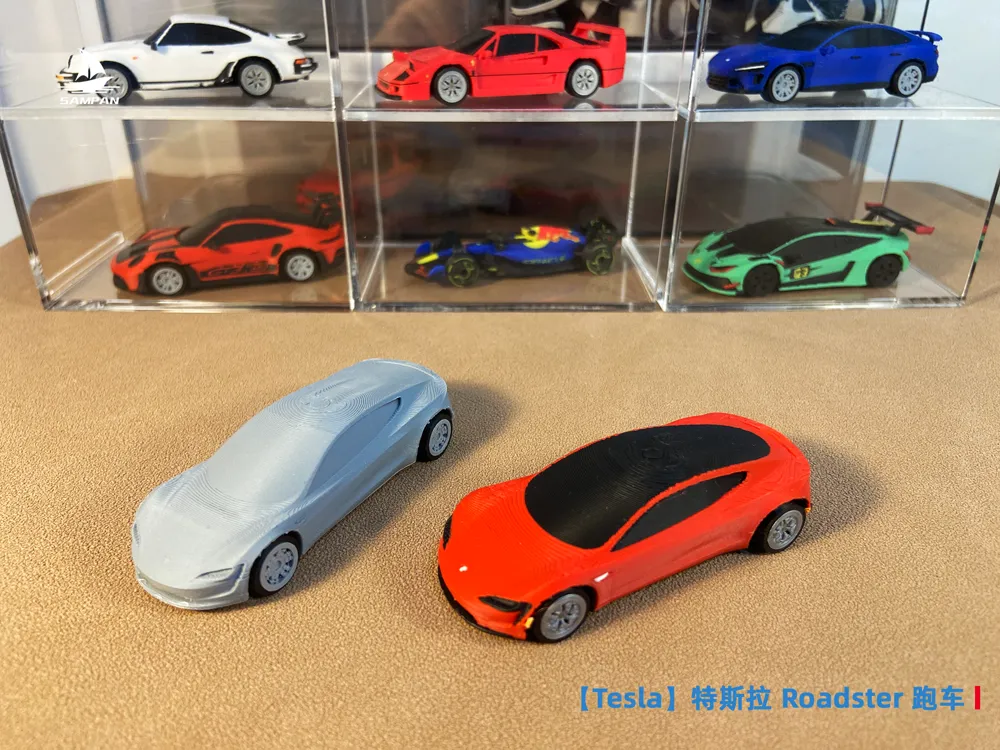

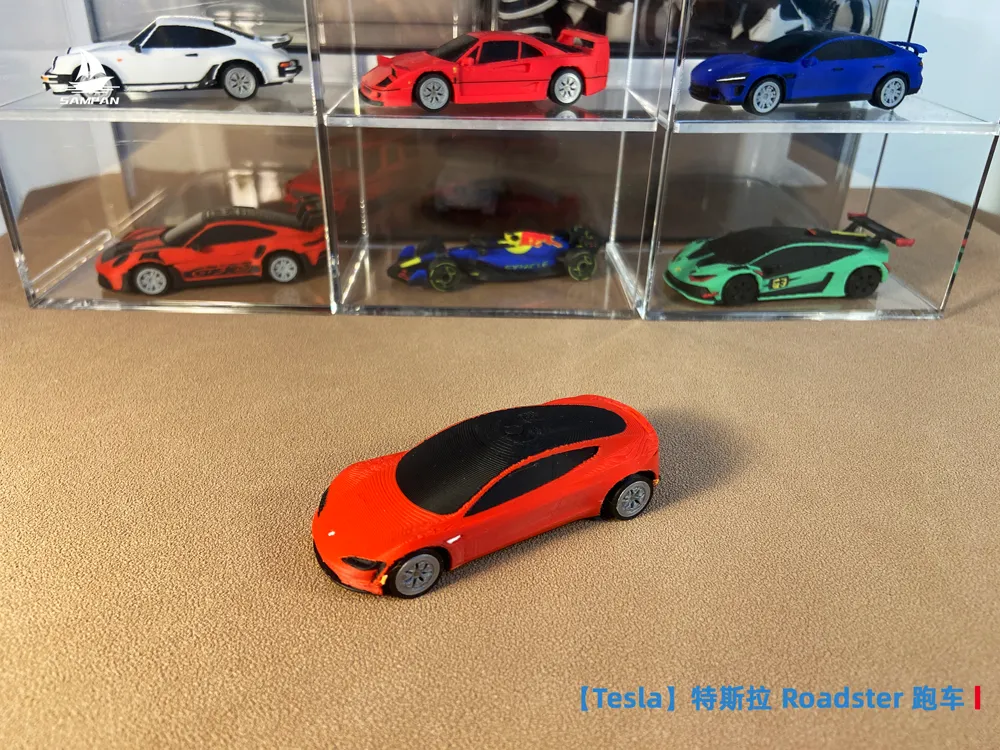

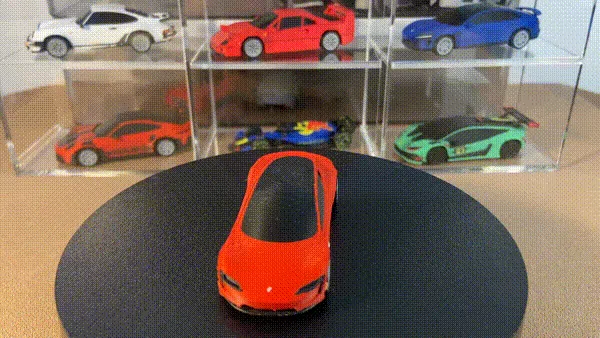

- Includes monochrome and multicolor print configurations: monochrome allows for painting and decal application. Multicolor print configurations can be printed directly (though they consume more filament and printing time), or serve as a reference for monochrome painting.

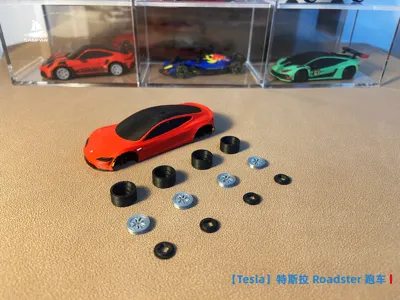

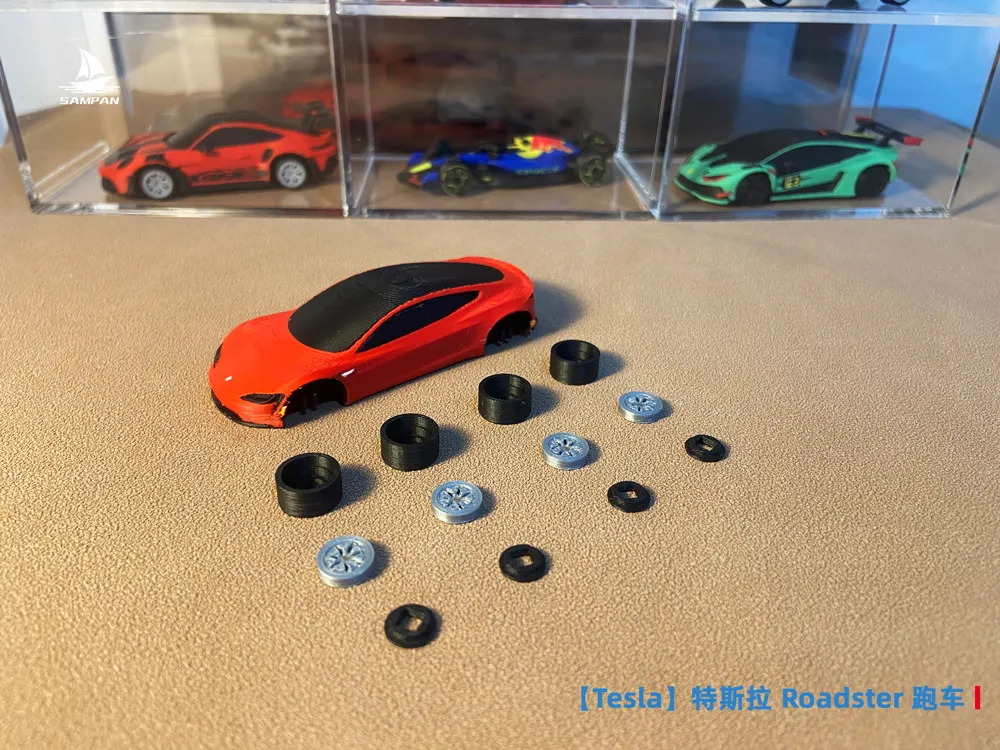

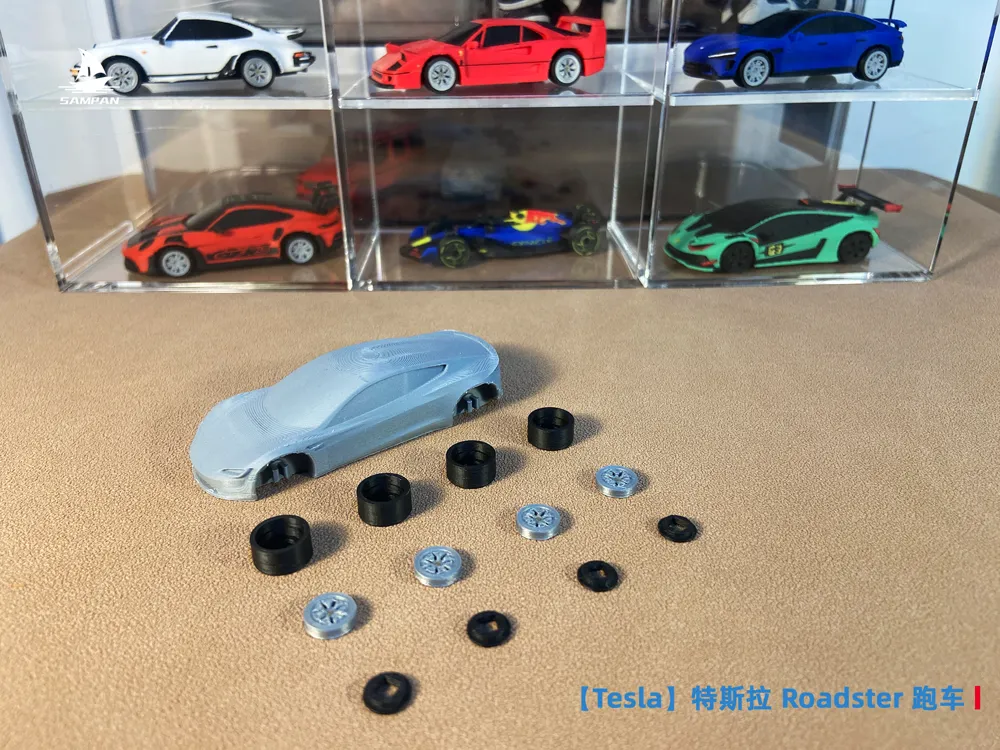

- Wheels are articulated, and assembly requires no glue.

- Compatible with a wide array of wheel hubs available on this account's main page. Download your preferred wheel style.

Dimensions
- 1/64 scale

- 1/43 scale: Scale the model up by 150% for enhanced detail.
Slicing files utilize minimum printer dimensions. Adjust the number of models printed at once to optimize print time and filament usage, according to your printer's dimensions.

FDM Print Settings

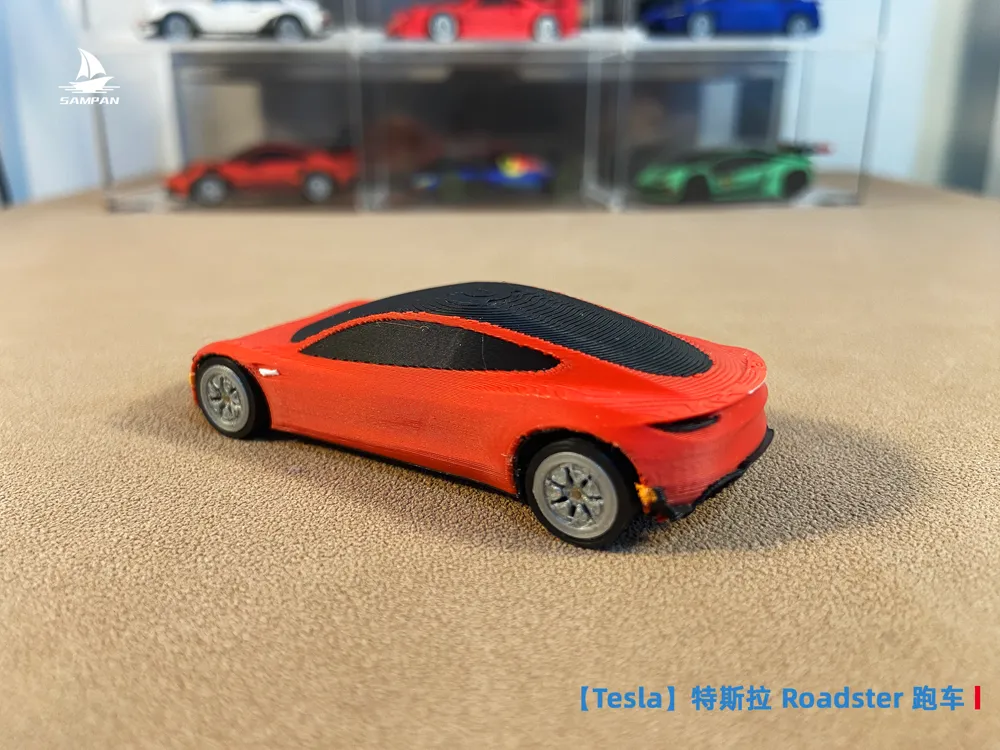

- The physical model utilizes an A1 mini with a 0.4mm nozzle, 0.12mm layer height, and official PLA filament. Higher-end equipment, settings, and materials will yield superior results (though this may lead to overly tight or loose fits, which can be compensated for by adjusting the XY outer contour dimensions of the assembly components, or by utilizing sanding tools and 409 adhesive for refinement and connection).
- Infill density: 15%. For a more substantial hand feel, increase infill to 100%.
- Supports: A combination of standard and tree supports was employed.

- Various paint schemes will be released subsequently. Follow this account for immediate updates.
- Adjust parameters as needed based on your printing experience.

Support Removal Instructions

- Given the model's small size, supports have been strategically placed. Removing supports requires the use of flush cutters and tweezers. Manual removal may likely result in structural breakage, particularly in areas such as the rearview mirrors and rear wing.

- Tip: To ensure successful removal of multicolor models and prevent breakage, consider first practicing support removal on a monochrome model to familiarize yourself with the model and support structure before tackling the multicolor model (broken components can be reconnected with 409 adhesive).

Monochrome Paint Guide

- Sanding: (Optional) Sand in a sequence of 400-600-800 grit.

- Painting: Use acrylic paints and brushes (for edge layer seepage, apply the main color first, then paint the edges).

- Polishing: Use a velvet cloth for polishing, imparting a glossy finish to the acrylic paint.

Assembly Instructions

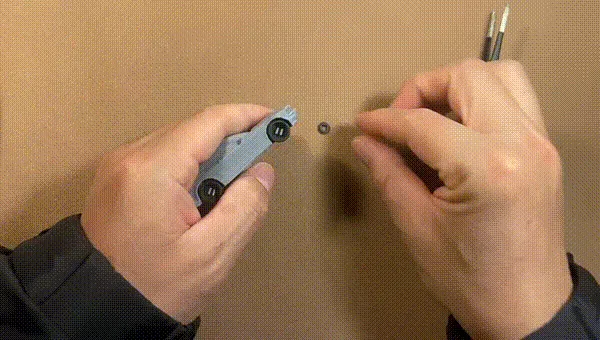

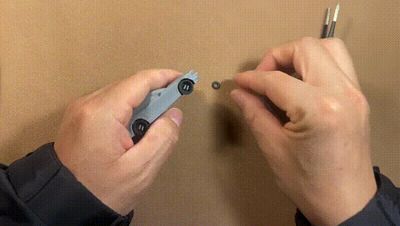

- For long-term stability, wheel installation requires firm pressure; initial rotation may feel tight. The wheels will become increasingly more agile with repeated use. See the GIF demonstration for wheel installation.

- A dedicated wheel caliper installation tool has been designed and manufactured to facilitate assembly: Link: 64-scale wheel caliper installation tool from SAMPAN棱界复刻 - MakerWorld

Visit the author's homepage to see all vehicle models, welcome to like and follow!

Hope to see more friends share your printing photos, I'm curious what kind of works you will print!

We will continue to release various high-precision 3D printed vehicles, thank you for your attention and support!
