HY Huangyang CNC Spindle VFD Control panel mount
Print Profile(0)
Description
Wiring guide ffor Genmitsu 3030 Prover max or similar cnc's with laser output at the bottom of the Link : https://l.facebook.com/l.php?u=https%3A%2F%2Fwiki.printnc.info%2Fen%2Felectronics%2Fspindle-and-vfd%2Fvfds%2Fhuanyang-hy%3Ffbclid%3DIwZXh0bgNhZW0CMTAAYnJpZBExM0ZSZGpuNUJ3MGJ6MmZVbAEeYV1pOelTHXLEfYvdIqfGhxXpB6XkY29r8JHle9ZxbHgbzrWwxnMrBLDELOk_aem_Rwr4-rcJc_b1Y2FwxDQIZw&h=AT2t0AmzcG_pw-zCemlyZjwtgC1ACVfnKxSXy8TIWSUBjAXRywsSNwSG1YRAaAhPQokOjNaRegFE7V6GjyuFrAWSvqPkQZALSMbalkk0QubHkwFXaojN6pQ22G0kZKGDzM9y&__tn__=-U-UK-R&c[0]=AT3c43fUPbyL71c-5DSYyFqiOsCZ1NLlvnlmGF5qcHylMERjo9QaqSrPcSoVsovjlGLDv4wiVyA0OJtcf_PBylSV7TA2-Ef3WmDevKZ2J_mPVs4H1ZtEa7bkqryLAUwUcmcByQIx5-TTAF2KxOwXfxCo5qFjpUj5XyXSF88vMyajMwg3WQ
Purchase the bracket here : https://s.click.aliexpress.com/e/_omKJQ7i

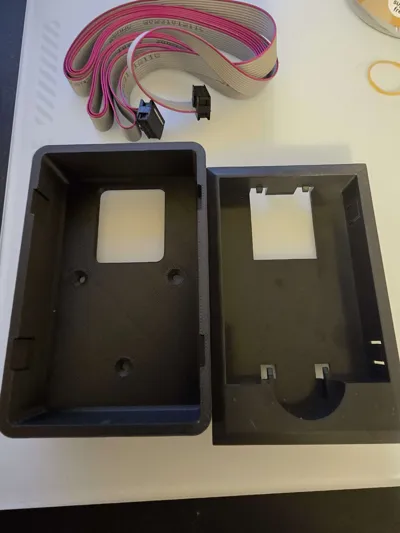

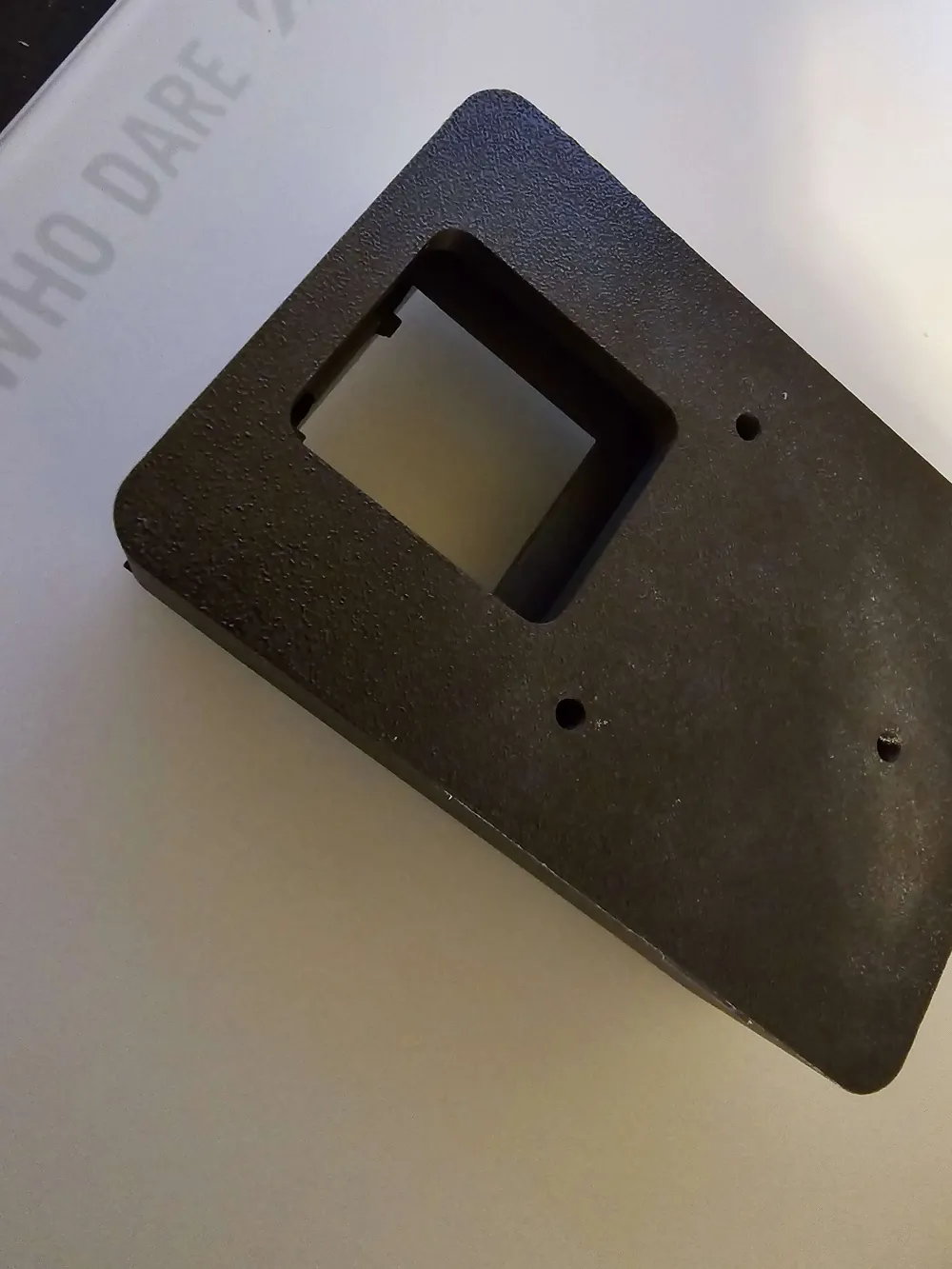

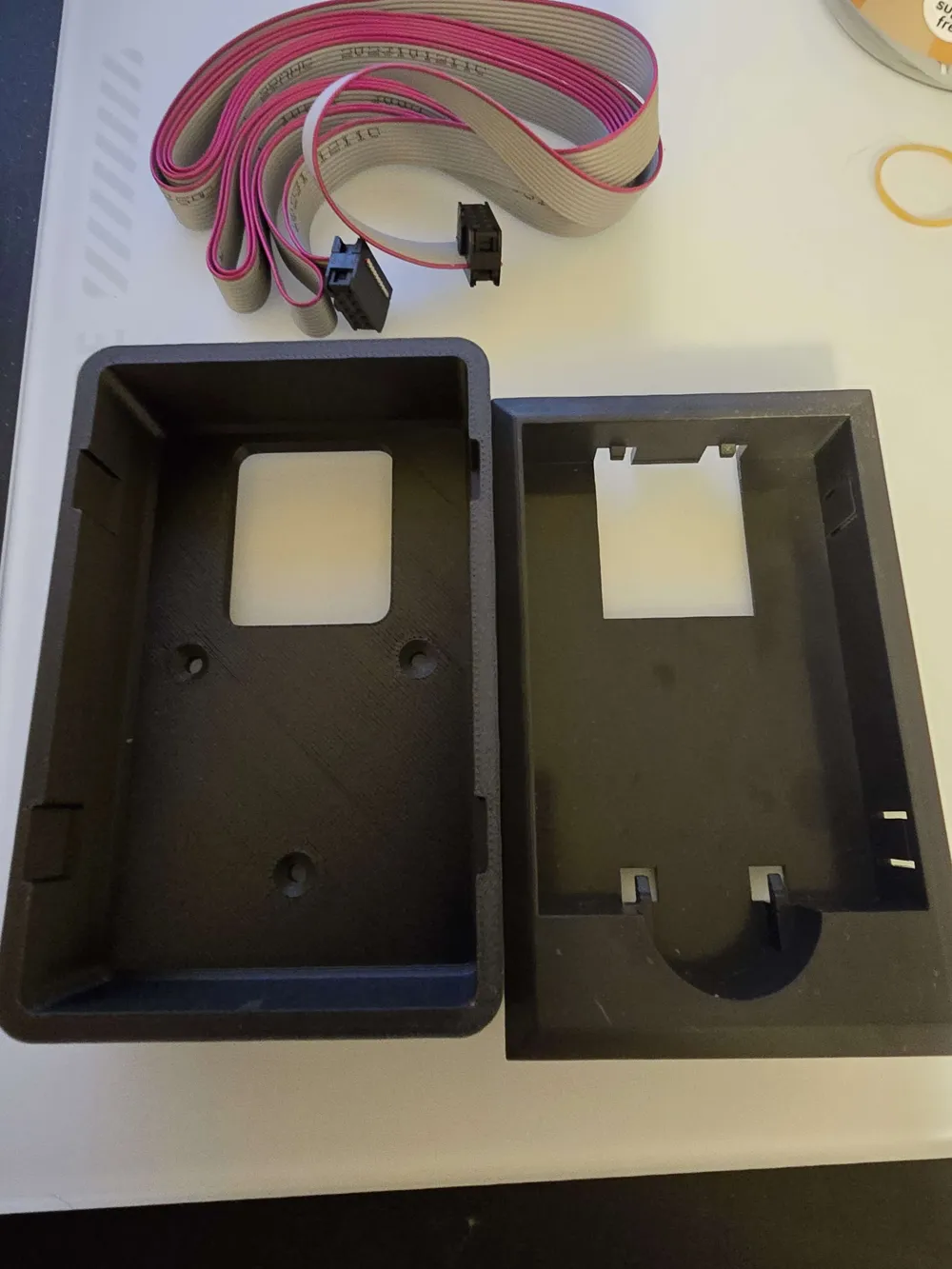

The above bracket does not have screw holes to mount it, so you 3D print my model.

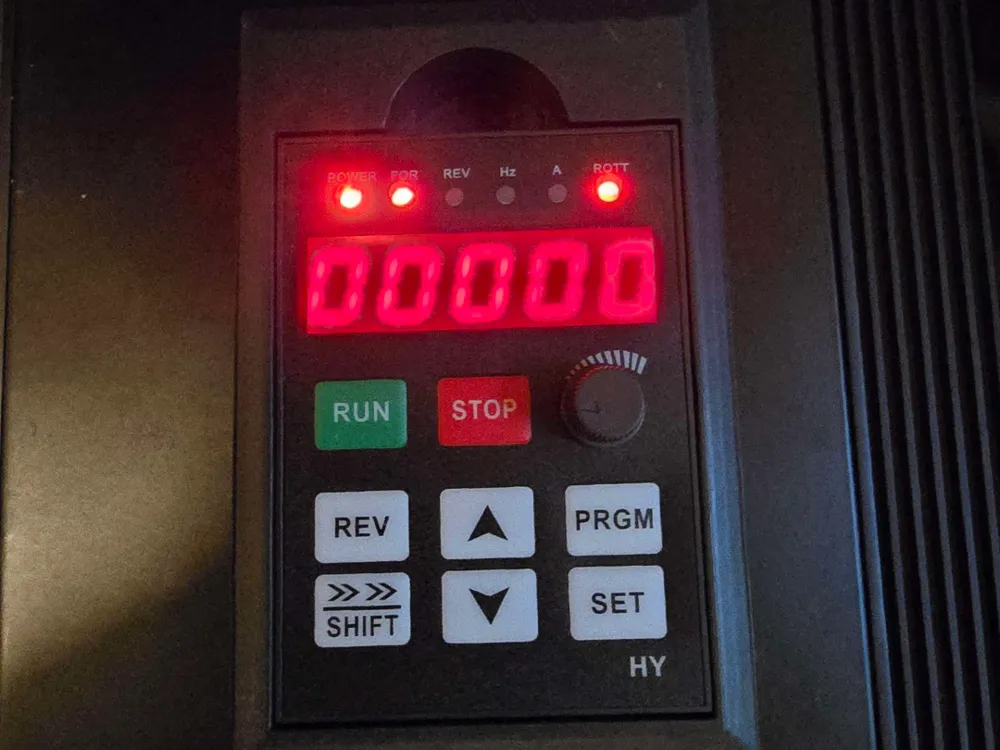

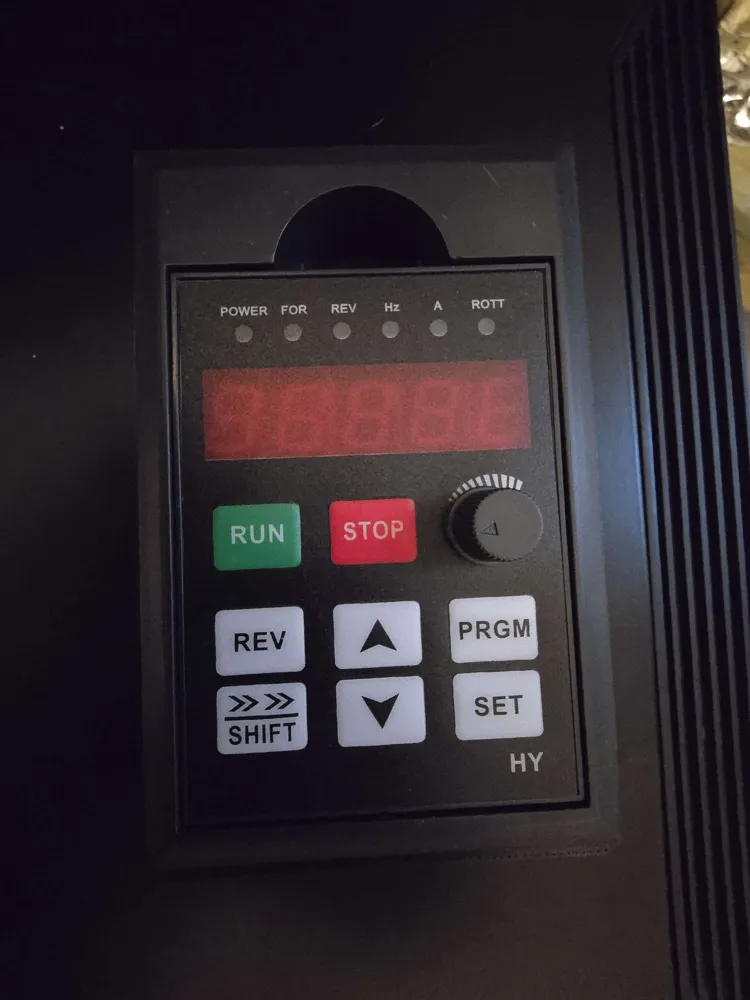

Insert the control panel into the aliexpress mount, then Install my mount to a surface and then snap in the control panel with the aliexpress mount into it.
