Air conditioner condensation drain pipe
Print Profile(3)
Description

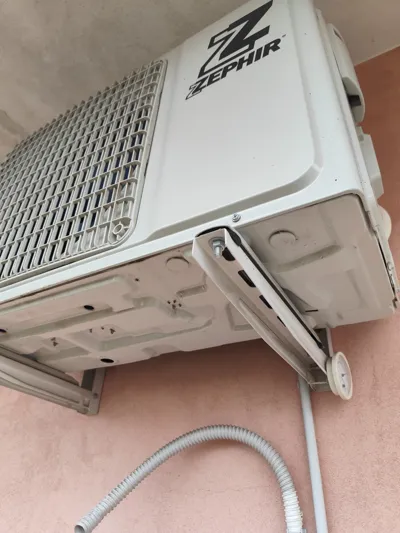

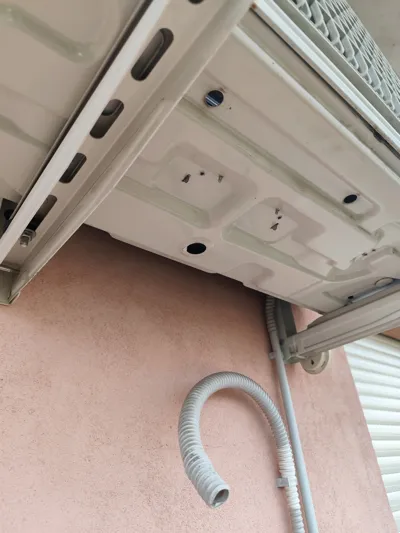

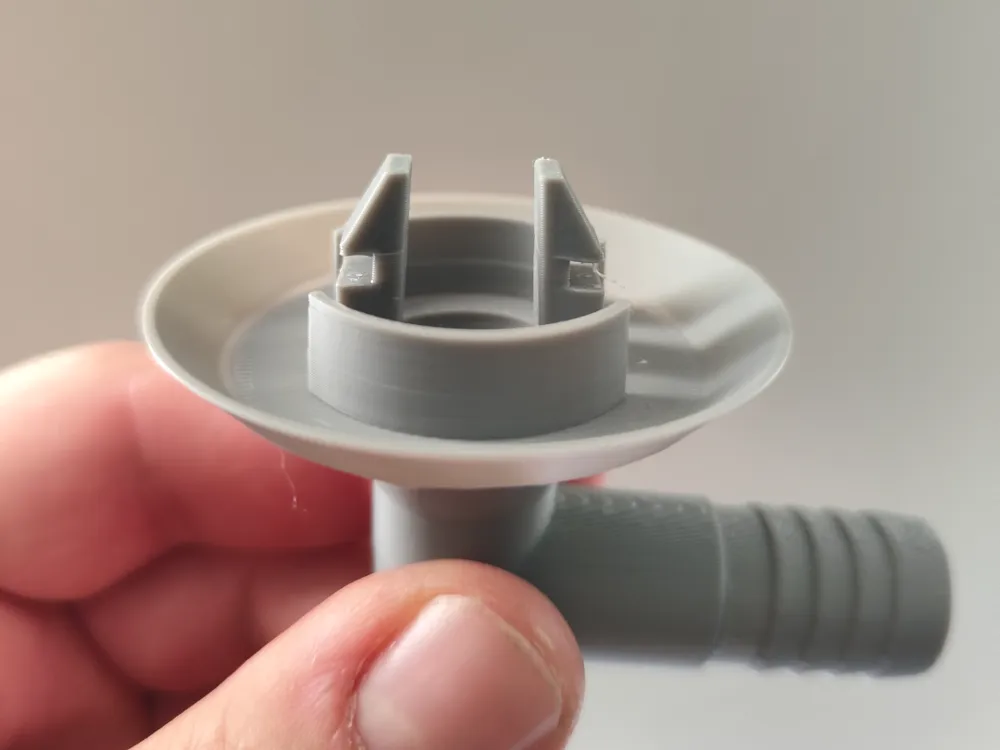

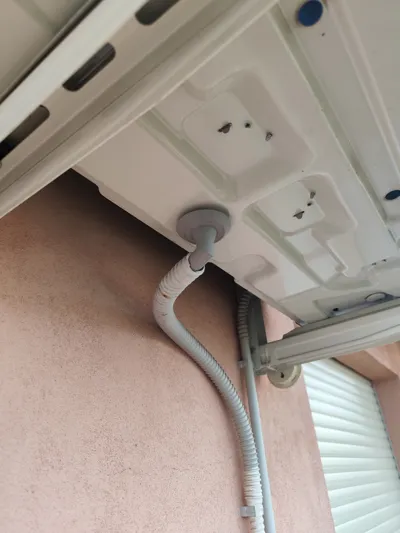

I designed the condensate drain nozzle to be placed under the outdoor air conditioner unit with a 25mm hole. In my case, it's a Zephir, but it works for any air conditioner with a similar hole. The nozzle has the hose connection tilted by 5 degrees to facilitate condensate drainage. The PLA part is very flexible, so the attachments will not break easily, unlike the original rigid plastic ones
Added a reinforced print profile, following suggestions from some users who found some points too thin. Now the model is much more solid
Date May 29, 2026, geometry modified for cleaner printing. Added print profile for Samsung outdoor unit with 20mm hole
