Cases for the Waveshare ESP32-S3-ETH (affiliate link).

You will need one M3 countersunk screw.

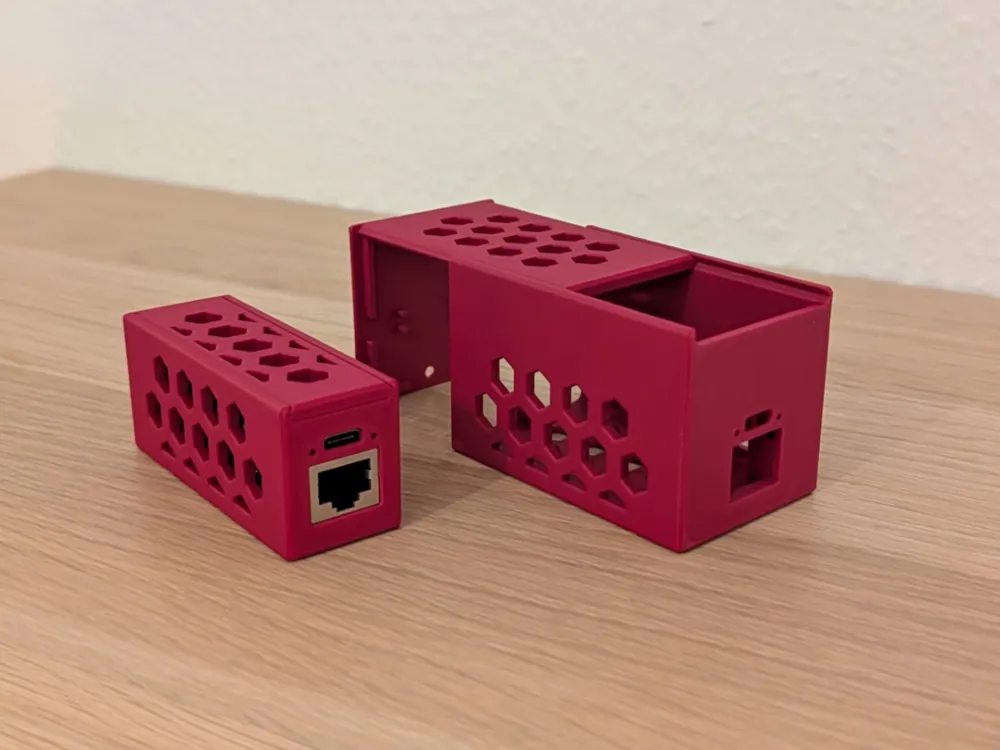

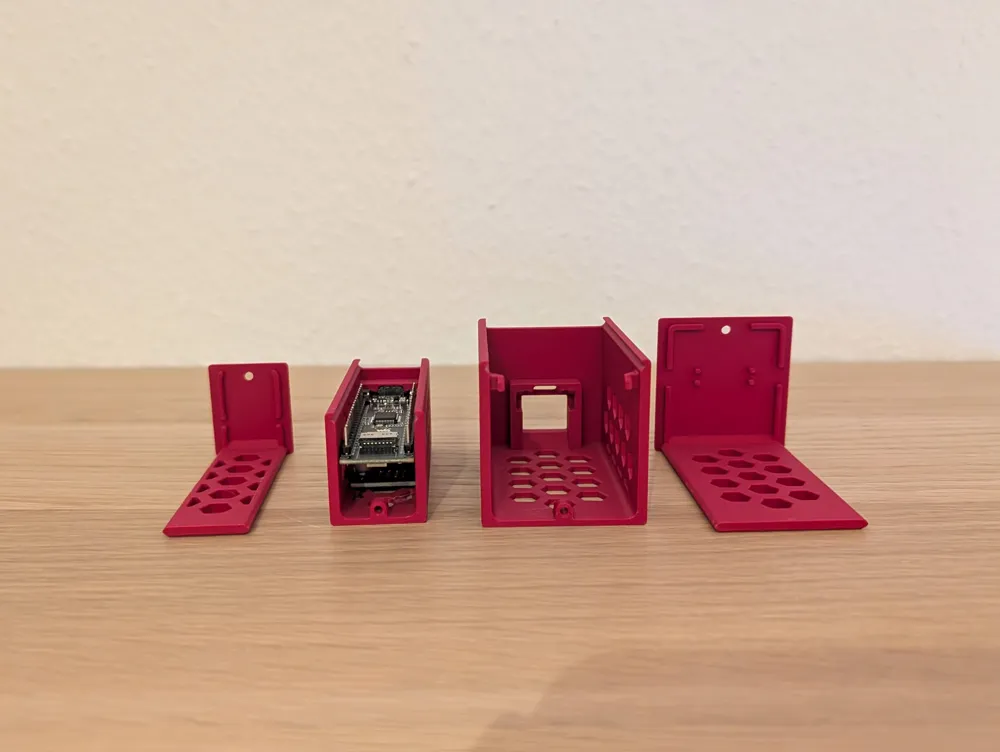

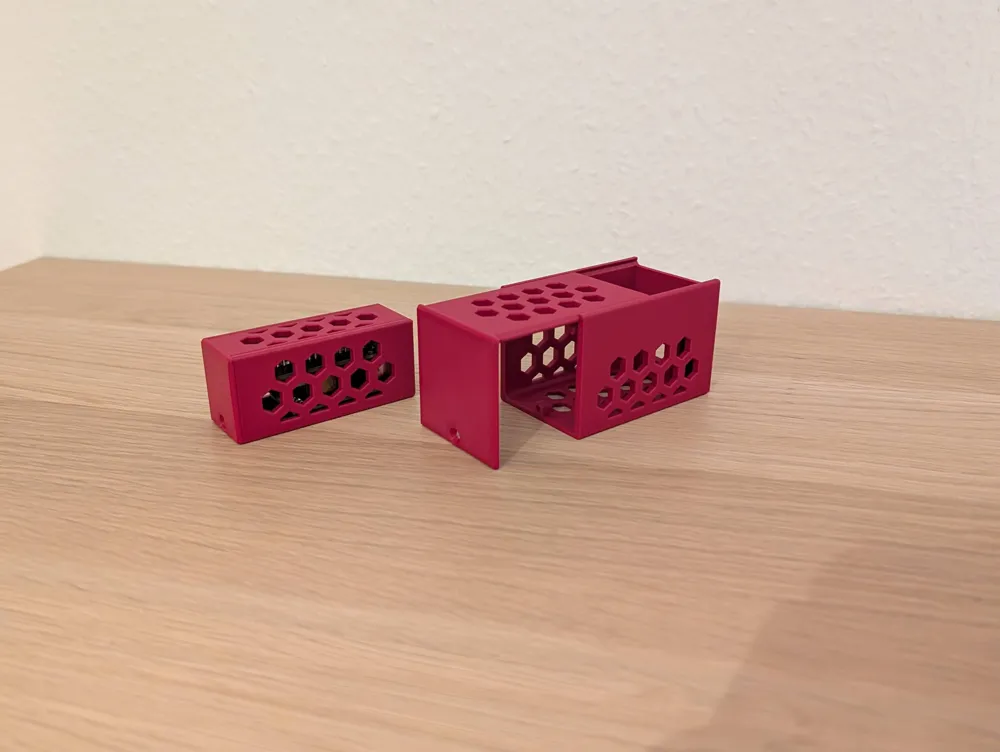

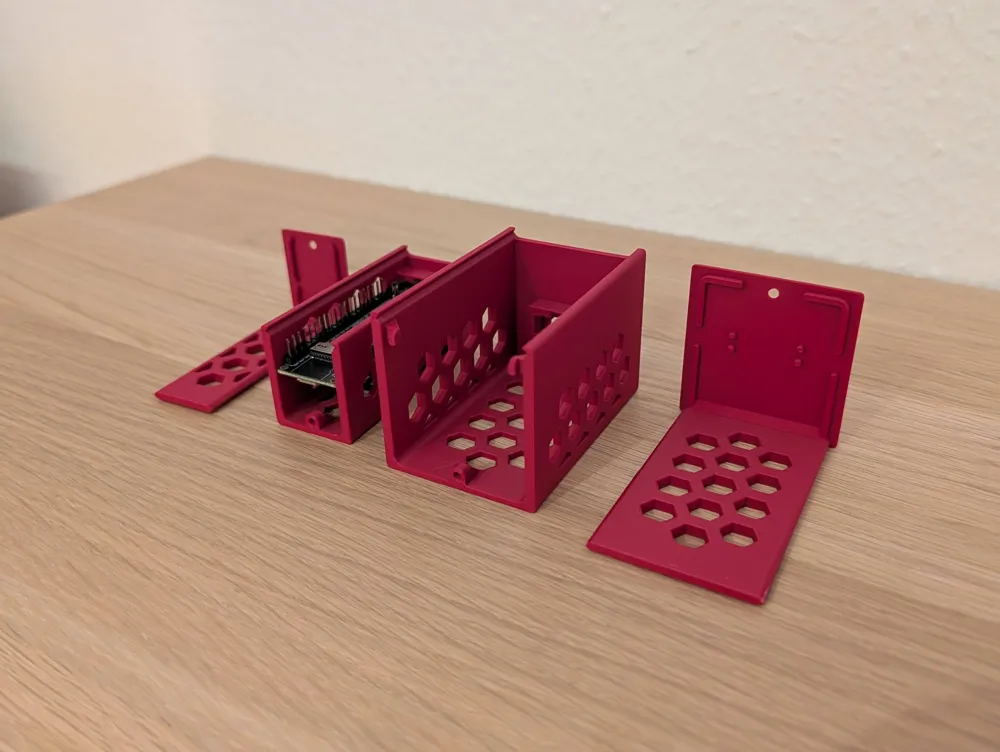

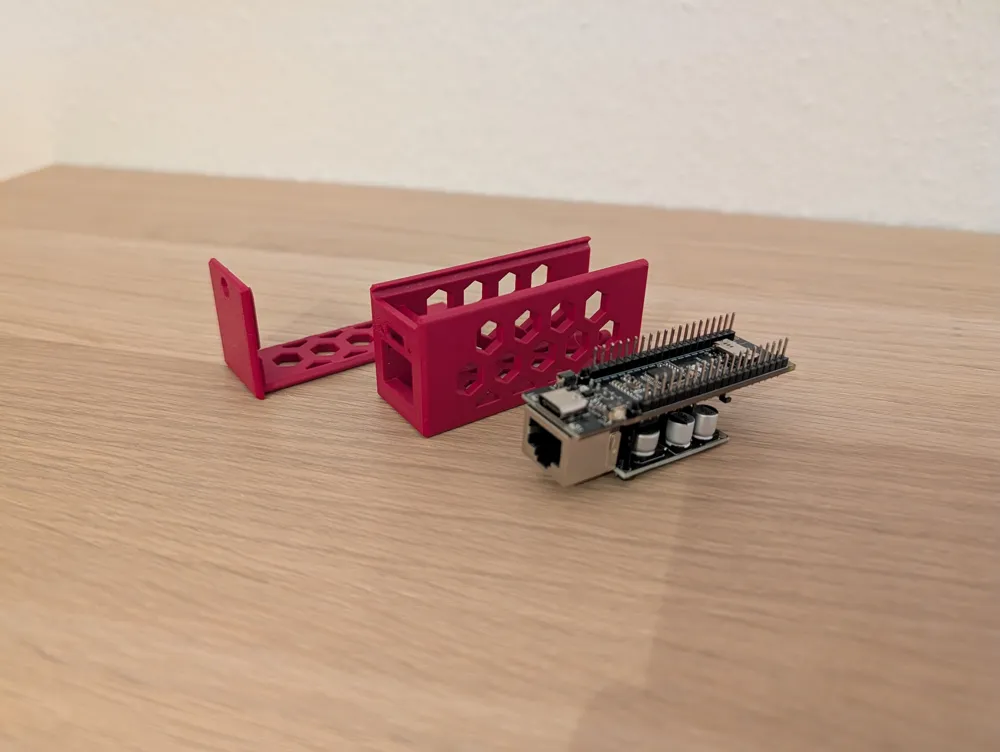

Version 2:

extra space for bigger solder blob near RJ45, thanks @balloob for the info
parametric design, you can change the height and width using the "Customize" button, if you don't like standard sizes
more and nicer looking vents
4 sizes, but empty cases, without any mounts, other than for the ESP

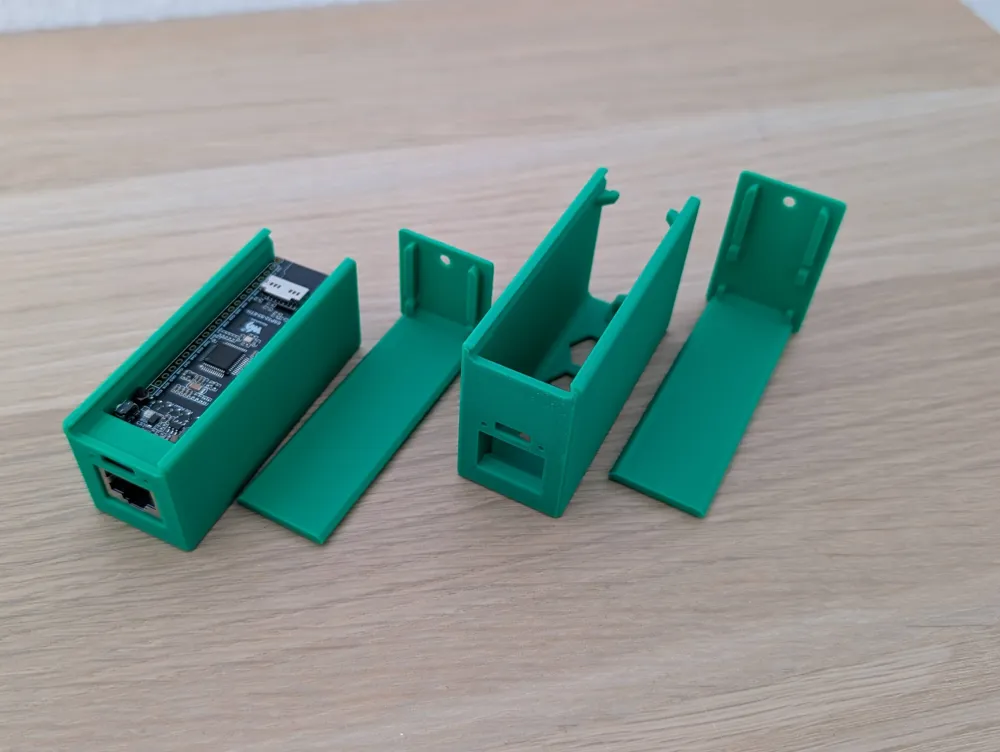

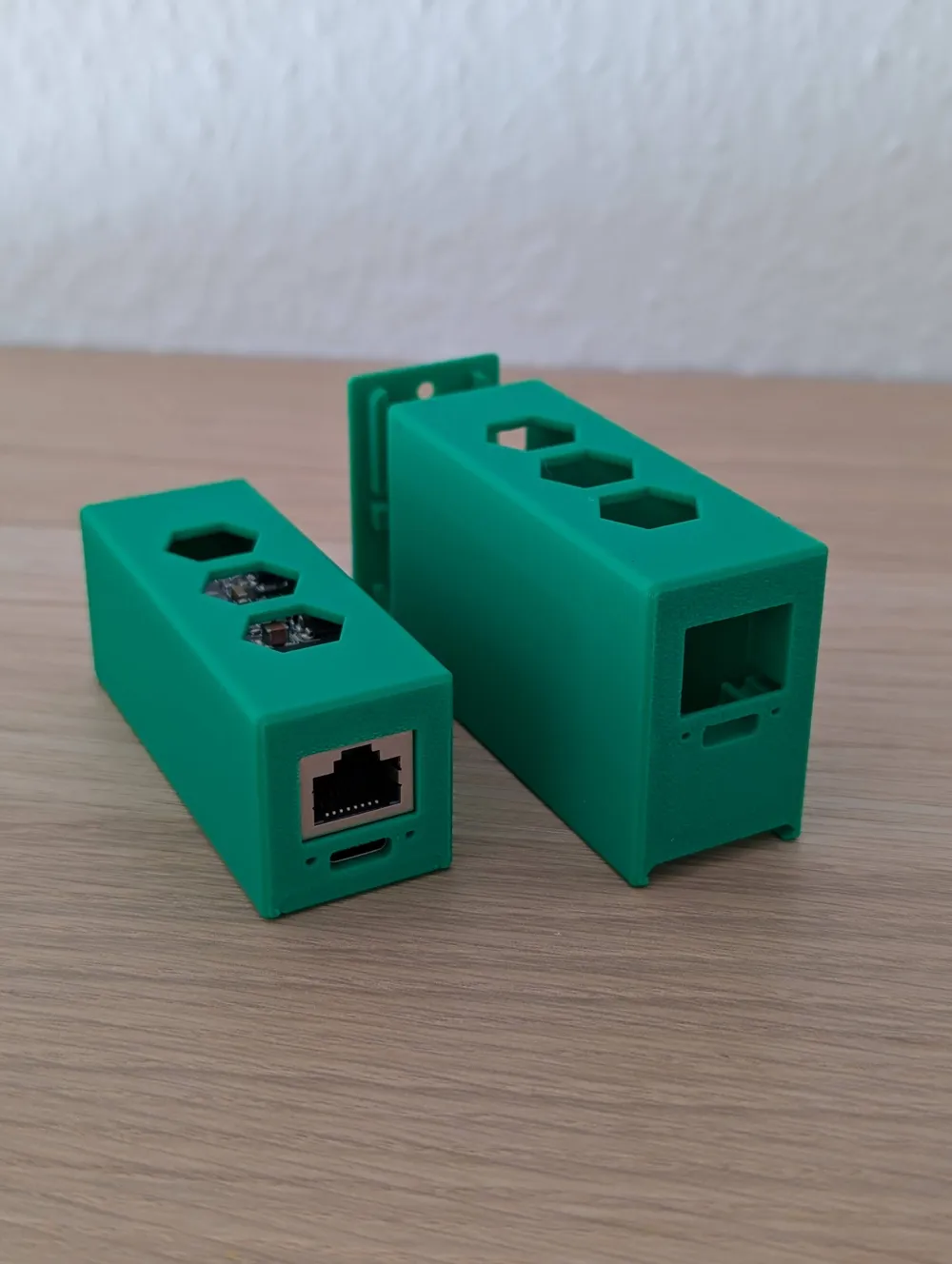

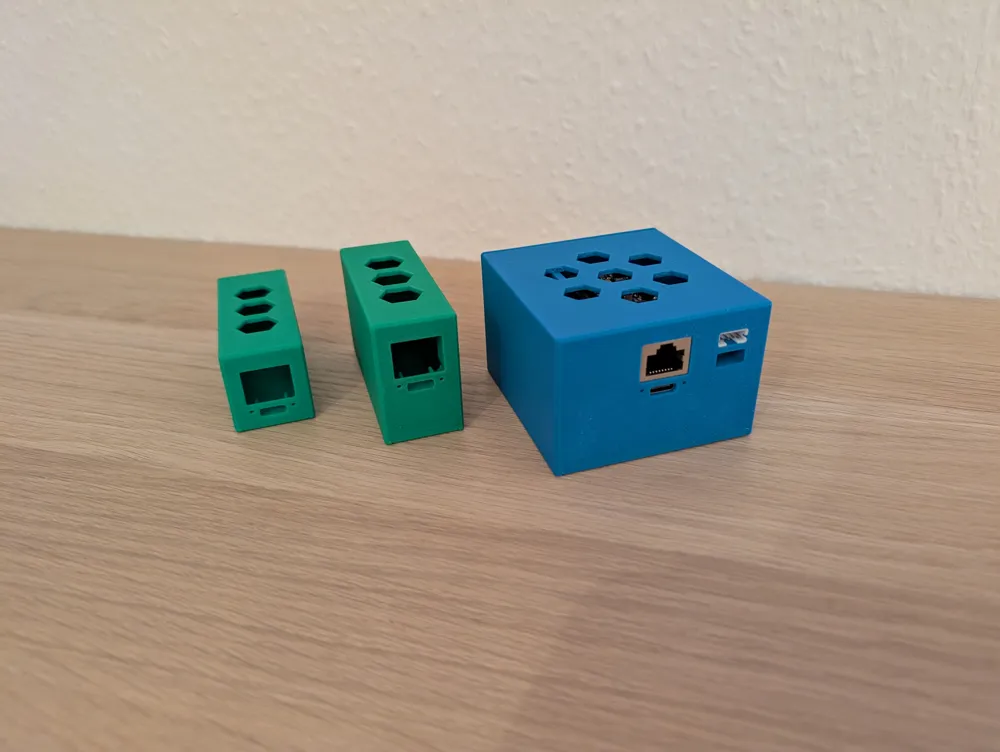

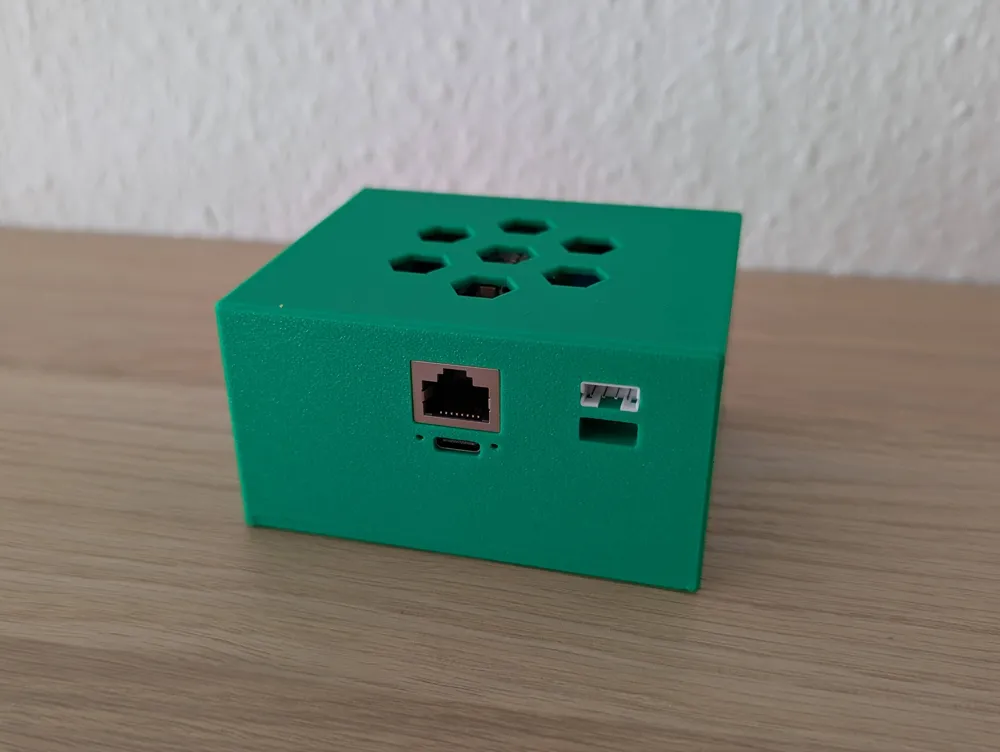

Version 1 (green and blue ones in the photos):

S only for the ESP32 itself (only fits without headers)
M some more room for extras

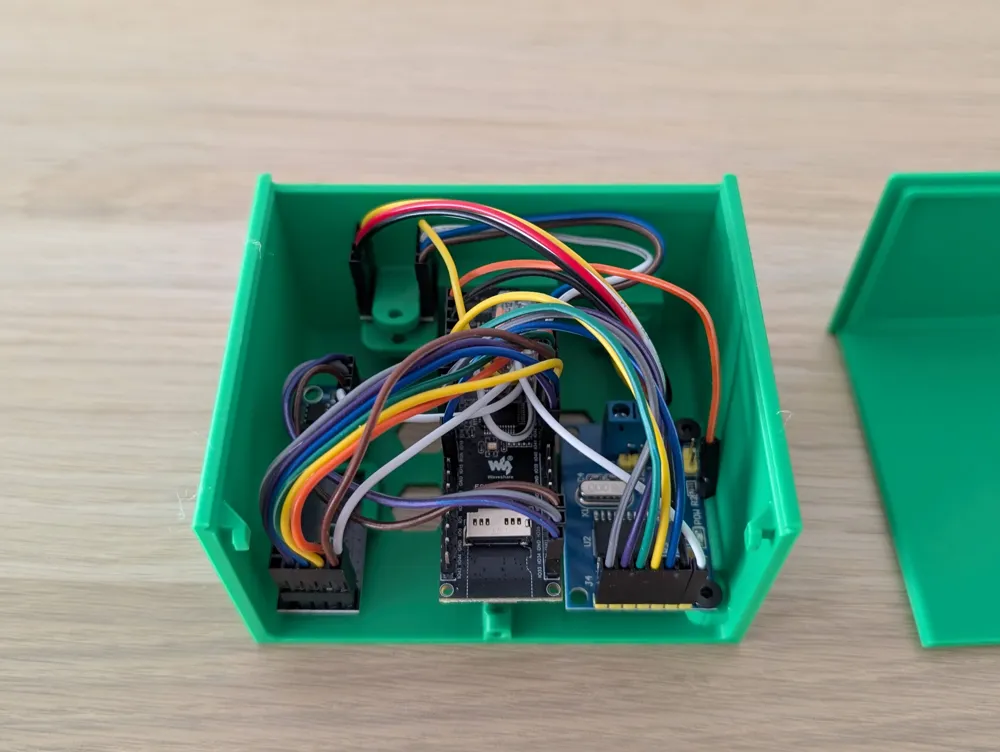

L with mount for a NRF24L01+, two Victron VEdirect connectors (affiliate link), and 3x 3mm screw holes for more accessories
XL like L but 20mm wider + mount for MCP2515 and SN65HVD230

If you need a case for the P4 version, look here.

Boost Me (for free)

If you like this model, please consider giving it a boost! Your support helps a lot.

Membership

See memberships options for commercial print licenses (remixes excluded).

Join

Comment & Rating (61)

@Pilotboy84

Can you make this to suit the P4-ETH PoE? The only issue is that the pins on the preassembled kit is on the bottom, so can it be rotated on its side?

The designer has replied

@Fabrion365

Hey, the design is quite similar, so with a few changes in dimension and swapping the USB-C it would be done. But without having physical access to a P4 it's really hard to get all measurements. Pin orientation seems identical to the S3.

@Pilotboy84

Replying to @Fabrion365 :

Happy to give you all the dims on here, The dims are on the waveshare page too, https://www.waveshare.com/product/arduino/boards-kits/esp32-p4/esp32-p4-eth.htm?sku=32088

@Pilotboy84

Replying to @Fabrion365 :

The other issue is that the pins face down, on the board, not up, to accomodate the POE module, which is on the back end of the RJ45 port. You'll see what I mean, but if you want accurate dims, im happy to send them to you :)

@jeffme

Boosted

Print Profile

version 2

This case design (v2) is the whole reason I got a 3D printer. I'll quickly be able to deploy an esp32 project into a real world operational environment. muchas gracias!!

(Edited)

The profile uploader has replied

@Fabrion365

great to hear 👍

@dylansallee

Boosted

Same here actually!! opens so many possibilities :)

@user_3618214273

Boosted

Thanks for the great case. It fits perfectly. Is it possible to get the design files I would like to add a few more openings (cable pass-throughs)

(Edited)

The designer has replied

Show original

@Fabrion365

Hey, feel free to send me a PM with what openings you need, possibly with a small sketch

Show original

@user_3618214273

Boosted

Replying to @Fabrion365 :

I would like to install an RJ45 jack and also provide for additional cable pass-throughs to be drilled I want to use the housing as a temperature sensor but when the sensor is inside the housing it reads much too warm due to the dissipated heat I will gladly provide the data for the RJ45 cutout later Regards Markus

(Edited)

Show original

@powston

Boosted

Thanks for your great work! Keep it up.

The designer has replied

@Fabrion365

Thank You :)

@user_2558478673

Print Profile

version 2

I printed V2-S to use with my Home Assistant ZWA-2 and it works great. Using the customizer I was able to generate a case that had a 1U height, then added rack ears so I can mount it to my media center 10" rack..

The profile uploader has replied

@Fabrion365

That's a clever idea

(Edited)

@user_803208616

Hello is it possible to publish the version with the camera

The designer has replied

Show original

@Fabrion365

They camera is just a additional module connected with a ribbon cable?

@user_803208616

Replying to @Fabrion365 :

yes exactly

Show original

@Fabrion365

Replying to @user_803208616 :

Interesting idea, but nothing I could to with just some quick changes, sorry.

@user_126778209

Could you please add the holes so we can press the start and reset buttons with a needle?

The designer has replied

@Fabrion365

Hey, on it, just started the test print.

@Fabrion365

Done, Version 2 has now holes for the buttons

@adriangalilea

Could I get the fusion file so I can make some sort of cutout for the camera? Either way thanks.

The designer has replied

@Fabrion365

Hey, contact me by pm

@dylansallee

Boosted

Print Profile

version 2

So glad the one case that I could find for my Waveshare ESP32-S3-ETH PoE happened to be as awesome as this one. Great default print profile, attractive design, and even fits an external antenna through the hexagon shapes (though a dedicated circular hole would be appreciated). Excellent for a PoE/wired BLE proxy, as running both the proxy and WiFi on a standard ESP32 reduces range and reliability significantly.

@scorf

Exactly what I needed and printed great.
