Description
Boost Me (for free)
If you like this model, pls give me a boost.

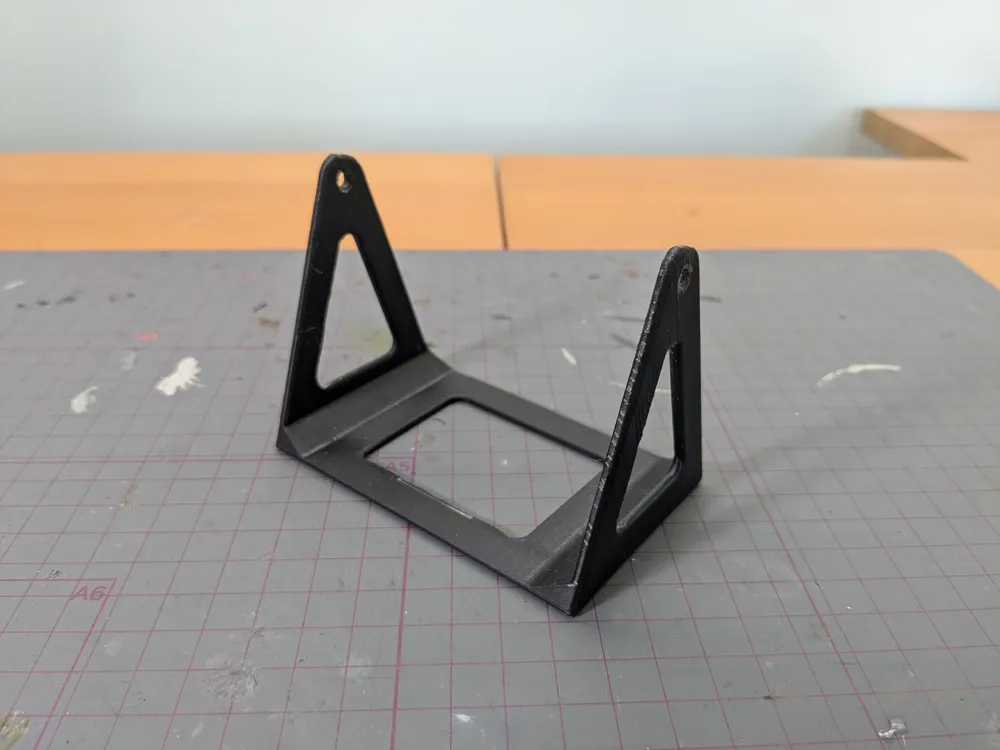

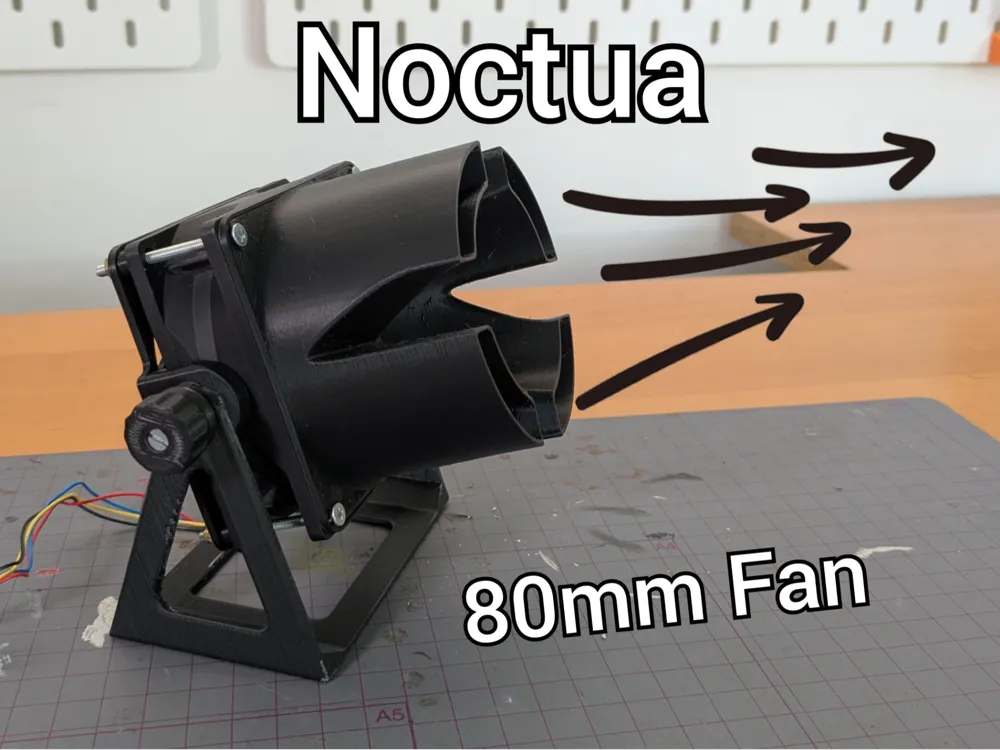

This is a Noctua desk fan mount designed for 80mm fans.

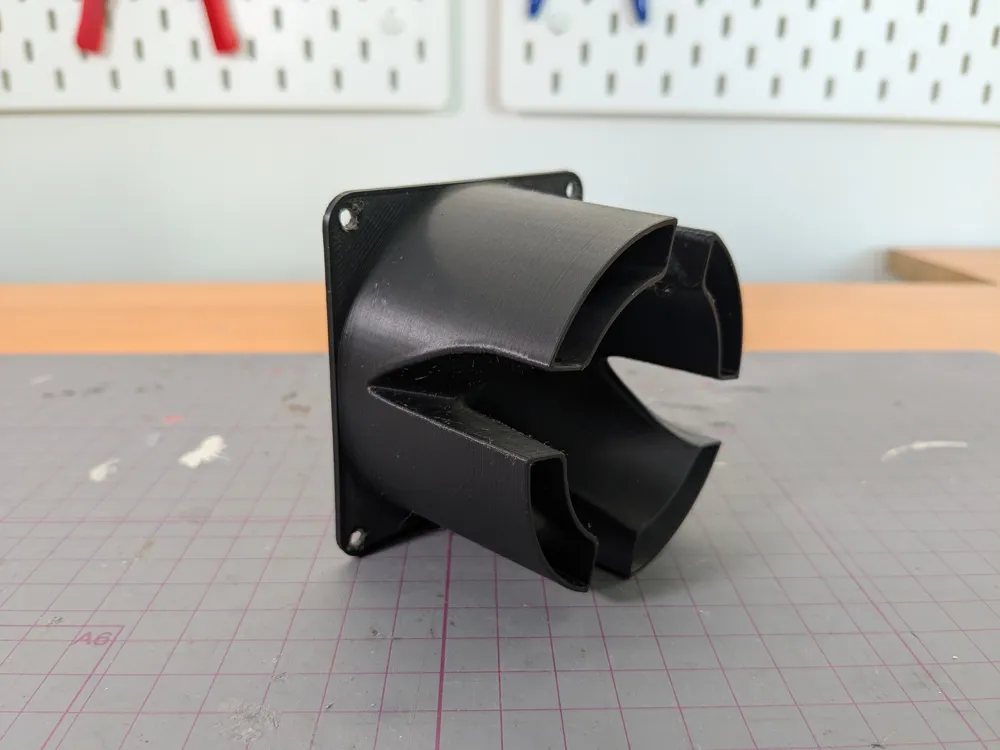

The Airflow Amplifier has been scaled down to work with 80mm fans. The original model was made by Noctua.

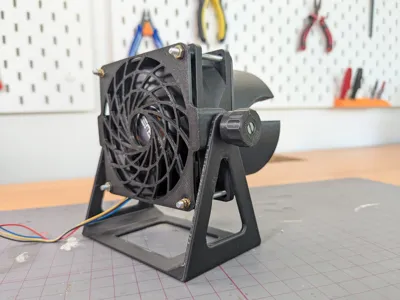

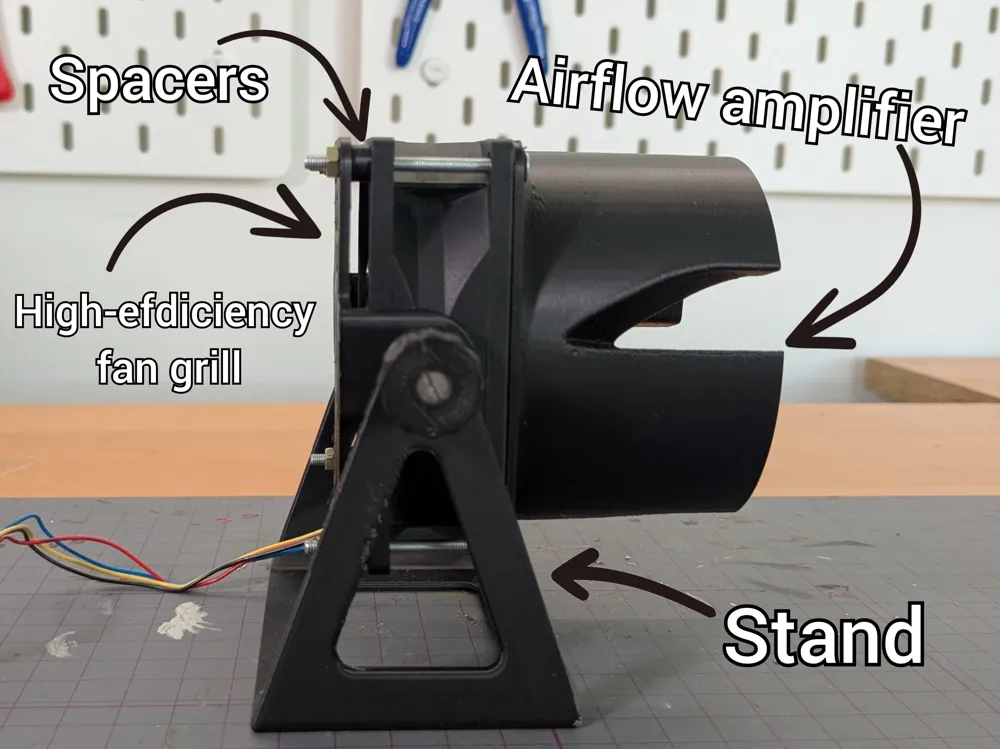

The high-efficiency fan grill has also been scaled down and modified with two mounting points for the swivel. You will need to install M3 heat-set inserts in those holes for proper mounting.

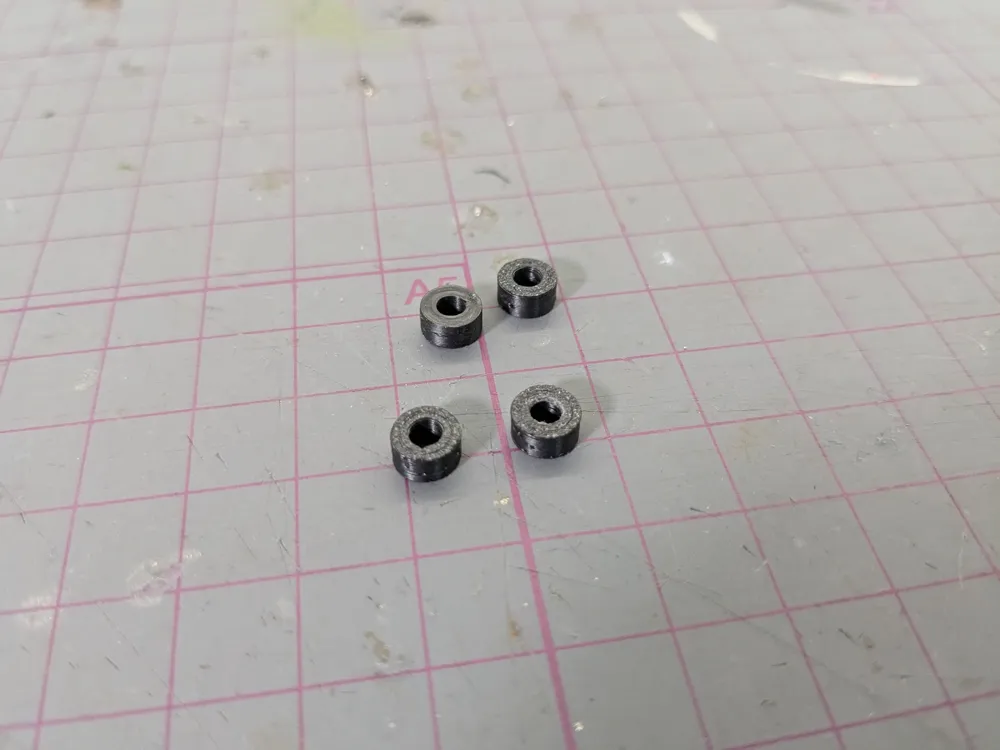

Don’t forget to place the spacers between the fan and the fan grill. Without them, I experienced a whistling noise.
Original models by Noctua:
NV-AA1-12 Airflow Amplifier by Noctua
High-efficiency Noctua 120mm fan grill by Noctua
