Bubblin Tower – A Summer-Ready Tiny Bubble Maker

Sunshine ☀️ Suds 🫧 Smiles

The Bubblin Tower is a playful, compact bubble machine made to capture the spirit of summer in one fun little gadget. Perfect for sunny days, picnics, backyard hangs, and kids-at-heart, this tower packs serious fun into a tiny package.

Just add bubble solution and watch your bubble tower burst into action — it’s everything a maker summer moment should be.

🛠️ Assembly Instructions

This step can be done before or after:
→ Install/glue in the 8 x 2 mm magnets, ensuring correct polarity.

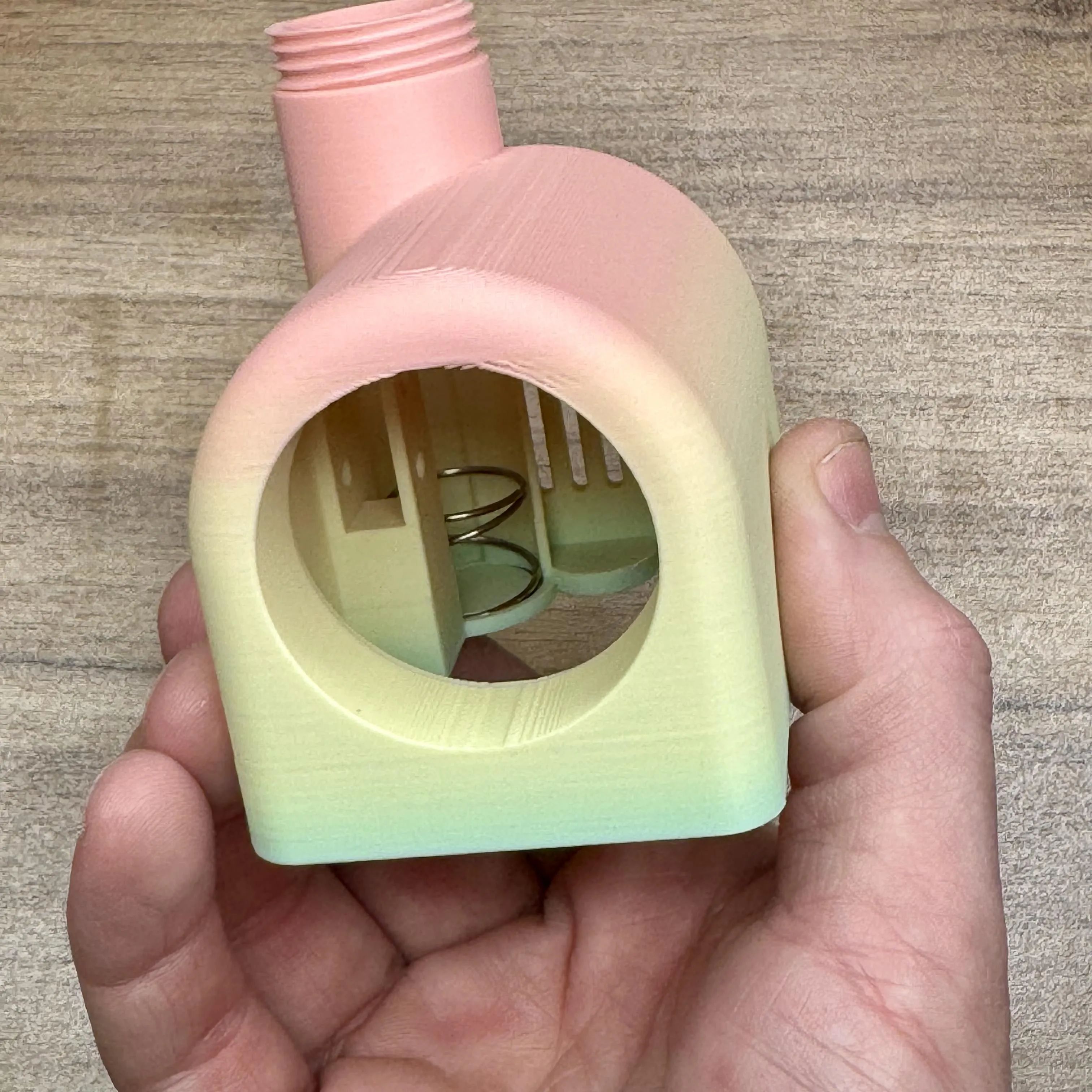

1 - Insert the spring (1x18x15 mm) through the chimney down into the groove at the bottom.

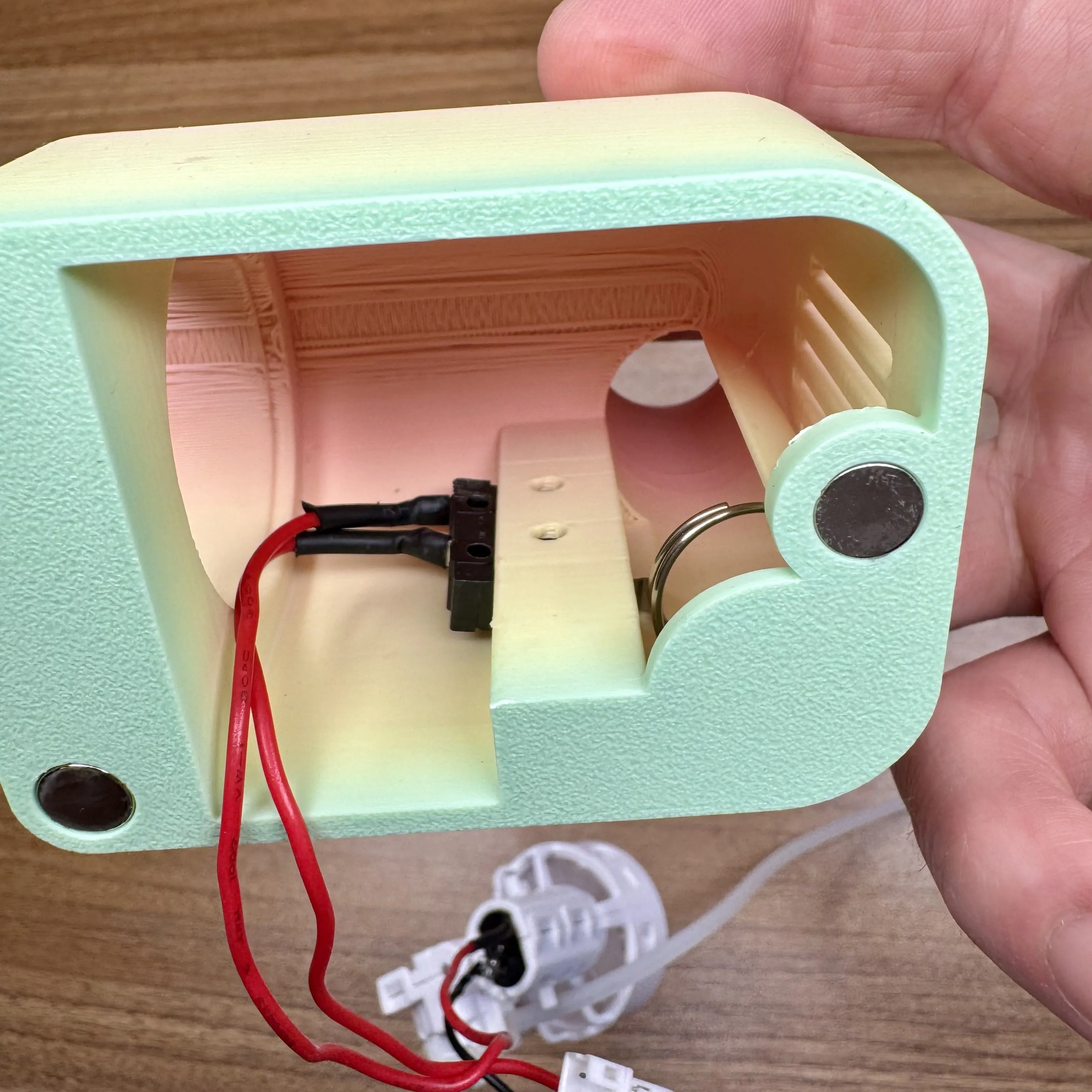

2 - Insert the switch into its holder. (ensuring you are coming through the bottom, not through the front hole for the fan/bubble blower)

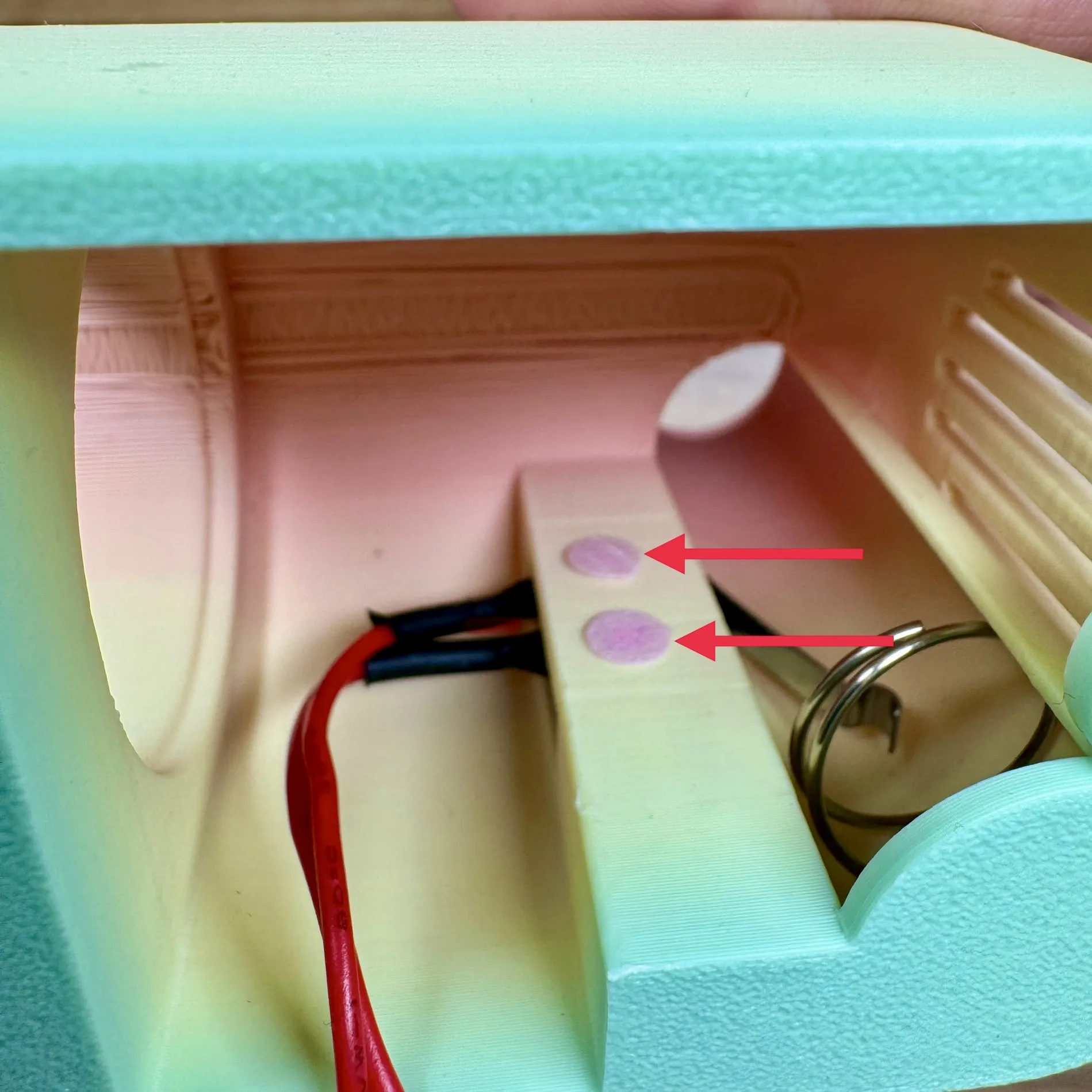

3 - Line up the two holes and insert the switch pins (feel free to leave on the brim as seen in the photo)

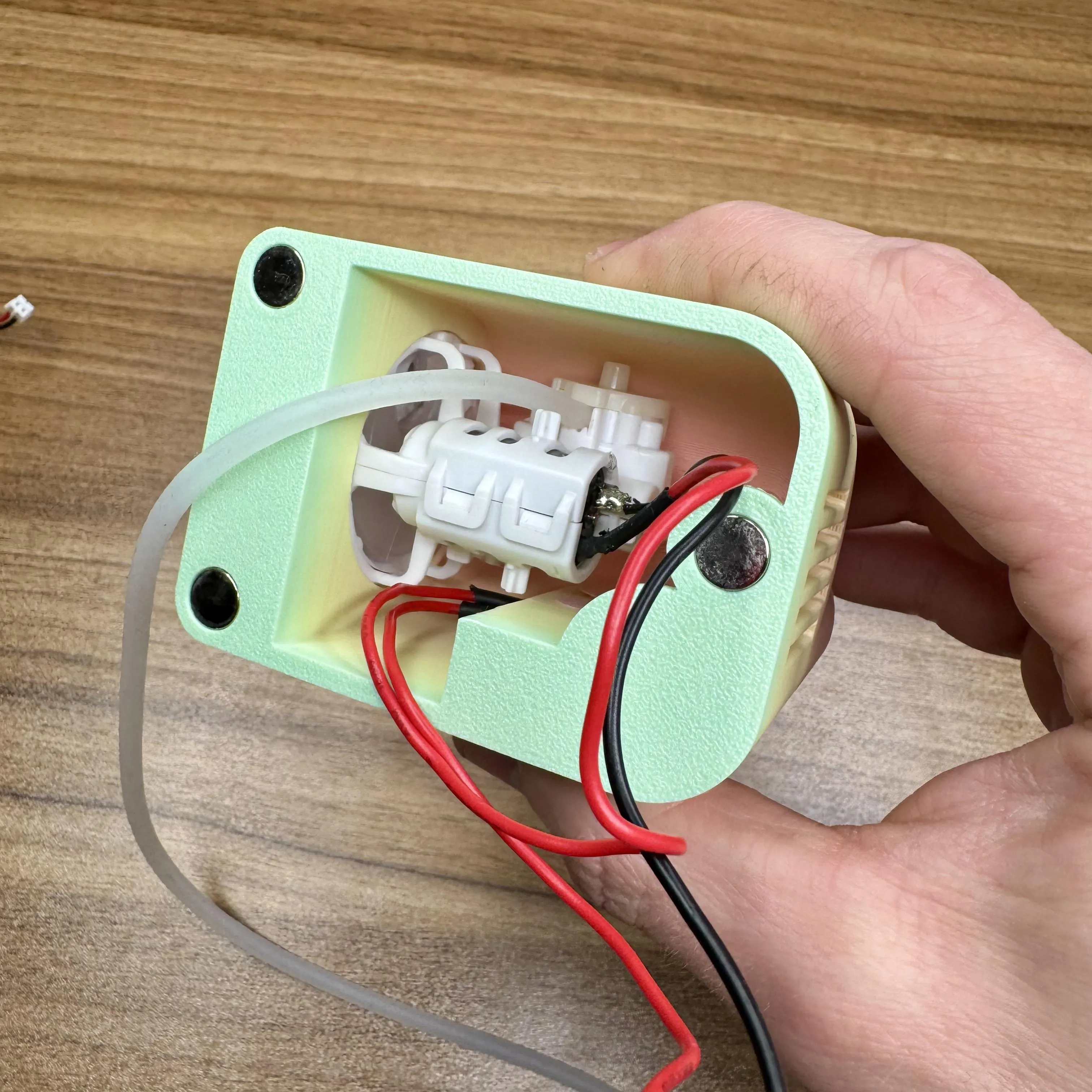

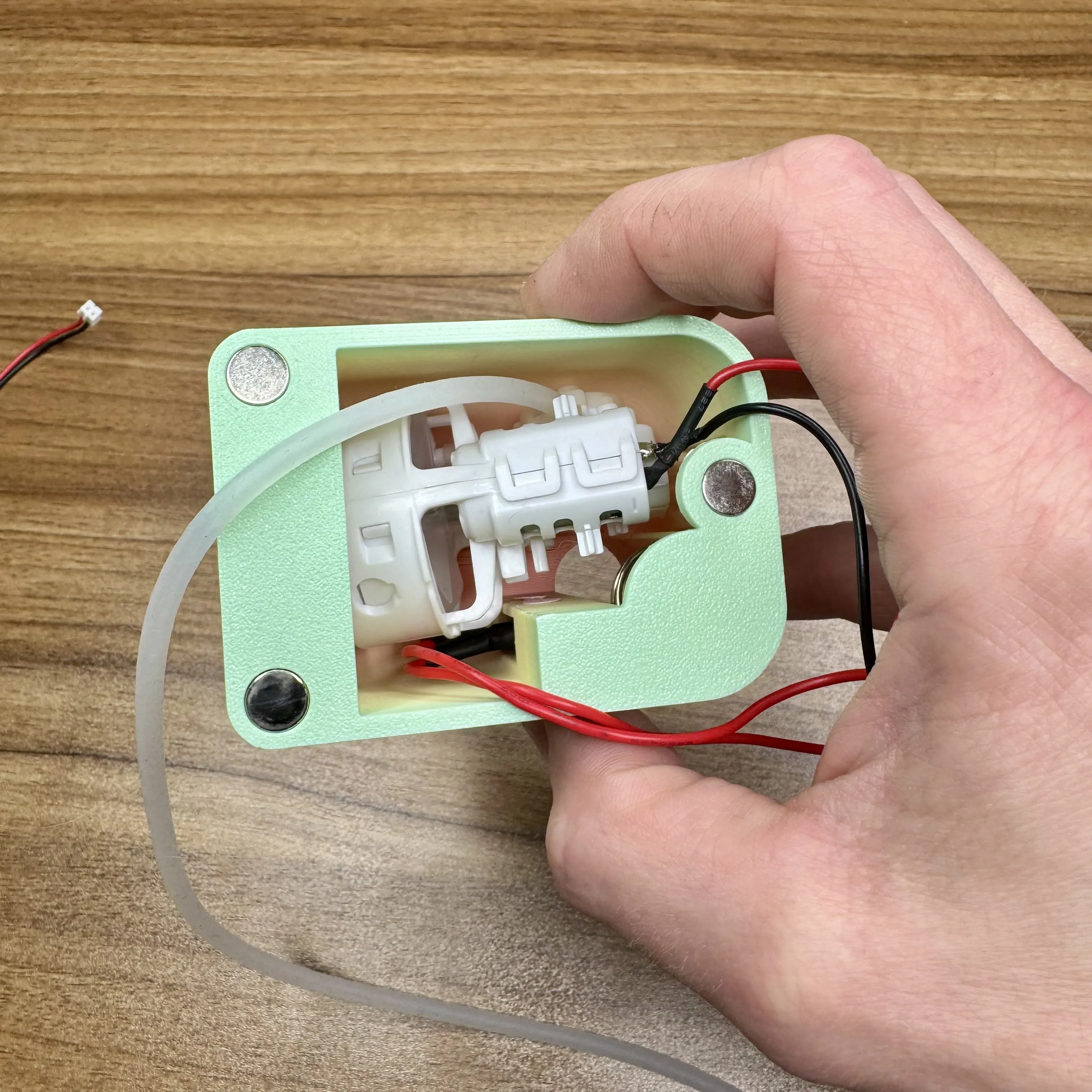

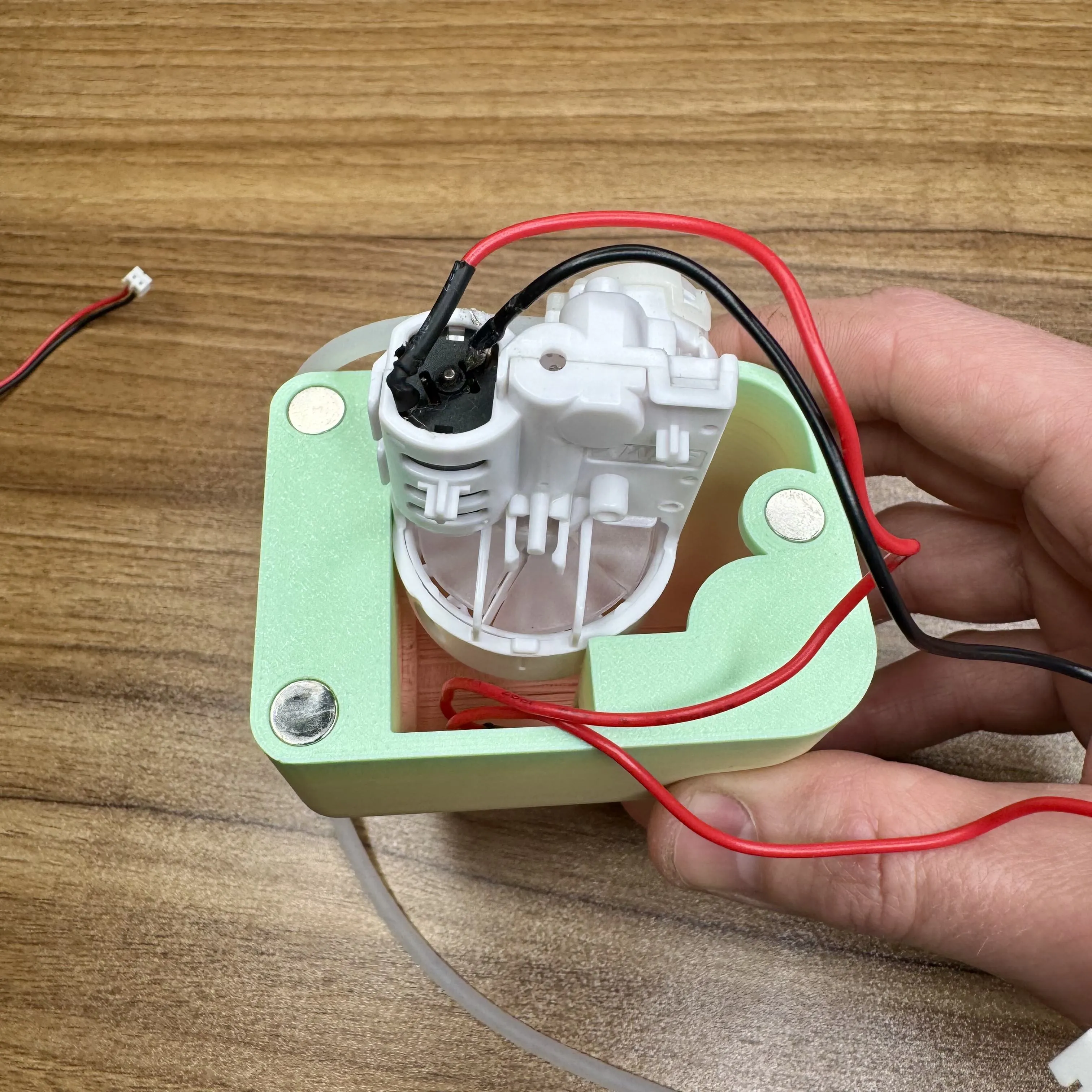

4 - Insert the bubble blower unit. It’s a tight fit getting it in initially. Take note of the positioning in the photos.

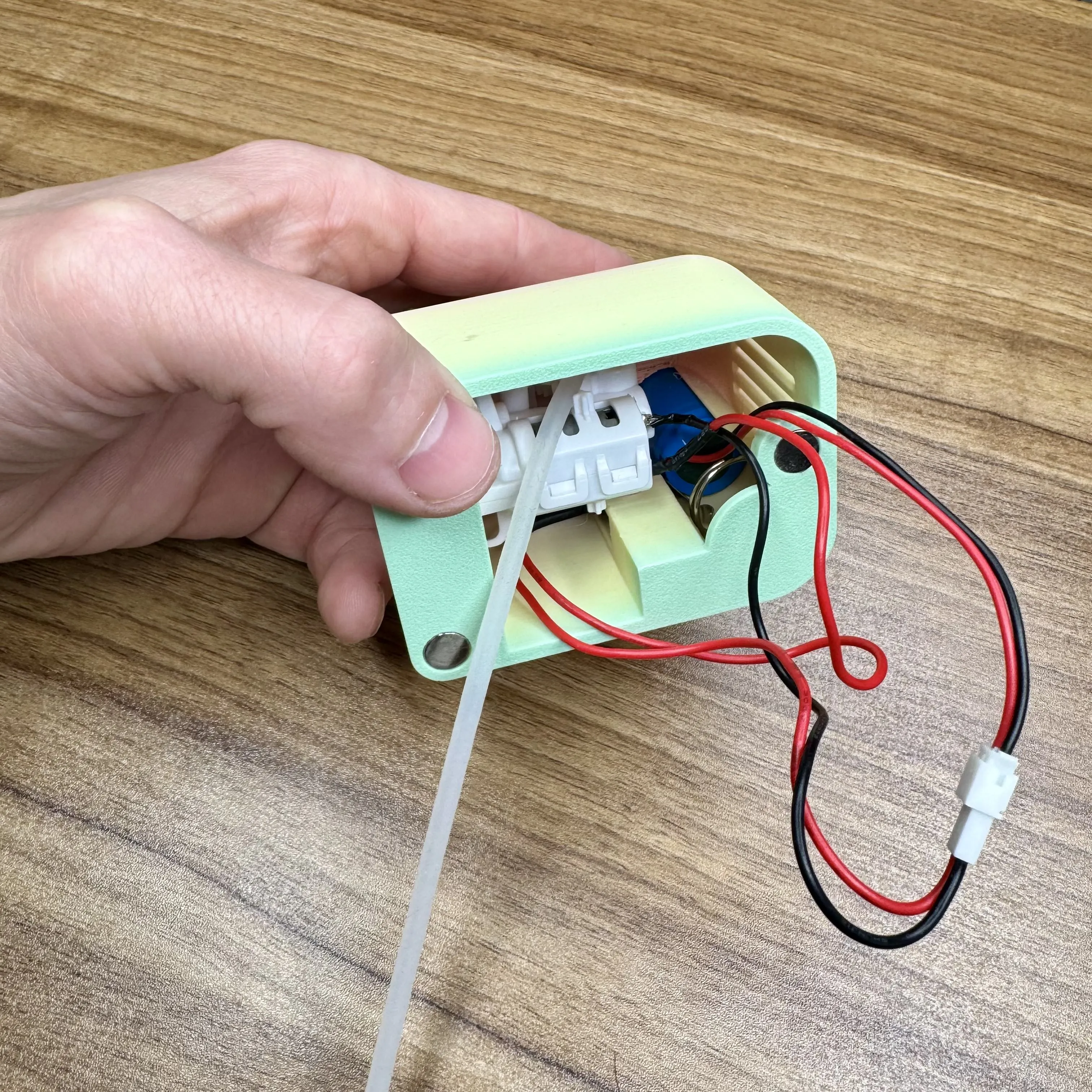

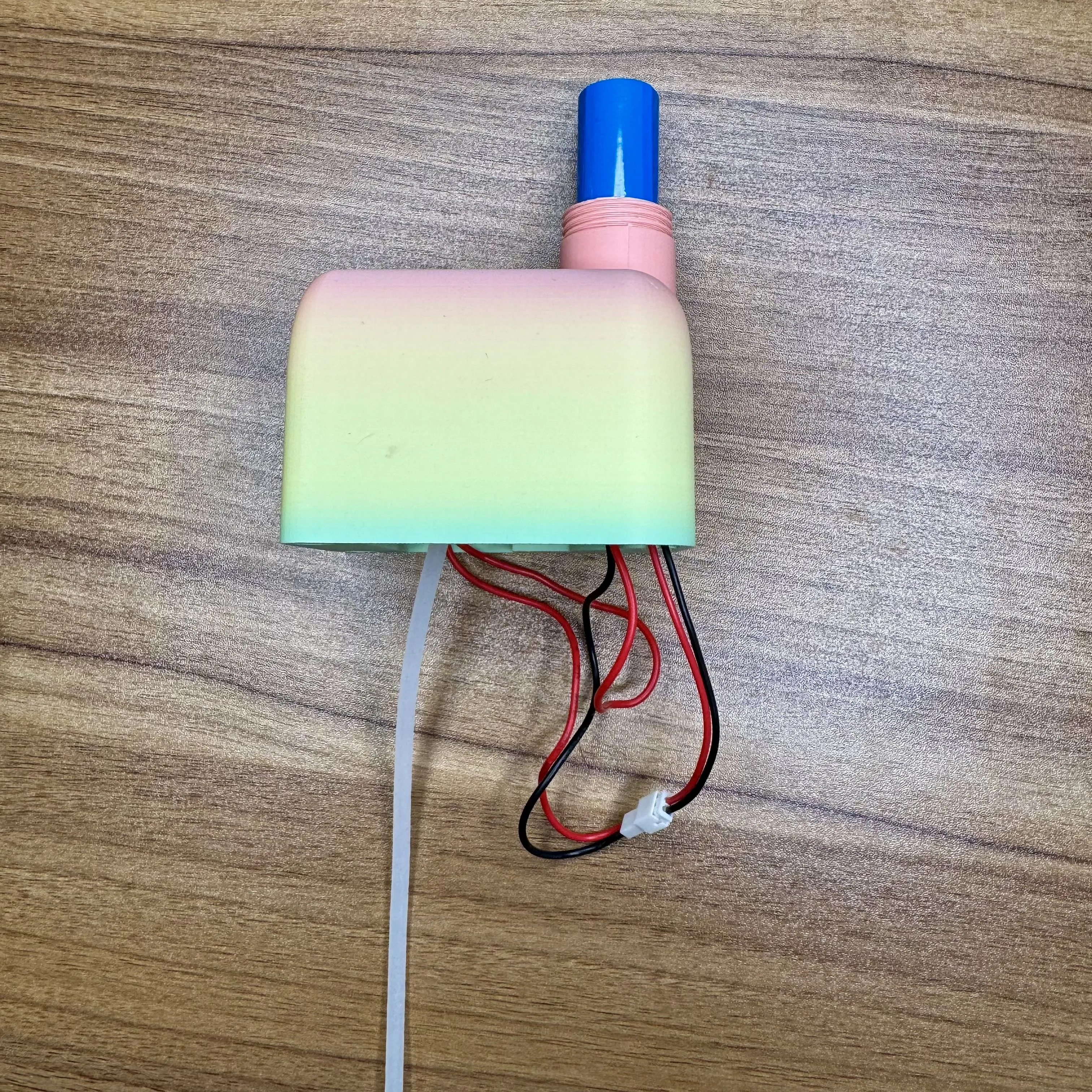

5 - Insert the battery through the chimney (wire end first) and plug it into the bubble blower. ensuring that the wire does not go through the spring you installed earlier.

6 - Ensure all wires and hosing is out of the way of the battery area as much as possible.

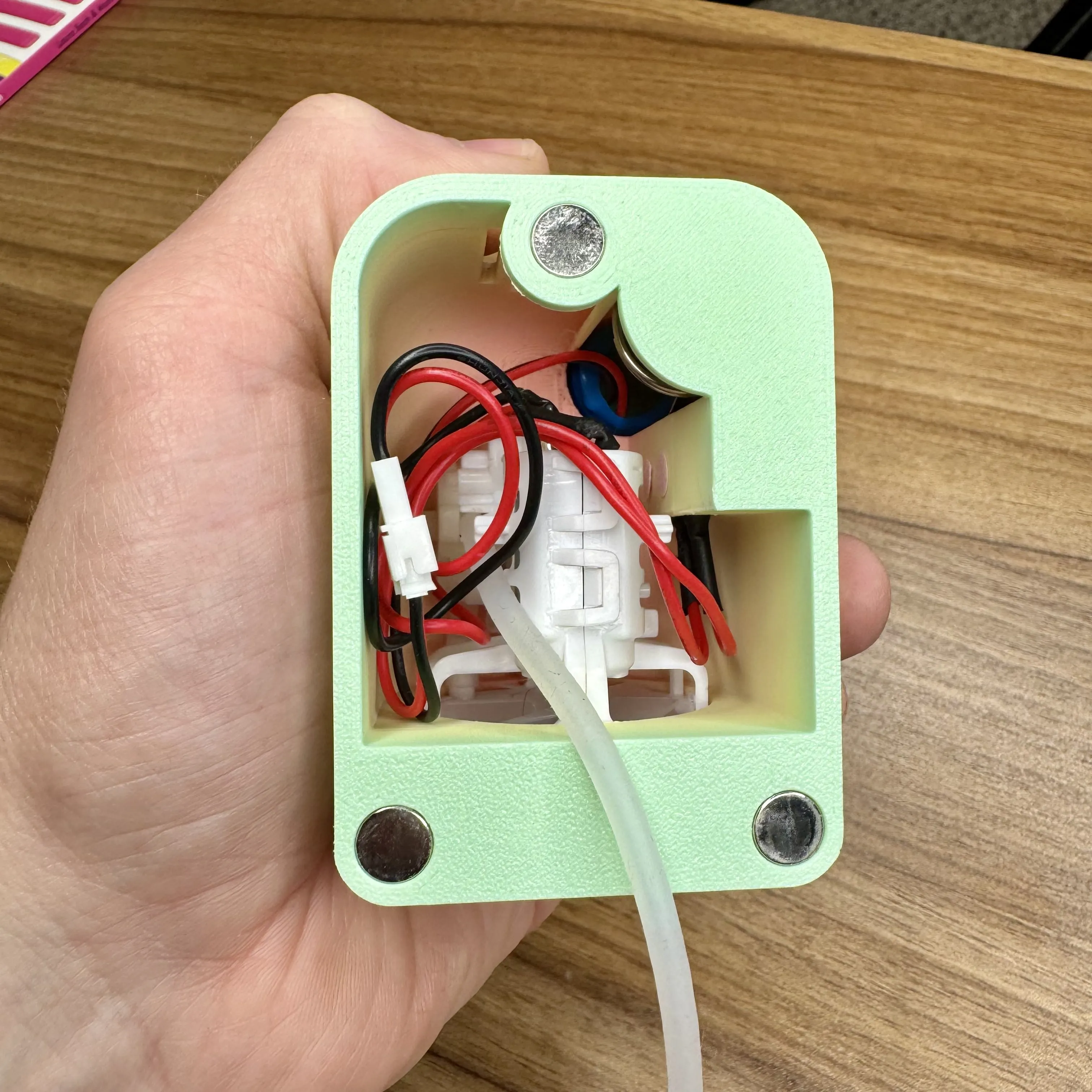

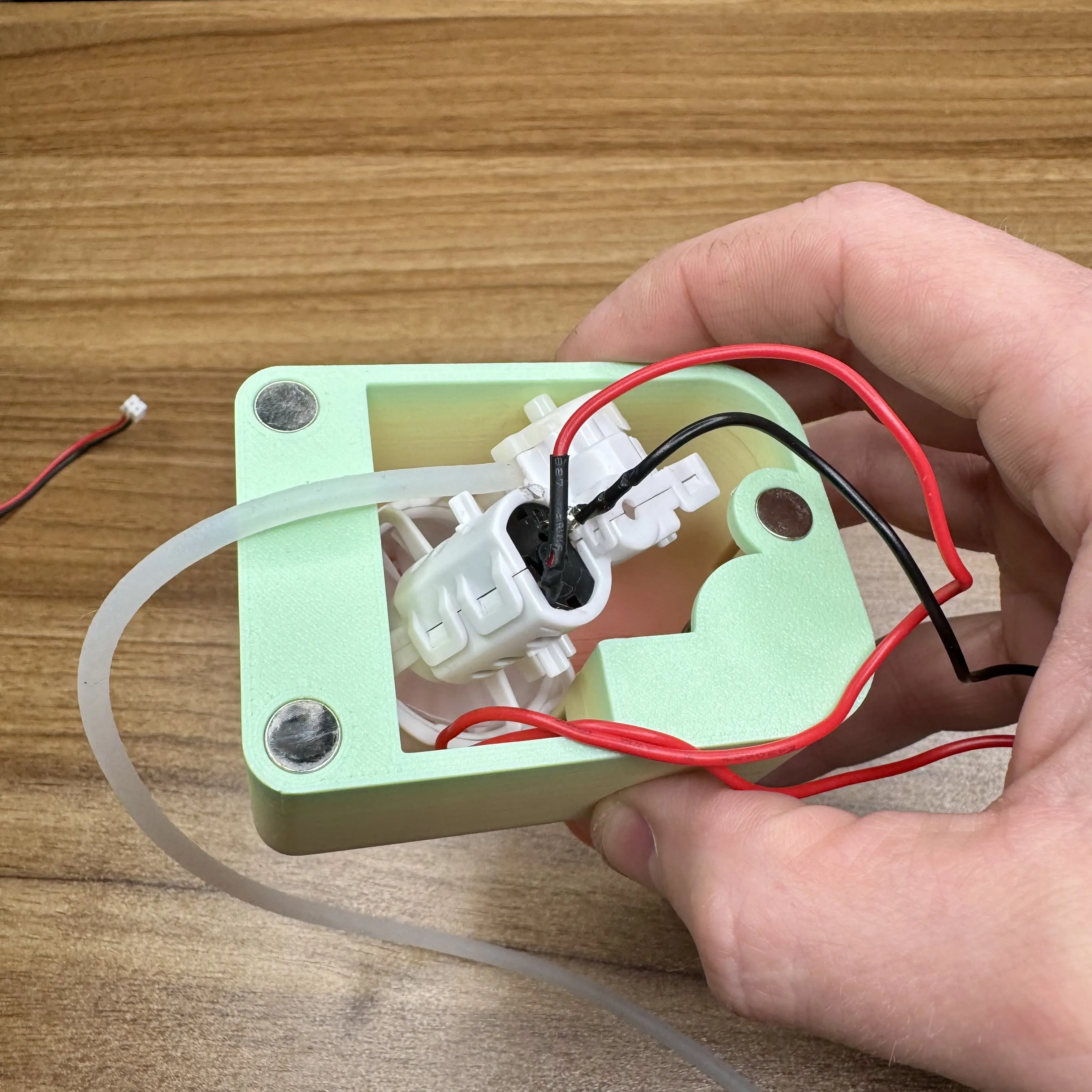

7 - Tuck all wires into the unit and out of the way of the battery.

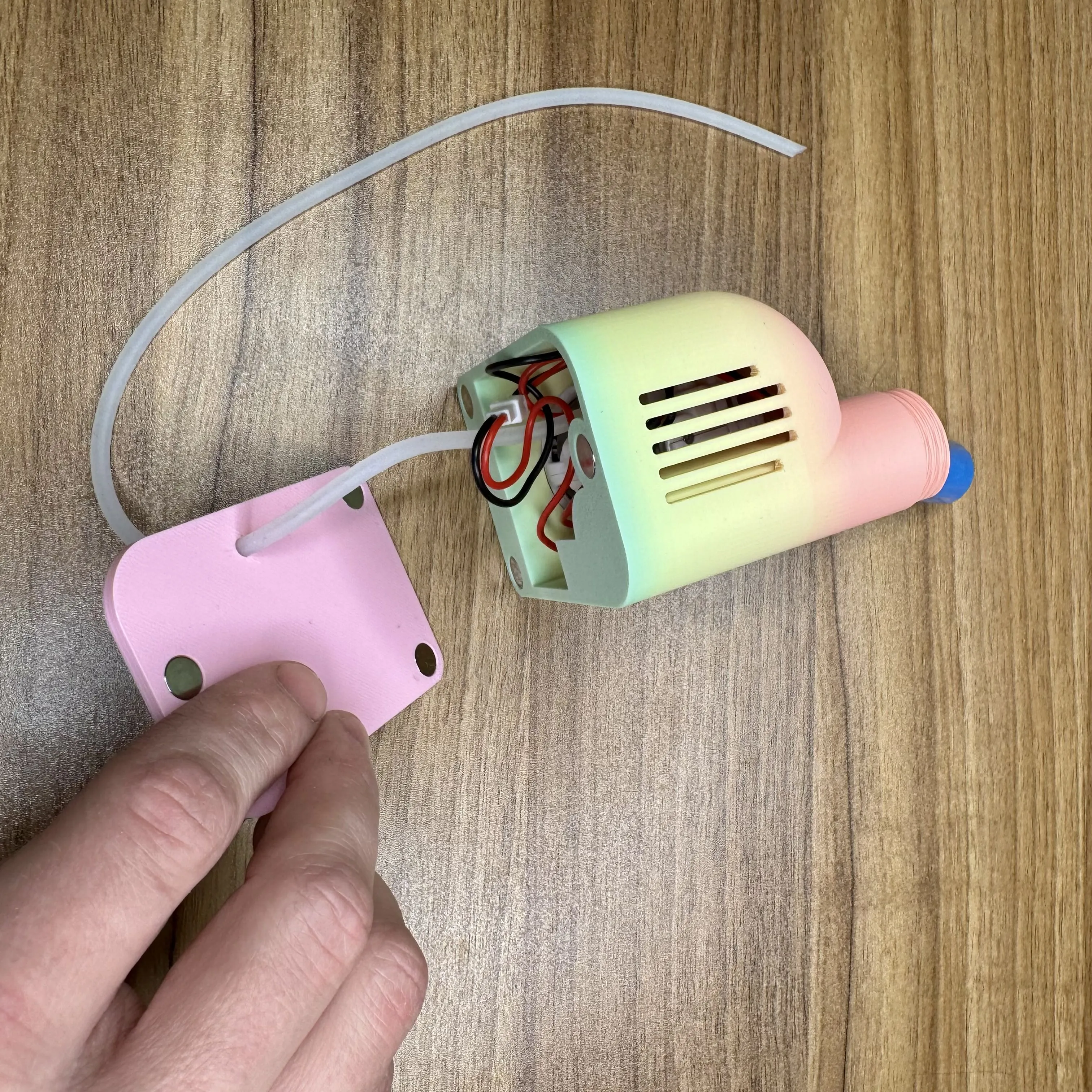

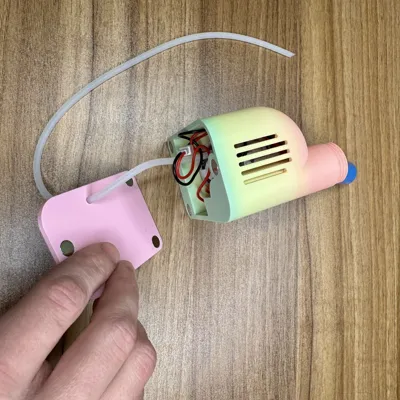

8 - Run the tubing through the middle plate ensuring the magnets are facing upwards.

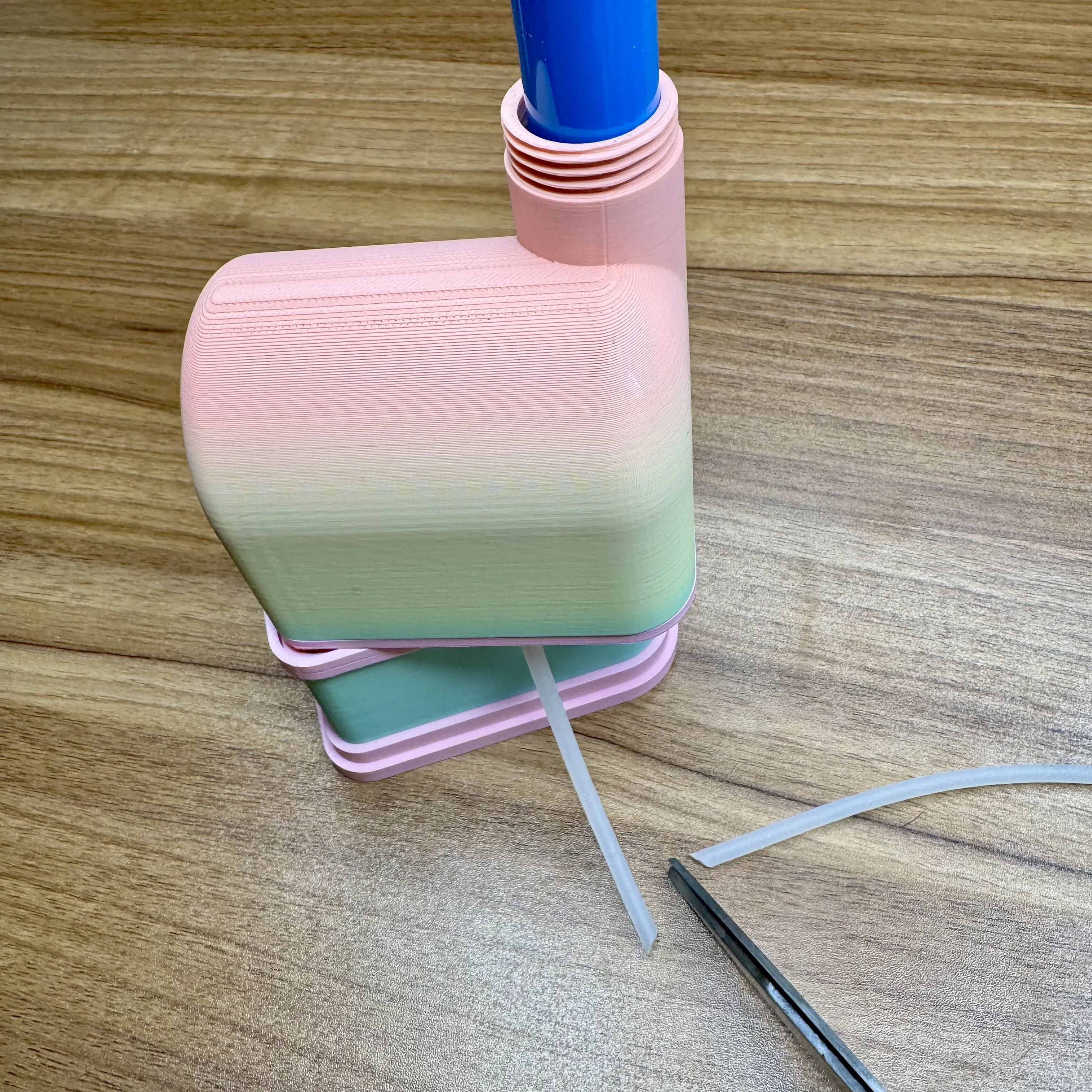

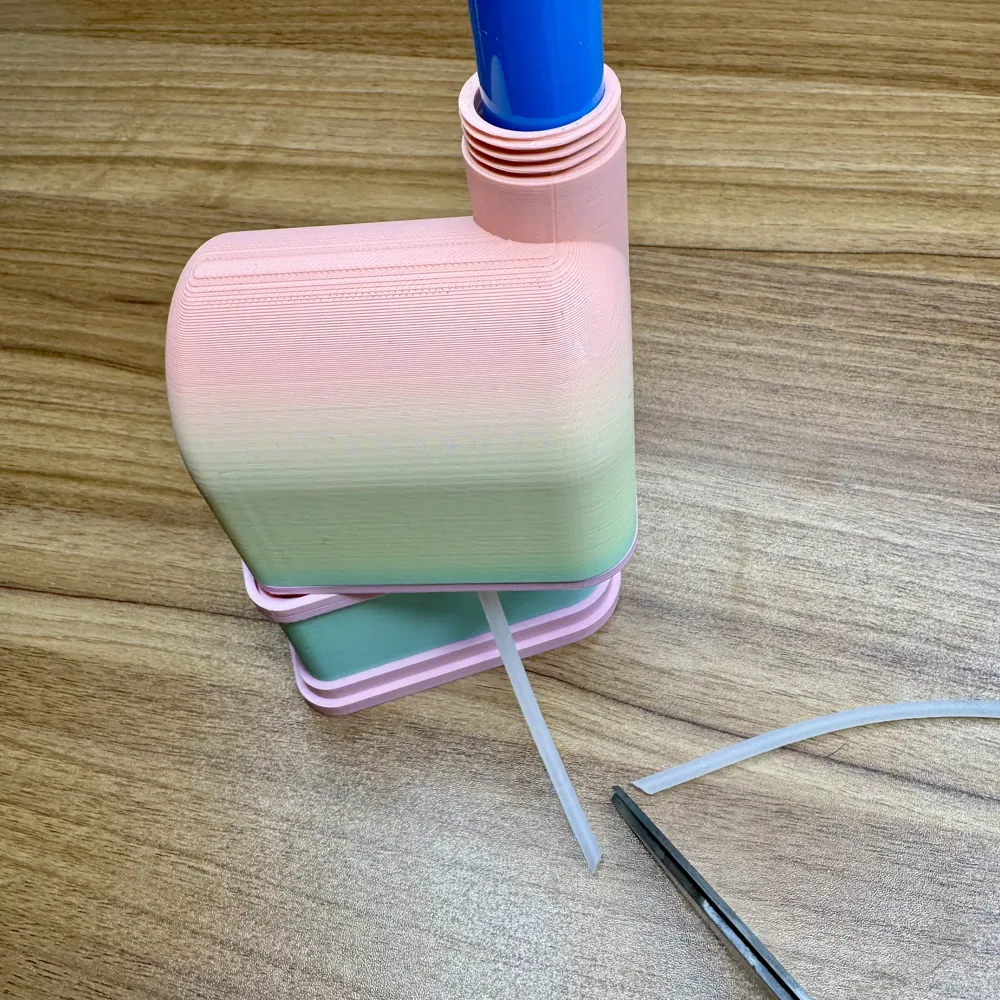

9 - (Optional) You can cut the tubing to an appropriate length.

✅ Final Step

That's it!

Fill the bottom compartment with bubble soap, push down the chimney cap, and let the bubbles fly! ✨

🧾 Bill of Materials

All hardware can be sourced directly from Bambu Lab, making this project plug-and-play for fellow Bambu enthusiasts:
