Fire Panel Handles B737 (Boeing 737)

Self-Made 3D Components for the Boeing 737 Fire Panel

Due to the absence of comprehensive models on minicockpit.wordpress.com, I designed and independently printed the following 3D components necessary to complete the Boeing 737 fire panel at a 1:1 scale:

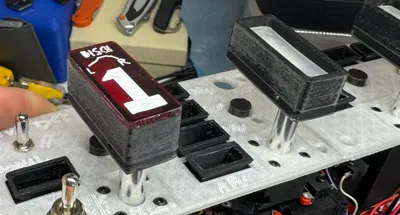

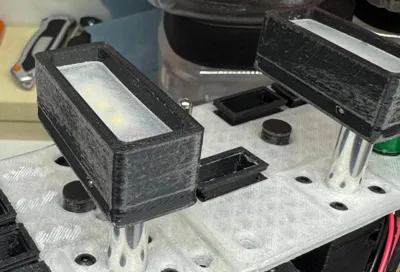

🔹 Fire Handles (ENG 1 / ENG 2 / APU)

• Approximate dimensions: 50 x 21 x 20 mm
• Vertical pull system with simulated mechanical locking mechanism.
• Design inspired by authentic Boeing references (see included technical diagram).
• Material: Black PLA for the base, transparent PLA for the backlit diffuser.
• Functionality: Designed for internal LEDs and a magnetic/servo release system.

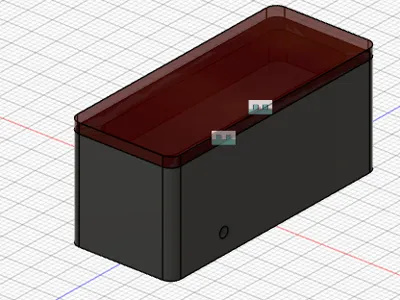

• Rendering included for realistic comparison.

🔹 Square Spacer (Lower Handle Support)

• Used to elevate the handle 30 mm from the panel.
• Includes a central hole for screw fastening or mechanism passage.
• Geometric compatibility with the cylindrical rod of the pull system.

🔹 End Cylindrical Tube with Lateral Holes

• Function: Connection between the upper handle and the internal mechanical system (servo or magnet).
• Lateral holes for locking pins or screws.
• Square end profile for perfect mating with the handle insert.


📐 Technical Notes

• Measurements were derived from technical diagrams and photographic analyses of the real panel.
• Parts were tested to ensure robustness, correct alignment, and functionality in a simulated environment.
• 3D renderings were produced to visually validate proportions before printing.
