Description

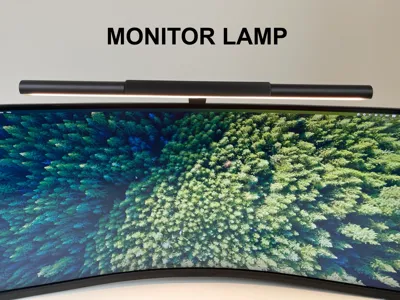

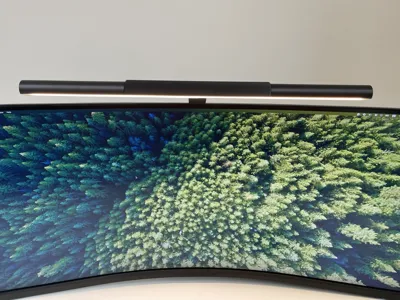

Print and assemble your monitor lamp. Light up your workspace during long working nights.
It can be assembled using any LED controller. I used an ESP8266 Lua NodeMCU V3 Wi-Fi CH340 controller with a WLED installation.
Сomponents
- 2x M5x25 Socket head(8.38mm)
- 12v COB Led Strip, 8mm, 1710 lm
- 1m 2-core wire + DC connector 5,5 x 2,1 mm (or any other you would prefer)
Printing
- The lamp can be printed with PETG or PLA accordingly.
- Light diffusers. Ensure that seams are aligned on the “tails”.
- Cover. It is strongly recommended to use a brim for this model.
Assembly
- Fill “Monitor Arm 3” with any weight you have. I used an acrylic filler for this, and it worked well (filled with layers to speed up the drying). Close with the “Monitor Arm 3 Cover”.
Cut off the “tails” (as shown in the photo) of the diffusers and sand down the corners to provide a tight fit.
- Slide one base into the cover from the side. Don't try to snap the base in from the bottom; it's easy to break the cover.
- After one part of the base is in the cover, insert two connectors and slide the second part of the base into place.
- Put the wire through the arm and the lamp base. Make the wiring first; it will be impossible after you stick the cob LED.
- After soldering the wires to the LED, insert the diffusers.
