DJI Neo Hangar - A hard case for the DJI Neo

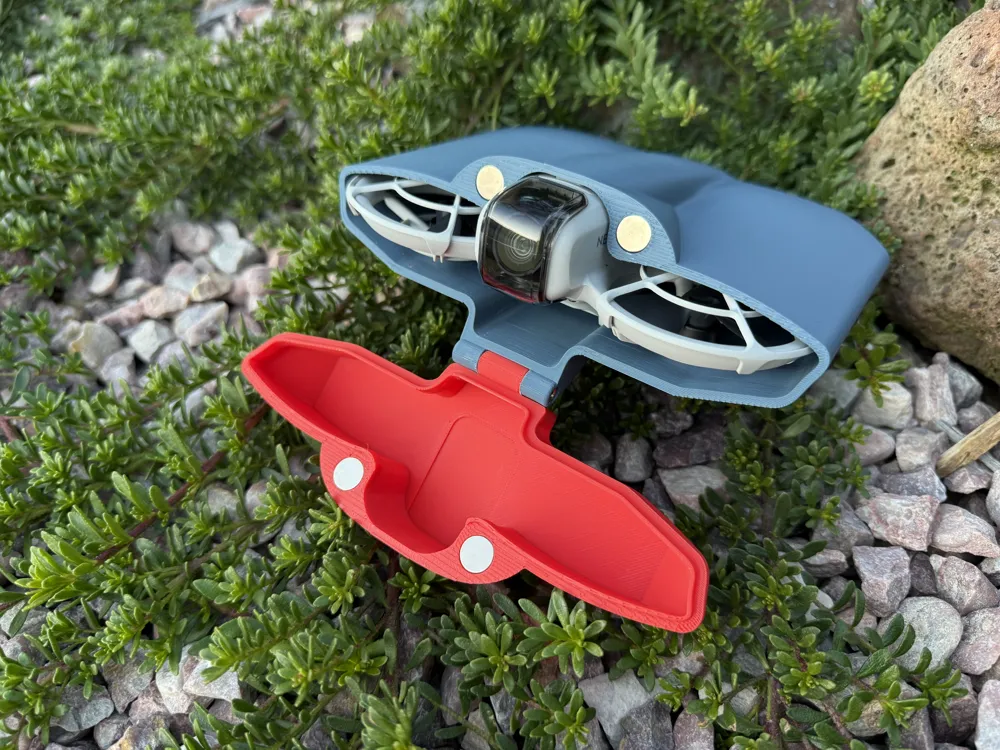

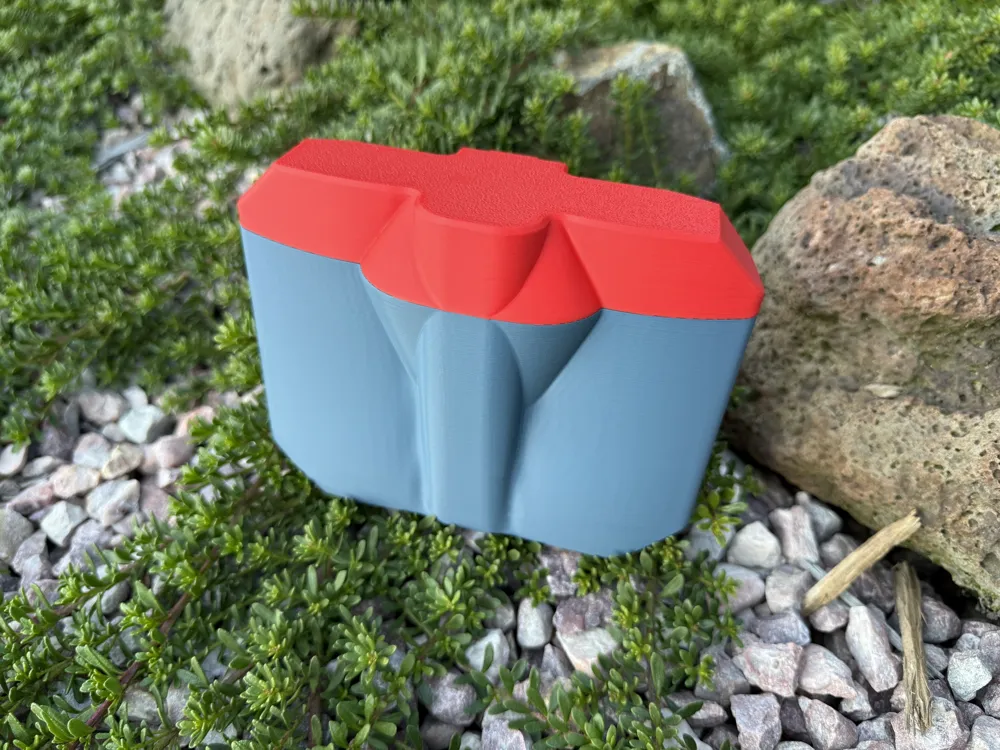

A minimalist hard case for the DJI Neo. The lid snaps shut magnetically, and there's a sliding hatch to enable charging of the Neo inside the case. The case has been designed to fit the drone with prop guards and gimbal cover perfectly so it won't rattle around.

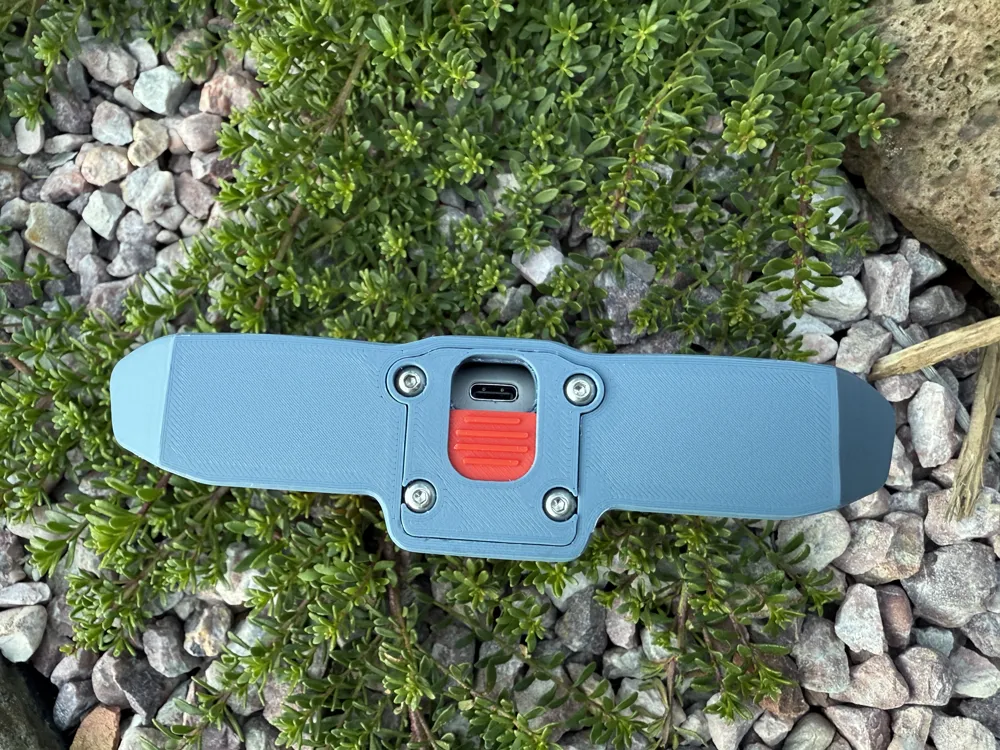

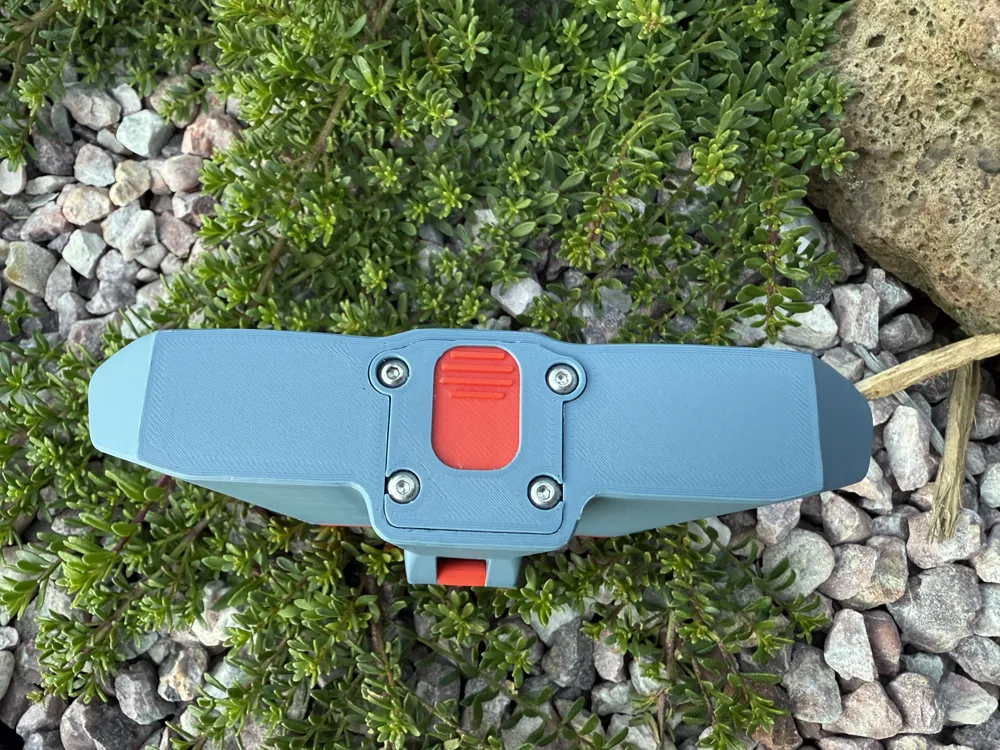

To print, use supports from the build plate for the case, hatch and hatch cover. Magnets in the lid and case are installed normally. The magnets for the sliding hatch are installed “opposed” so that the hatch is pushed away from the case magnet. This acts as a detent, locking the hatch open or closed.

• Uses 5 of m3 brass inserts (5mm diameter, 4mm long)
• 4 of M3 x 6mm low profile screws
• 1 of M3 x 30mm screw
• 6 of 10x3mm magnets.
