1992-1996 Ford Bronco Cargo Cover Pin - Free 3D Print Model

Search models, users, collections, and posts

Bronco 351

Hobby & DIY>Vehicles

IP Report

Print Profile(1)

All

P1S

P1P

X1 Carbon

X1E

A1 mini

H2D

H2D Pro

H2S

P2S

H2C

X2D

A2L

0.08mm layer, 4 walls, 15% infill

Designer

1.9 h

1 plate

5.0(1)

Open in Bambu Studio

Boost

Released

Description

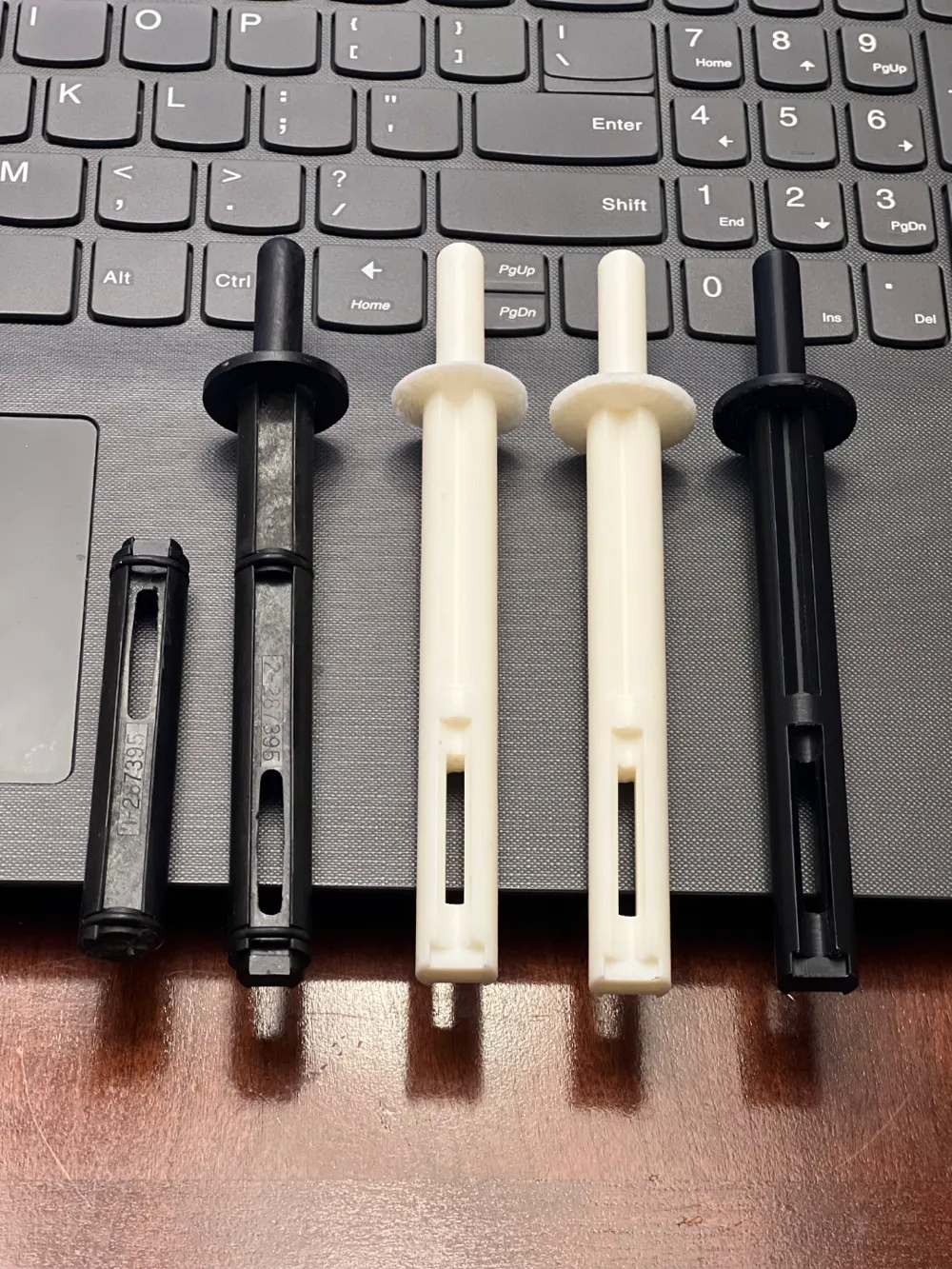

OBS Ford Bronco cargo cover pins are known to break. Here is a 3D file that will allow you to print a replacement pin. I created it in Shaper3d and have printed it on Bambu Lab P1s. I used a .4mm nozzle in ABS and ALA. Nozzle temp 170c. Hot plate temp 100c.

Comment & Rating (6)

@Alarmo3D

Boosted

Print Profile

0.08mm layer, 4 walls, 15% infill

Printed excellent. Used ASA. Now I have to figure out how to remove the original factory ones.

@Steve83Bronco

Unscrew the grab handle, and slide the steel tube out of the cover. Gently file away ONE end of the OUTER rivet only, just enough that it can be driven out of the tube, releasing the plastic pin & its spring. Try to leave enough of the rivet that it can be put back in & barely spread to lock again, or you'll have to replace the rivet.

@Alarmo3D

Boosted

Replying to @Steve83Bronco :

Awesome! Thank you for the reply!

@user_1384144238

awesome! I just got a p1s and one of the main reasons was to start designing and replacing broken parts of my Bronco. like.. the ac vents and all the little plastic parts that are deteriorating. I’m glad someone is doing Bronco stuff too!

The designer has replied

@user_265882652

I'm sorry I just read this! It's nice to see other people doing this too!

@Alarmo3D

Boosted

Definitely need to replace mine... but how do you remove the old ones? I had needle nose on them and they refuse to pull out at all so something must be catching them?
