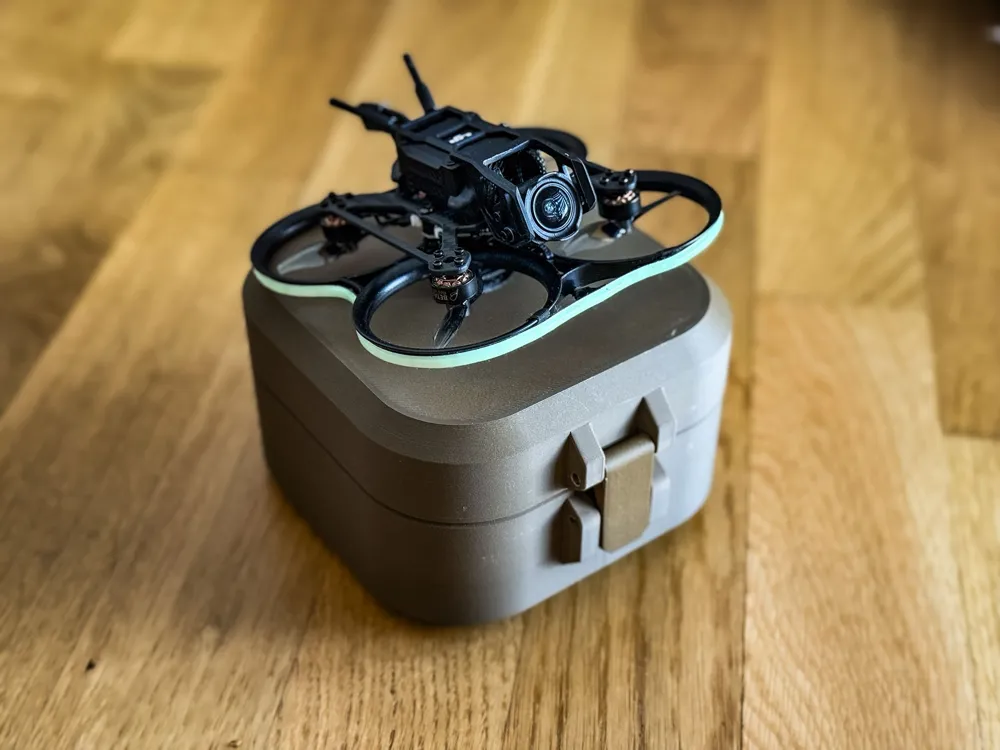

BetaFPV Pavo20 Case

BetaFPV Pavo20 Case with LiPo and accessories slots.

Dimensions

So as said in the title It is made for a BetaFPV Pavo20.

The batteries I use are 3S 450mAh. If you would like other sizes, tell me !

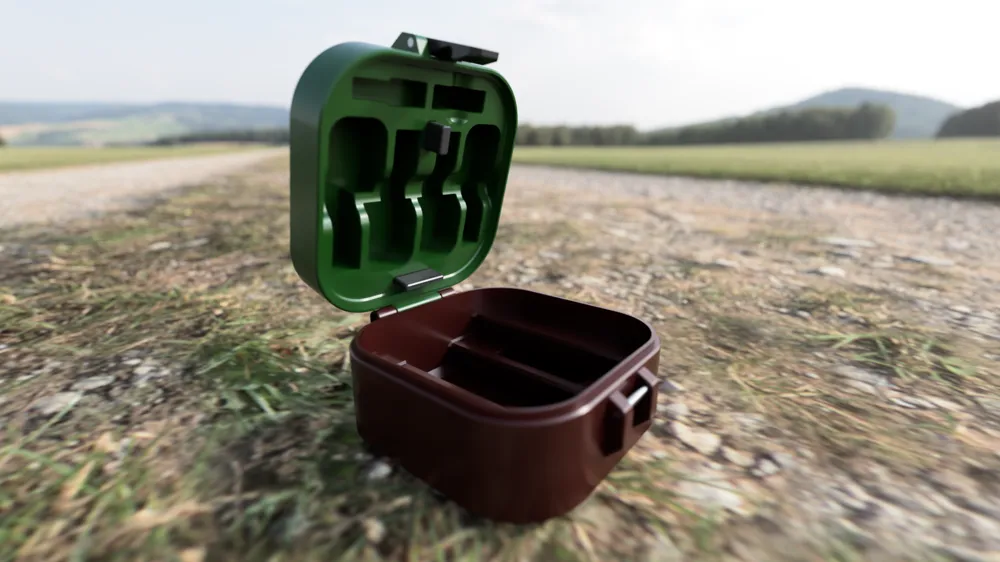

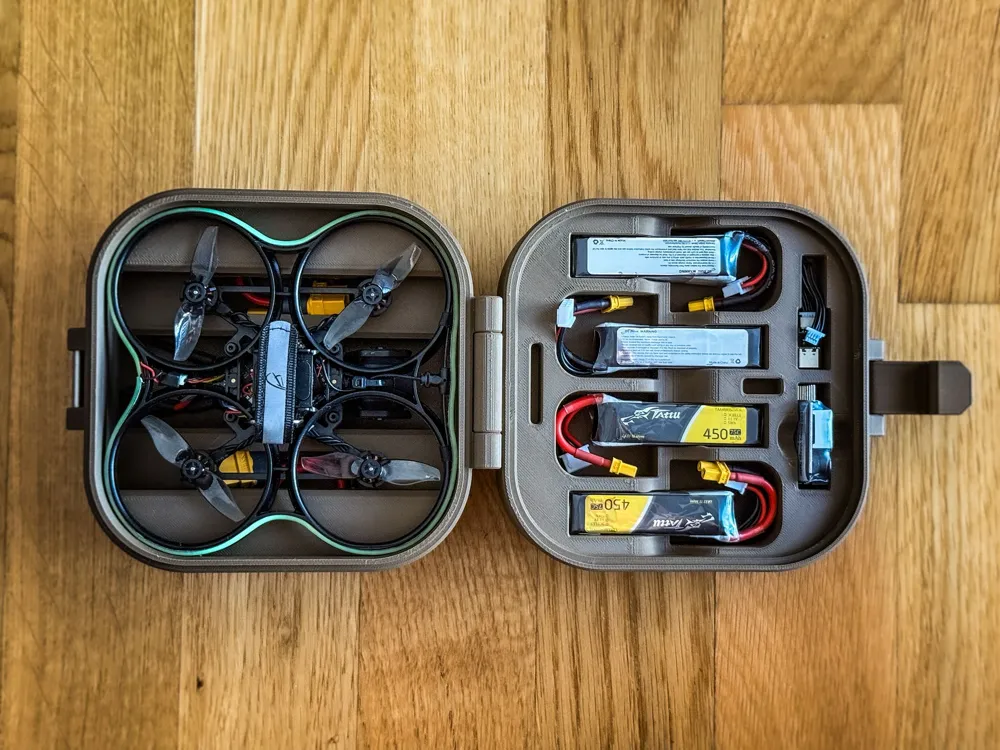

 The others solts in the top part are made for the Usb-C adapter and a LiPo tester.

There is also slots in the bottom part where you can put small stuff. I use it for XT30 to XT60 cables.

Printing

All parts can be printed without support, It was designed that way.

Assembly

For assembling it, you will need :

• 2 4x30/35mm pin for the latch
• 2 M3x20-25mm screws for the hinge

You may need to redrill pins holes with a 4mm drill bit depending on you tolerances for a perfect fit.

Scews are directly screwed into the plastic.

the two TPU part are not necessary but may help to secure the drone once closed. They can be pressfit into the top part.

Comments

If other sizes are needed you can write me directly !

Check my page for more designs :)
