Miniature 1/12 Scale VHS Cassette Tape w/ Cover
Print Profile(1)
Description

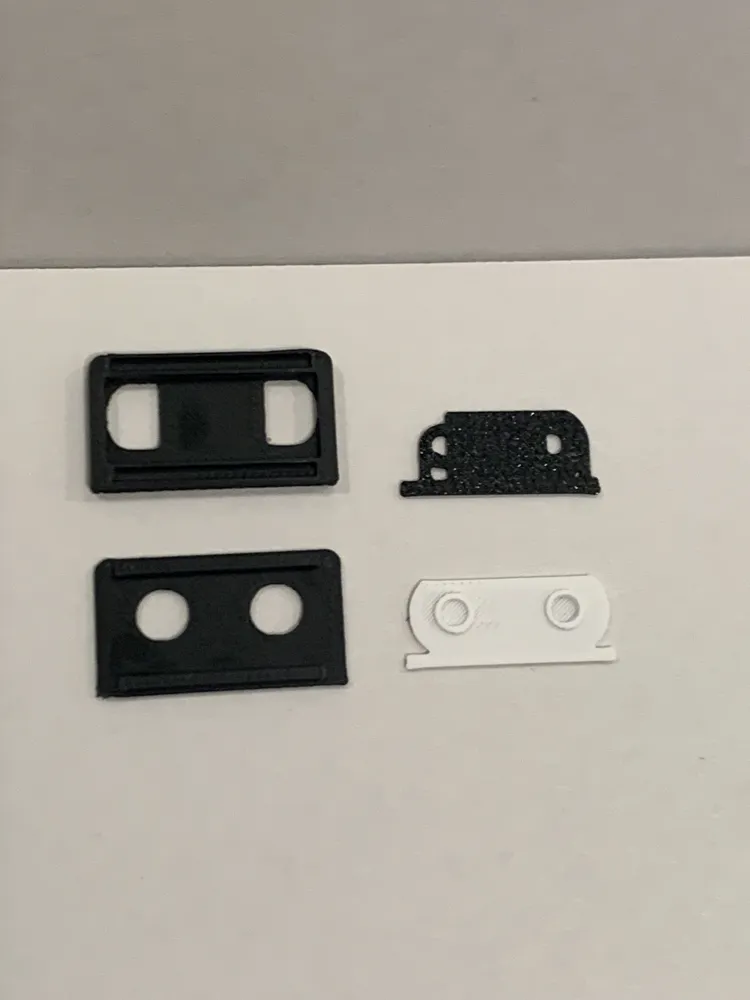

Here is my version of a extra miniature VHS cassette. It consists of 5 parts including a top and bottom cover, white gears, black tape, and a white case. White and black parts are separated and grouped so that they print to save on filament waste.

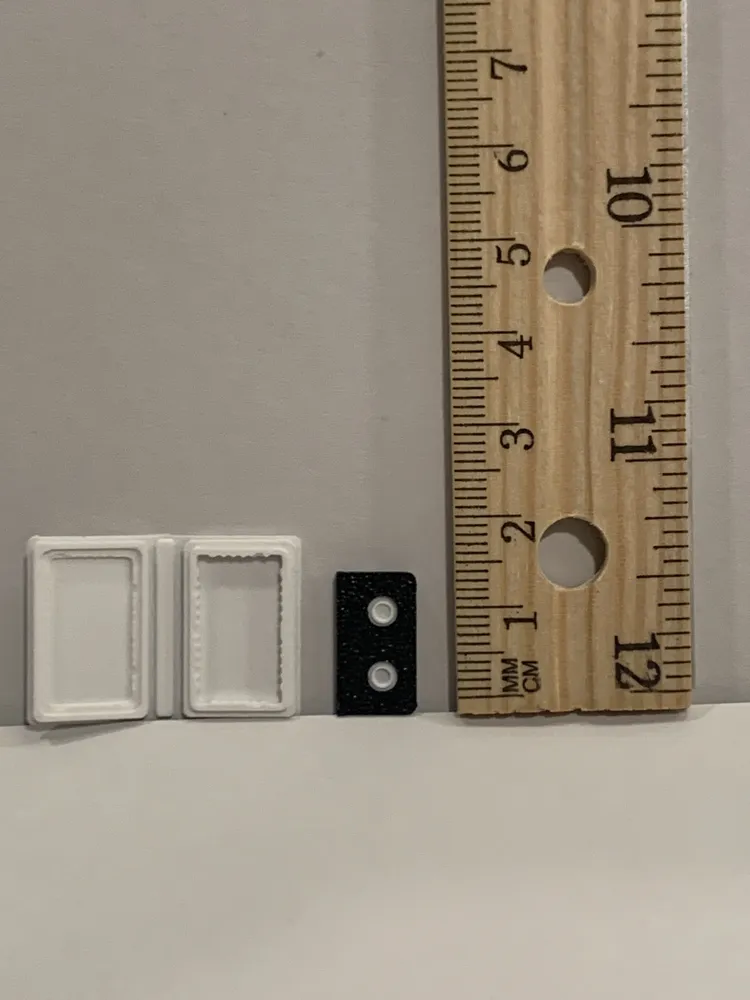

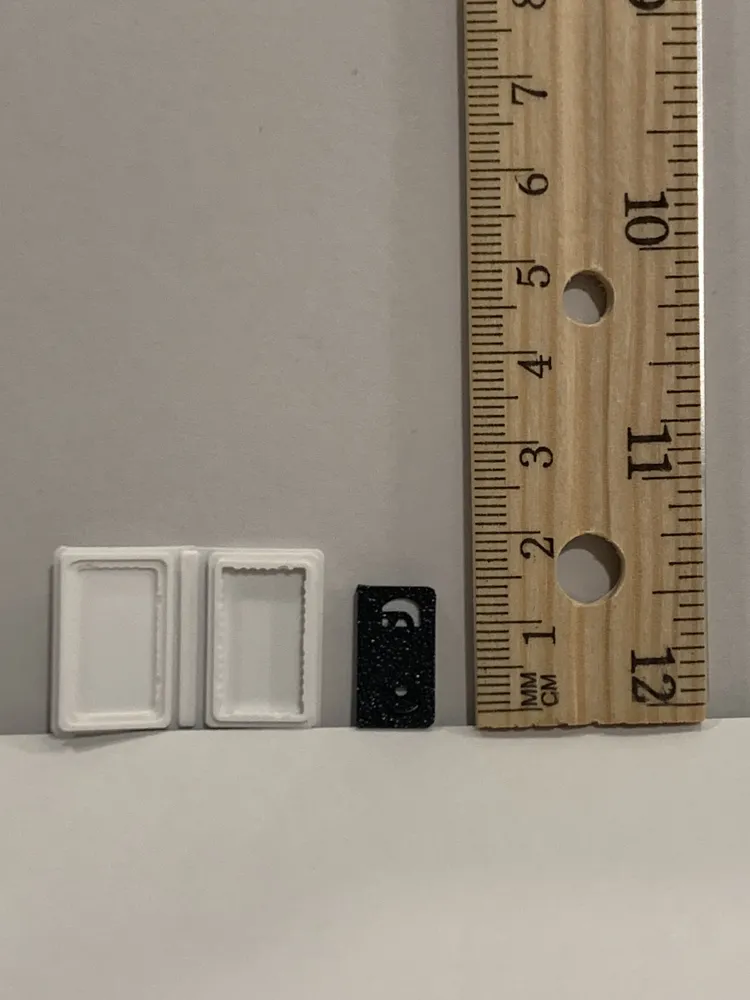

It is 1/12 scale and fits into it's own case, in my mini VHS player model, and on my mini blockbuster shelf (coming soon!).
** Note: It was designed and tested by printing with a 0.2mm nozzle and a layer height of .08mm (high-quality).
The cover takes a bit of finessing before it clicks shut but once it does it should get easier.
The front and back of the cassette snap together to enclose the white gears and black tape.

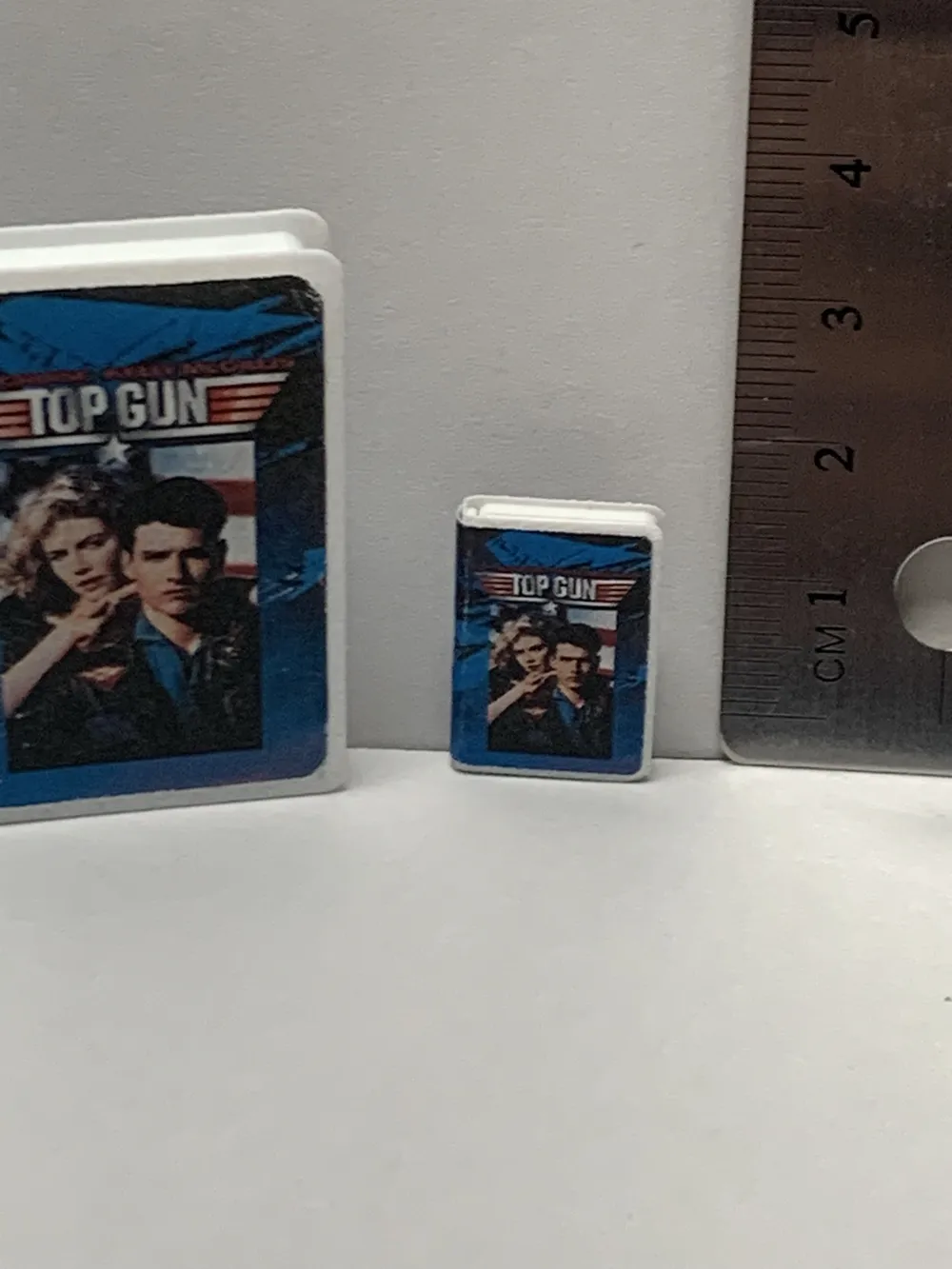

For my slightly larger 1/6 scale version click here: https://makerworld.com/en/models/1295013-miniature-vhs-cassette-tape-with-cover-1-6-scale#profileId-1326065
Recommended Label Sizes:
- Movie Cover: 15.96mm x 10.96mm
- Tape Label: 3.64mm x 6.01mm

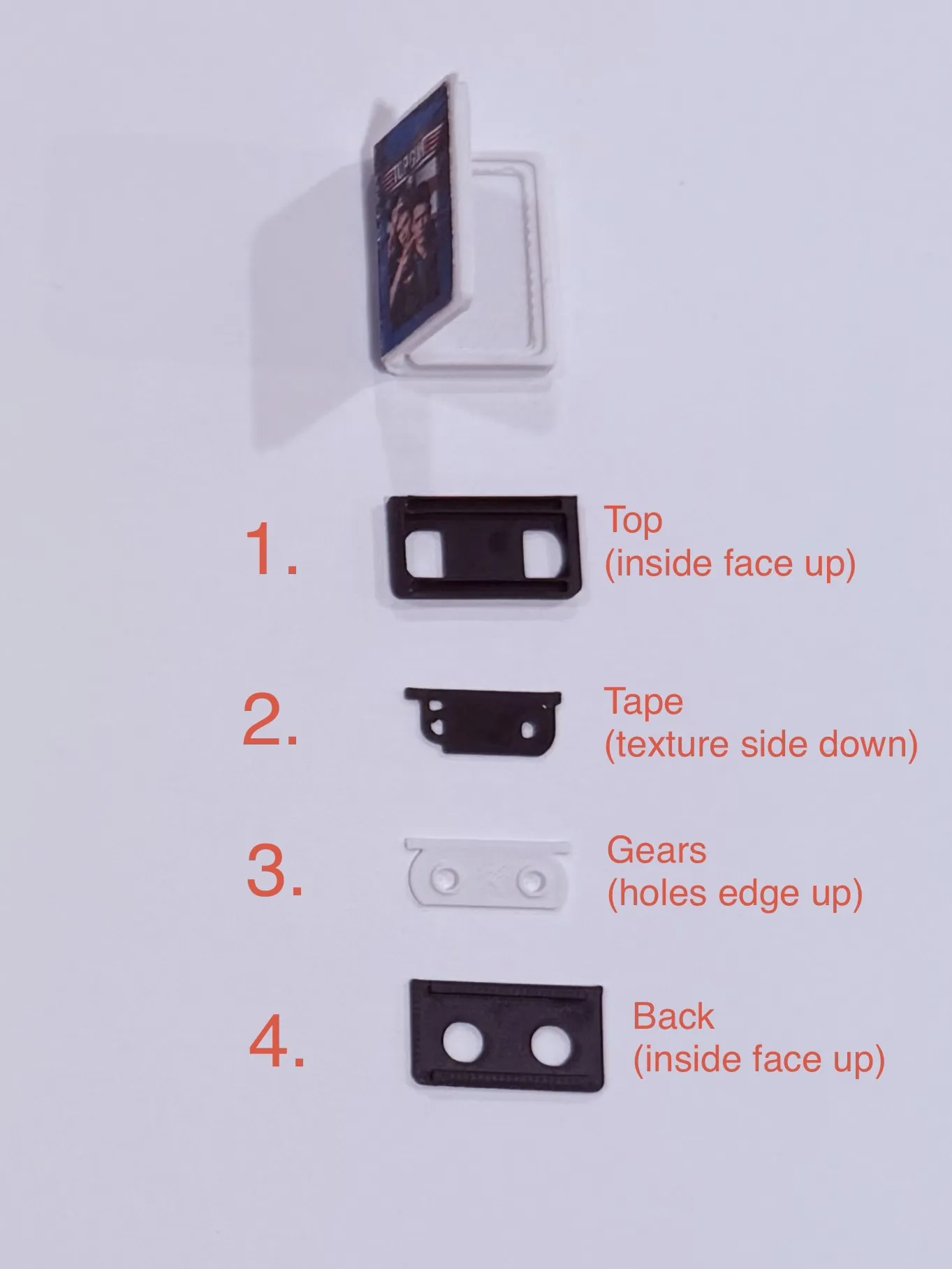

Assembly Instructions:
Place top with inside face up

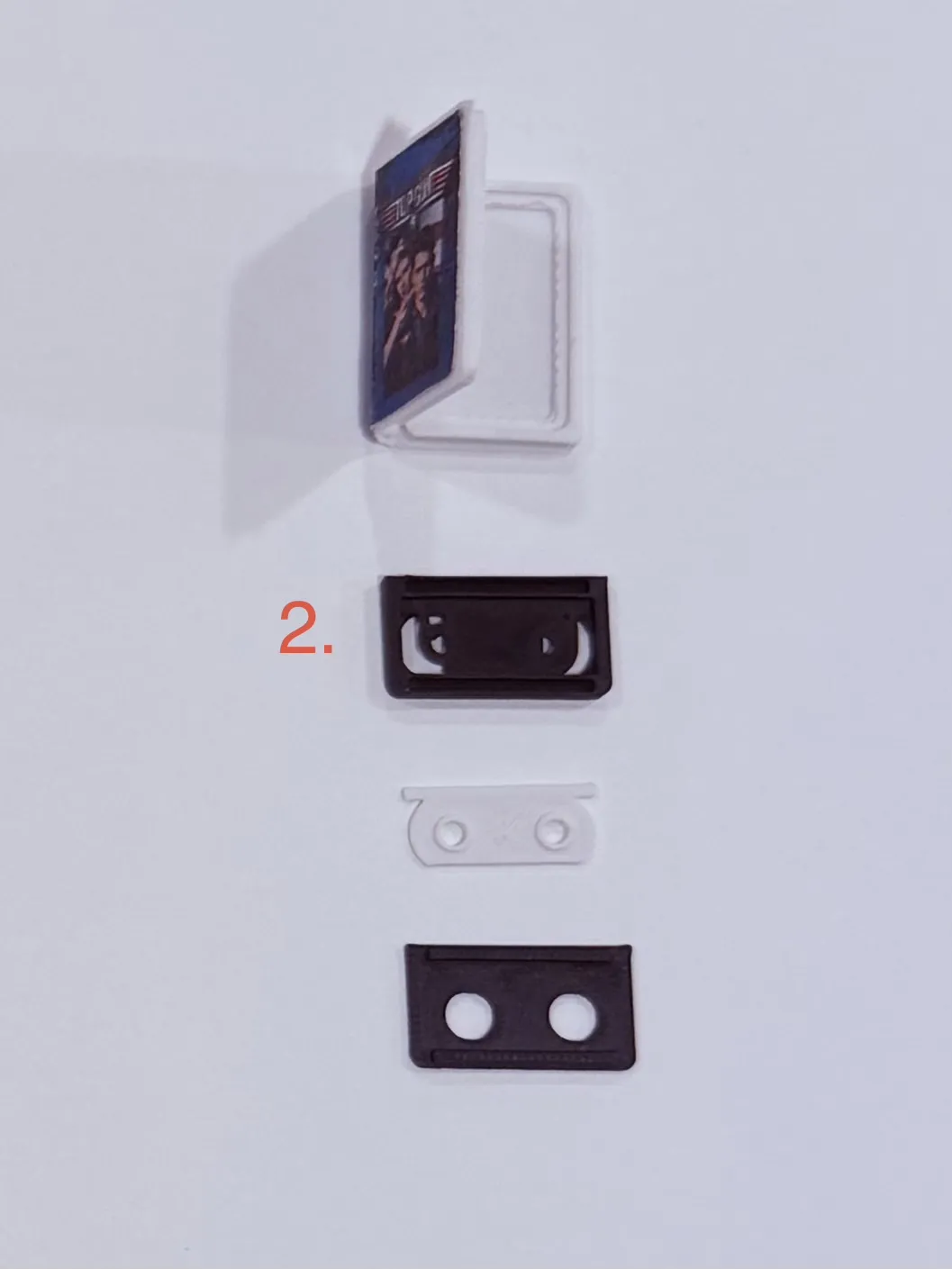

Place black tape inside face (texture side down)

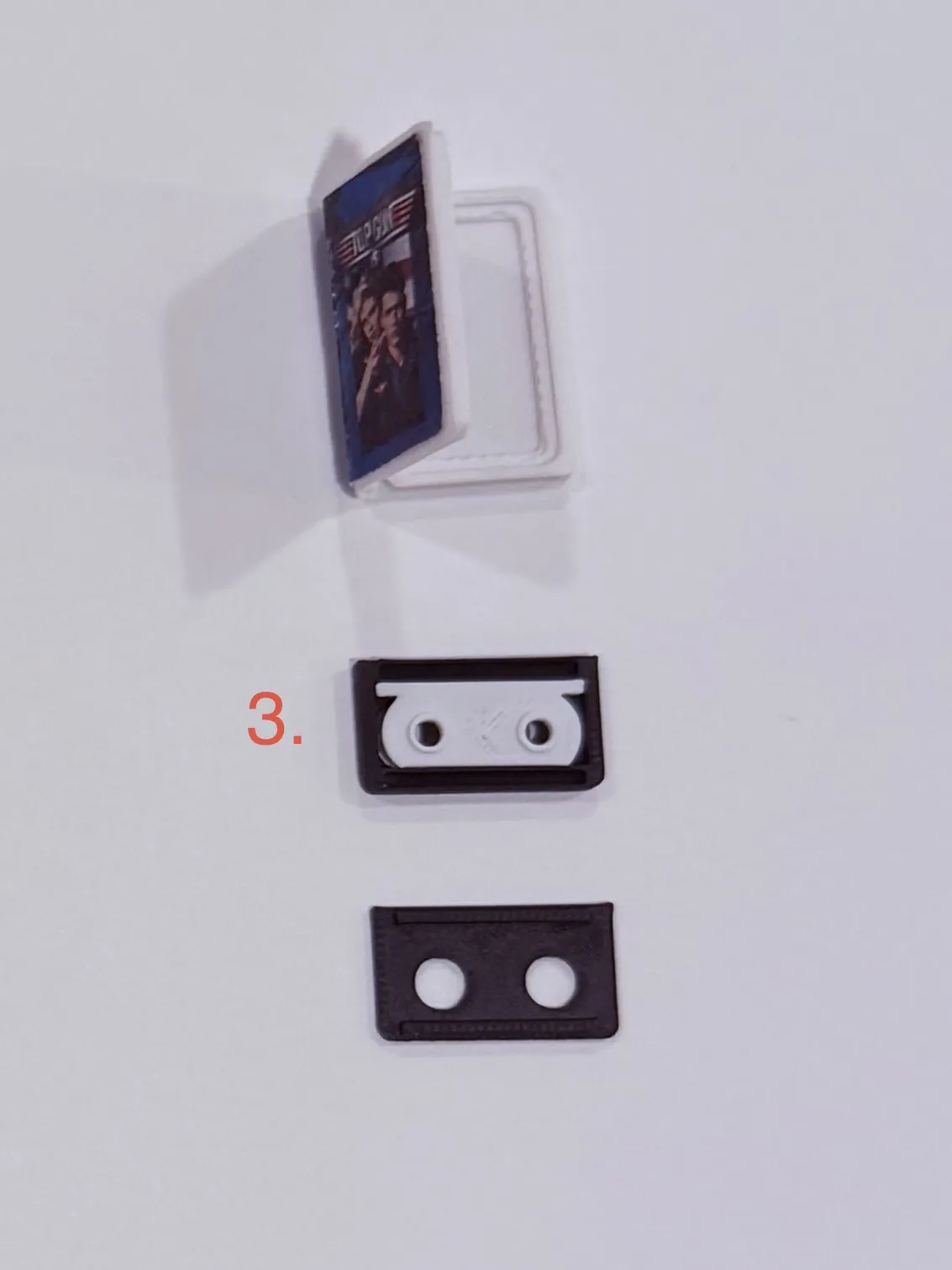

Place white gears on top of black tape (extruding holes face up

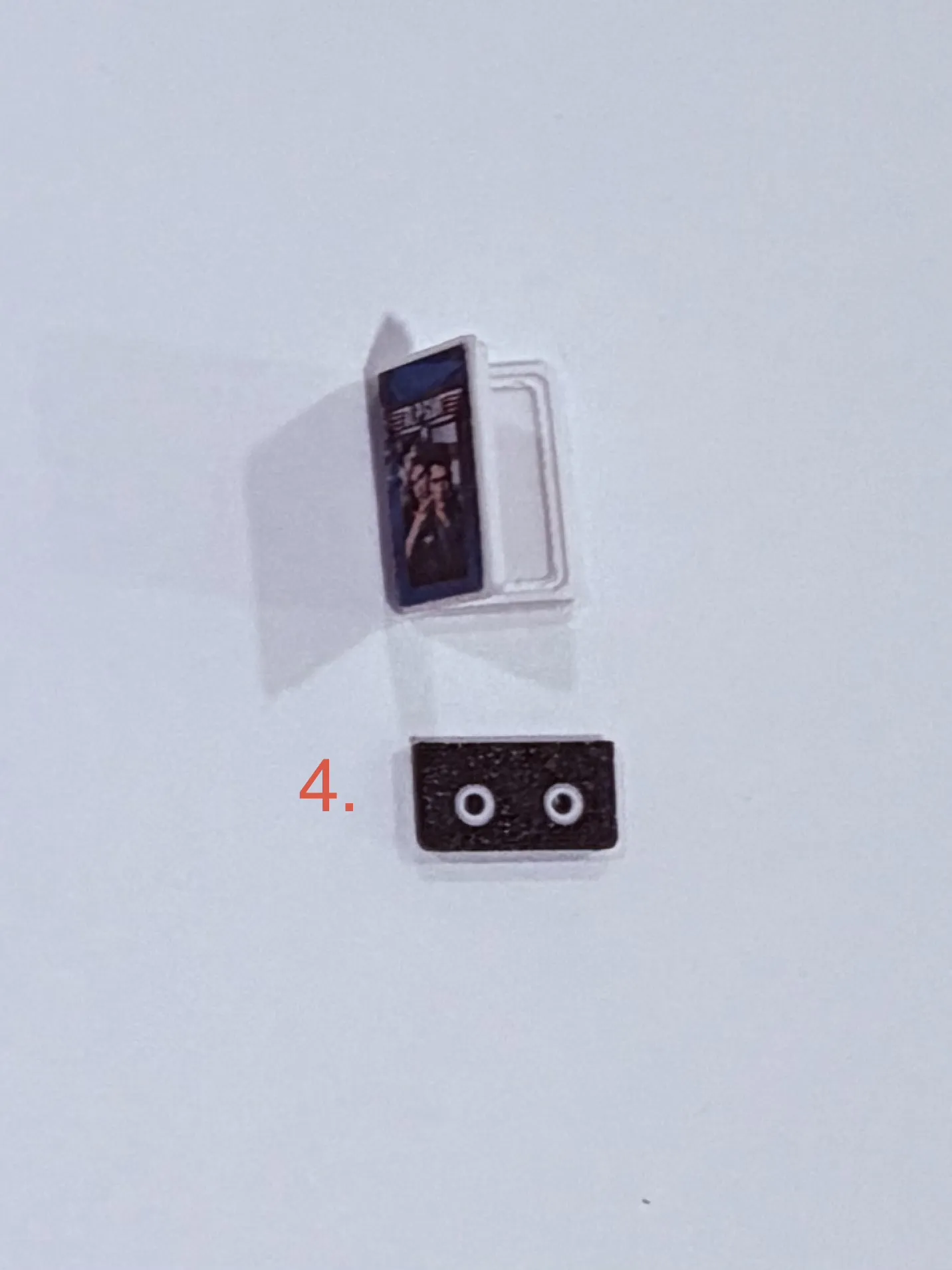

Snap tape back cover over all pieces

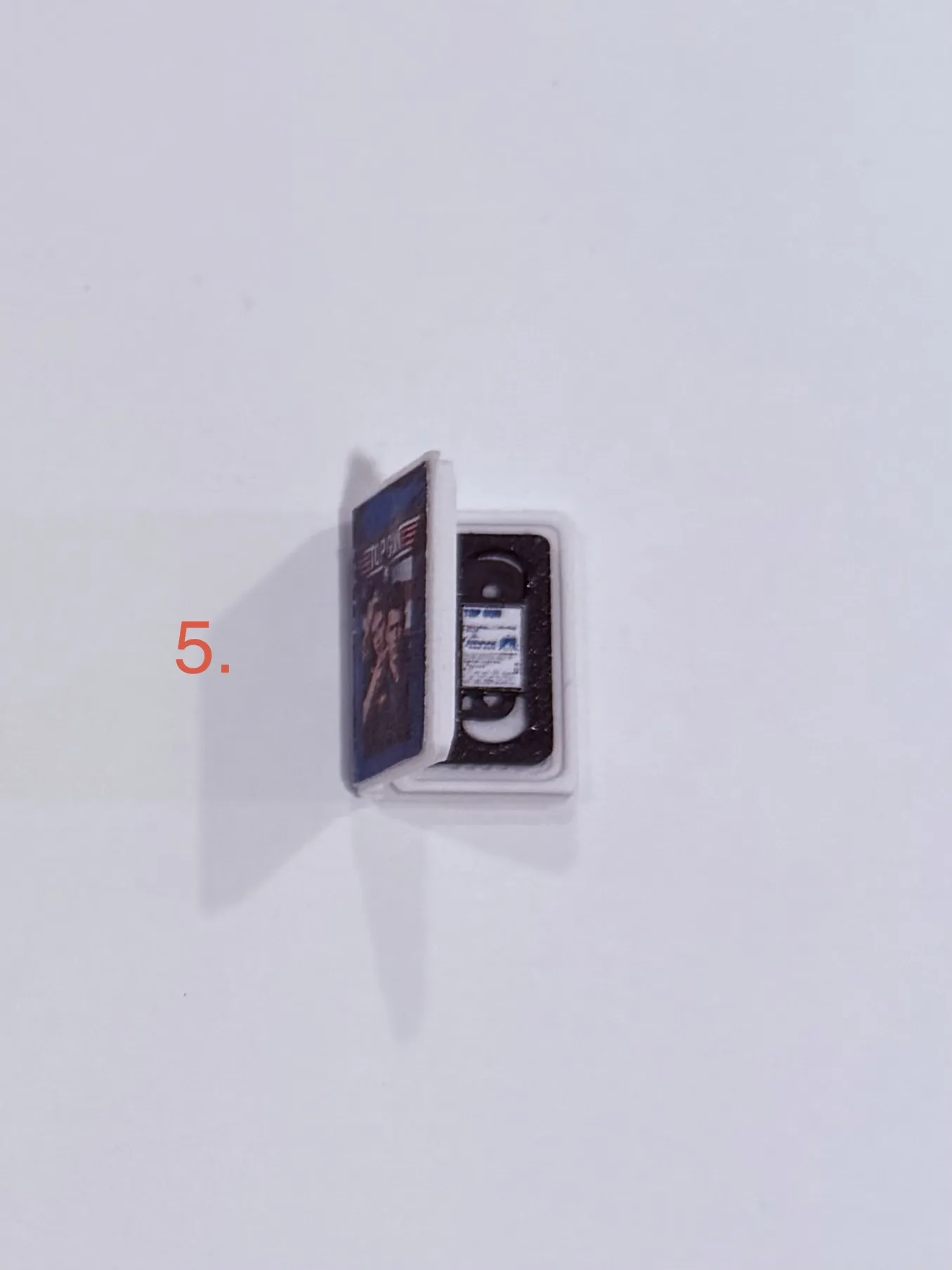

Flip tape over and place in case
- Glue tape label to center of top (optional)
- Glue movie cover to white case (optional)
** Note: AMS version that prints as one solid black/white piece coming soon.
Many more models to come, and as always, thanks for your support!
