Foldable Tabletholder max 10"

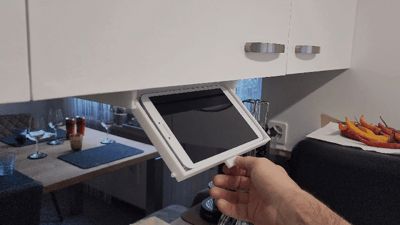

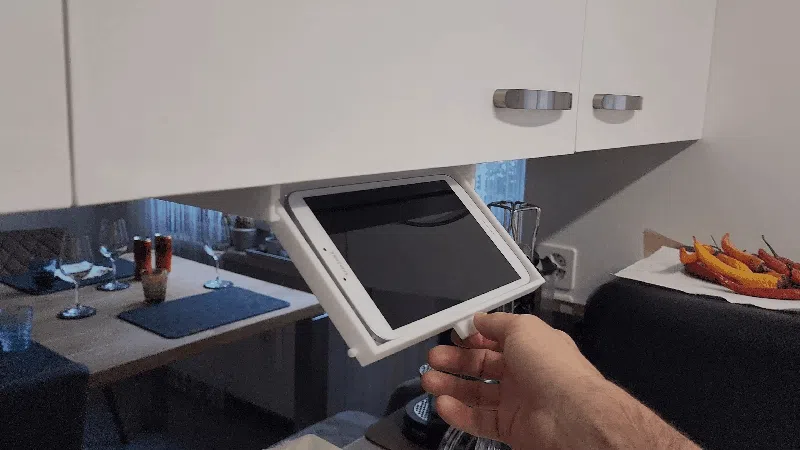

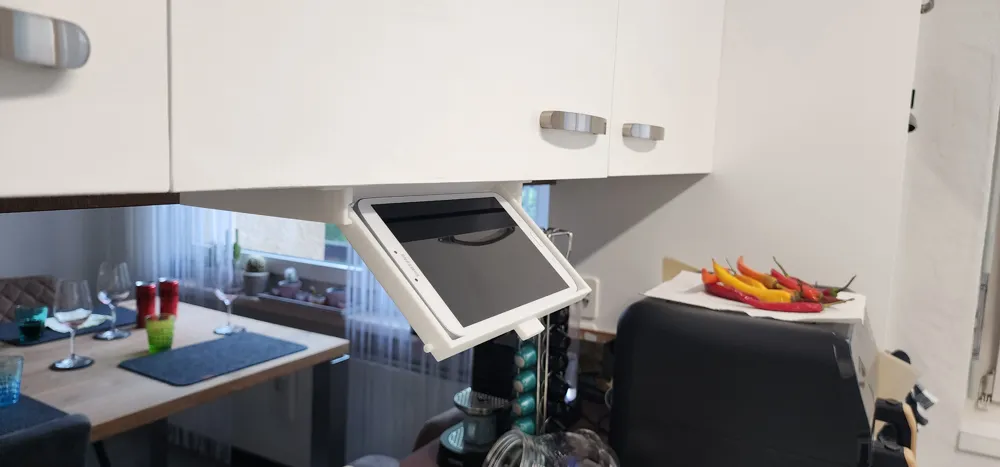

I designed this practical 3D-printed tablet holder specifically for mounting under kitchen wall cabinets. It's perfect for following recipes, watching videos, or listening to music while cooking – and can be folded away to save space when not in use. Max tablet size: Width 220mm, Height 131mm. Diagonal 10"

The design consists of two main parts:

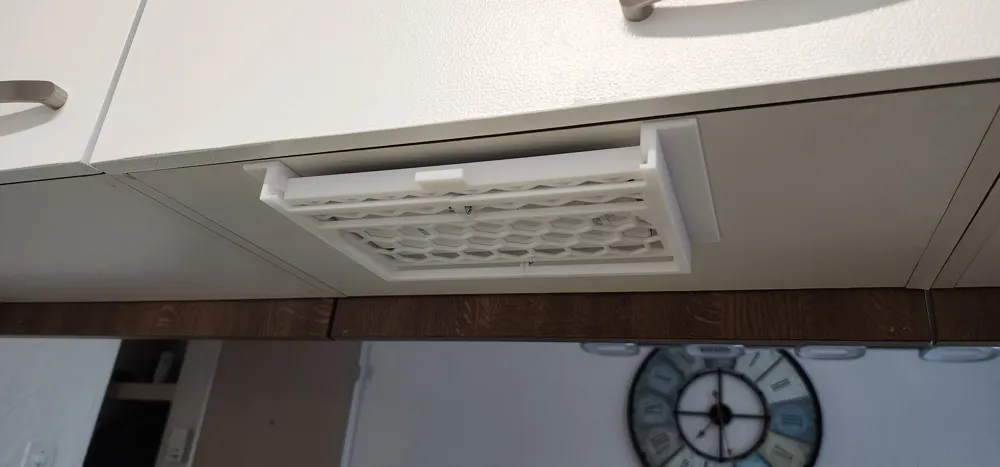

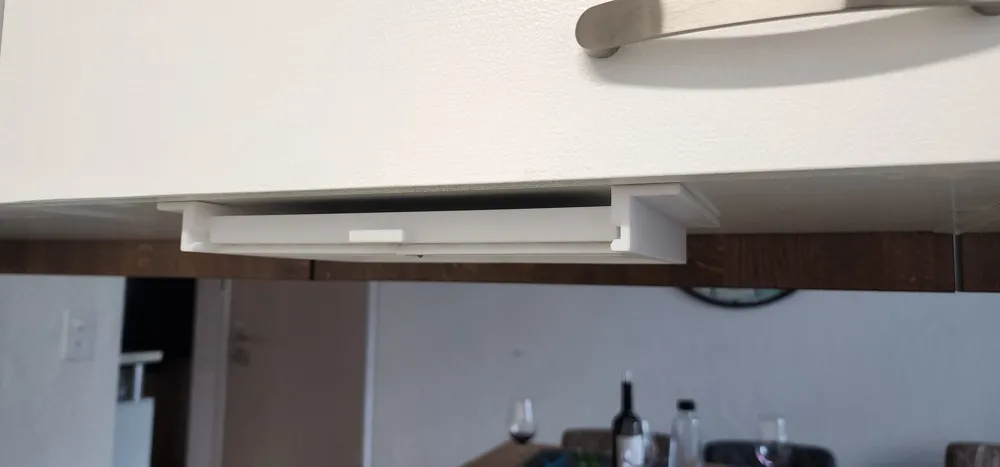

• Frame Mount, which is fixed under the cabinet

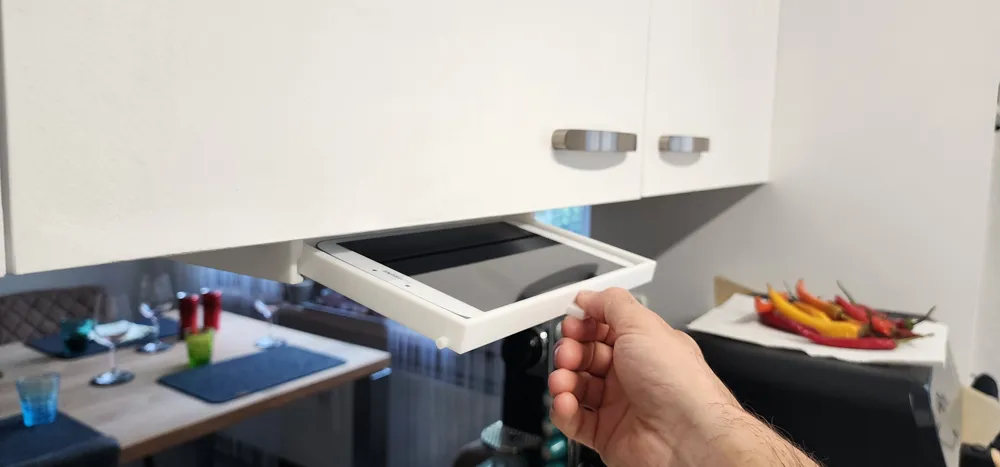

• Extendable Tablet Carrier, which folds neatly away



  The frame mount must be glued with superglue. The frame can be easily connected and glued via the plug connection.

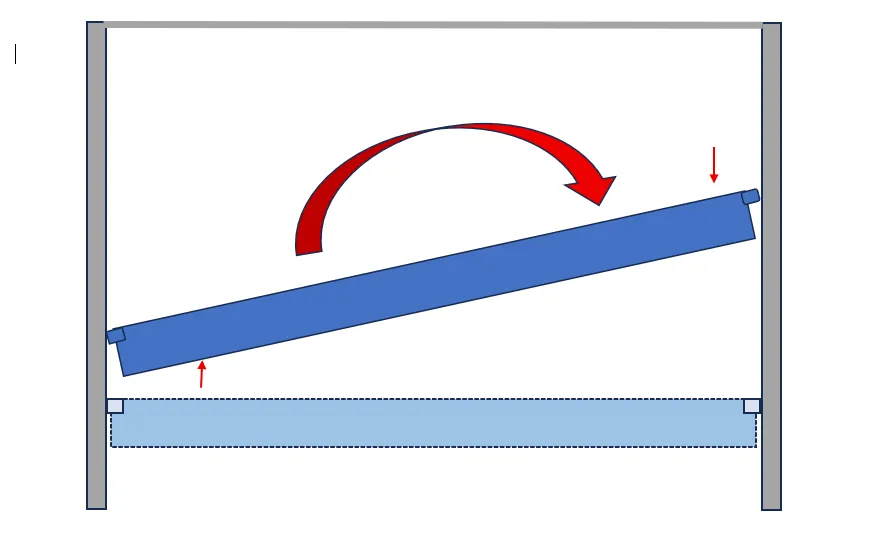

  Once the glue has dried, the extendable part must be inserted diagonally (see photo)
