Description
- This is a simple 3D Gizmo like you would find it in Game Engines or 3D Tools
- Two Version

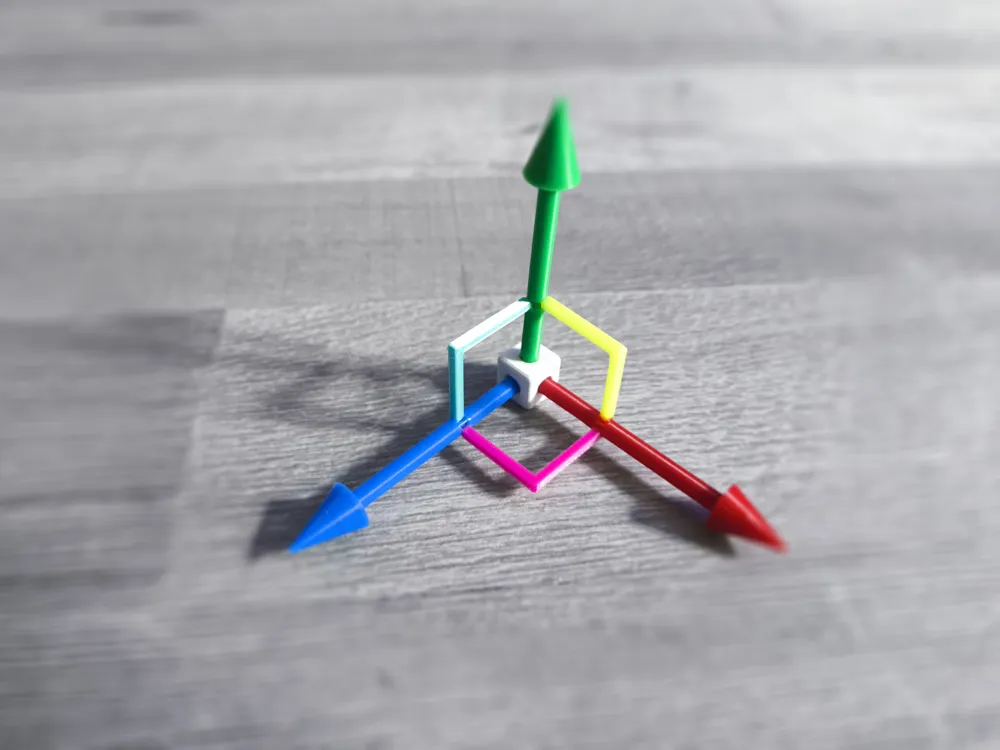

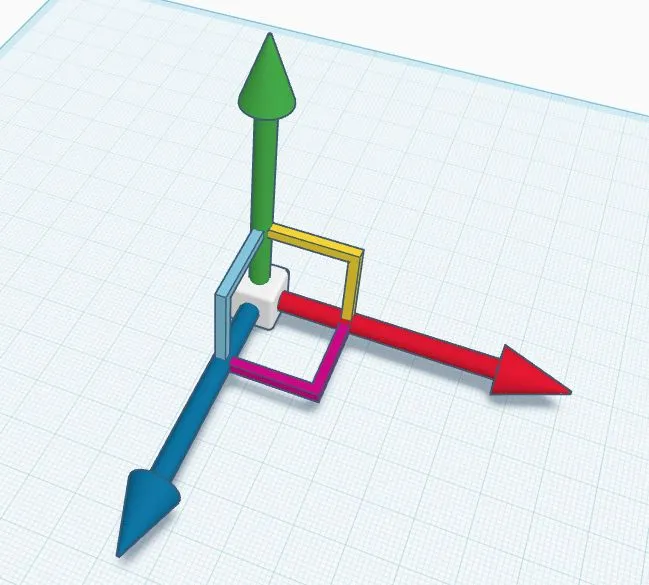

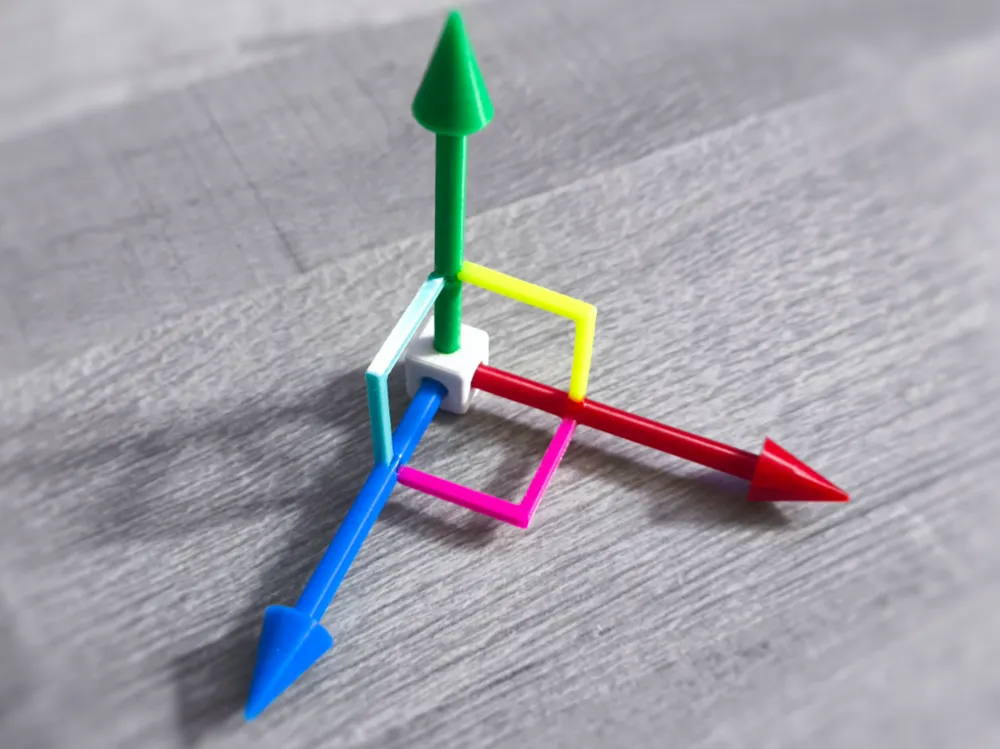

- One version with XY plane (Yellow), XZ plane (Magenta), YZ plane (Turquoise)

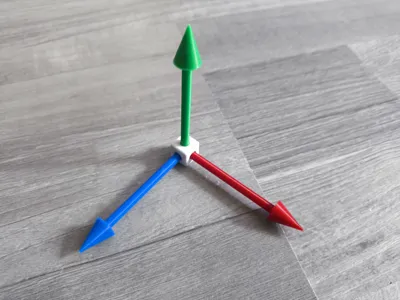

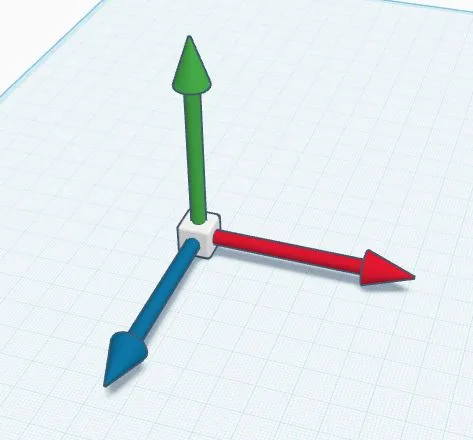

- One version without planes
- It's based on the OpenGL right handed coordinate system (Y-Up)
- XYZ = RGB
- Red => X-Axis
- Green => Y-Axis
- Blue => Z-Axis
- If you need a different one. Just change the colors acordingly 🙂
- Its relative small. (One axis is ~6cm)
- You can scale it as you like
- You need to glue it together.
- There are a few holes that help to assemble it.
