OUTIN - Portable Coffee Table
Print Profile(2)
Bill of Materials
- Powerbank x 1:
- M6 x 12 mm Hexagonal Screw x 5:
- OUTIN Coffemaker x 1:
- 20 mm Velcro band x 1:
- M6 Threaded Inserts x 5:
Description

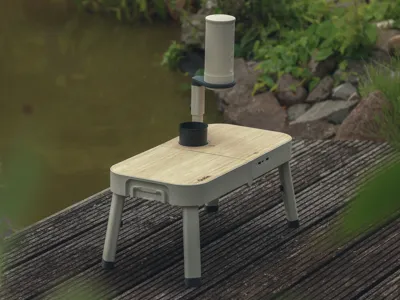

OUTIN – Portable Coffee Table
This is probably my most time-consuming project on MakerWorld so far. Although it doesn’t involve complex CAD work, the limited space and the many small details I incorporated made it a real challenge.
This product is specifically designed for the OUTIN coffee maker. I love how compact the OUTIN is, and I wanted to highlight that portability with my design.
Interested in the design process of this model? Check here.
Membership
The table is foldable and allows you to store the OUTIN coffee maker and many accessories inside. There are several ways to customize this project.
Dimensions
- Packed: 270 mm × 253 mm × 100 mm
- Standing: 514 mm × 253 mm × 233 mm (even taller when the legs are adjusted)

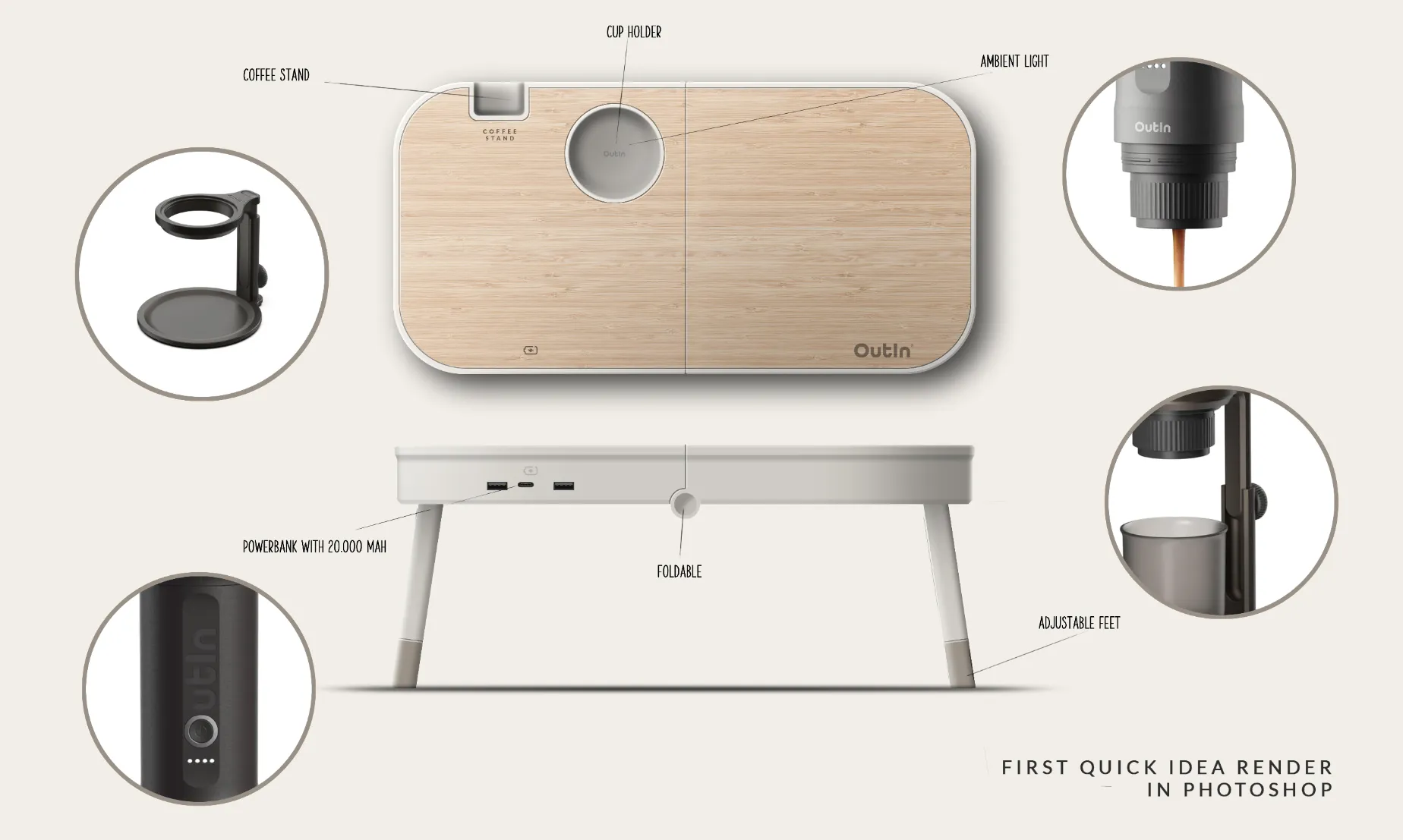

Features
- Features
- All printed parts can be stored inside the table

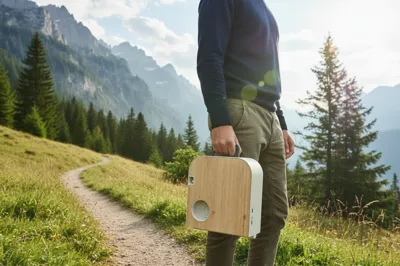

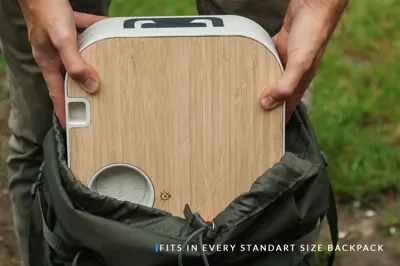

- Folds down to a compact size (fits in a regular backpack)

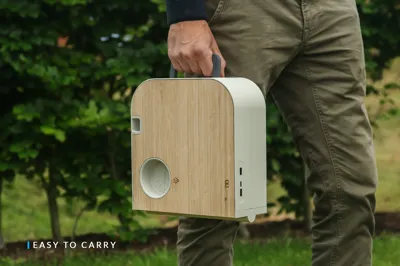

- Carrying handle
- Lockable
- Stepless adjustable feet

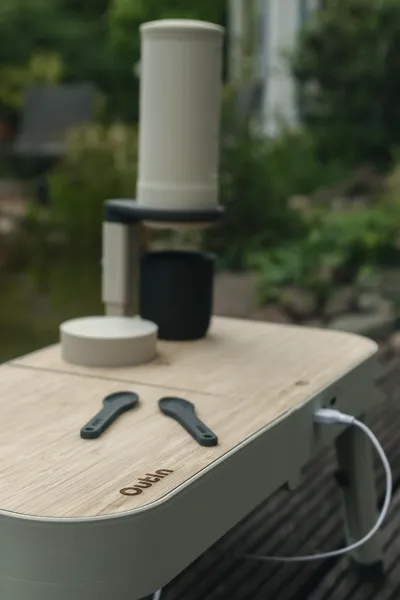

- Coffee stand (for OUTIN)
- Integrated power bank (20,000 mAh – enough to charge the coffee maker twice)
- LED light with small lampshade (MH001)
- Customizable tabletop (can be printed or laser cut – H2D)
- Includes two spoons
Assembly
Please refer to the assembly manual I uploaded as a PDF. It is quite detailed and should guide you through the build process.
Additional Components (not included in the print files)
5 x M6 x 12 mm Hexagonal Screw
10 x M3 x 12 mm Socket Head Cap Machine Screws (AA038)
10 x M3 x 20 mm Socket Head Cap Machine Screws (AA040)
6 x 3 mm x 1 mm Magnets (CA014)
4 x M3 Theaded Inserts (AB012)
Bambu LED Kit (MH001)
Print information
Both print profiles are required to build a functional product. I separated them based on color for convenience.
Laser cutting your table top
Please download the ZIP file, which contains two DXF files for laser cutting.
I used the 3 mm Bamboo plywood. Obvious since it is a OUTIN x Bambu project. But i think cork or walnut plywood could look great aswell.
Click the button to access the laser cutting files.
