Himalayan 450 Chain Adjuster Plate
IP Report
Print Profile(1)
0.2mm layer, 6 walls, 40% infill
Designer
39 min
1 plate
Open in Bambu Studio
Boost
20
28
8
1
60
11
Released
Description

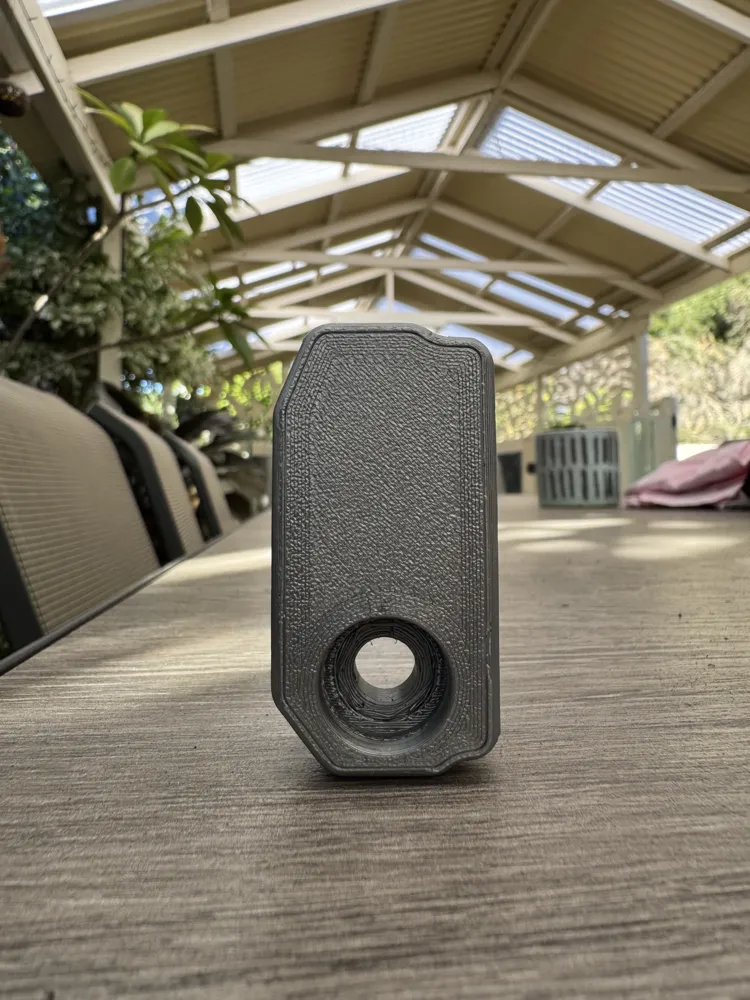

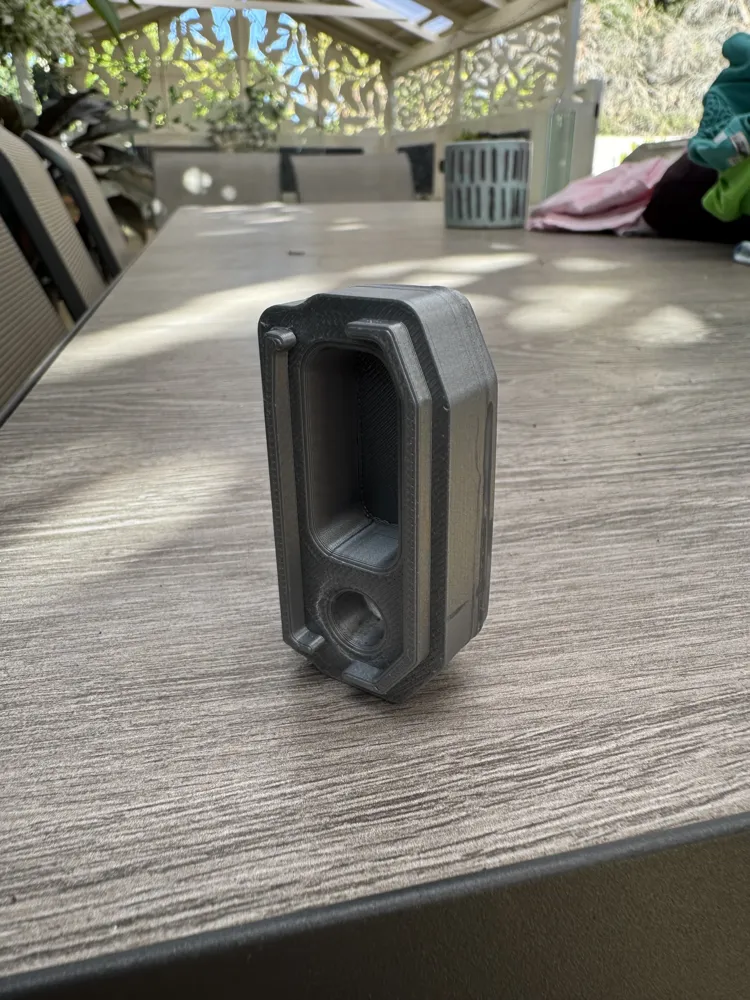

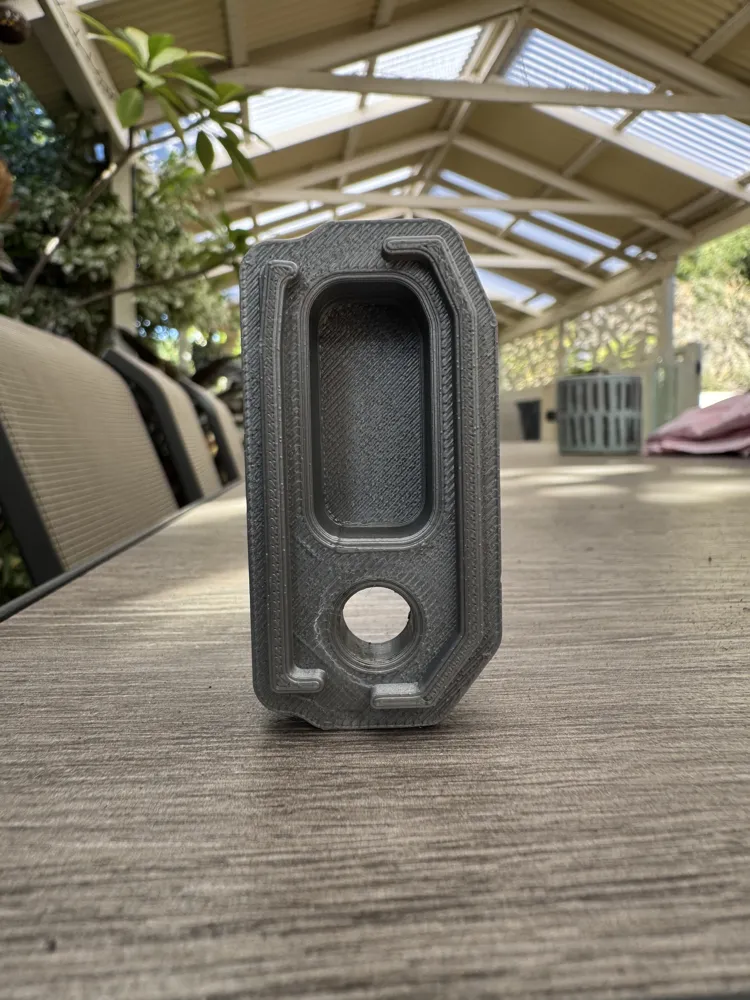

This is a replacement chain adjuster plate for a Royal Enfield Himalayan 450 adventure motorcycle. Part Number RAR00241
This must be printed with a strong filament type and printed with at least 40% infill.

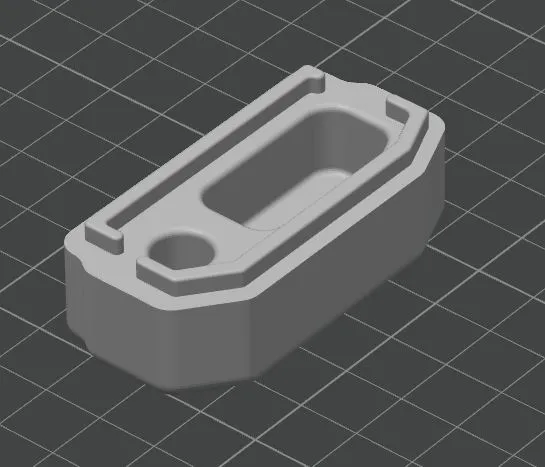

The model has been designed with the bolt hole slightly off centre. To fit to motorcycle, align the plate and feed in bolt at an angle until you can start the thread. Once tightened, the bolt should be under tension and held against the sidewall of the bolt hole.
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial
