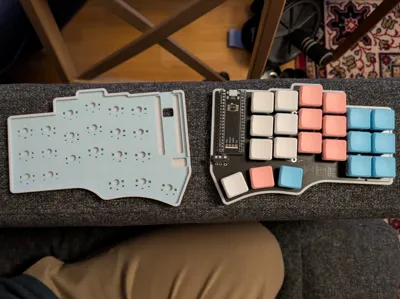

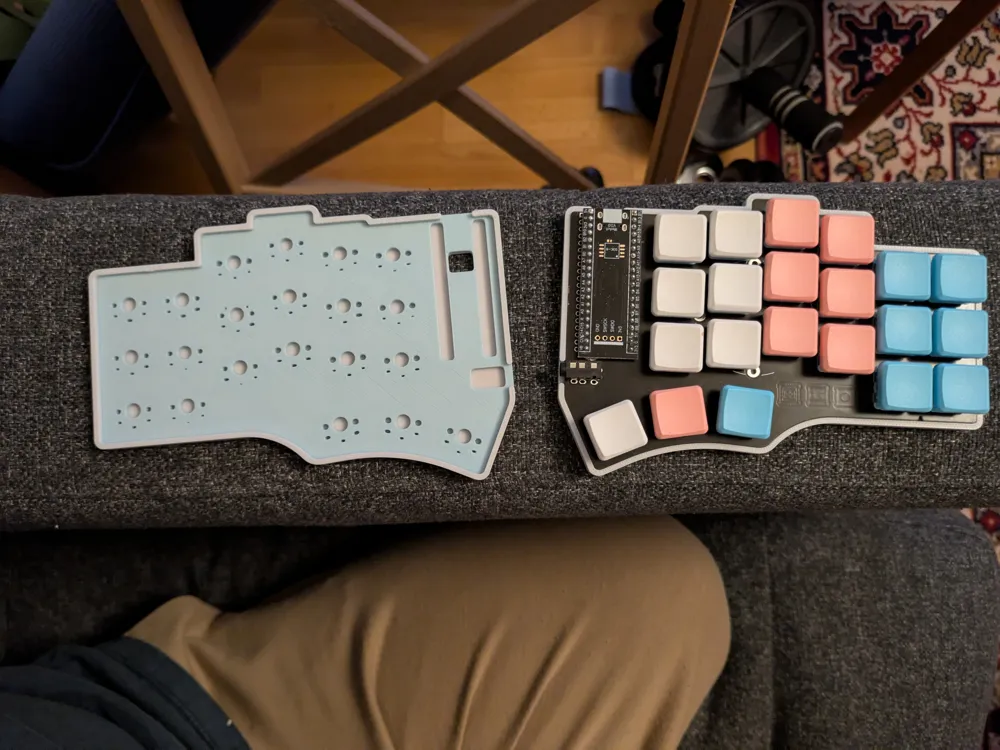

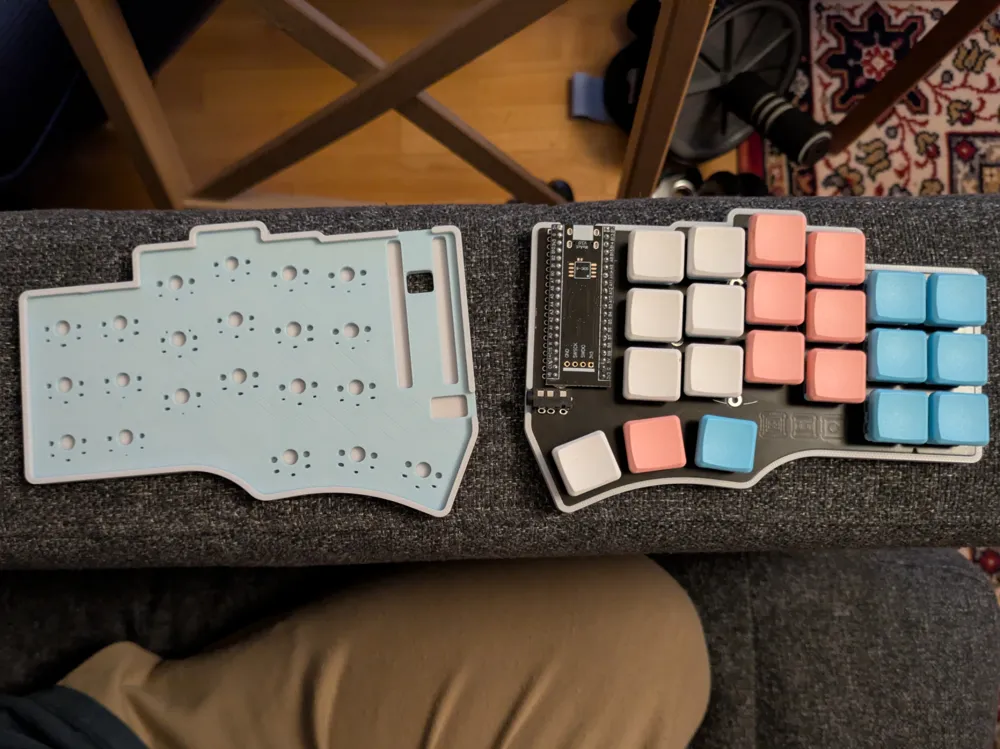

A simple case for your Cantor MX keyboard. The Cantor is a version of the crkbd with aggressive pinky column stagger. It uses the STM32 “blackpill” MCU instead of promicro clones, which means that there's no need to solder any diodes. The blackpill has enough GPIO pins to not need a matrix, which is cool.
You can read more about the keyboard, find build guides and a BOM in diepala's github repo. I downloaded the pcb gerber files and just had them printed through jlcpcb.com. Worked great.

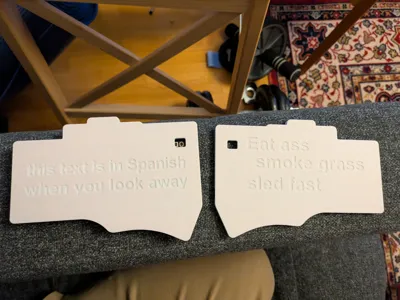

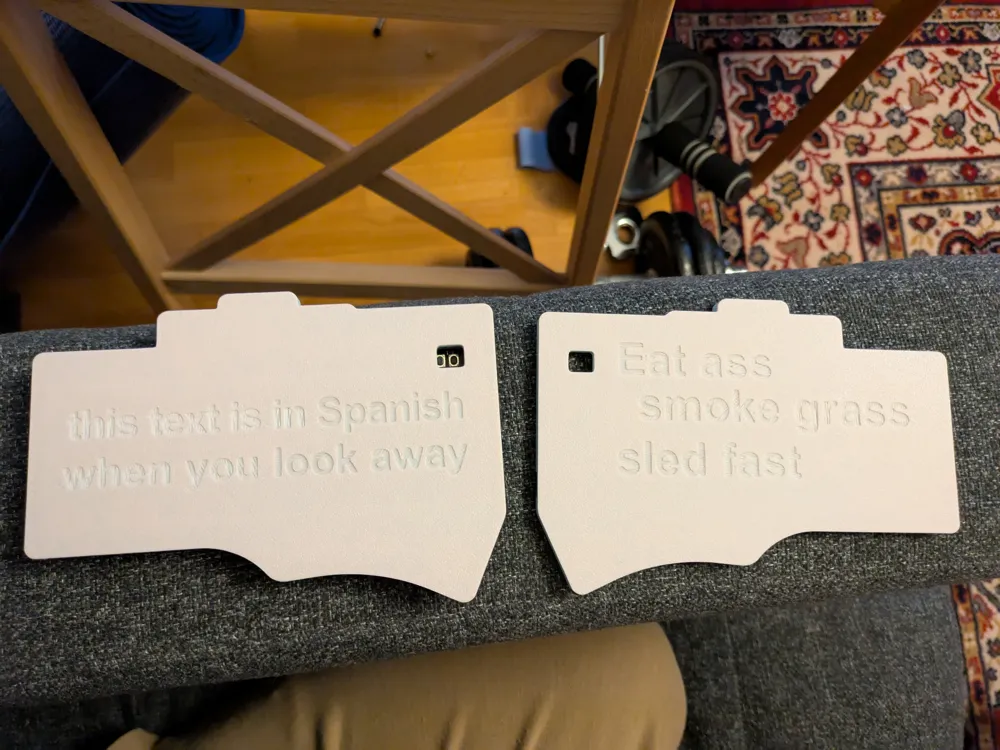

The case is press fitted, so just slot the keyboard into the case and press down. It's supposed to be a tight fit.
Printed in Bambulab Basic PLA.
